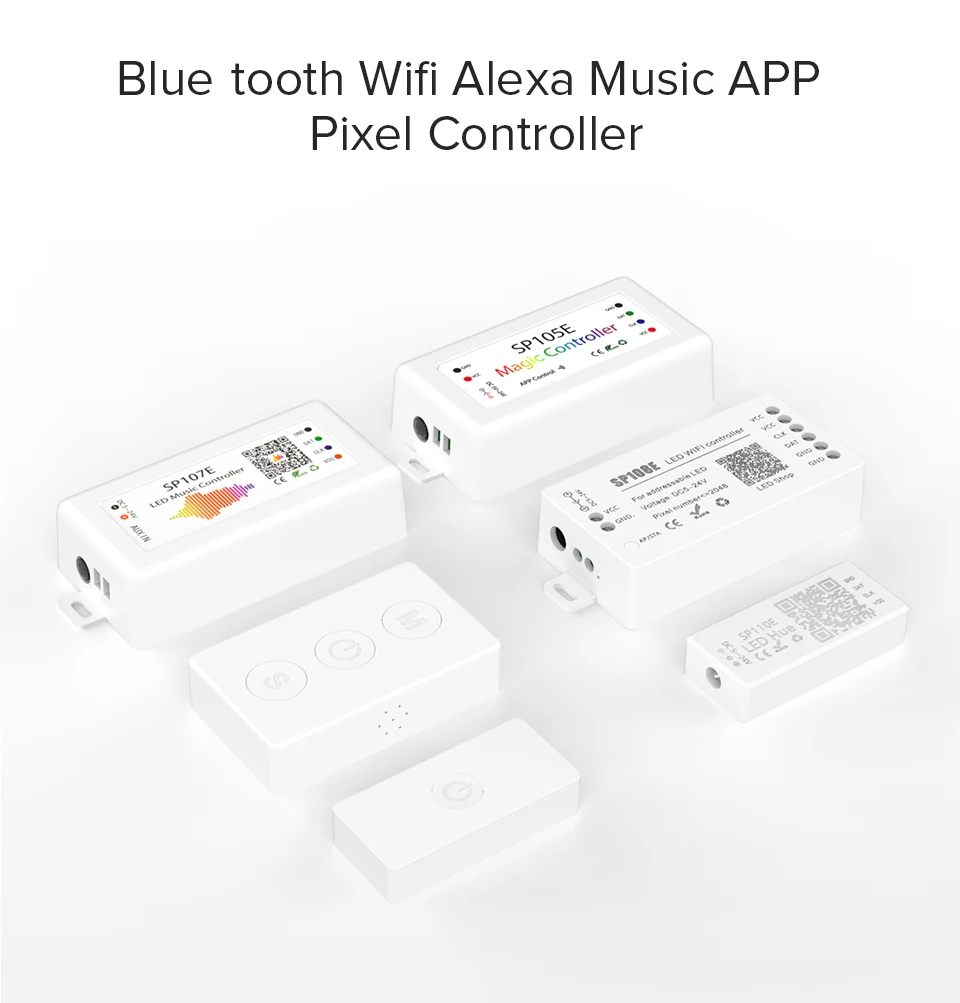

WS2812B LED Controller Wifi Bluetooth Pixel IC SPI Music APP for WS2811 WS2815 WS2813 SK6812 SK9822 RGBW APA102 LED Lights Strip

Please Note:

If your country's domain name does not end in .COM or .UK. SP511E controller can NOT work with your Alexa. then maybe you could buy SP108E wifi controller as its replacement, thank you.

Product Parameter:

1. SP series products are famous brand products, the company uses high quality components, so the controller compatibility, fluency is very good. Many of LED strips are of mediocre quality(Low quality IC is used), If you buy an unbranded controller, it may not be compatible with your LED strip.

2. Original authentic SP901E in our store. There are a lot of fake SP901E on the market, maybe their price is cheaper, but quality is very poor, it is very easy to burn if you connect it to many rolls LED strip. Please purchase with caution!

3. The magic color LED strip is DC5V, the controller must be powered by DC5V. If the controller is powered by DC12V or DC24V, the magic color LED strip IC will be easy to burn, the magic color LED strip will not work again. In a word, the operating voltage of the magic color LED strip should be consistent with the output voltage of the power adapter.

4.If your magic color LED strip is 4 wires connector, Please choose SP105E SP107E SP108E, they are 4 Pin connectors.

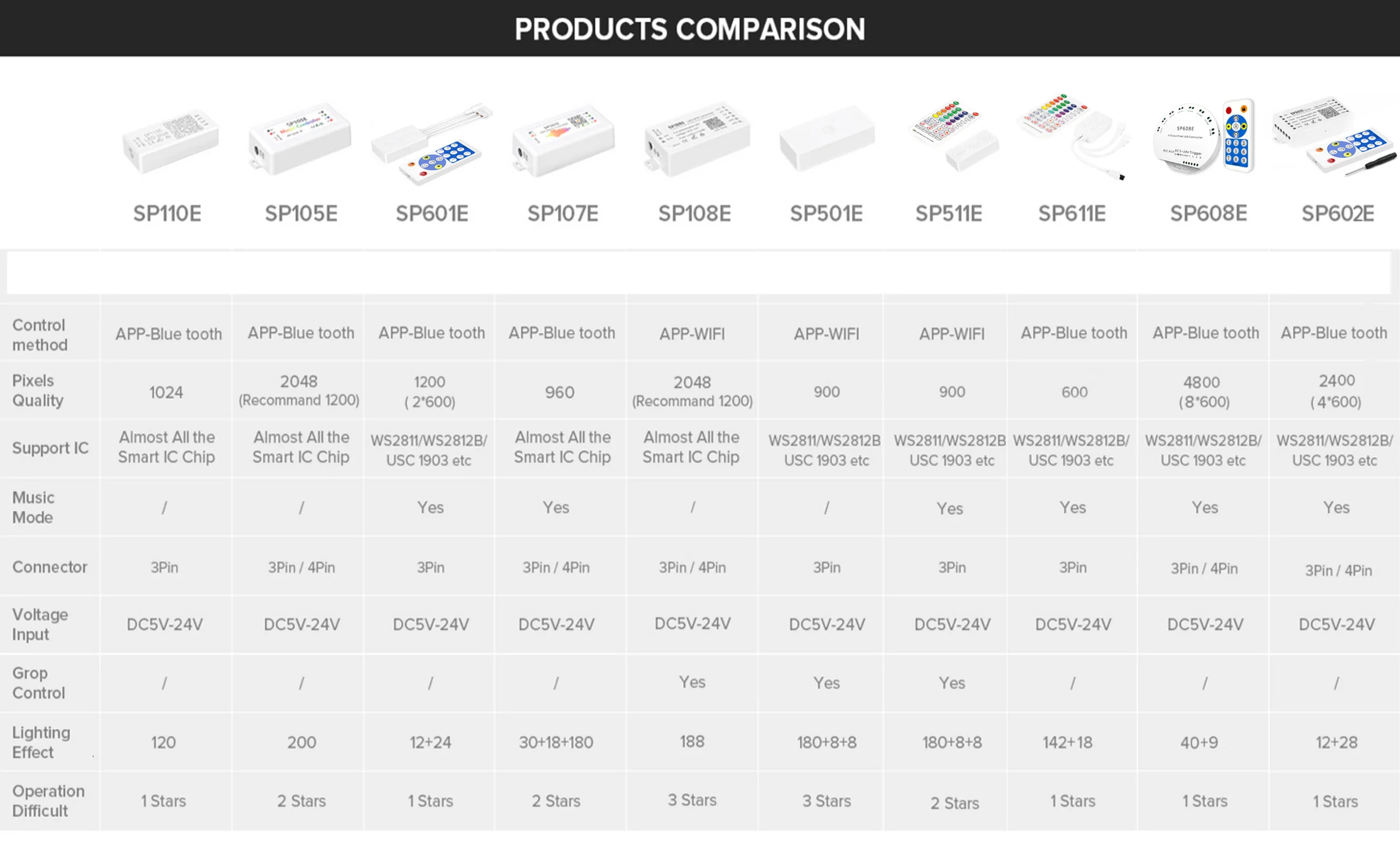

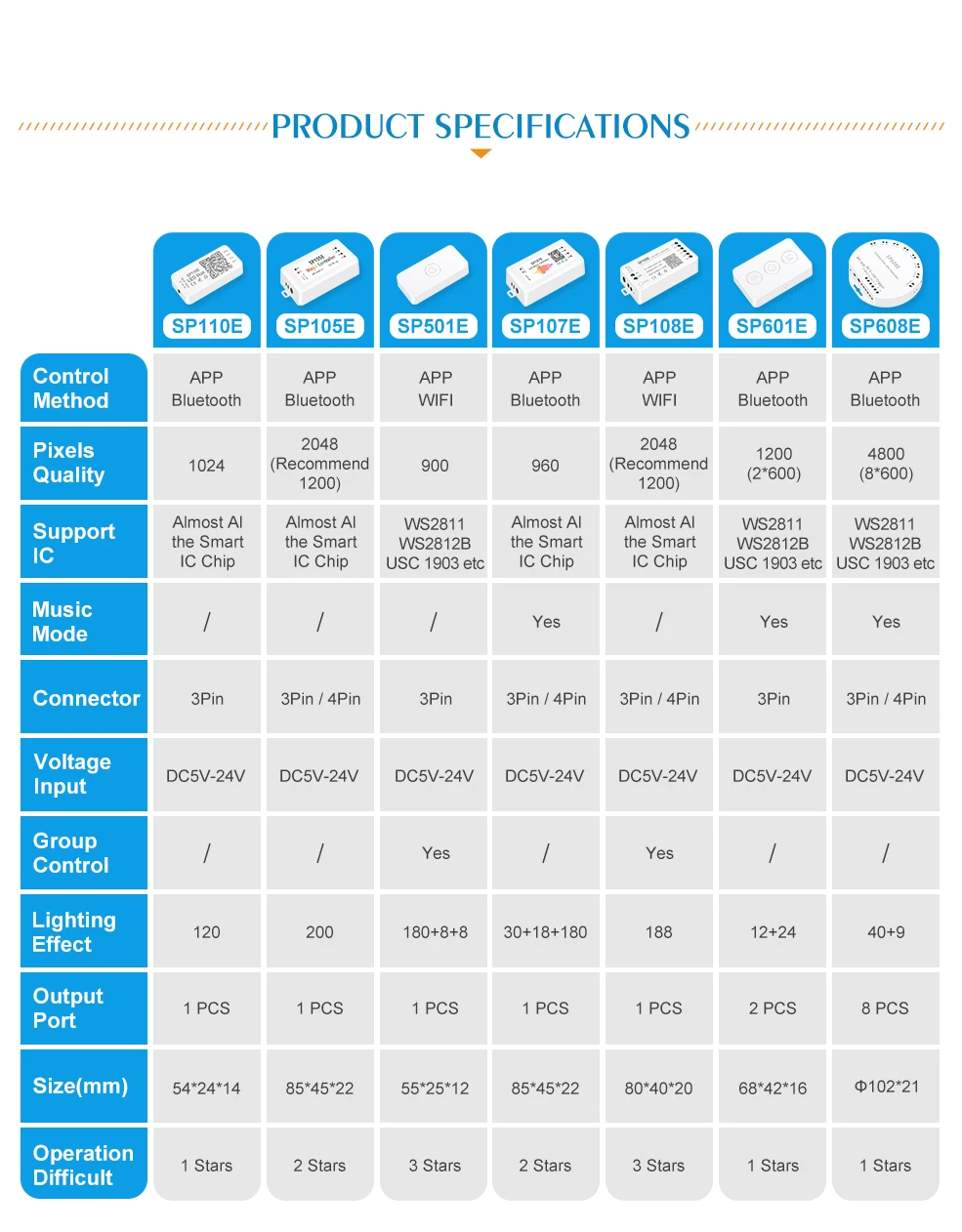

Specifications:

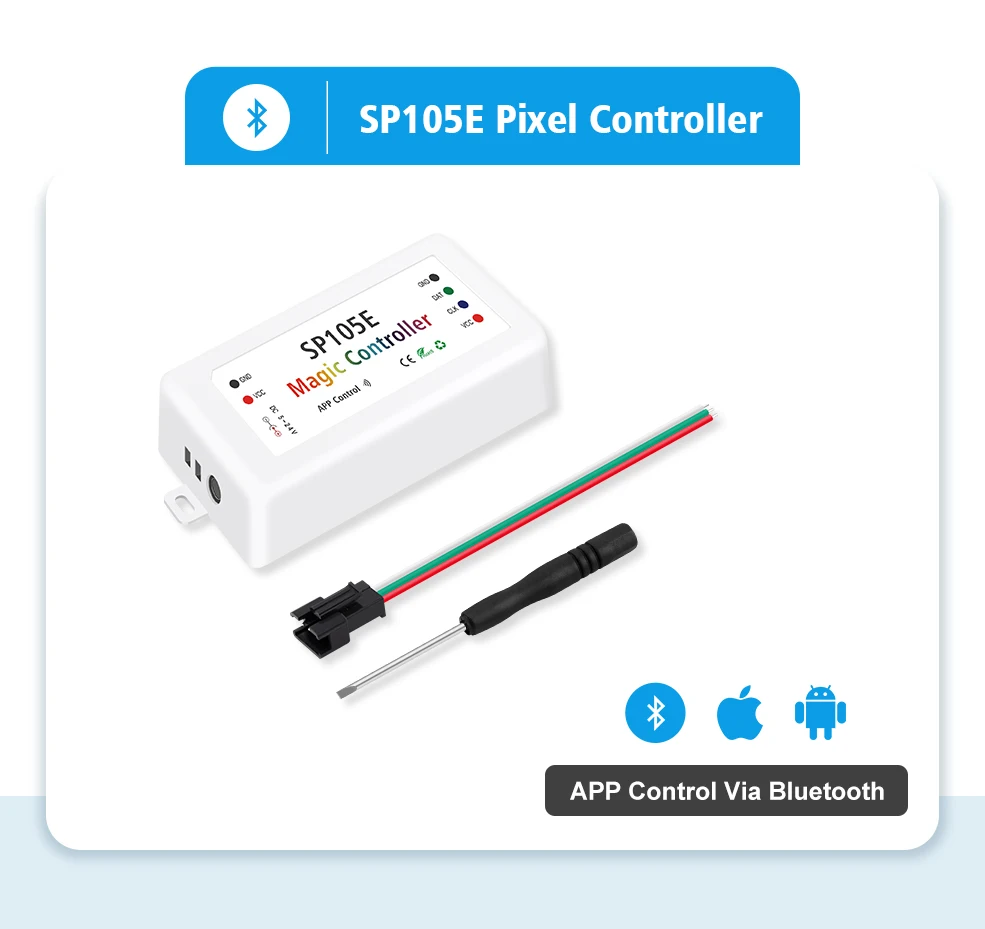

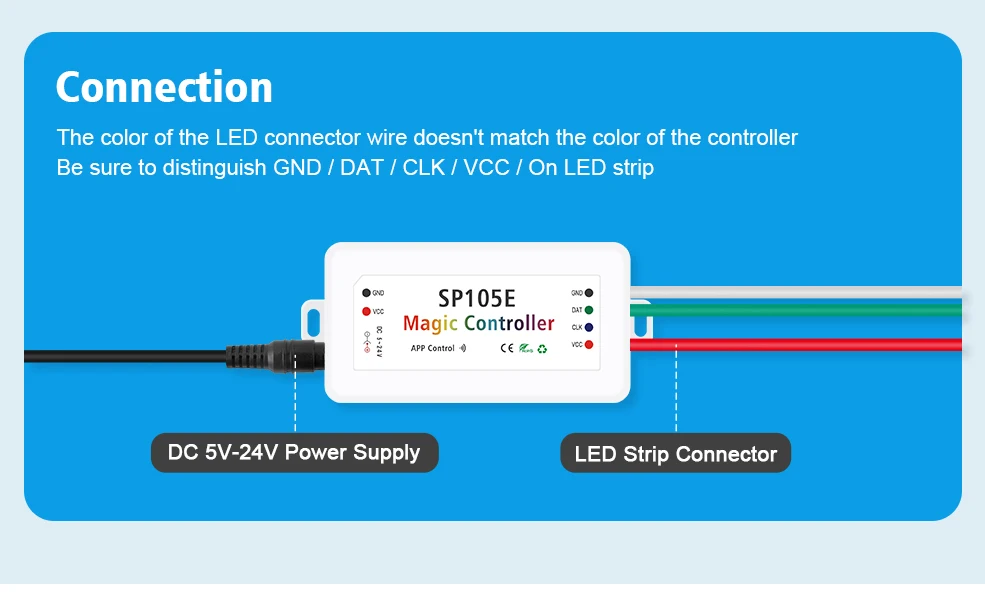

SP105E:

Control Method: APP (Bluetooth)

Input port: DC female connector

Input Voltage: DC5-24V Maximum current: 5.5A

Pixel: 2048 Music activated mode: No

Magical colour effect mode: 200 Output port: 2 Connector: 3Pin/4Pin

Support IC: WS2811 WS2812B WS2813 WS2815 WS2801 SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 APA102 GS8206 GS8208 SK9822 P9414 P9412

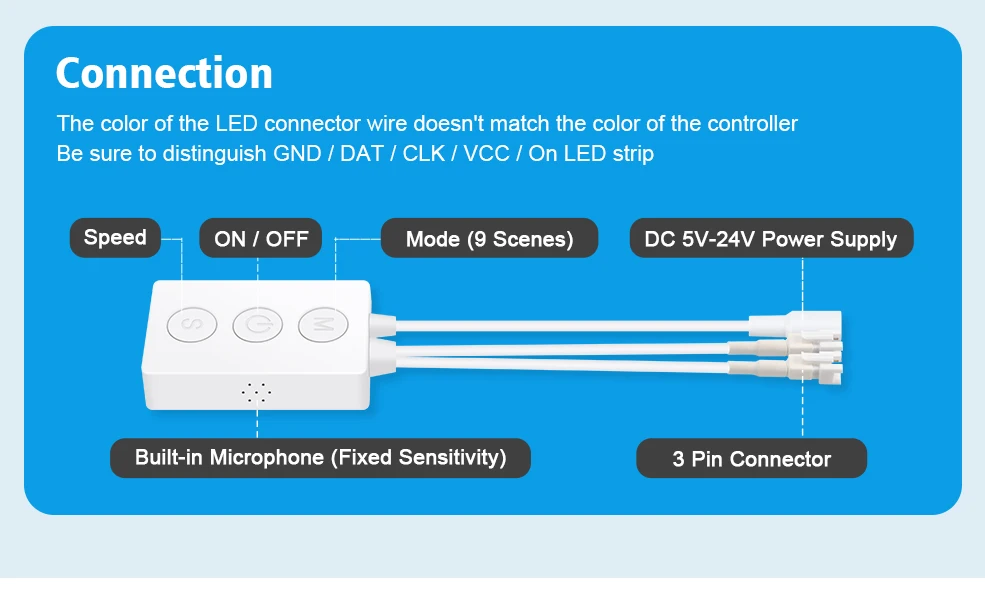

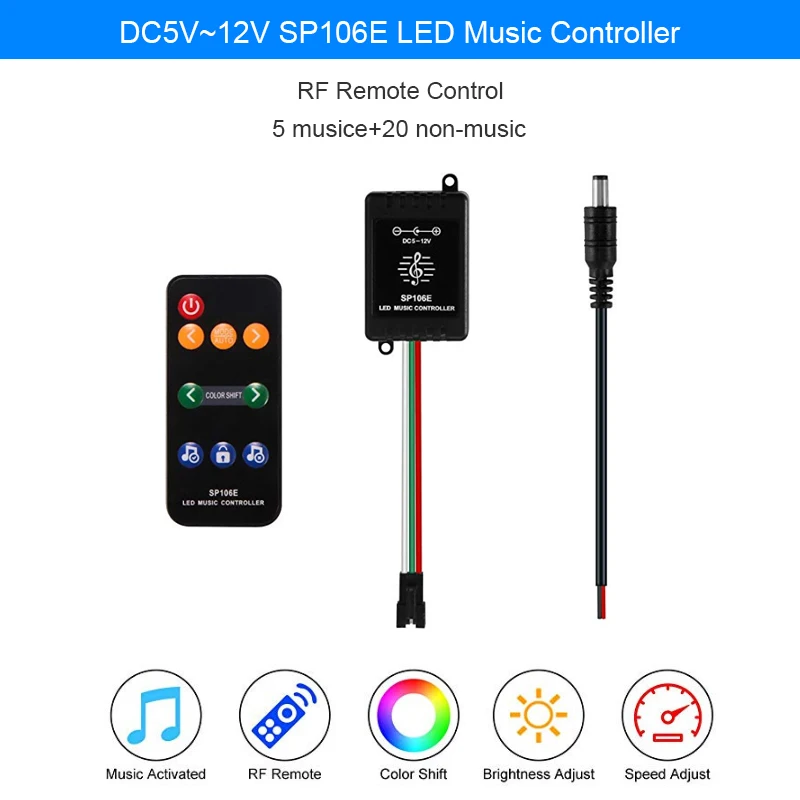

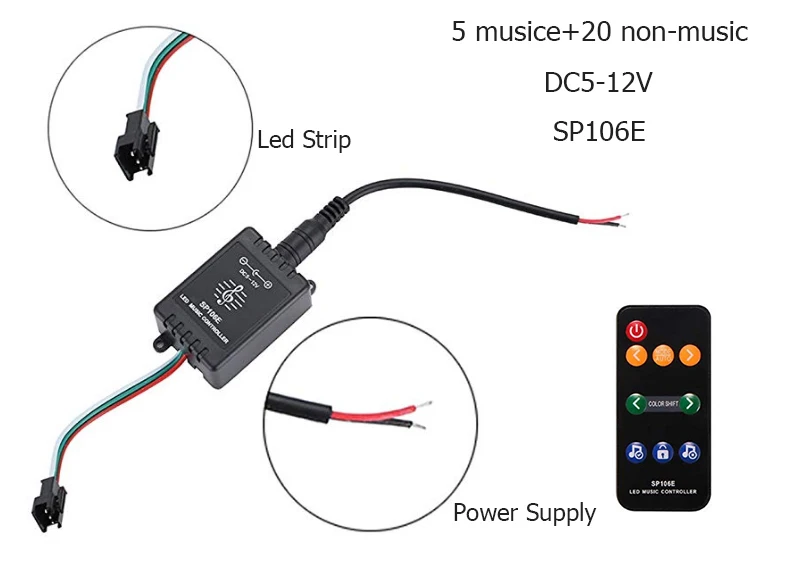

SP106E:

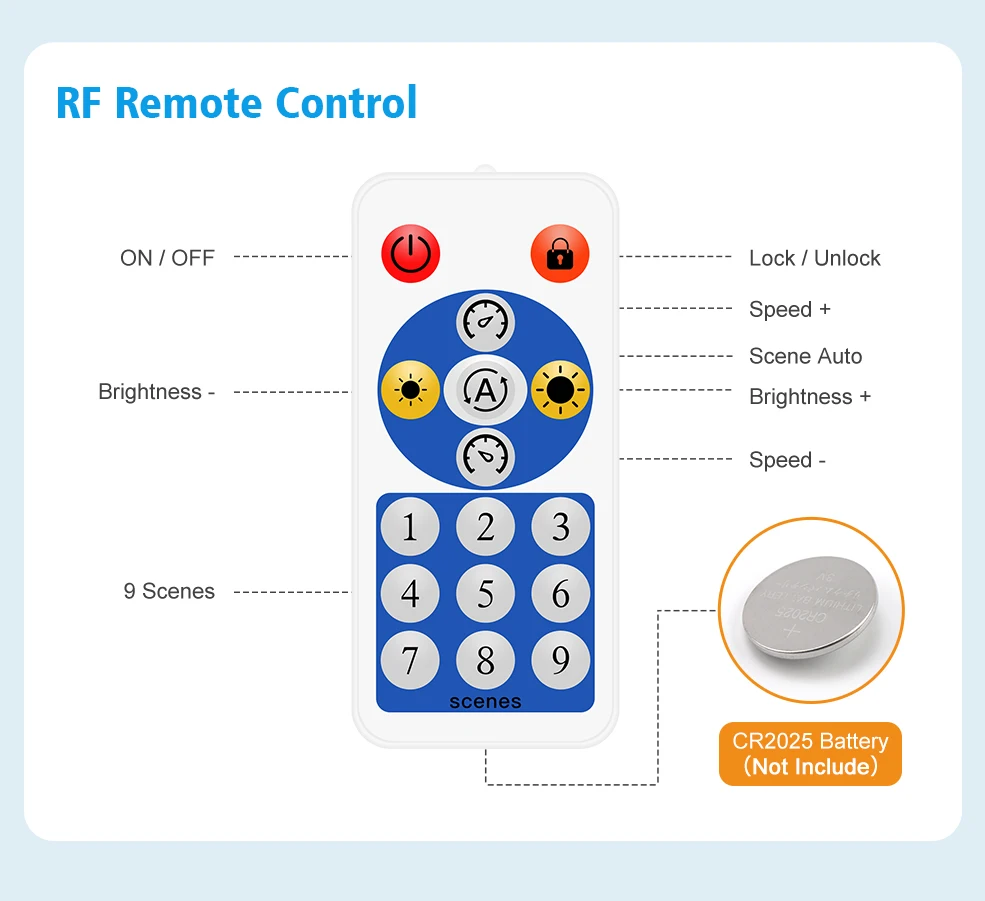

Control Method: RF remote control

Input port: DC female connector

Input Voltage: DC5-12V Maximum current: 8.0A

Pixel: 600 Music activated mode: Built-in microphone

Musical effect mode: 5 Magical colour effect mode: 20

Output port: 1 Connector: 3Pin Connection mode: common anode

Support IC: WS2811 / WS2812B / WS2813 / USC1903

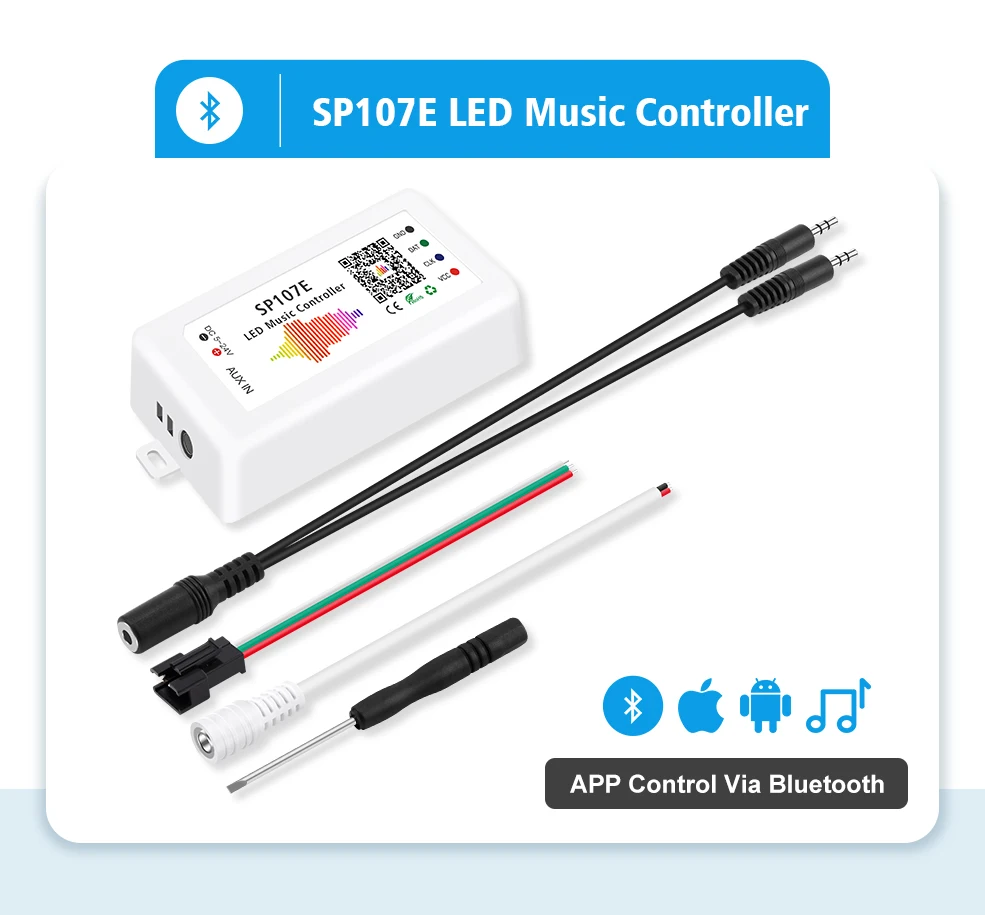

SP107E:

Control Method: APP (Bluetooth)

Input port: DC female connector Input
Voltage: DC5-24V Maximum current: 9.0A Pixel: 960

Music activated mode: Built-in microphone and AUX IN

Musical effect mode: 15+10 Magical colour effect mode: 180

Output port: 2 Connector: 3Pin/4Pin Support IC: WS2811 WS2812B WS2813 WS2815 WS2818 WS2801 SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 APA102 GS8206 GS8208 SK9822 P9414 P9412 TM1814 TM1913 P9813 APA105

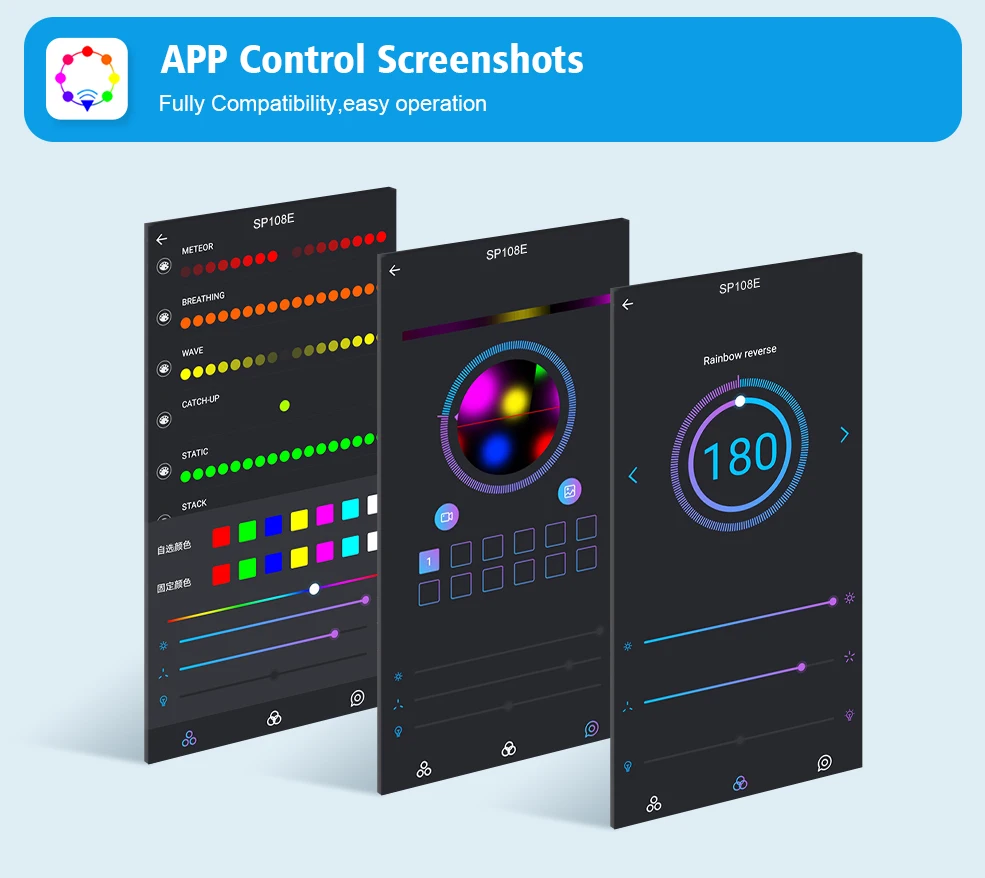

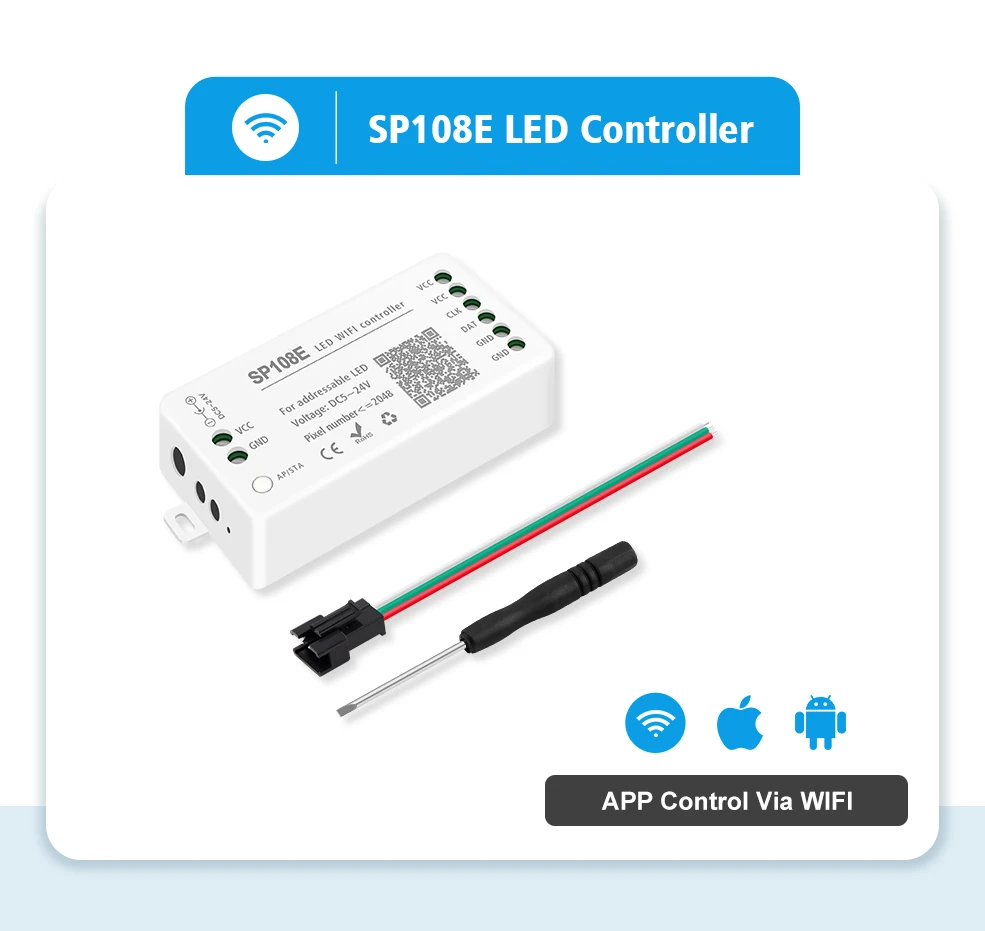

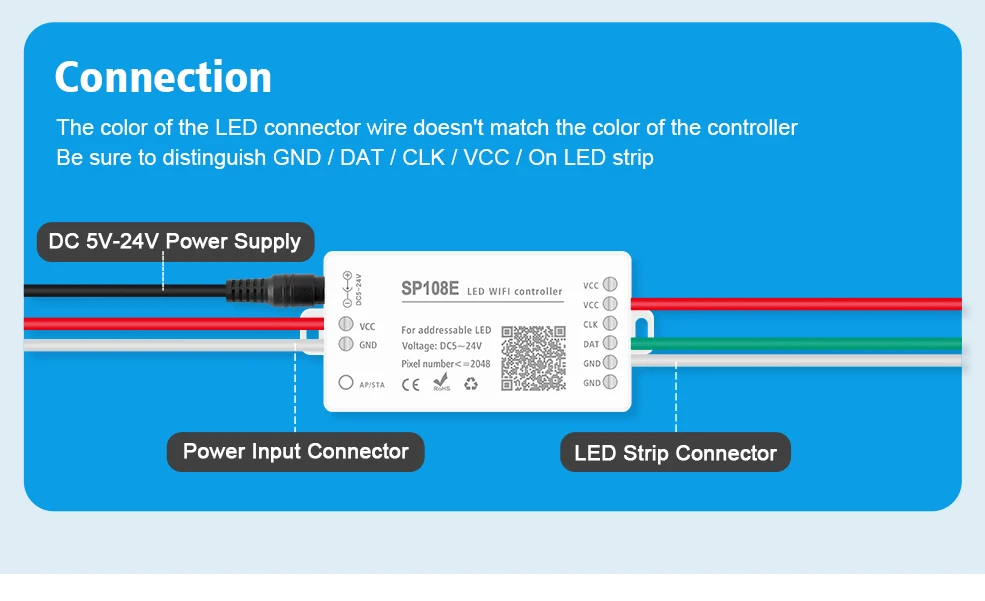

SP108E:

Control Method: APP (WiFi) Input port: DC female connector

Input Voltage: DC5-24V Maximum current: 4.0A

Pixel: 2048 Music activated mode: No

Magical colour effect mode: 180 +DIY Output port: 2 Connector: 3Pin/4Pin

Support IC: WS2811 WS2812B WS2813 WS2815 WS2818 WS2801 SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 APA102 GS8206 GS8208 SK9822 P9414 P9412 TM1814 TM1913 P9813 APA105

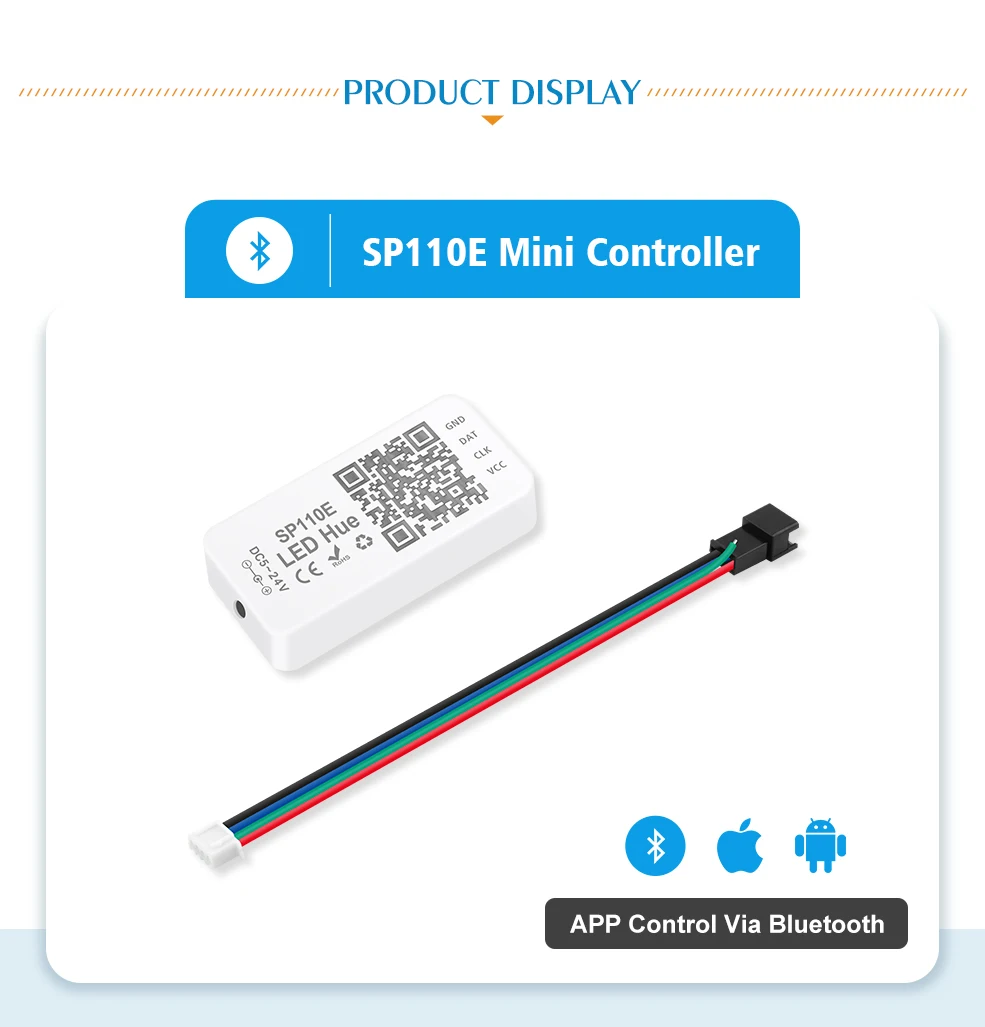

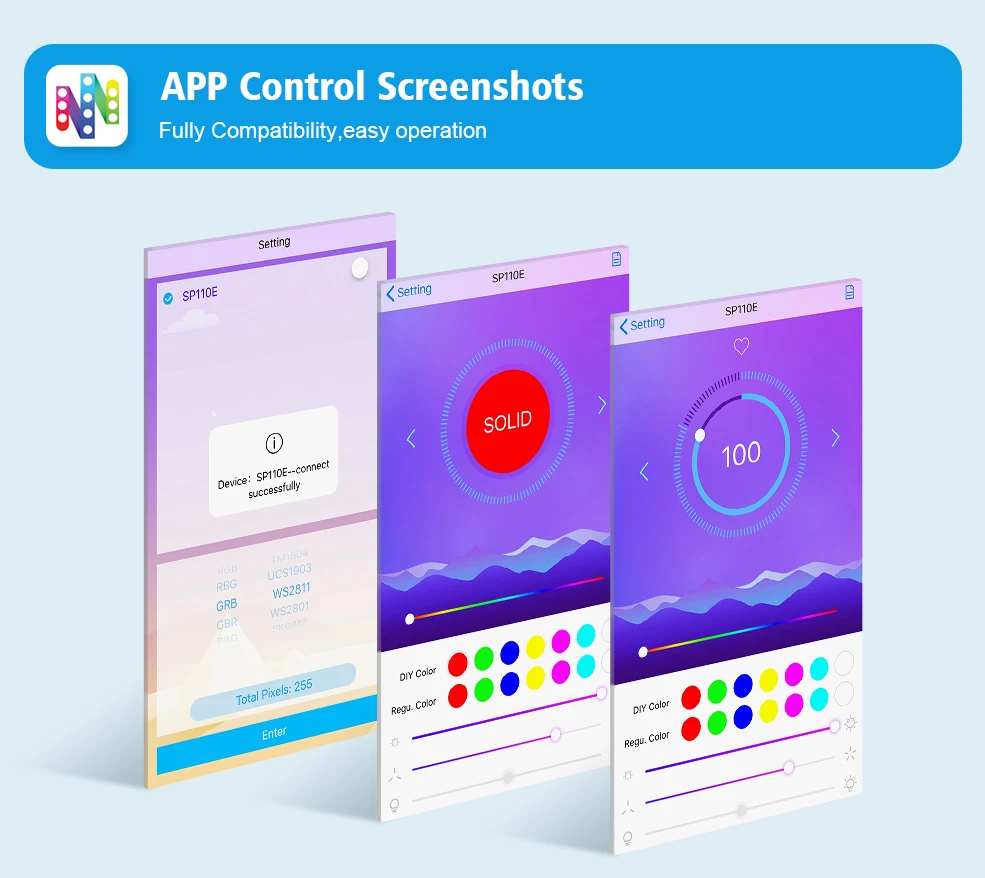

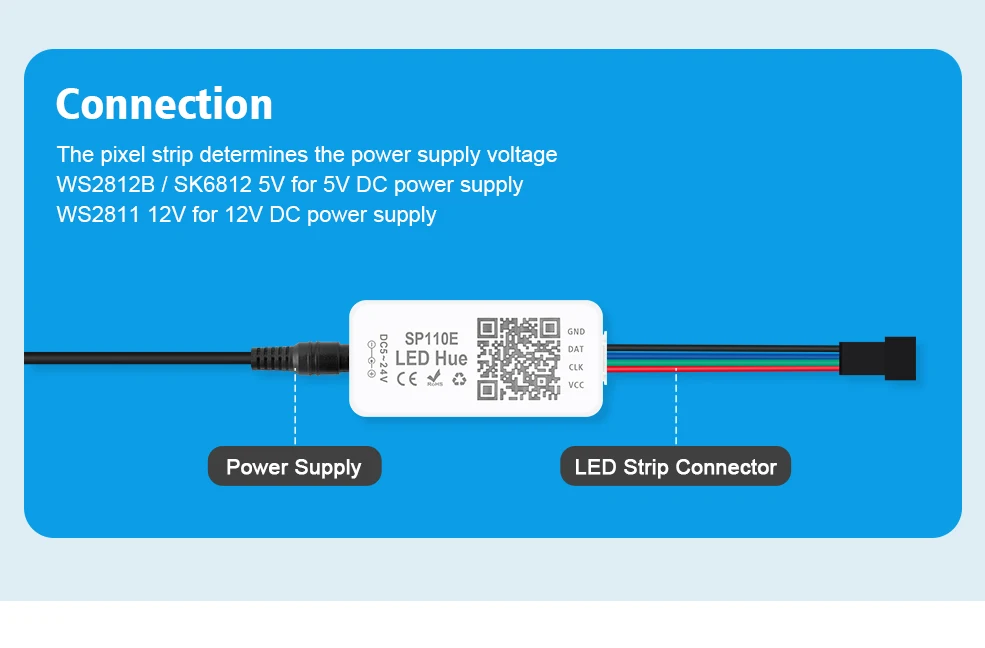

SP110E:

Control Method: APP (Bluetooth) Input port: DC female connector

Input Voltage: DC5-24V Maximumcurrent: 4.0A

Pixel: 1024 Music activated mode:No

Magical colour effect mode: 120 Output port: 1 Connector: 3Pin

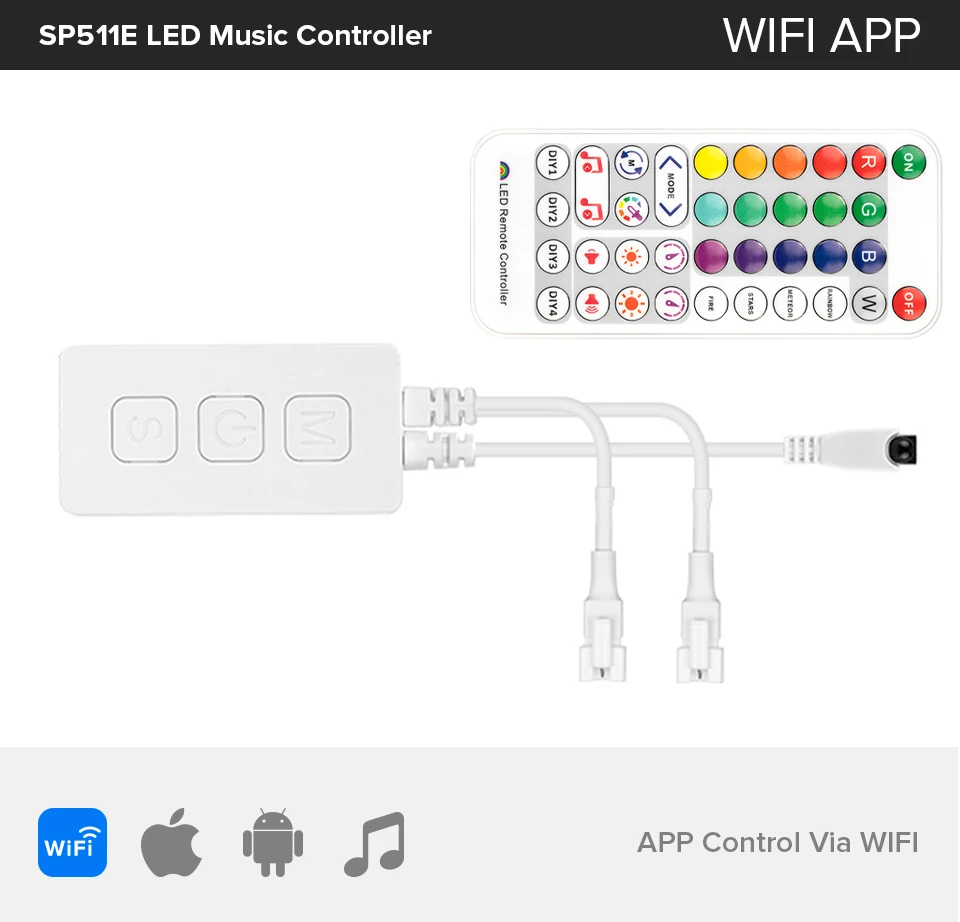

SP511E:

Control Method: IR Remote / APP (WiFi) / Voice Control

Input port: DC female connector Input Voltage: DC5-24V

Maximum current: 4.6A Pixel: 900 Music activated mode: Built-in microphone Magical colour effect mode:
8+8+180 Output port: 1 / 2 Connector: 3Pin

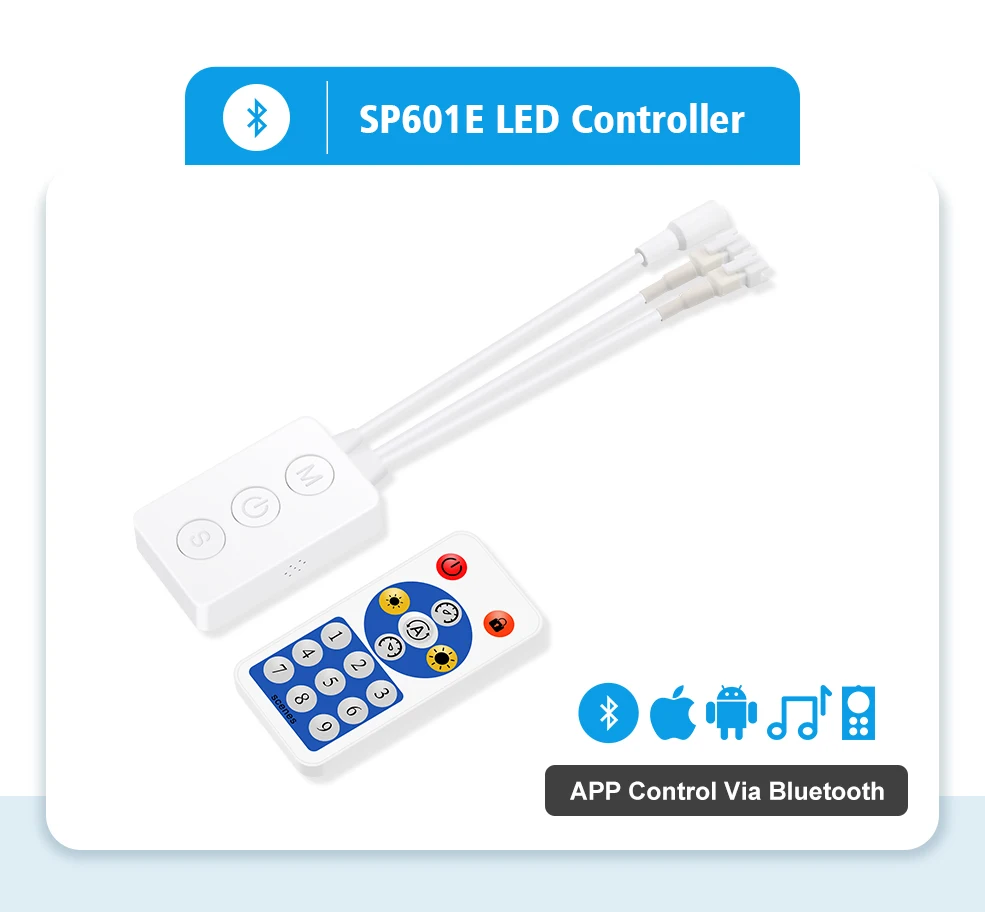

SP601E:

Control Method: RF Remote / APP (Bluetooth) Input port: DC female
connector Input Voltage: DC5-24V Maximum current: 4.5A

Pixel: 600*2 Music activated mode: Built-in microphone

Magical colour effect mode: 12+24 Output port: 2 (Standalone 2 ways, Can independently control the color of each way.) Connector: 3Pin

SP602E:

Control Method: RF Remote / APP (Bluetooth)

Input port: DC female connector Input Voltage: DC5-24V

Maximum current: 5.0A Pixel: 600*4 Music activated mode: Built-in microphone / AUX IN Magical colour effect mode: 12+28

Output port: 4 (Standalone 4 ways, Can independently control the color of each way.) Connector: 3Pin

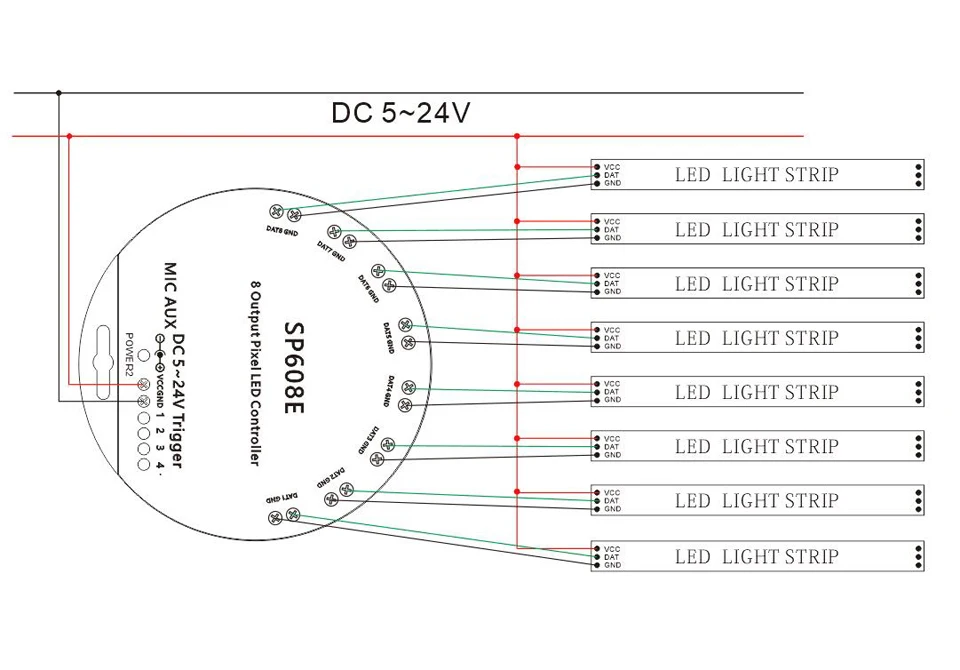

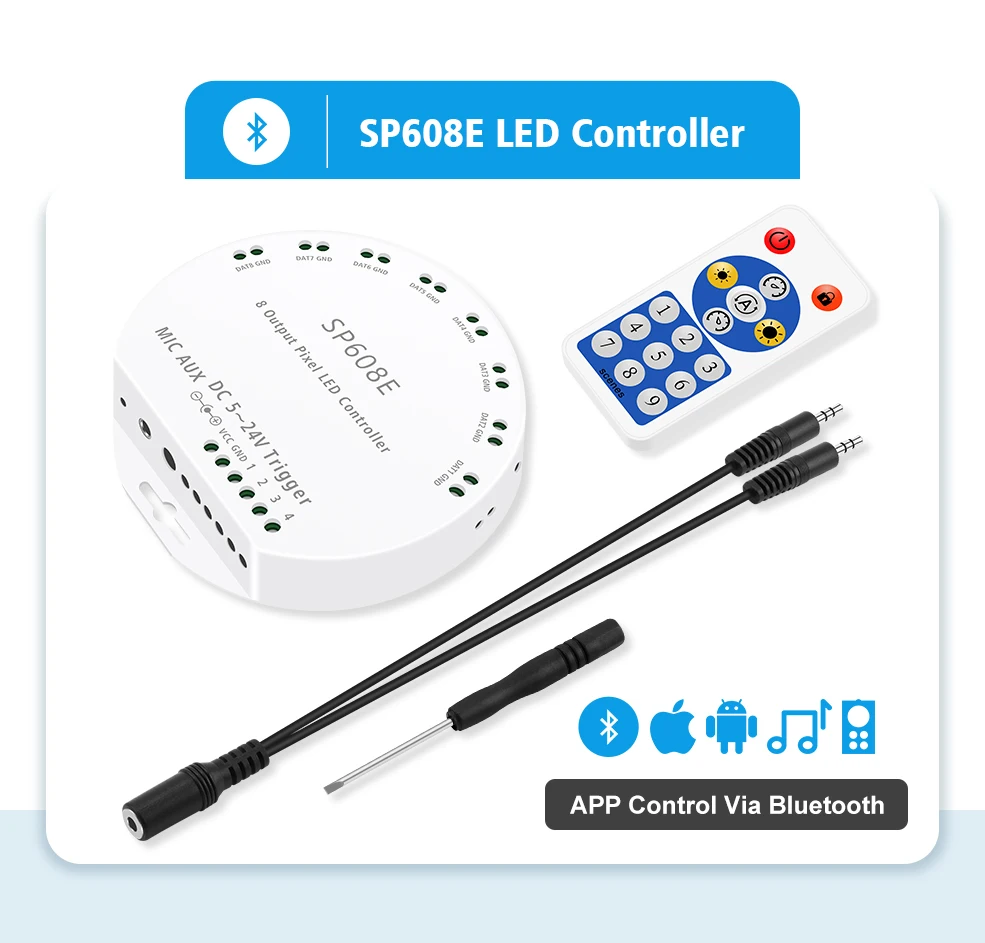

SP608E:

Control Method: RF Remote / APP (Bluetooth) Input port: DC female
connector Input Voltage: DC5-24V Pixel: 600*8 Music activated mode: Built-in
microphone / AUX IN Magical colour effect mode: 9+40Output port: 8 (Standalone 8 ways, Can independently control the color of each way.) Connector: 3Pin

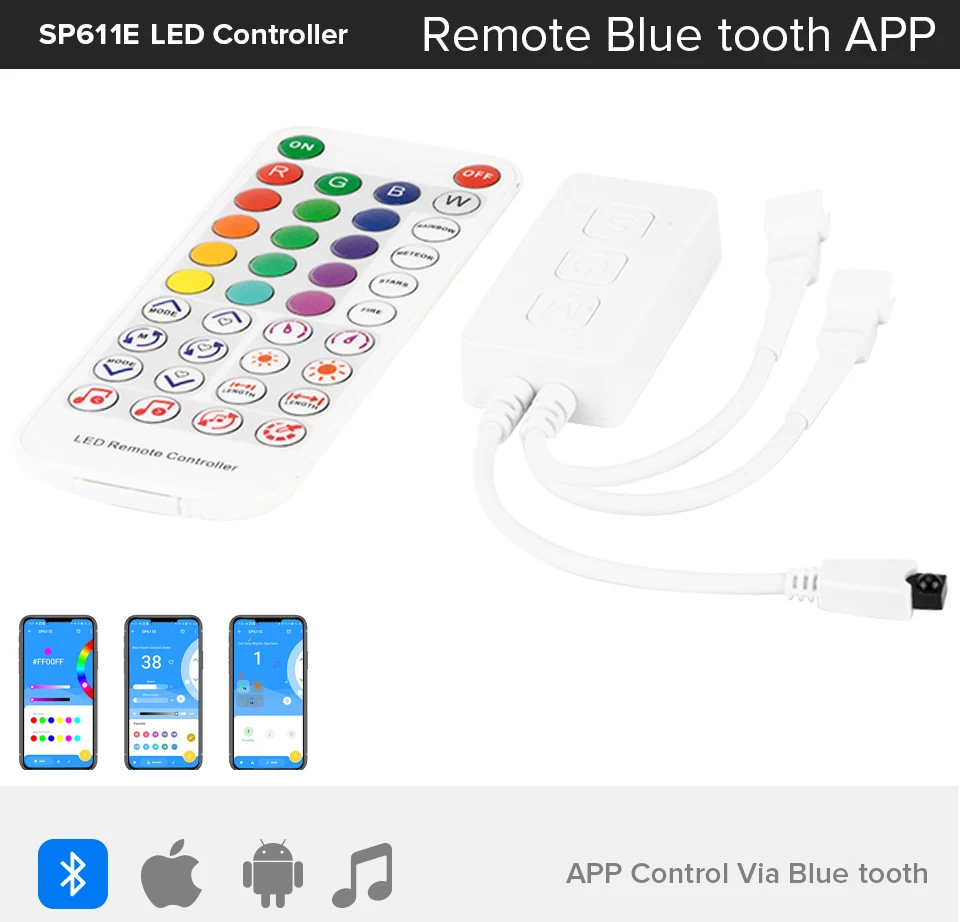

SP611E:

Control Method: IR Remote / APP (Bluetooth) Input port: DC female
connector Input Voltage: DC5-24V Maximum current: 5.7A Pixel: 600 Music activated mode: Built-in microphone /
AUX IN Magical colour effect mode: 18+142 Output port: 1 / 2 Connector: 3Pin

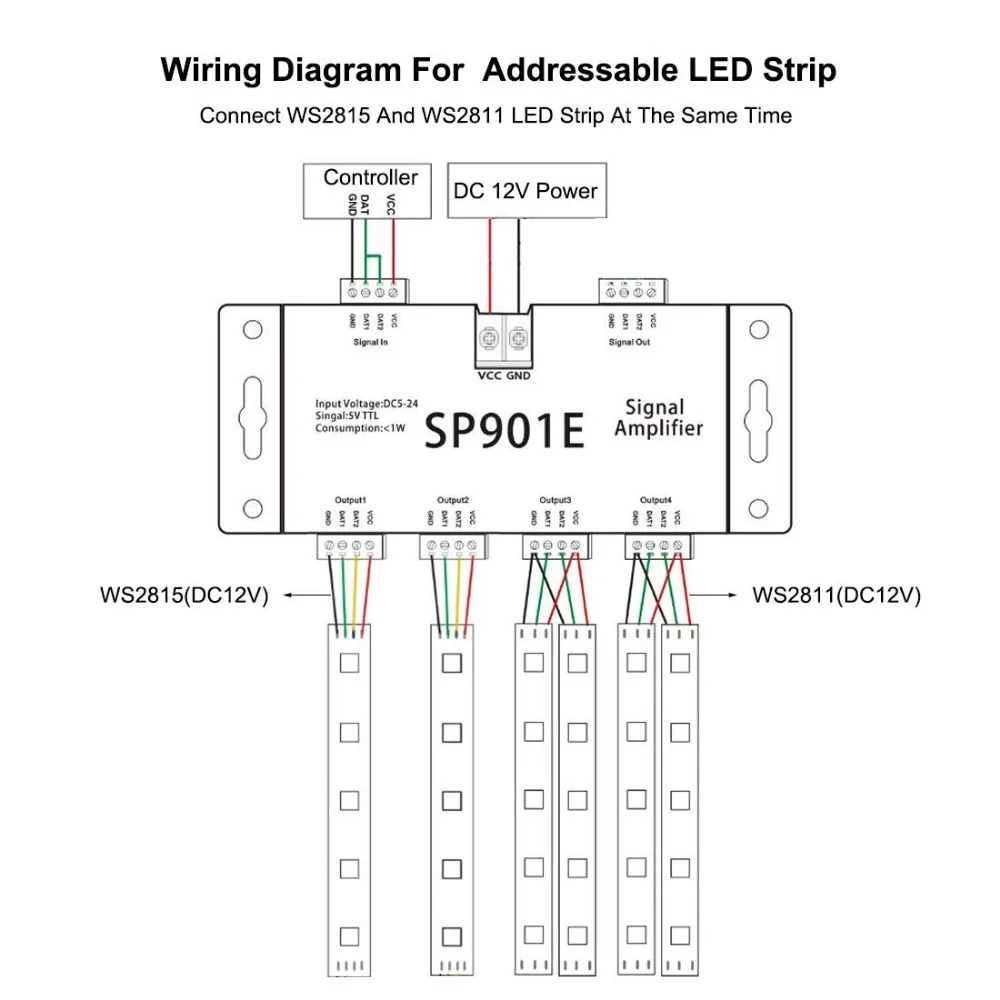

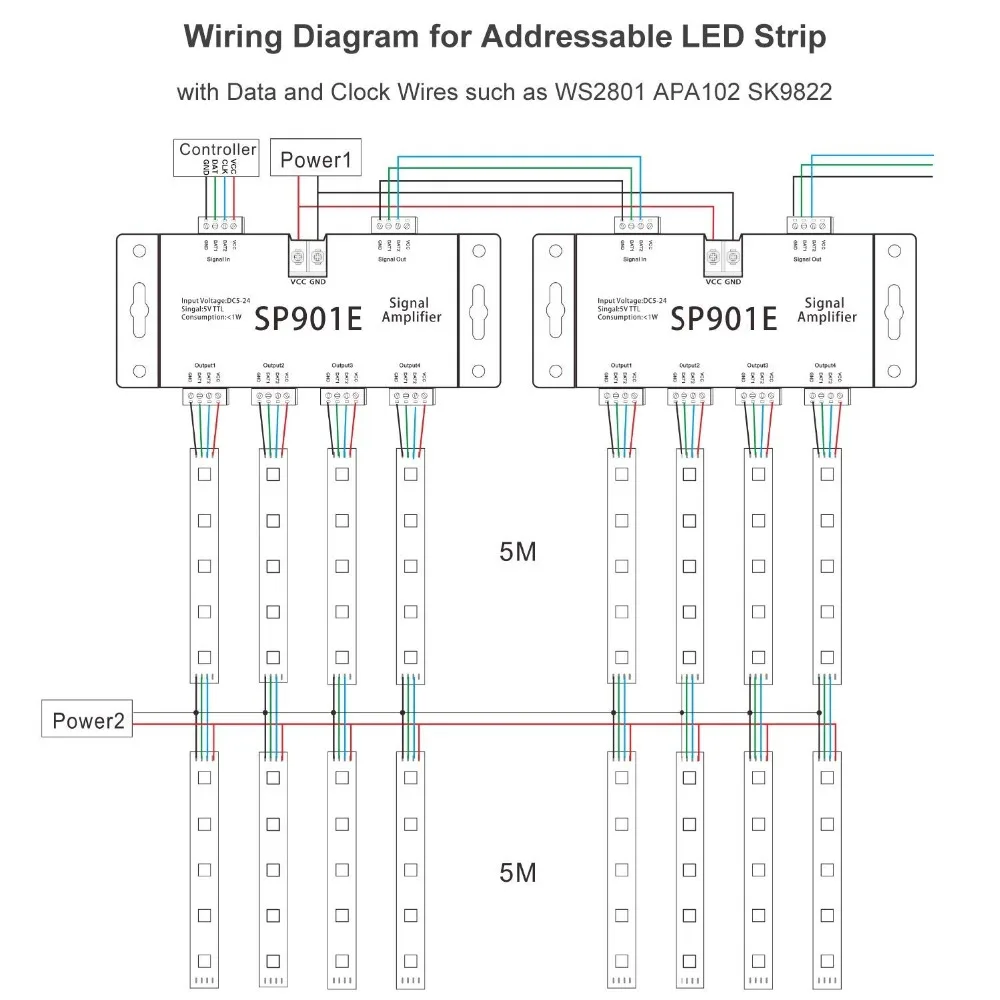

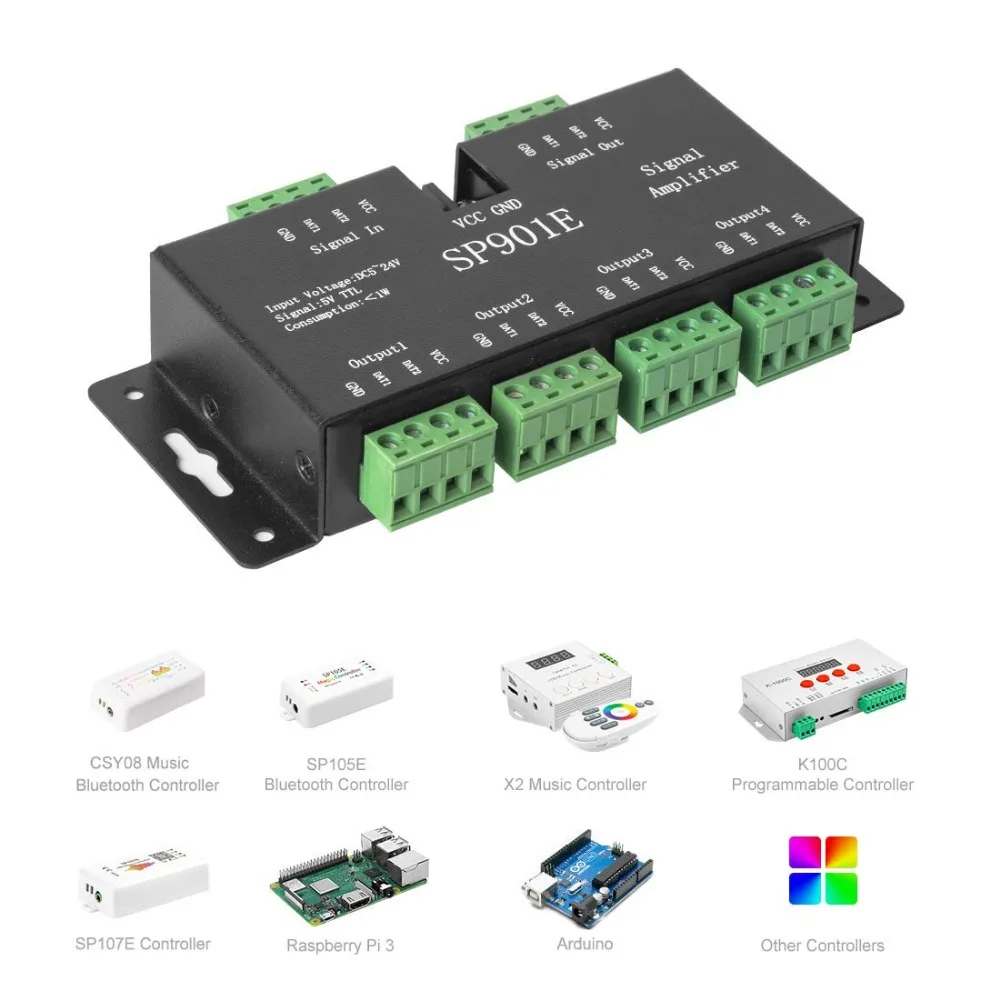

SP901E:

Product name: Magic color(Digital IC) LED strip Amplifier Working voltage: DC5V~24V Output: 8 channels / 4 channels Static power consumption: <1W Size: 140mm×56mm×28mm Use: Applicable to all 5V-TTL signal dual signals (Magic color LED strip) Working temperature: -20-60℃

Compatibale IC type: WS2812B,WS2811,SK6812, SK6812-RGBW,SM16703, WS2813, WS2815, CS8812, AL2815, WS2801, APA102, SK9822,UCS1903, LPD6803, LPD8806, APA102
