THIS ITEM DOES NOT INCLUDE LEVER.

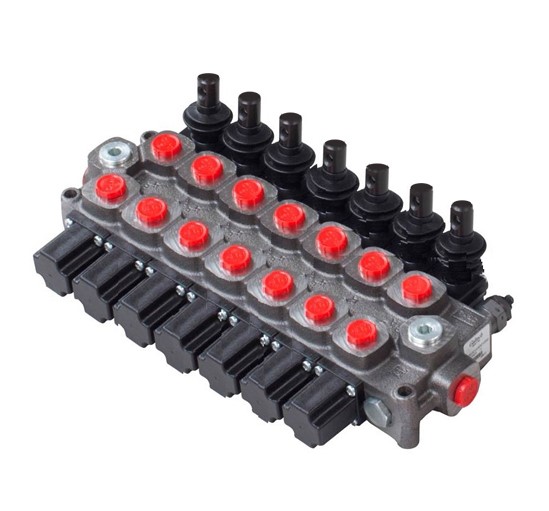

Compact and versatile Monoblock Control Valve

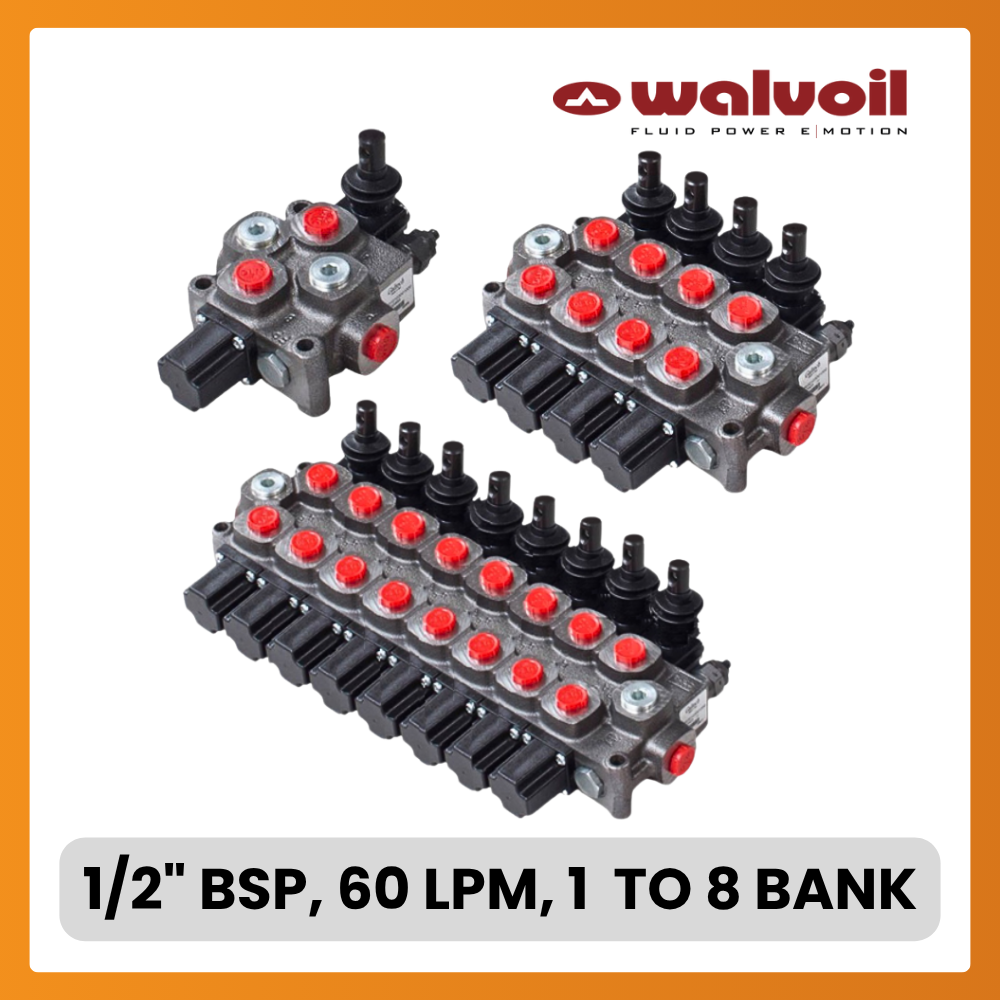

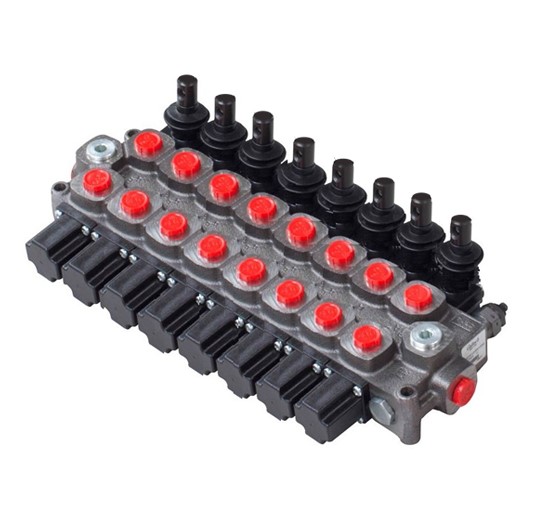

Available up to 8 sections, the Q45 is a Monoblock Control Valve that is suitable for use in applications that require low flow rates and compact and versatile hydraulic components. Perfect for various agricultural applications, earth moving machines, lifting and transport and industrial vehicles.

- Shockproof, anti-cavitation and combined panel valves

- Manual, hydraulic, electric push-pull, pneumatic and electro-pneumatic controls.

Ports Sizes:

P1: 1/2” BSP – P2: 1/2” BSP – A/B: 1/2” BSP – T1: 1/2” BSP – T2: 1/2” BSP

Nominal flow rate: 60 L/min

Maximum pressure: 350 Bar

Sections: 1 to 8

Distance between working sections: 38mm

CHARACTERISTICS

• High technical performances granting larger application range.
• Special high resistance cast-iron body, suitable for high working pressures.
• Nickel-plated offering granting long working life under high pressure conditions (see attached scheme).
• Standard circuit in parallel grants simultaneous operations, and due to negative overlaps and dedicate metering, there is proportional movement at the working ports.
• Minimal internal leakages. Interchangeability of the spools also with the ones of the sectional valves with “parallel” or “single” scheme.
• Possibility to reverse the control side, turning the spool of 180° permits unification, versatility and low value of some parts in stock.
• Free movement version “Y shape” allows high oil flow with low pressure drops, in relation with the small dimensions of the control valves.
