Item Width: 55 cm
Car Maker:
Audi,Australia Ford,Benz,BMW,Brilliance,Chevrolet,Chevy,Chrysler,Citroen,Dacia,Dadi,Daewoo,Daihatsu,
Demo,Fiat,Ford,GM,Holden,Honda,Hyundai,Isuzu,Jaguar,Kia,Lancia,Land Rover,Mahindra,Maruti,Mazda,Mitsubish,Nissan,Opel,Peugeot,Porsche,Renault,Romeo,
Rover,Saab,Seat,Skoda,Smart,Subaru,Suzuki,Tata,Toyota,Volvo,VW
Item Height: 43 cm
Voltage: 110V
Language: English,Spanish
Special Features: 3D wheel alignment
External Testing Certification: CE
Item Type: Mechanical Testers
Item Length: 275 cm
Item Weight: 130 kg
Guarantee: Original Free software upgrade
Feature: 3D four wheel aligner
Core advantage
• 5 Million Pixel Industrial Grade Camera, 26 frame/s imaging capture( 7 frame/s used by other competitor)
• Military Grade Quality, anti-dumping, anti-rotten, 270 celsius degree resistance ability0.1mm deformation
• Integrated CPU, less malfunction rate
• Short distance required for push-car operation, time saving.
• Only one time push-car operation is required, fast and accurate reading
• High accuracy, up to 0.01 degree.
• Client management system and printer
• Unlike conventional 3D aligner, KEED aligner is not subject to horizontal level of scissor lift
• WIN 7 Operating System
• One meter installation distance required for aligner and scissor lift
• Key technology. More Powerful, More profit
• 24 inch industrial grade display
Technical Specification
measurement accuracy accuracy total measurement range
Camber ±0.01° ±8° ±8°
Caster ±0.01° ±19° ±19°
SAI ±0.01° ±19° ±19°
TOE ±0.01° ±2° ±8°
Thrust Angle ±0.01° ±2° ±4°
Steering angle ±0.01° ±2° ±40°
Rear axle deflection ±0.01° ±2° ±4°
Track width difference ±0.01° ±2° ±8°
Front set-back ±0.01° ±2° ±4°
Rear set-back ±0.01° ±2° ±4°
Wheel tread ±0.25cm <268cm <268cm
Wheel base ±0.25cm <546cm <546cm
Wheel Circumference ±0.15cm <156cm <156cm

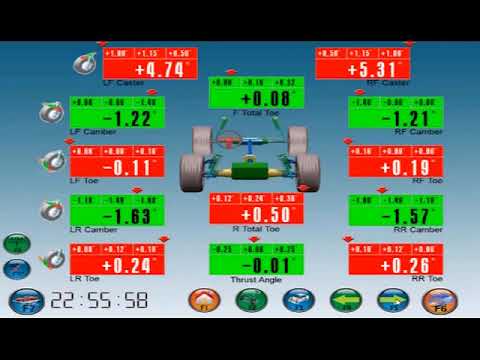

XK Wheel Alignment Machine 3D Tire Alignment System 2 - YouTube
