4K+1K+1K Triple-Channel This advanced dash cam system delivers triple high-definition recording with a 4K Ultra HD front camera (3840×2160 pixels), complemented by two Full HD 1080p cameras (1920×1080 pixels) for rear and interior monitoring, all maintaining their maximum resolutions simultaneously to capture every critical detail on the road. | 150° +150°+150°Wide AngleIt has three cameras, （Front+Cabin+Rear）each supporting a 150° wide-angle field of view, allowing you to see all corners of the lane, understand the situation around the car, reduce blind spots, capture almost everything in front, inside and behind the car, providing all-round protection for you and your vehicle . | Super Night VisionDrive with confidence at night knowing that the LINGDU AM100 dash cam improves exposure in low-light environments for clear imaging. The F1.8 large aperture ensures clarity and displays road details like license plates and road signs, making it a reliable guardian for your car day or night. |
|
|
|
|---|---|---|
Built‒in 5GHz WiFiWith the built-in 5GHz WiFi, you can view and download the recorded videos to your phone via the LINGDU application. And it will download faster. Note: The dash cam's WiFi cannot be connected to the Internet. Only a short distance (about 3m/10fts) can be connected to the mobile phone via AZDOME APP. | Loop recordingContinuously recording catches every detail. The Loop recording will automatically overwrite the earliest video segment when the memory storage space is full. You can choose the size of each file as 1minutes, 3 minutes, 5 minutes. | 24H Parking Mode24/7 parking surveillance automatically records 1080P footage upon impacts/motion. Features G-sensor detection, low-power standby, and voltage protection to prevent battery drain. Stores evidence via loop recording with instant smartphone alerts for security incidents. |
LINGDU specializes in providing smart car electronics & visual perceptual solution for car-lovers.
4K Dash Cam x1
Cabin Camera*1+Rear Camera*1
Pry tool x1
USB Car Charger x1
USB Power Cable x1(3.5m/12ft)
Electrostatic Films x2
Cable Clip x5
User Manual x1
64GB SD Card x1

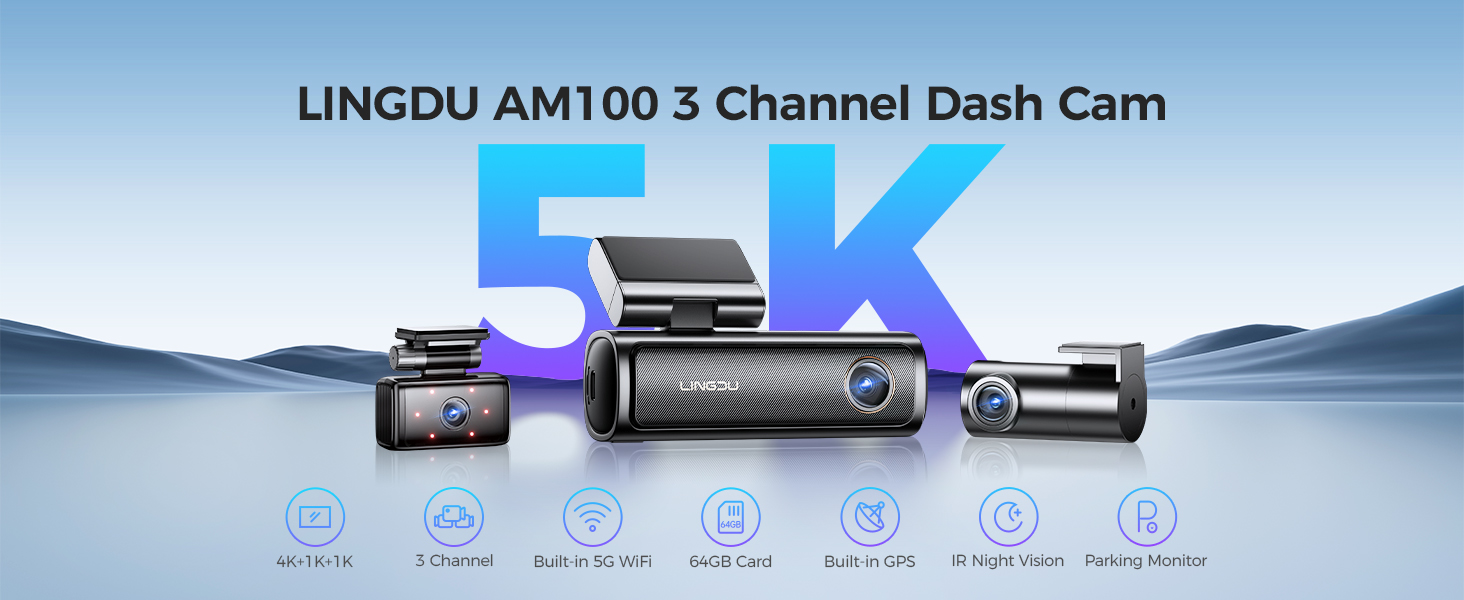

LINGDU AM100-3CH Car Dash Cam
Its 24-hour parking monitoring function can protect your car around the clock. When a traffic accident occurs when the car is turned off, it can perfectly record the entire process and provide you with sufficient evidence.
Its parking monitoring function supports two modes, Time Lapse Parking Mode and Collision Detection Parking Mode. You can choose according to your needs.
| *Time-Lapse Parking Mode: | 1.When you turn OFF the car's engine and turn the key to the lock position. Then the camera will STOP the continuous video recording and it will go into the timelapse 1fps recording mode automatically. 2. Now while this timelapse is being recorded, if someone hits your car and if the impact reaches the set G-Sensor level, then the camera will start to record 1-min continuous video, save & lock that video in Event folder > then return to the timelapse 1fps recording. 3. Now when you start your car for the next time, the camera will automatically STOP the timelapse parking mode. Then it will go into normal video mode automatically to start the continuous video recording. |
| *Collision Detection Parking Mode: | 1. When you turn OFF the car's engine and turn the key to the lock position. Then the camera will STOP the continuous video recording and it will go into the impact detection mode and the camera will turn OFF. 2. Now while the camera stays in impact detection mode, if someone hits your car and if the impact reaches the set G-Sensor level, then the camera will turne ON > then it will start to record 1-min continuous video, save & lock that video in Event folder > then the camera will turn OFF.
3. Now when you start your car for the next time, the camera will automatically go back into normal video mode automatically to start the continuous video recording. Time-Lapse Parking Mode Working Time — Off/ 1H- 24H (Default 6H) This setting allows you to choose the Working Time of Time-Lapse Parking Mode. |
Hardwiring kit requires additional purchase (powers the dash cam when the car is off) | The reasons why our driving recorders are not equipped with batteries or large-capacity batteries are as follows: Because batteries are flammable and explosive in high temperature environments (such as summer), in order to protect the safety of customers, most high-quality driving recorders on the market do not install batteries or do not install large-capacity batteries. If you want the dash cam to still work when the car is turned off, you can choose to install a step-down cable. The function of a step-down cable is to reduce the voltage. For example, the voltage of the car is 12V, and the voltage of the driving recorder is 5V. Only after connecting the step-down cable can the 12V voltage of the car battery be converted into 5V and output to the driving recorder. Therefore, installing a step-down cable can ensure the power supply of the driving recorder. |
More about this item:
Built-in 5G WIFI: LINGDU 3 channel dash cam could be connected to smartphone via LINGDU App. User could play the recorded video by using 5GHz WIFI.
4K Resolution: 1. Front: 4K (3840x2160P); 2. Front and rear: 4K+1080P; 3. Front and inside: 4K+1080P; 4. Front and rear inside: 4K+1080P+1080P.
Please Format at First Time Using: Dash cam comes with free 64GB SD card. User do not need to purchase it respectively. Dash cam for car max supports 128GB SD card.
Voice Control: Car dash camera features with 6 kinds of voice commands. With simple voice commands, user could control the dash camera very easily. Please note that only English command is available.
G-Sensor: Dash cam for car supports emergency recording. 4K dashcam could create emergency video files automatically as evidence of unpredictable accidence.
24H Parking Mode: Dash cams provide two parking modes. Time-lapse parking mode, dashcams for cars support all day parking mode. Vehicle could be protected day and night. Collision detection parking mode, car camera will start recording and lock video while the car get hit. Requires connection with Type-C 3-lead hardwired kit, search for https://www.ebay.com/itm/256004133341 or https://www.ebay.com/itm/256487986659 .
Super Night Vision: LINGDU car dash camera provides F1.75 aperture. 4K dashcam could clearly record the vehicle statues at night.
Built-in GPS: Car camera could accurately record route and driving speed information. User could review video through LINGDU App Player.
Loop Recording: 3 channel dash cam supports daylong recording. Dash cam for car will automatically provides new space for new video recording. User could select the length of each video clip in this mode.
What's in the box
4K Dash Cam x1
Cabin Camera*1+Rear Camera*1
Pry tool x1
USB Car Charger x1
USB Power Cable x1(3.5m/12ft)
Electrostatic Films x2
Cable Clip x5
User Manual x1
64GB SD Card x1
Product information
| Product Dimensions | 6.3 x 5.51 x 2.36 inches |
|---|---|
| Item Weight | 15.2 ounces |
| Warranty ＆ Support | 1 Year |
| Item model number | AM100-3CH |
| Camera number | 3 (Front+Cabin+Rear) |
| Brand | LINGDU |
| Connectivity technologies | Wi-Fi |
| Special features | Sony IMX415, NT98529, Super capacitor, Built‒In 5G Wi-Fi/GPS, voice guidance, Time-lapse, WDR, Loop Recording, G-sensor, Parking Monitor, Collision detection |
| Color | Black |
| Whats in the box | Cable clips x 5；Pry tool x 1, Dash camera ×1, Cabin Camera*1+Rear Camera*1, Electrostatic films x2；User manual x 1, 64GB Storage card x1, Car charger；Type-C USB Power cable (3.5M/12ft) |
| Manufacturer | LINGDU Direct |
| Resolution | Rear 4K ;4K+1K+1K |
