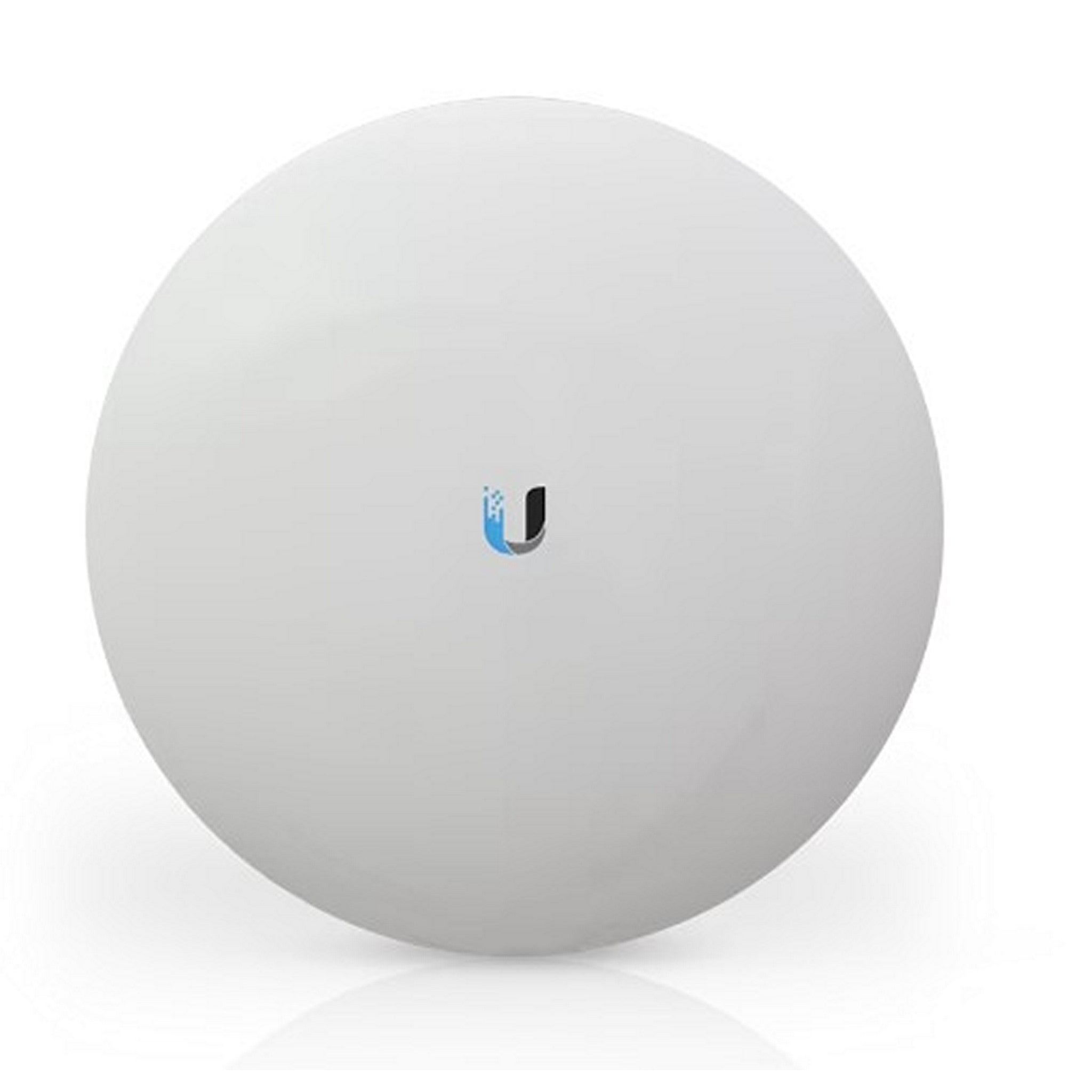

Ubiquiti NanoBeam 5AC 19 dBi Bridge for Outdoor Connectivity

Ubiquiti NanoBeam 5AC 19 dBi Bridge for Long-Distance Wireless

The Ubiquiti NanoBeam 5AC is a high-performance wireless bridge designed for long-range, reliable 5 GHz point-to-point connections. Offering a range of up to 15 km with speeds over 450 Mbps, it includes dual gigabit Ethernet ports and enhanced surge protection, making it suitable for various outdoor deployments. With a durable UV-stabilized plastic enclosure, it ensures optimal performance in harsh weather conditions. Ideal for remote areas, it supports a wide range of frequencies for versatile applications and high-speed, secure data transfer.

Key Features:

• 19 dBi antenna for long-range, high-speed 5 GHz connectivity.
• Supports up to 15 km link range and 450 Mbps throughput.
• Dual gigabit Ethernet ports for improved network performance.
• Robust surge protection and durable, UV-stabilized enclosure.
• Versatile mounting options with pole mount kit included.

Technical Specifications:

Mechanical

Dimensions: 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
Weight: 530 g (1.17 lb)
Enclosure Material: UV-stabilized plastic
Mounting: Pole mount kit (Included), wall mount (Not included)
Wind Loading: 45.4 N at 200 km/h (10.2 lbf at 125 mph)
Wind Survivability: 200 km/h (125 mph)

Hardware

Networking Interface: (2) GbE RJ45 ports
Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply: 24V, 0.5A gigabit PoE adapter (Included)
Supported Voltage Range: 20–27V DC
Max. Power Consumption: 8.5W
ESD/EMP Protection: Air/contact: ± 24kV
LEDs: Power, Ethernet, (4) signal strength

Environmental

Ambient Operating Temperature: -40 to 80°C (-40 to 176°F)
Ambient Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC

System

Gain: 19 dBi
Channel Sizes: PtP Mode (10/20/30/40/50/60/80 MHz), PtPM Mode (10/20/30/40 MHz)
Max. VSWR: 1.5:1
Polarization: Dual linear
Operating Frequency (MHz): Worldwide: 5150-5875 MHz, USA: U-NII-1: 5150-5250 MHz, U-NII-2A: 5250-5350 MHz, U-NII-2C: 5240-5725 MHz, U-NII-3: 5725-5850 MHz
Management Radio (MHz): Worldwide: 5150-5250 MHz, US/CA: U-NII-3: 5725-5850 MHz
