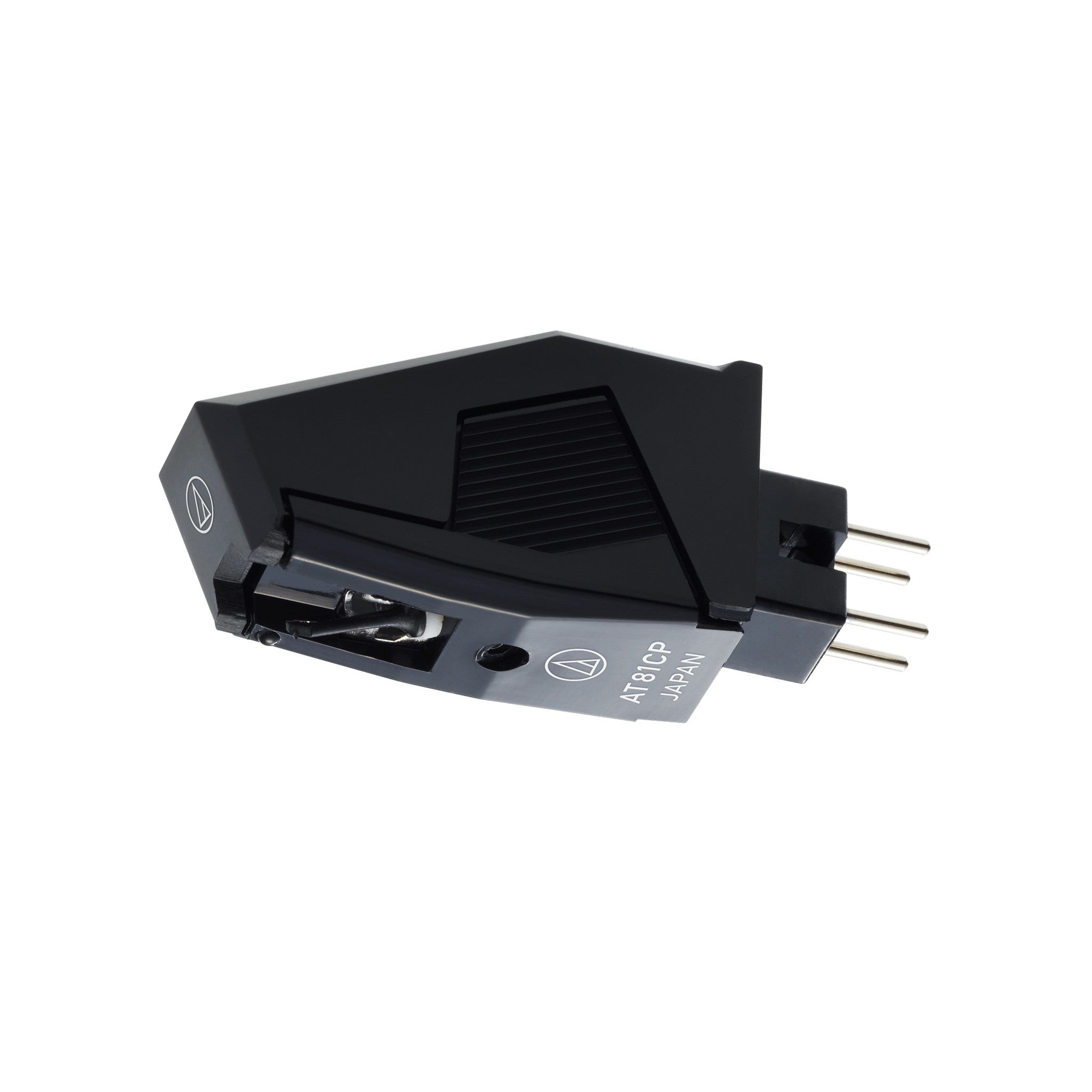

Audio-Technica AT81CP Conical Cartridge for P-Mount Turntables

main image

PRODUCT DESCRIPTION

\nThis 0.6 mil conical cartridge fits P-mount turntables.\n\nKey Features\n
    \n
  • Compatible with P-mount turntables
    • \n
  • 0.6 mil conical cartridge
    • \n
\nTechnical Specifications\n\nCartridge & Stylus\nFrequency Response\n20-20,000 Hz\nChannel Separation\n18 (dB at 1 kHz)\nVertical Tracking Angle\n20°\nVertical Tracking Force\n1.0-1.5 g (1.25 g standard)\nStylus Construction\nBonded round shank\nRecommended Load Impedance\n47,000 ohms\nCoil Impedance\n2.8 k ohms (1 kHz)\nDC Resistance\n410 ohms\nCoil Inductance\n400 mH (1 kHz)\nOutput Voltage\n3.5 mV (1 kHz, 5 cm/sec.)\nOutput Channel Balance\n2.5 dB (1 kHz)\nStylus Shape\n0.6 mil conical\nCantilever\nCarbon fiber-reinforced ABS\nMounting\nP-mount\nDimensions\n15.3 mm (0.60”) H x 10.0 mm (0.39”) W x 35.1 mm (1.38”) D\nMounting Feature\nP-mount\nRecommended Load Capacitance\n100 to 200 pF\nReplacement Stylus\nATN81CP\nStylus Size\n0.6 mil\nType\nDual Magnet\nWeight\n6.0 g (0.21 oz)
