Hydraulic Dual Cross Line Relief Valve For Sam Hydraulic Motors, VAU 1/2" AG-AR

FREE UK SHIPPING

100% SATISFACTION GUARANTEED

Hydraulic Dual Cross Line Relief Valve For Sam hydraulic Motors 10-180BARAG-AR, VAU 1/2" AG - AR, Max Flow 60 L/min, Max Pressure 350 bar USE AND OPERATION: Made up by two cross port relief valves, these valves are used to limit the pressure in the ports of a hydraulic motor to a certain setting. Direct flange mounting for Sam hydraulic motors type AG-AR provides maximum safety, very low pressure drop and a robust installation. Screw not supplied. MATERIALS AND FEATURES: Body: zinc-plated steel. Internal parts: hardened and ground steel. Seals: BUNA N standard. Leakage: Guided poppet - negligible leakage. CONNECTIONS: Flange M1 and M2 directly to the motor by bolts (available on request) and connect ports V1 and V2 to the supply. ON REQUEST - different setting range ...

USE AND OPERATION:

Made up by two cross port relief valves, these valves are used to limit the pressure in the ports of a hydraulic motor to a certain setting. Direct flange mounting for Sam hydraulic motors type AG-AR provides maximum safety, very low pressure drop and a robust installation. Screw not supplied.


Hydraulic Dual Cross Line Relief Valve For Sam hydraulic Motors 10-180BAR, AG-AR, VAU 1/2 AG - AR


MATERIALS AND FEATURES:

Body: zinc-plated steel.

Internal parts: hardened and ground steel.

Seals: BUNA N standard.

Leakage: Guided poppet - negligible leakage.

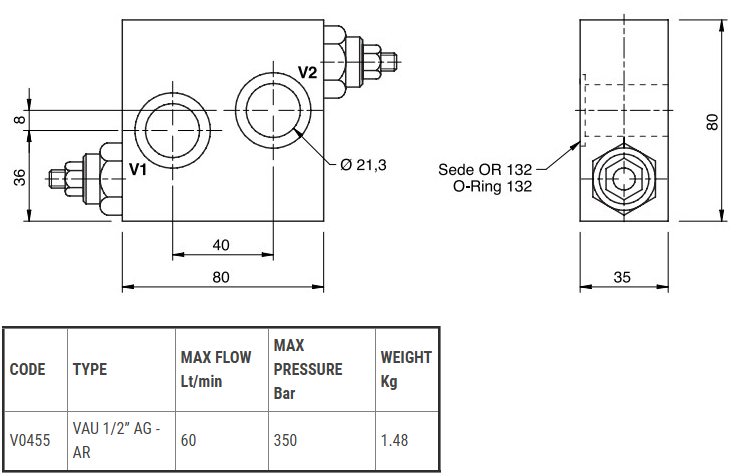

CONNECTIONS:

Flange M1 and M2 directly to the motor by bolts (available on request) and connect ports V1 and V2 to the supply.
