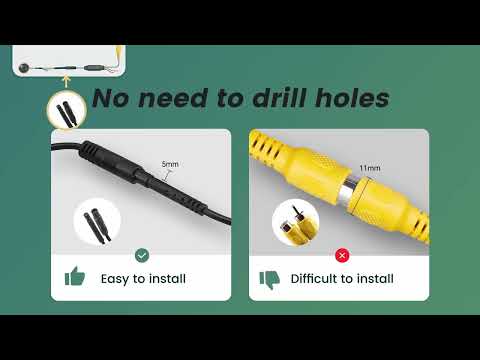

170° HD Front/Backup Camera, 1080P OEM Mini Style, Screw-Free Easy Install, Side/Rear View Camera, IP69K Waterproof & 360° rotation Angle Super Night Vision Back Up Camera for SUV/Pickup Truck/RV/Van/Camper/Car
Feature
1.Fully Upgrade 360° Rotatable Backup Camera: With the 360°rotate backup camera,you never need to worry about the image too high or too low,never need to adjust install angle only by adding gaskets, can install the backup camera at any position, just rotate lens up/down/left/right to find perfect angle of view anywhere and anytime.
2.3 Control Real Universal Back Up Camera: Unlike backup camera that support only one of CVBS or AHD signal, which means you may buy back up camera not compatible with your Head unit if don’t know supported input signal or when upgrade your head unit,the old camera not support. We upgrade a real universal reverse camera to support CVBS/AHD switch, solve all your compatibility problem.Rear camera also support mirror/normal image and guideline on/off switch.
3.Enhanced Night Vision & 170° Wide Angle: AHD backup camera for car designed with sony chip,a large F1.8 aperture, 6 glass lens and WDR technology to ensure high sensitivity and light transmission, which displays clear and true color in low light conditions, brings excellent night vision. Combine with upgrade 170° wider viewing angle,backup camera for truck covers most blind spot areas,offers a perfect parking view at night.
4.IP69K Waterproof & 12-24V Compatible: Back up camera for cars supports IP69K waterproof and dustproof. Rear view camera is made of high purity resin and designed with fully sealed glue filling craft, in any weather, high or low temperature, you absolutely no need to worry about water, fog or mist inside, long service life. And unlike some reverse camera only support 12V, the back up camera for truck. rv upgrade to support 12-24V vehicles.
5.Universal RCA Connection: The reverse camera for car designed with standard RCA connection, works with your head units or aftermarket LCD/TFT displays which has RCA input, suitable for variety of vehicles: car, mini-truck, mini-van etc.The vehicle backup cameras will not support dash cam/mirror dash cam as different connection and pin definition.The rv backup camera support mirror/normal image switch, can also be used as front or side camera.
6.Rearview Camera with Three Switcher Cables: Cut white cable to switch mirror image(rear view) to non-mirror image(front view). Cut orange cable to switch CVBS video signal to AHD video signal, if your monitor supports AHD 1080P 30HZ(NTSC) video settings, you can try it. Cut green cable to turn off the guide line. Please reconnect power supply after cutting any cable, you can also connect it back after cutting the cable if needed.
Specifications:
Power: DC 12V
Product Weight: 160g
Type: Car Front/Side/Rear View Camera
TV system: NTSC/AHD
Effective pixels: AHD:1920*1080P pixels CVBS: 800*480P
Scanning System: 2:1 Interlace
Sync System: Internal
Resolution: 1000 TV lines
Lens Angle: 2.8mm/120°- 1.8mm/170°
Sensor Area: 5.961mm x 4.276mm
Video Output: 1.0 VP-P,75 OHM
S/N Ratio: More than 48db
Water-proof: IP69
Minimum Illumination: 0.2Lux/F1.8(0 Lux with LED)
Current Consumpition: No more 300mA
Power supply: DC 12V
Operationg Temperature: -30℃ - 65℃(RH95%Max.)
Storage Temperature: -40℃- 75℃(RH95%Max.)
Other Items: Auto matic white balance. Agc and BLC
Package included:
1 x Car Camera
1 x Allen Key
1 x 6M RCA Video Cable
1 x 1M Power Cable
1 x User Manual
Notes:
1. 3 Control Modes, Default is AHD. If the equipment not supports AHD signals, cut out the orange line to select CVBS signals(CVBS,720p,30 FPS). Cut the white line to switch to the front view,cut the green line to hide the reversing line.
2.Backup cameras can't beconnected directly with any monitors(no matter DVR or dashcam or whateverwhich is not compatible with RCA videoinput AS different pin definition.
