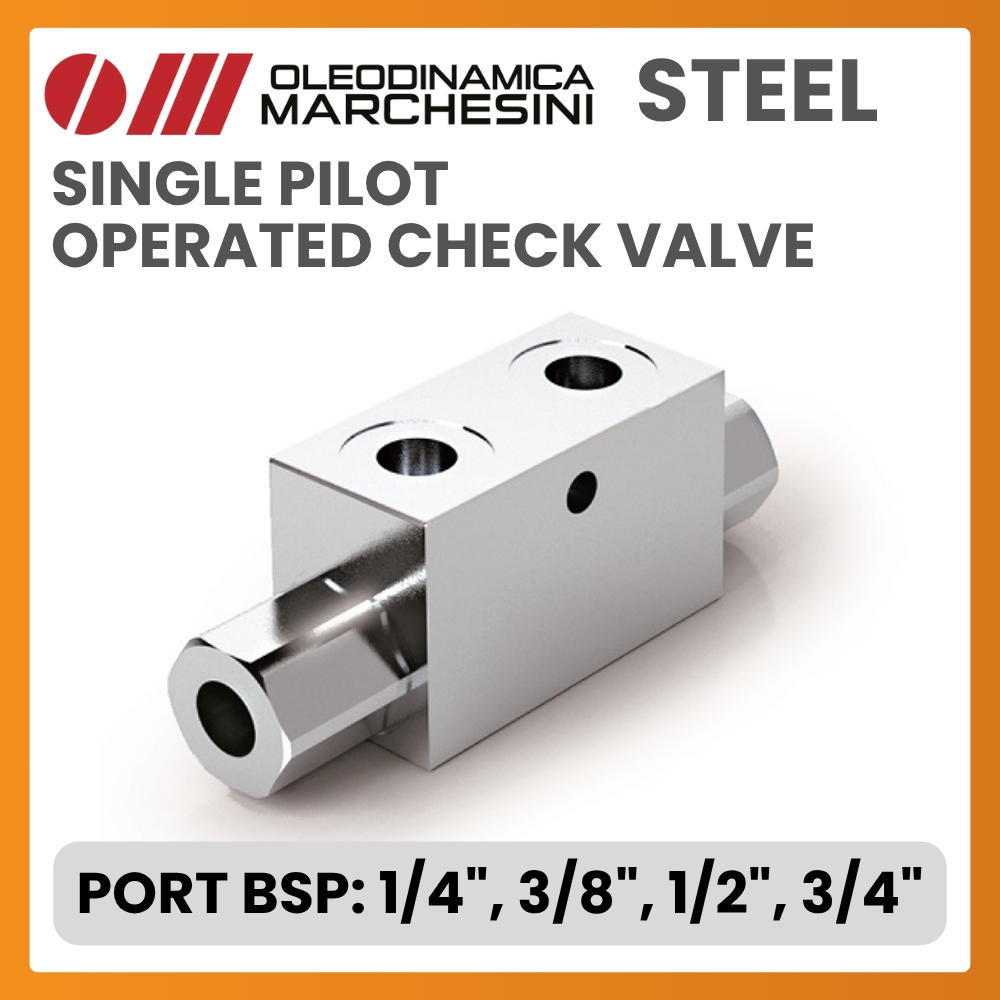

USE AND OPERATION:

These valves are used to block the cylinder in one direction. The flow is free in one direction and blocked in the reverse direction until pilot pressure is applied.

MATERIALS AND FEATURES:

Body: zinc-plated steel.

Internal parts: hardened and ground steel.

Seals: BUNA N standard.

Leakage: Guided poppet – negligible leakage.

CONNECTIONS:

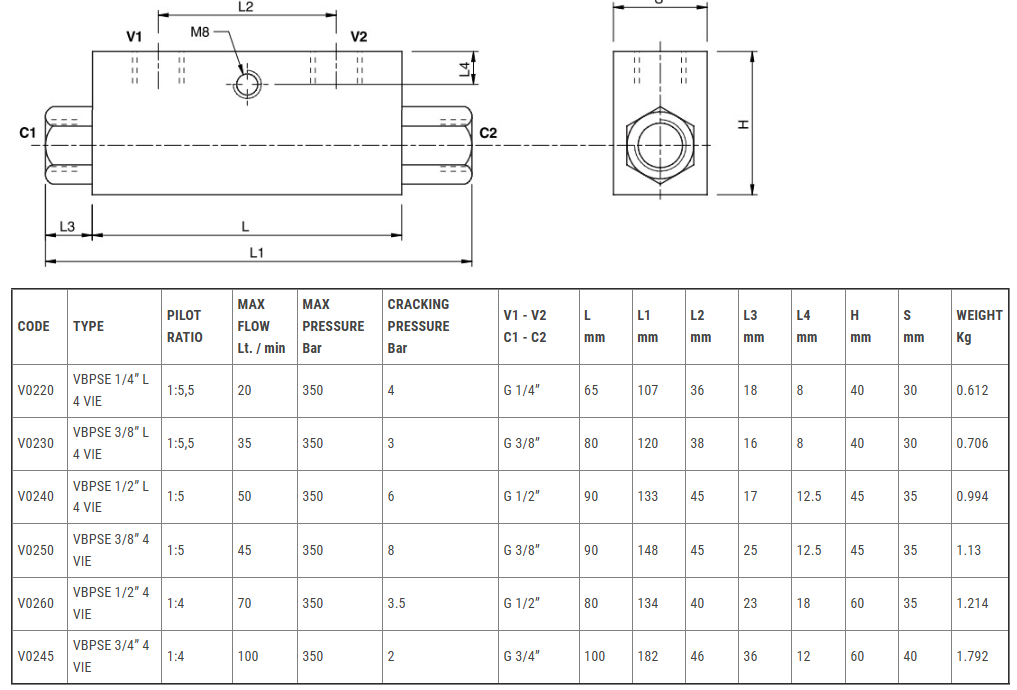

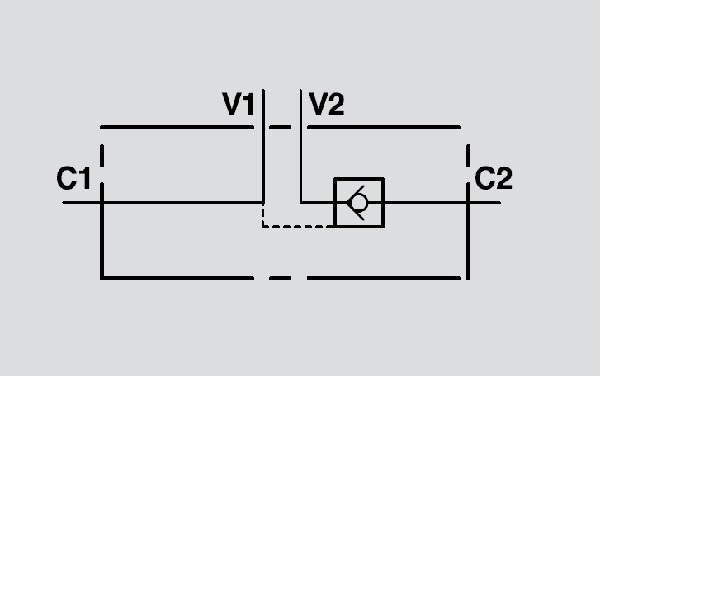

Connect V1 and V2 to the supply, C1 to the free flow side of the  actuator and C2 to the actuator side you want the flow to be blocked.
