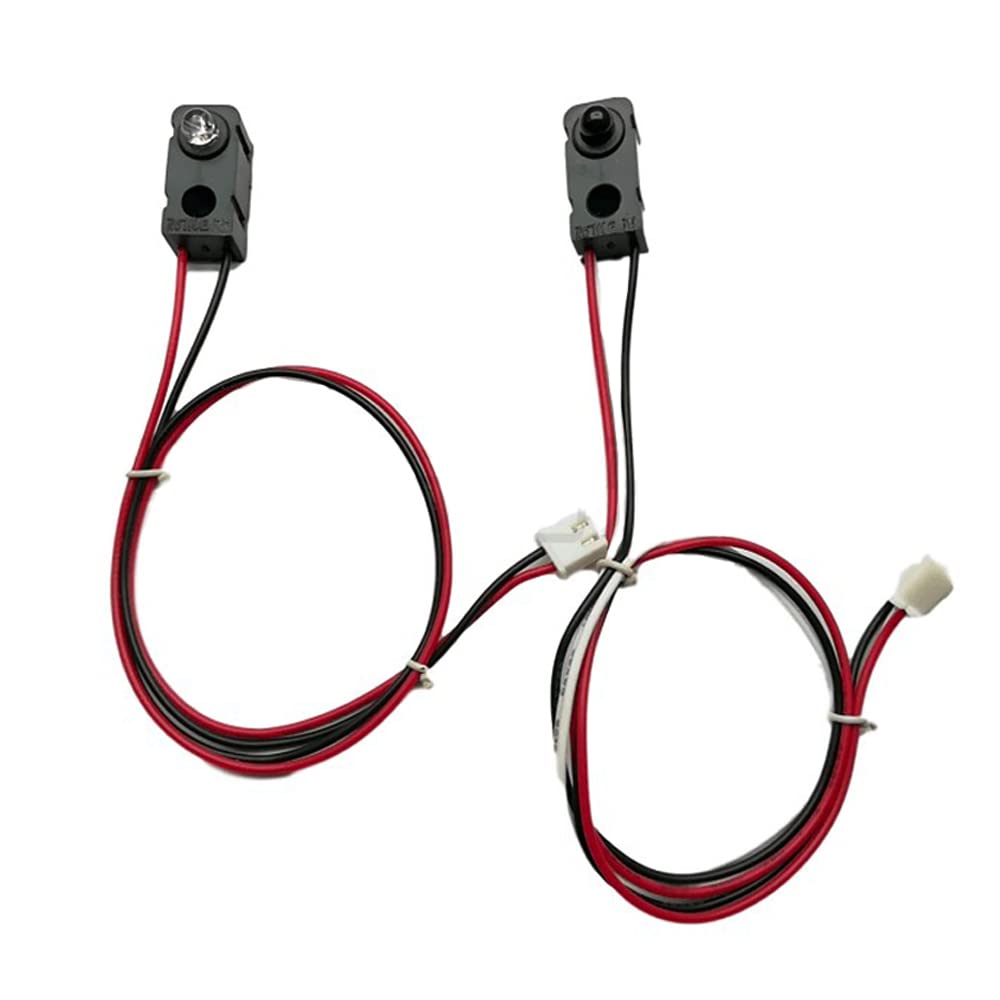

Specification: : F5 with 2.54 terminal infrared through-beam sensor Dimensions: 20*10*9mm Lamp: 5MM 850 launch Light hole: 5MM Launch tube power: 20 mA Detection distance: 1M Line length: 30cm Lighting method: DC light Launch angle: straight Receiving angle: <10 degrees Detection method: through-beam Working voltage: DC5V Working current: 20A Response time: 2ms Transmitter/Receiver LED Angle Working temperature:-25℃-60℃ Output mode: NPN normally open Transmit: red wire=5VCC black wire=GND Receive: red wire = 5VCC black wire = GND white wire = OUT (NPN) Note: Do not reverse the positive and negative poles of the power supply The package includes: 1X IR Break Beam Sensor（1m）-Receiver 1X IR Break Beam Sensor (1m)-Transmitter

• High sensitivity, with fast and stable response speed
• Faster a PIR sensor for control over where you want to detect motion
• Output mode: NPN normally open, response time: 2ms
• The sensor can be powered by a voltage of DC 3 ~5 V. It can be used with Arduino for some simple motion detection, speed detection, timing, etc. in smart robot competitions.
• Applicable models: relay, K60, PLC, 51 microcontroller, STM32, arduino, etc.
