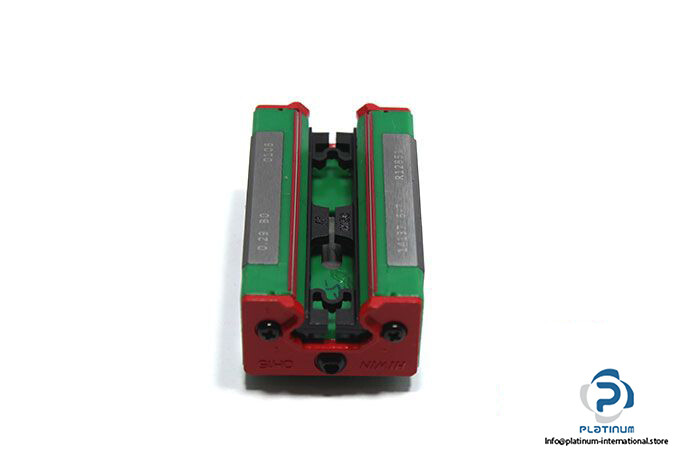

HIWIN LGW45HCC LINEAR GUIDEWAY BLOCK

HIWIN LGW45HCC LINEAR GUIDEWAY BLOCK

The HIWIN LGW45HCC is a high-precision linear guideway block engineered for applications requiring high rigidity and heavy load-bearing capabilities. Belonging to the LG Series, this block features a wide flange design and supports top or bottom mounting, making it ideal for super heavy-duty linear motion systems.

Manufacturer: HIWIN
Type: Linear Guideway Block
Model: LGW45HCC
Size: 45 mm

Technical Information

• Block Height (H): 50 mm
• Block Width (W): 120 mm
• Block Length (L): 170 mm
• Height System: 60 mm
• Distance Between Holes: 100 mm, 80 mm
• Series: LG Series
• Block Type: W (Flange Type)
• Load Type: H (Super Heavy Load)
• Block Mounting Type: C (Top or Bottom)
• Basic Static Load: 13600 kgf
• Basic Dynamic Load: 8430 kgf
