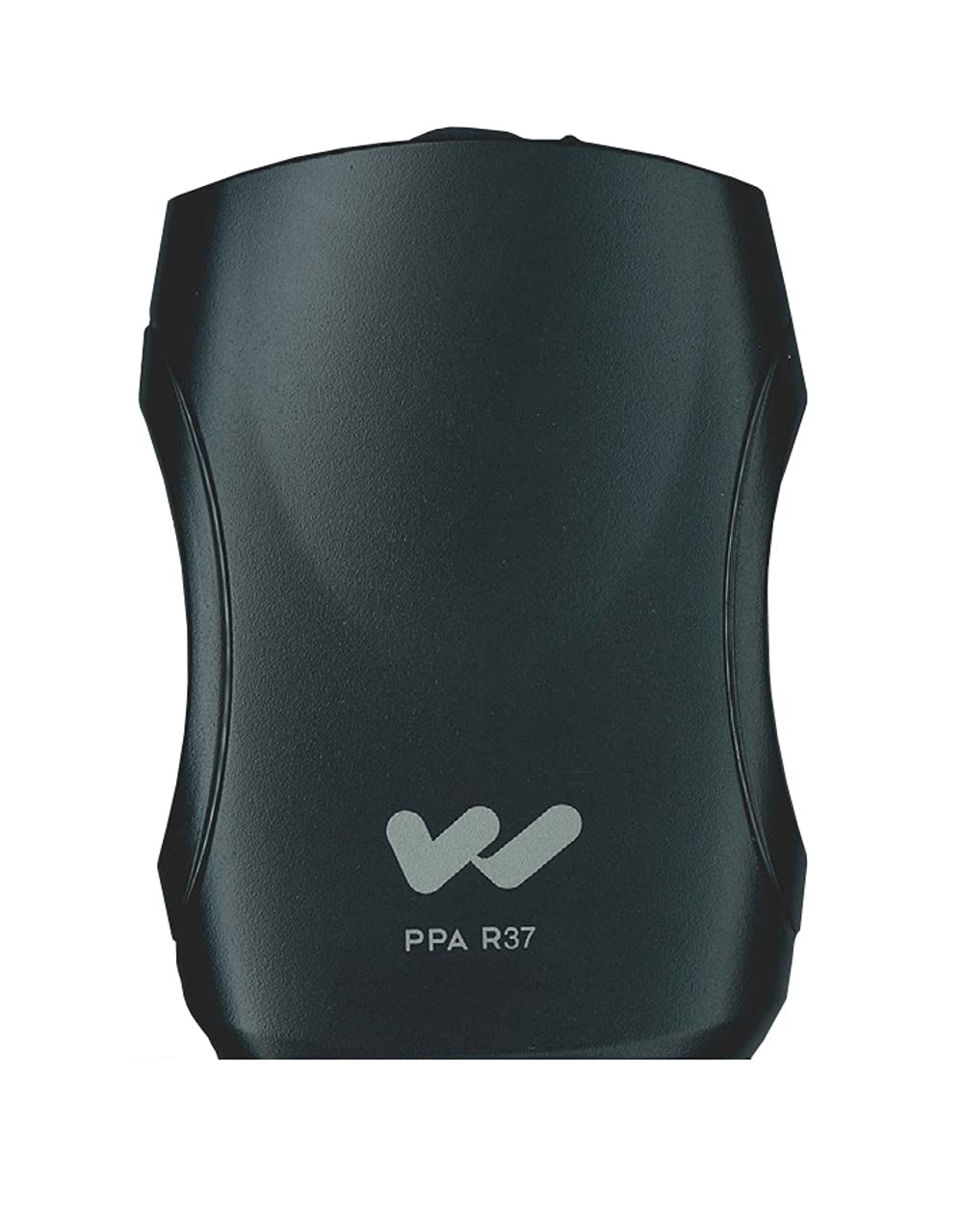

Williams AV PPA R37 HD PPA Select FM Receiver HED 021 headphones

FM Receiver

Flexible and simple. The PPA Select FM receiver features easy-to-use, seek-button channel selection with access to 17 pre-set wideband frequencies between 72-76 MHz. Compatible with the following Williams Sound transmitters: PPA T35, PPA T27, PPA T32 and PPA T36. Digitally synthesized for even greater audio clarity and stability. A versatile 3.5mm stereo/mono jack allows for a variety of earphone and headphone options, and is neckloop/telecoil-equipped-hearing-aid compatible. The PPA Select is now featured in the following Personal PA® systems, replacing the PPA R35 receiver: PPA 377 Personal PA® Large-Area Listening System, PPA VP 37 Personal PA® Value Pack System, TGS PRO 737 Personal PA® Tour Guide System and the FM ADA KIT 37 ADA Compliance Kit. It comes with a belt clip, 1 BAT 001-2 AA batteries and 1 HED 021.

NOTE: The PPA Select Receiver requires a transmitter operating on 72-76 MHz. The PPA Select is approved by the FCC for operation in U.S. Markets. The receiver cannot be used in all countries. Check with your government´s radio regulations for 72-76 MHz operation.

(1) PPA R37 Receiver\n(1) CLP 015 Belt Clip\n(1) BAT 001-2 AA Alkaline Batteries\n(1) EAR 013 Single Mini Earbud\n*All items can be purchased separately

Key Features

\n
• Seek-button access to all 17 wideband frequencies in the 72-76 MHz bandwidth
\n
• Channel-lock capability
\n
• Battery-saving sleep mode
\n
• Low-battery indicator
\n
• Field tunable
\n

Technical Specs

PPA R37\nDimensions:      \n4.1” x 2.85” x 1.38” (104 x 72 x 35mm)\nWeight:     \n4.6oz (130g) with batteries. 2.6oz (73g) without batteries\nColor:        \nBlack\nBattery Type:     \n(2) AA Alkaline or 2 x AA NiMH\nBattery Life:      \nTwo (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs\n(2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs\nCurrent Consumption:        \n52mA nominal\nTemperature Range: \n- 0 to 50C\nChannels   \n17, accessed via seek button in battery compartment\nOperating Freq.:         \n72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*\nIntermediate Freq.:   \n75 kHz\nFM Deviation:    \n75 kHz\nDe-Emphasis:    \n75 µS\nLED Indicator:   \nPower:  Green; Low Battery:  Flashes Green\nAFC Range:\n± 120 kHz\nSensitivity:         \n2 µV at 12 dB Sinad with squelch defeated\nInput Overload:          \n100 mV\nFrequency Response:          \n200 - 15 kHz\nModulation:\nFM, +/- 75 kHz peak deviation\nSignal-to-Noise Ratio:        \n65 dB min @ 100 uV\nReceive Antenna:       \nIntegral with earphone/headphone cord\nAudio Output:    \n35 mW max, peak into 16 ohms\nOutput Connector:      \n3.5 mm stereo/mono phone jack\nEarphone: \nEarbud-type with foam cushion, 3.5 mm plug, 32 \nAuto Shut-off     \nEnters sleep mode after approx 6 mins of no RF signal\nApprovals:          \nFCC, Industry Canada, RoHS, WEEE\nWarranty: \nLifetime PLUS Limited Warranty, 90 Days on most accessories.
