Overview

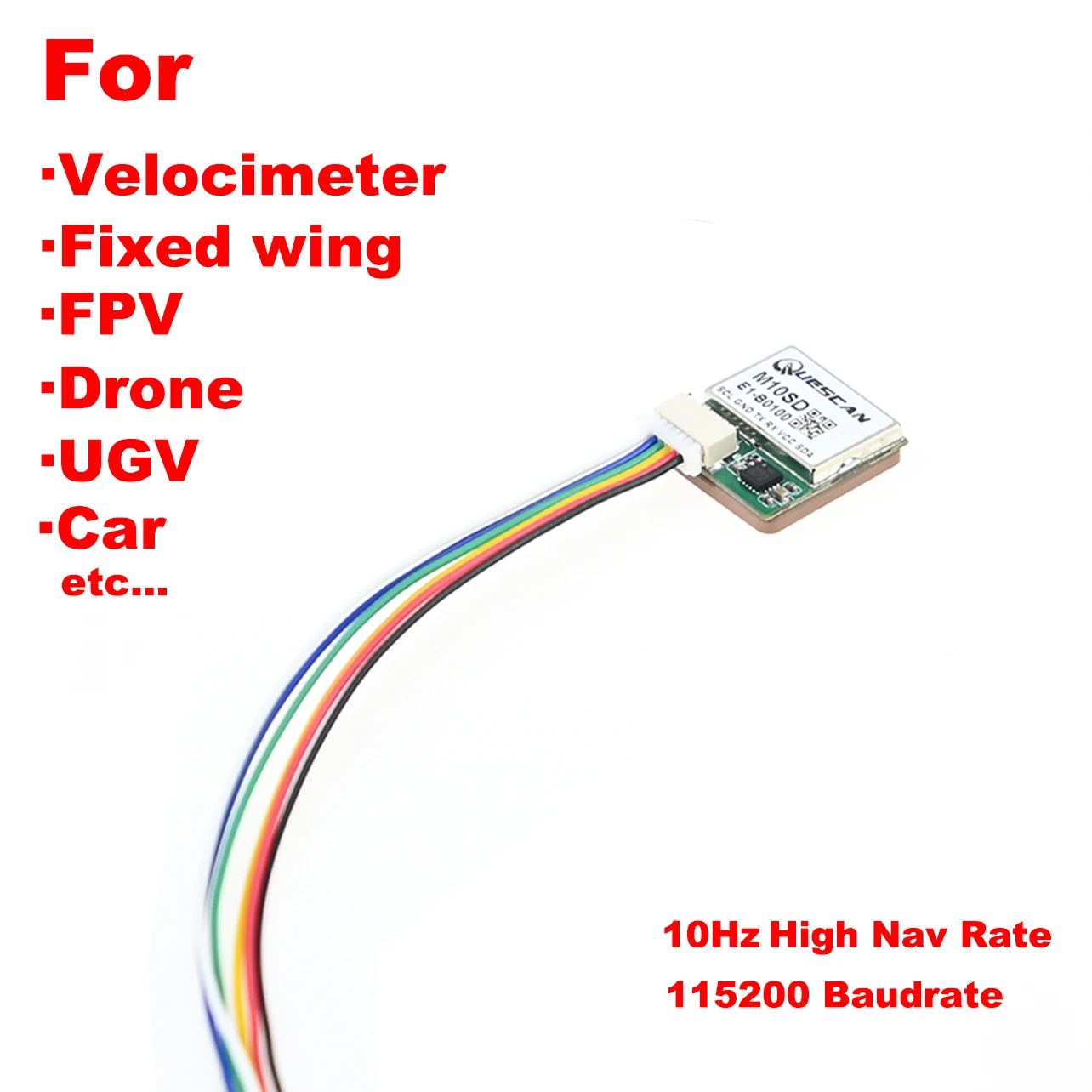

M10SD GNSS module is equipped with UBX M10 chip, which supports simultaneous reception of global navigation satellite systems (GPS, GLONASS, Galileo, and Beidou). A large number of visible satellites enable the receiver to select the optimal signal. M10SD supports NMEA and UBX dual protocol outputs, with a positioning frequency of 10Hz and a maximum support of 25Hz. The high gain 18x18x2mm antenna provides the best performance for global navigation satellite system receivers. This module integrates an electronic compass and flash memory. The extremely small size of the module makes it very suitable for FPV racing drones.This module is suitable for various flight controllers, such as Ardupilot INAV Betaflight Pixhawk APM, etc.
The UBX-M10050-KB chip features the ubx M10 standard precision GNSS platform and provides exceptional sensitivity and acquisition times for all L1 GNSS signals.The extremely low power consumption in continuous tracking mode allows great power autonomy for all battery-operated devices, such as asset trackers, without compromising on GNSS performance .
The UBX-M10050-KB supports concurrent reception of up to four GNSS (GPS, GLONASS, Galileo, and BeiDou).Up to more than 50 satellites can be catched.The high number of visible satellites enables the receiver to select the best signals. This maximizes the position accuracy, in particular under challenging conditions such as in deep urban canyons.
UBX Super-S (Super-Signal) technology offers great RF sensitivity and can improve the dynamic position accuracy with small antennas or in non-line-of-sight scenarios.

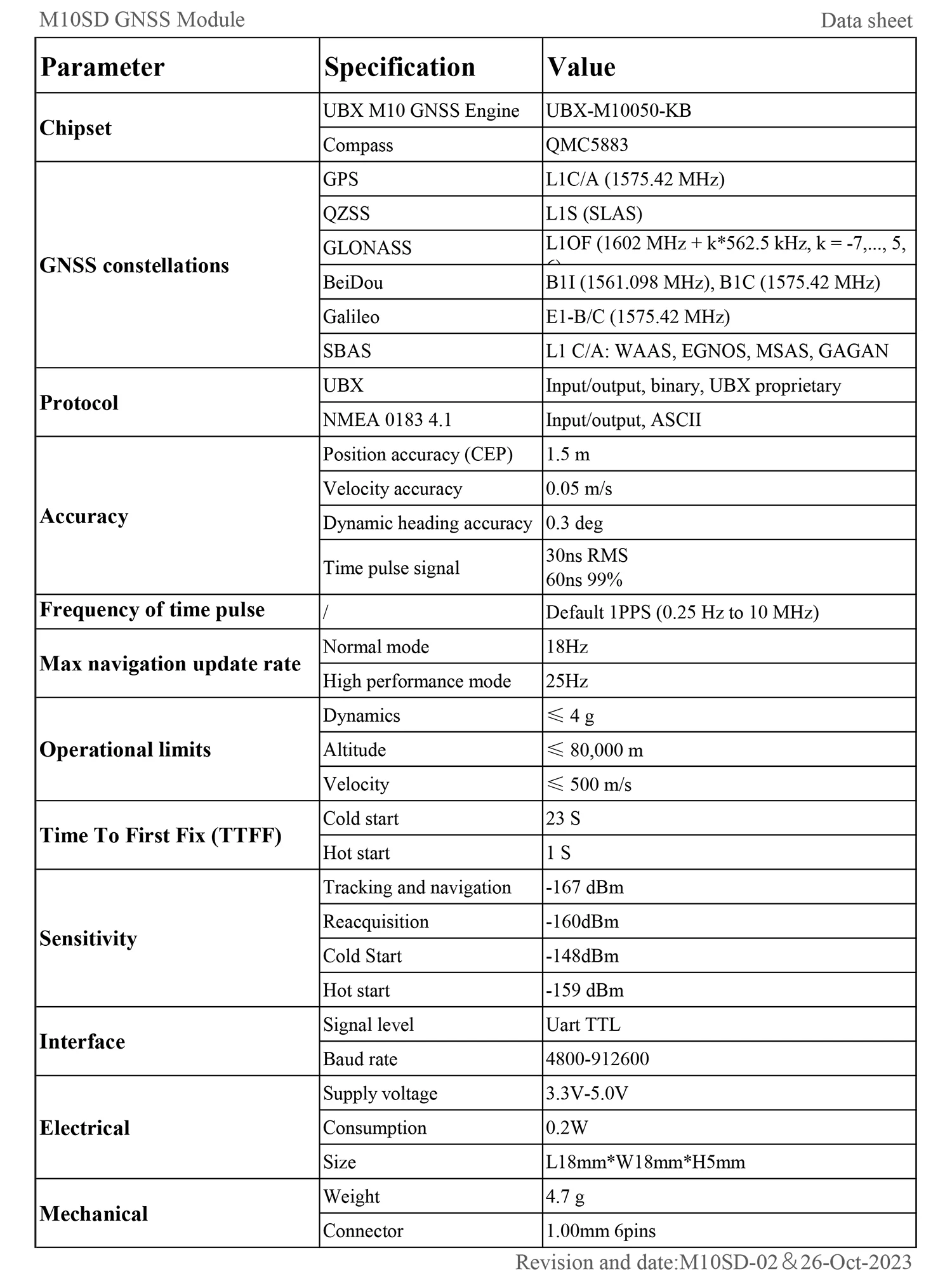

Parameter

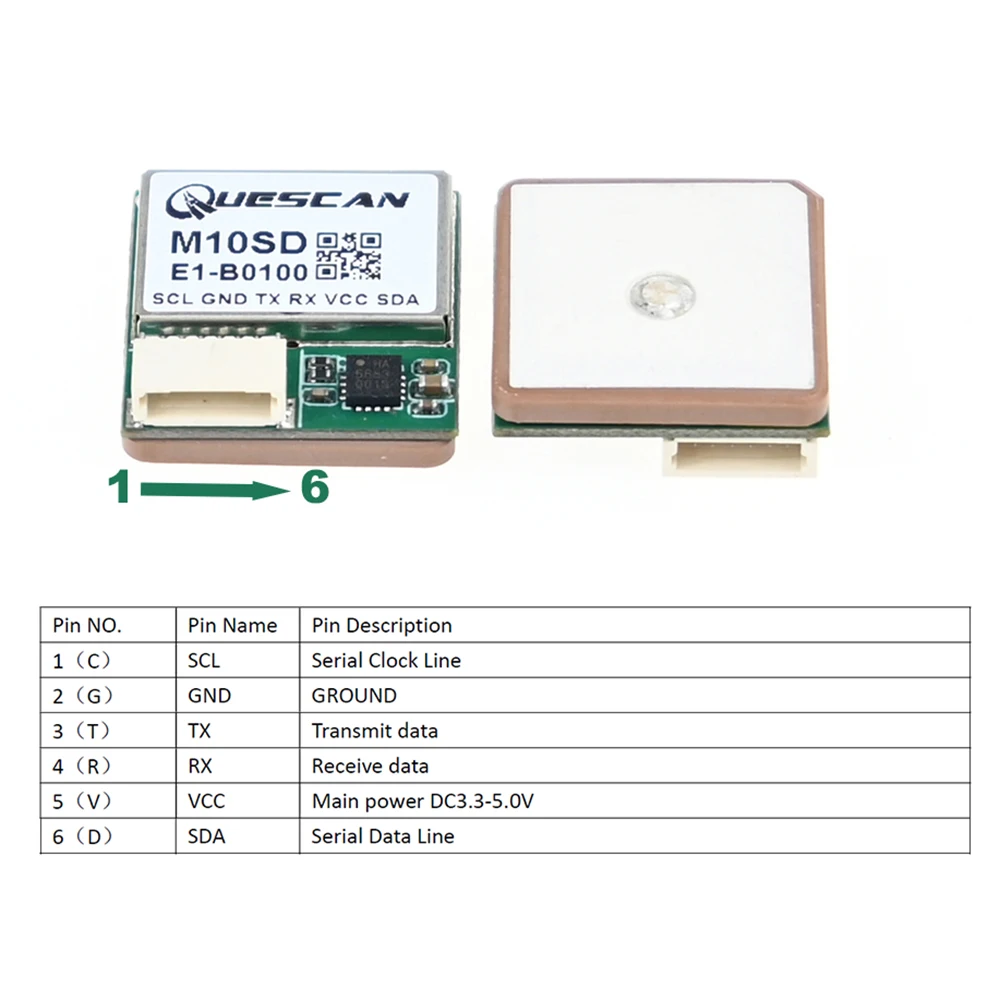

Pin Definition

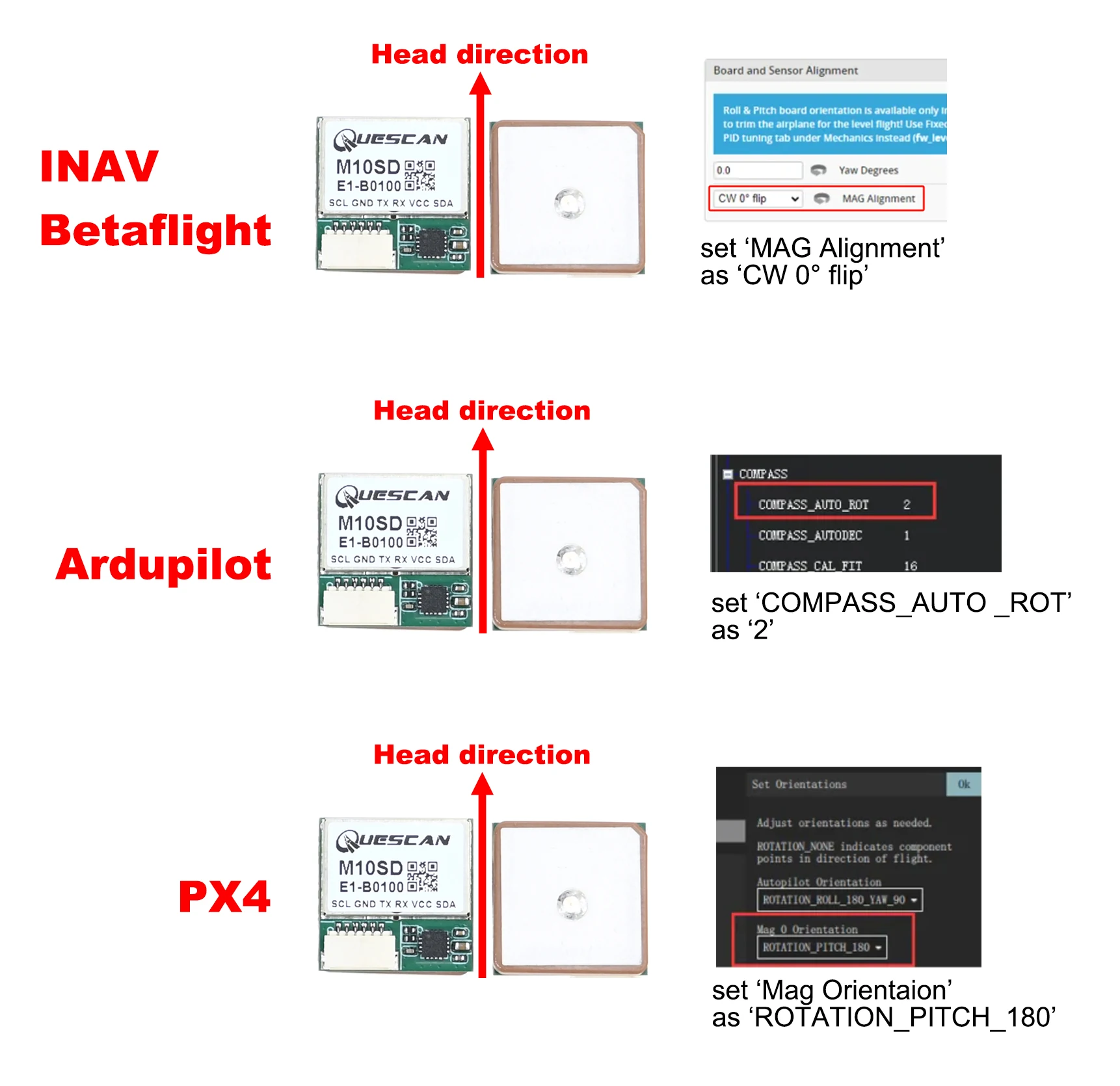

Compass Setting Guide

Supported GNSS Constellations

M10SD is a concurrent GNSS receiver that can receive and track multiple GNSS systems. The single RF front-end architecture enables concurrent reception of multiple GNSS constellations. The receiver can be configured for a subset of GNSS constellations to achieve lower power consumption.
The factory configuration on M10SD is concurrent reception of GPS, Galileo, GLONASS and BeiDou B1C with QZSS and SBAS enabled.
The following GNSS and their signals are supported:

Supported Protocols

For more details, please refer to official documents.

Dynamic Platform

The dynamic platform model can be configured through the CFG-NAVSPG-DYNMODEL
configuration item. For the supported dynamic platform models and their details please refer to the table below. The default dynamic model is Portable.
Dynamic platform models:

Factory Settings

•GPS+Galileo+GLONASS+BeiDou+QZSS+SBAS.
•115200 baud, 8 bits, no parity bit, 1 stop bit.
•High performance mode.
•10Hz navigation update rate.
•Input messages: NMEA and UBX.
•Output messages: NMEA GGA, GLL, GSA, GSV, RMC, VTG and TXT./UBX-NAV-PVT,UBX-NAV-SAT

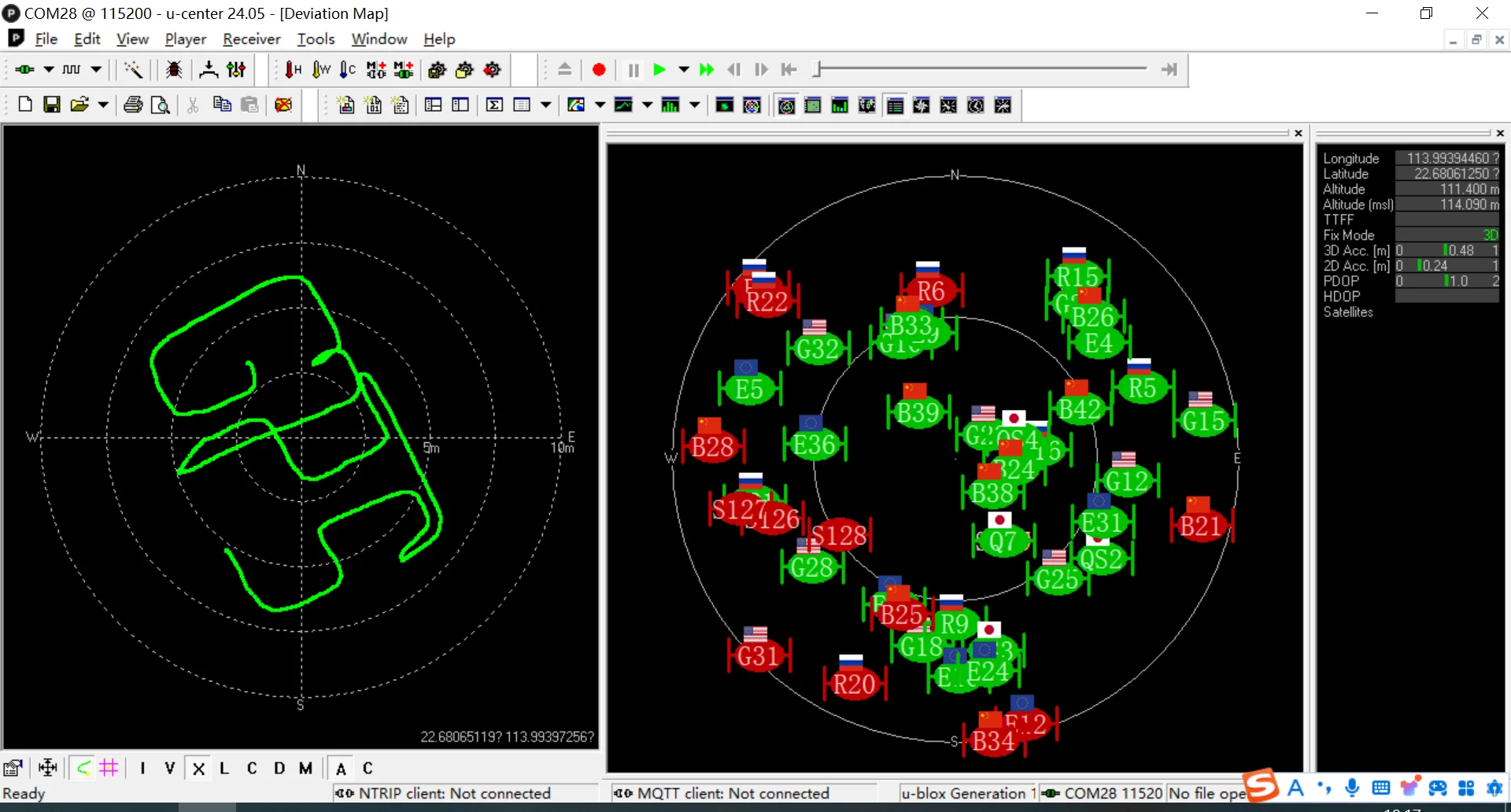

Configuration Software

Performance

Details

Packing List

M10SD module*1
Pinout cable*1
