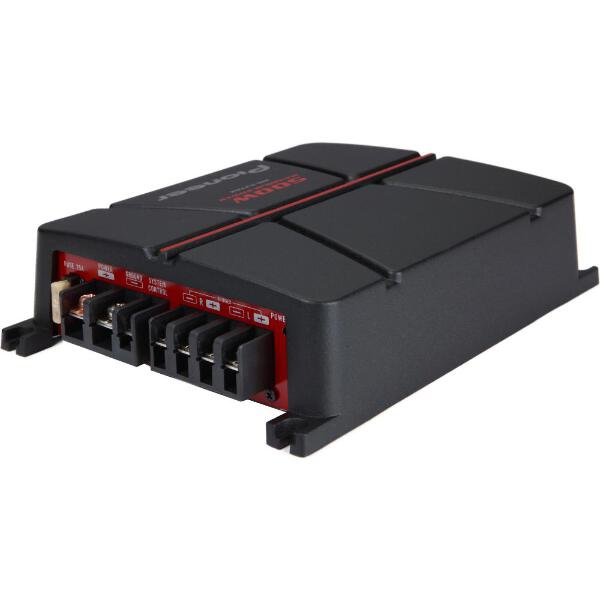

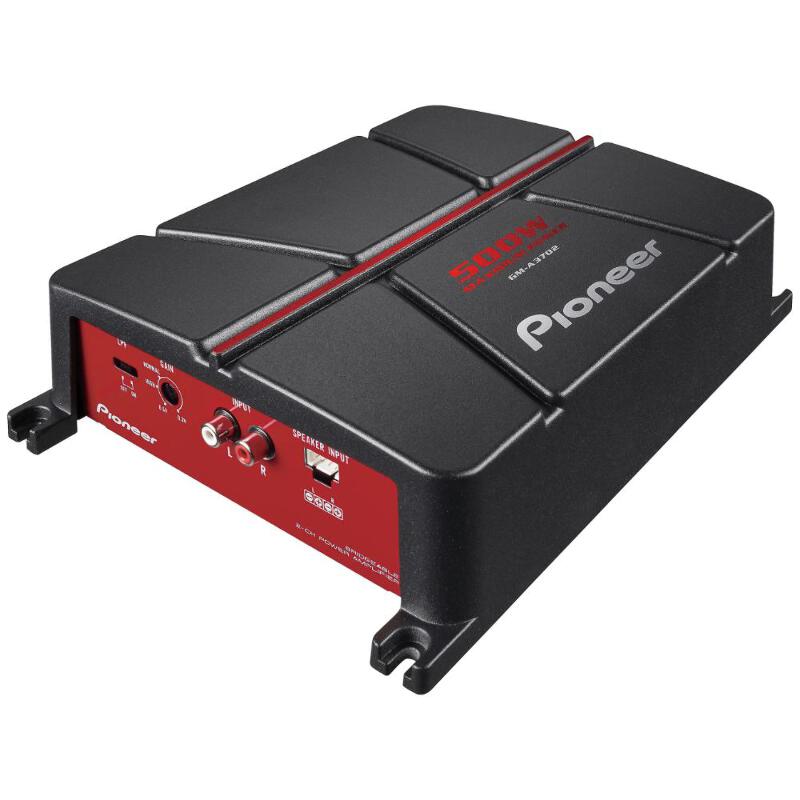

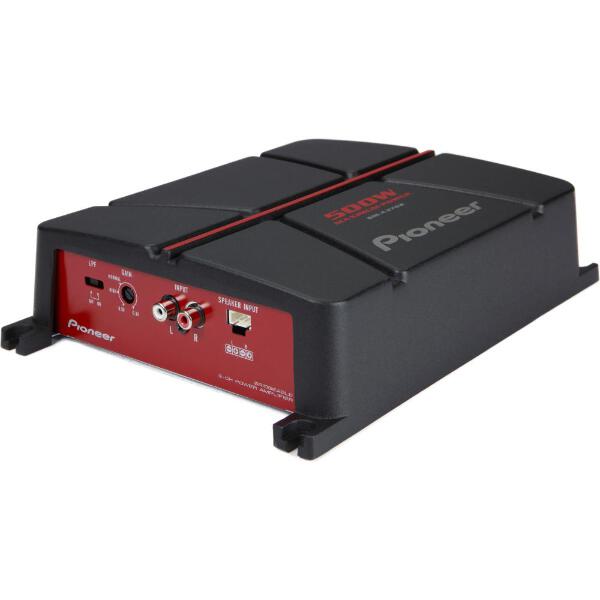

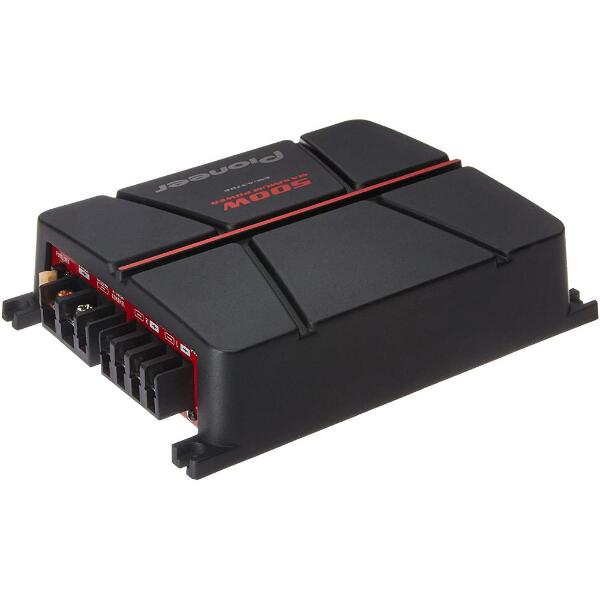

GM-A3702

2-Channel Bridgeable Amplifier (500W)

Configure your perfect audio setup.

The Pioneer GM-A3702 is a compact 2-channel amplifier delivering 190W RMS, with the flexibility to bridge into a single channel for up to 500W of output.

It supports 2 Ohm and 4 Ohm speakers, so it works with a wide range of setups. A one-body heat sink keeps temperatures down, and gain adjustment up to 6.5V lets you match the amp to your head unit accurately. Distortion is kept very low, giving you clean sound at higher volumes.

Key Features

• 190W RMS output across 2 channels
• Bridgeable for up to 500W total output
• Compatible with 2 Ohm and 4 Ohm speakers

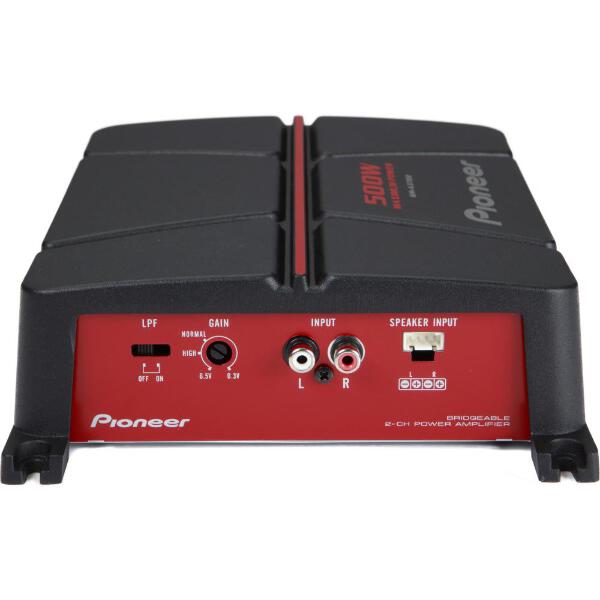

• Gain adjustment up to 6.5V
• One-body heat sink design for efficient cooling
• Very low distortion for cleaner audio

• Maximum power    500W (Bridged) or 2 x 170W (4 Ω) or 2 x 250 W (2 Ω)
• CEA 2006 Power    2 x 60W (4 Ω)
• Continuous power output    2 x 60W (4 Ω) or 1 x 190W (4Ω bridged) or 2 x 95 W (2 Ω)
• Load impedance capability    2-8 ohm allowable (Stereo)
• Frequency response    10Hz ~ 70kHz (+0dB , -3dB)
• Distortion    < 0.05 %
• S/N ratio    > 95 dB
• LPF    80 Hz (-12 dB/oct)
• Chassis size (W x H x D)    246(W) x 60(H) x 180(D)
• Unit weight    1.4

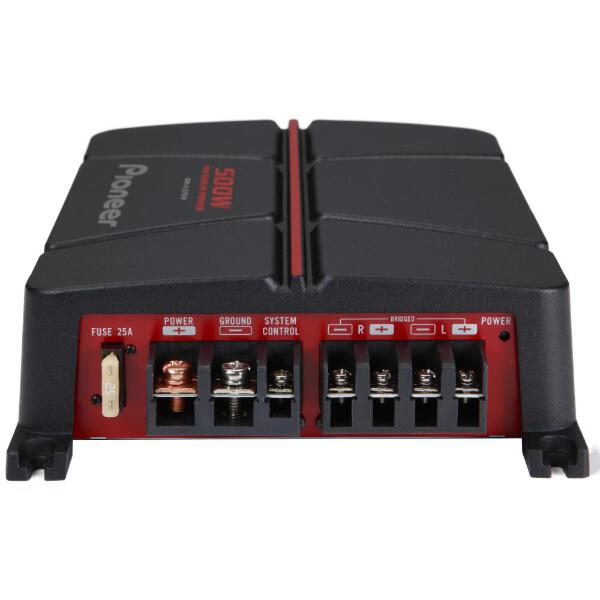

• Speaker Terminals    Screw-type
• 2-channel
