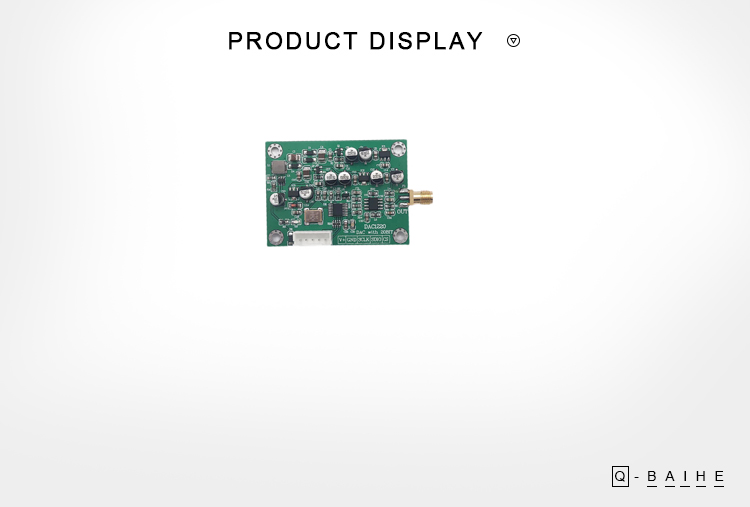

Title：	DAC1220 Data Acquisition Module 20 bit DAC 16 bit Adjustable ±10V Voltage Module
Specifications:	Module model: DAC1220 Module Type: Digital to Analog Conversion Module Module power supply: 5V Module current: 120mA Module communication protocol: SPI serial Module provided routine: STM32F103RBT6 Routine platform: STM32F103X-M3 (KEIL5 version source code) DAC resolution bits: 20 bits/16 bits (software switching) Number of output channels: 1 Output voltage range: ± 10V Output voltage driving capability: 10mA Module output interface: SMA (24-hour salt spray oxidation resistance) Reference voltage: 2.5V Voltage establishment time: 2mS (16 bits); 15mS (20 digits) Module features: Multiple (with output buffer amplifier, ultra-low AC crosstalk, fast setup time) Module applications: Multiple (programmable voltage sources, instrumentation and control systems, sensor excitation, motion process control) Module specification: 59 * 43 (length * width PCB size) Module interface type: SMA signal output, XH2.54 needle data interface
Packing:	1* Digital to Analog Conversion Module
