86 Touch Panel Remote Control Single Color LED Strip Wireless RF Switch Dimmer
86 Touch Panel Remote Control Single Color/CCT/RGB/RGBWW/RGBWC(RGB+CCT) LED Strip Controller wireless RF Switch Dimmer DC5V 12V 24V
Product Description:

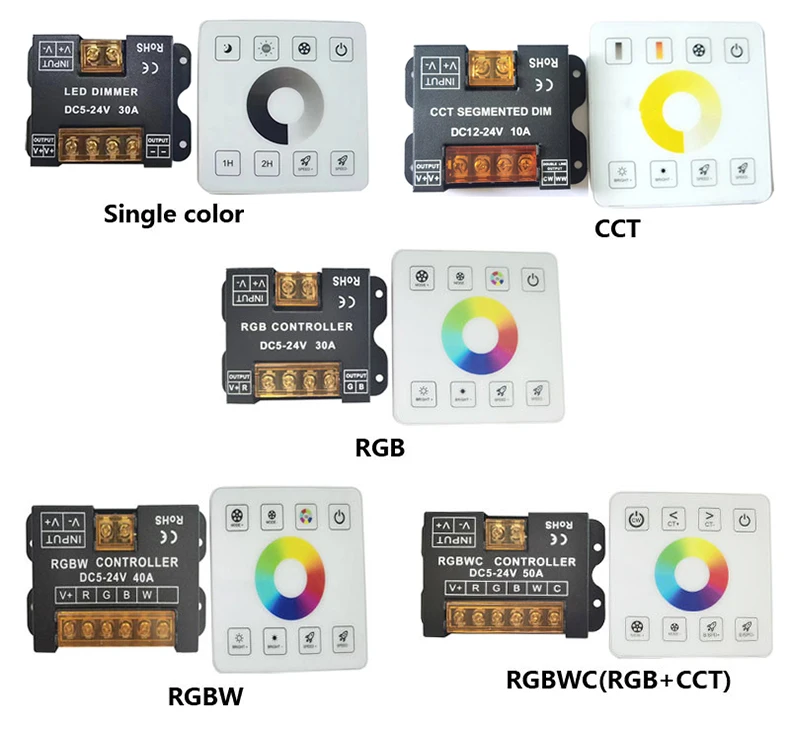

Wireless RF iron shell 86 full touch controller is a LED controller with advanced point-control touch technology. There are five types of products in this series to choose from, which are used to control monochrome, two-line/three-line color temperature, RGB, RGBW, There are five types of RGBWC light bars; dynamic lighting effects such as gradient, jump, fading, flashing, flashing, etc. can be selected according to different needs of customers, as well as a variety of static colors to choose from. It can be widely used in home decoration, shopping mall advertising, bar and other application places. It has the advantages of flexible wiring, convenient wiring and simple use.
Technical Parameter:

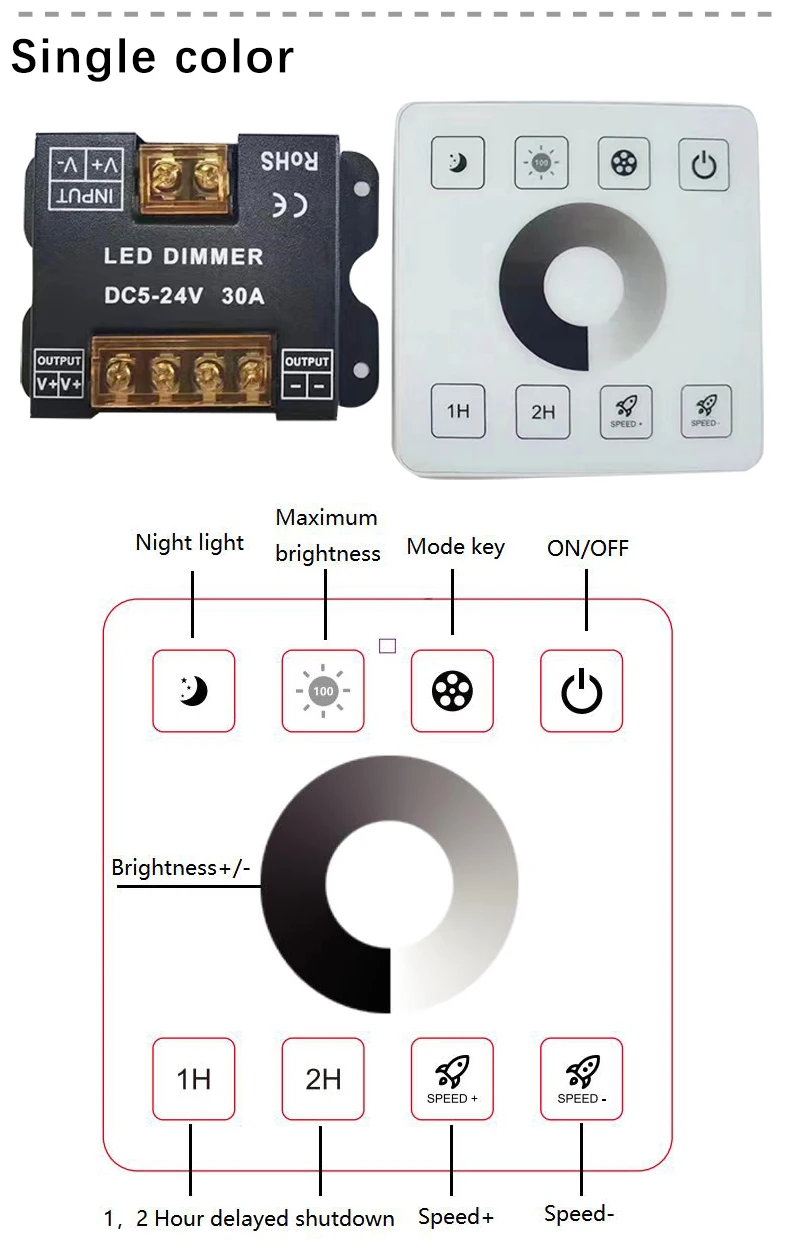

Single color Touch panel controller
Working supply : DC 5~24V
OPerating temperature : -20-60℃
Output current/Power : 15A*2CH,
5V<150W, 12V<360W, 24V<720W
Product Size : L85*W62*H22mm
Package Size : L110*W94*H42mm
Color Temperature Touch panel controller
Working supply : DC 12~24V
OPerating temperature : -20-60℃
Output current/Power : 5A*2CH,
12V<120W, 24V<240W
Product Size : L85*W62*H22mm
Package Size : L110*W94*H42mm
RGB Touch panel controller
Working supply : DC 5~24V
OPerating temperature : -20-60℃
Output current/Power : 10A*3CH,
5V<150W, 12V<360W, 24V<720W
Product Size : L85*W62*H22mm
Package Size : L110*W94*H42mm

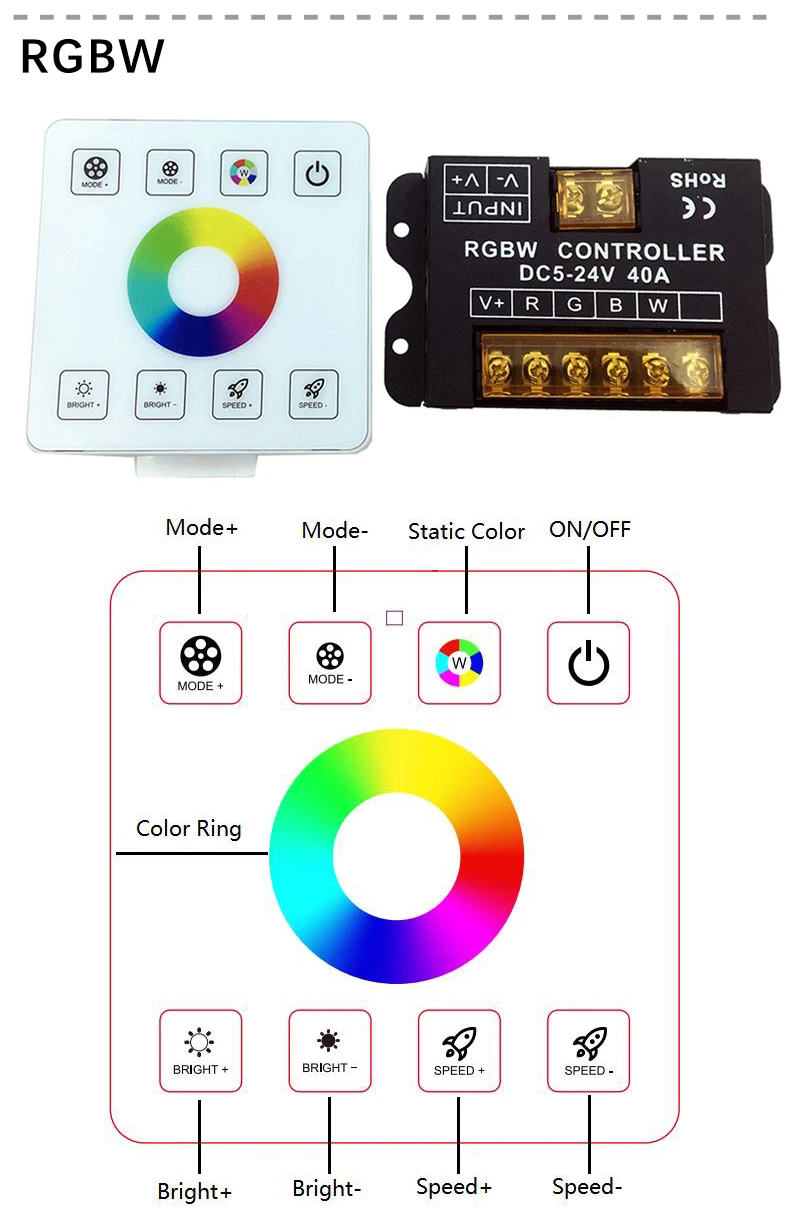

RGBW Touch panel controller
Working Temperature : -20-60℃
Voltage supply : DC 5V~24V
Output : 5 COMS drain outputs
Connect mode : Common anode
Static power : <1W
Output current : <10A(each channel)
Output Power : 5V<200W, 12V<480W, 24V<960W
Product Size : L103*W62*H22mm
Package Size : L110*W94*H42mm

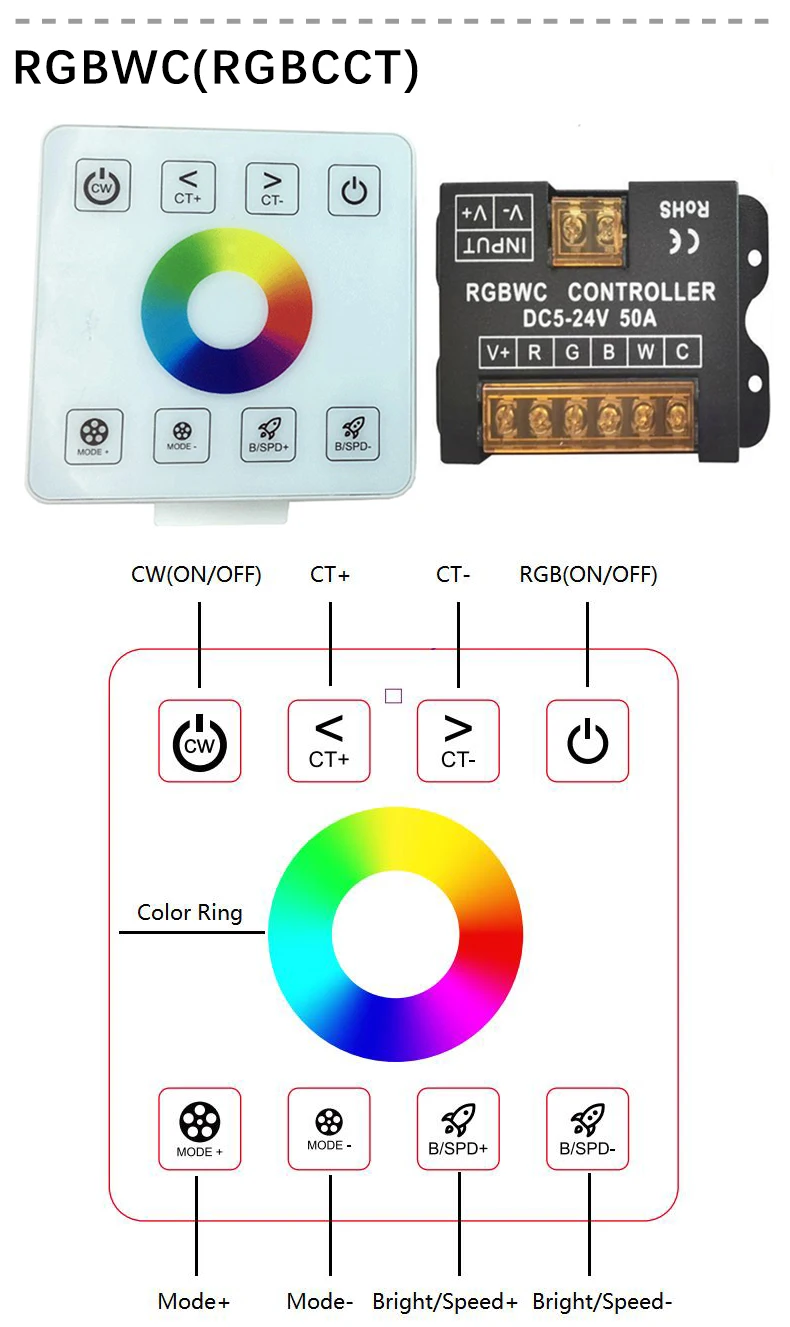

RGBWC(RGB+CCT)Touch panel controller
Working Temperature : -20-60℃
Voltage supply : DC 5V~24V
Output : 5 COMS drain outputs
Connect mode : Common anode
Static power : <1W
Output current : <10A(each channel)
Output Power : 5V<250W, 12V<600W, 24V<1200W
Product Size : L103*W62*H22mm
Package Size : L110*W94*H42mm
