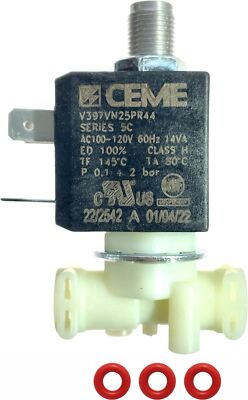

Product Overview

• Brand: MacMaxe
• Type: Solenoid Valve
• Suitable For: for Breville

3-Way Solenoid Valve Setup Instructions Port Functionality and Operation: Port
1 (Water Inlet - Common Port): This is the water inlet port in both the
energized and de-energized states. Water always enters through Port 1, which
is clearly marked on the plastic connector. Upper Connector (Normally Open -
Water Path when Solenoid is Off): When the solenoid is not energized (off),
water flows from Port 1 to the Upper Connector. This is the default state,
where water exits through the upper connector. Port 2 (Normally Closed - Water
Path when Solenoid is On): When the solenoid is energized (on), water is
redirected from Port 1 to Port 2. The Upper Connector is closed, preventing
any water flow through it in this state. Port 2 is also marked on the plastic
connector for easy identification. Correct Operating Mechanism: 1. When the
solenoid is off (de-energized): Water flows from Port 1 to the Upper
Connector. The connection between Port 1 and Port 2 is closed. 2. When the
solenoid is on (energized): Water is redirected from Port 1 to Port 2. The
Upper Connector is closed, stopping water flow through it. Important Notes for
Proper Installation: 1. Port Markings: Port 1 and Port 2 are clearly marked on
the plastic connector, making it easier to correctly identify the inlet and
outlet connections. Be sure to connect the system properly based on these
markings to ensure correct operation. 2. Bottom Plastic Connector Swivels: The
bottom plastic connector swivels and must be correctly adjusted according to
your system setup. Incorrect positioning may prevent the valve from
functioning properly. Ensure the alignment of the swiveling bottom connector
is correct before installation. If the order of connections is mixed up, the
solenoid valve will not work as intended. 3. O-Ring Installation: Place the
O-rings (included in the package) on the connectors that will be inserted into
the ports. These O-rings are essential for creating a proper seal between the
connectors and the ports to prevent any leaks. Ensure that each O-ring is
properly seated on the connector before inserting it into Port 1, Port 2, and
the Upper Connector to secure a leak-proof fit. Flow Summary: Solenoid Off:
Water flows from Port 1 (inlet, marked on the connector) to the Upper
Connector. Solenoid On: Water flows from Port 1 (inlet) to Port 2 (outlet,
marked on the connector), and the Upper Connector is closed.

Features

• Fits various Breville models
• OEM Part Number .BES870XL/02.149A
• This part SP0020446 replaces obsolete part #: BES870XL/02.149A, BES870XL02.149A
• O-rings provided in the package to use when connecting the pipes.
• If you can't pour a shot before it buzzes and stops, you likely need a 3-Way Solenoid Valve to fix the issue. If you're buzzes after a shot but otherwise works, the 2-Way Solenoid Valve is the solution, as it handles pressure relief after brewing.

Details

• Material: Metal
• Brand: MacMaxe
• Item dimensions L x W x H: 2.5 x 1 x 1.5 inches
• Outlet Connection Type: Connector
• Number of Ports: 3
• Valve Type: Multi Port Valve
• Manufacturer: CEME
• Manufacturer: CEME
• Brand Name: MacMaxe
• Model: BES870XL/02.149A
• Valve Type: Multi Port Valve
• Number of Ports: 3
• Outlet Connection Type: Connector
• Item Dimensions: 2.5 x 1 x 1.5 inches
• Material Type: Metal
