4x Forged I-Beam Connecting Rod Rods For Acura Honda B18A B18B B20B B20Z 137mm

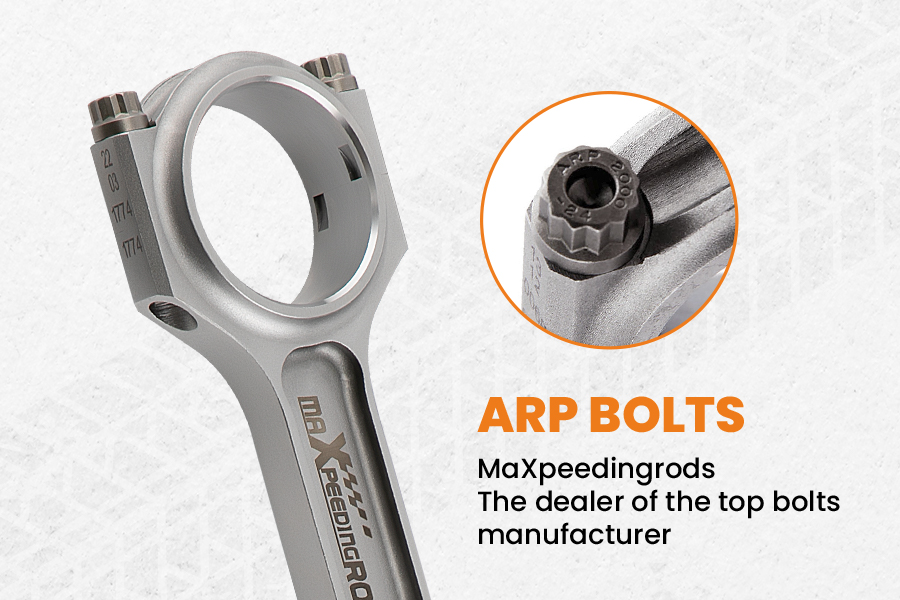

ARP Bolts

The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED

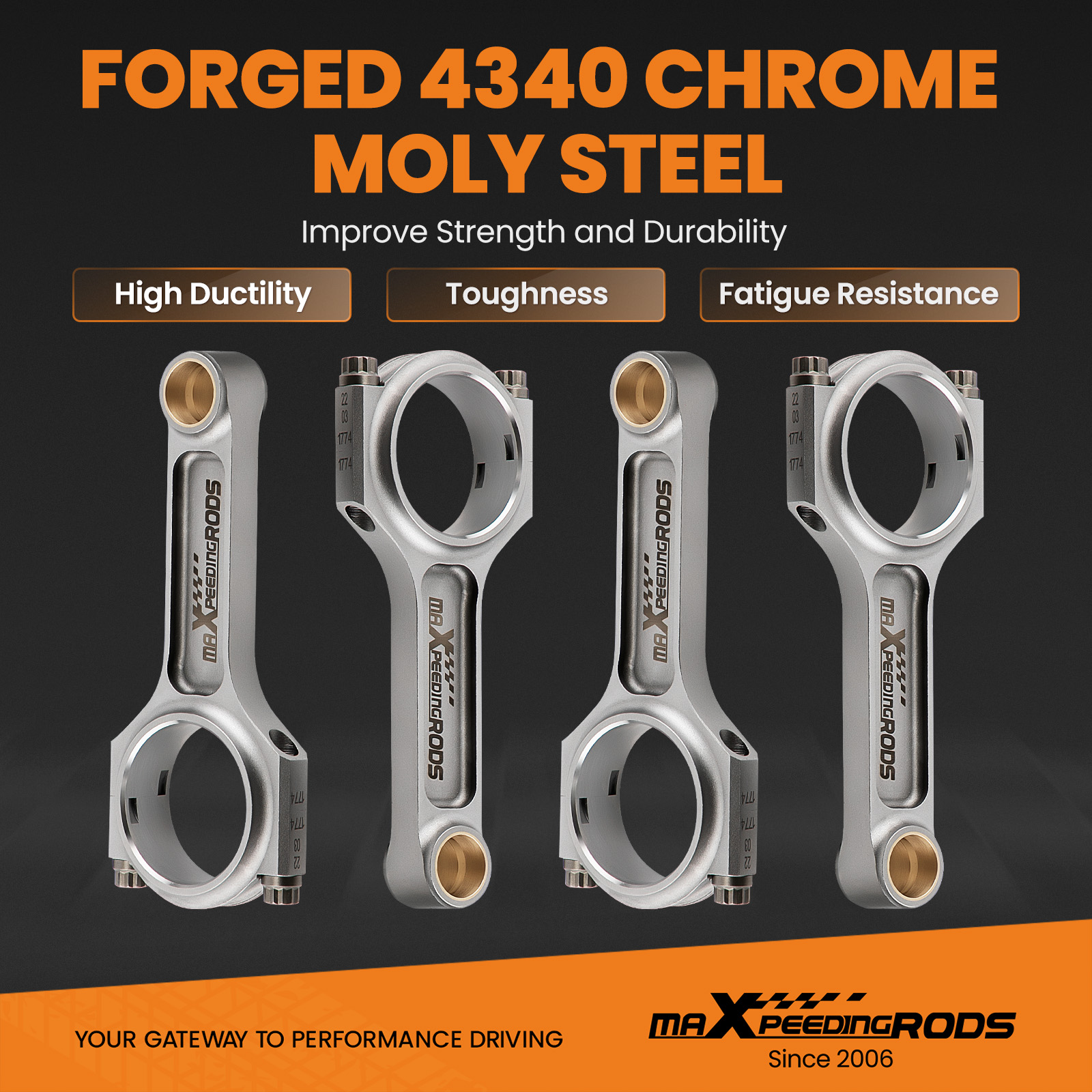

Forged 4340 Steel

Forged 4340 Chrome Moly Steel improves strength and durability, dedicated for Racing.

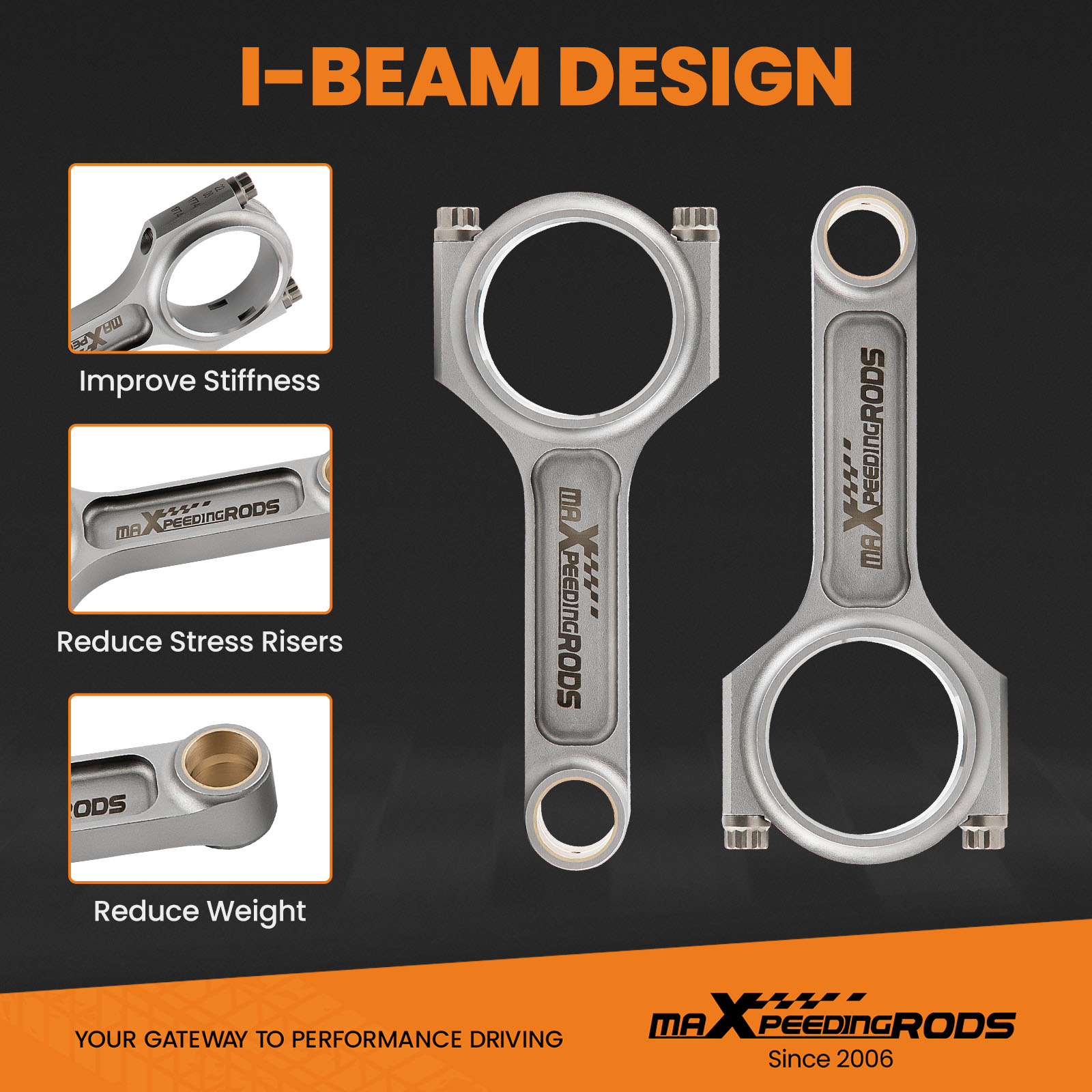

I-Beam Design

I-Beam helps improve stiffness, reduce stress risers and weight.

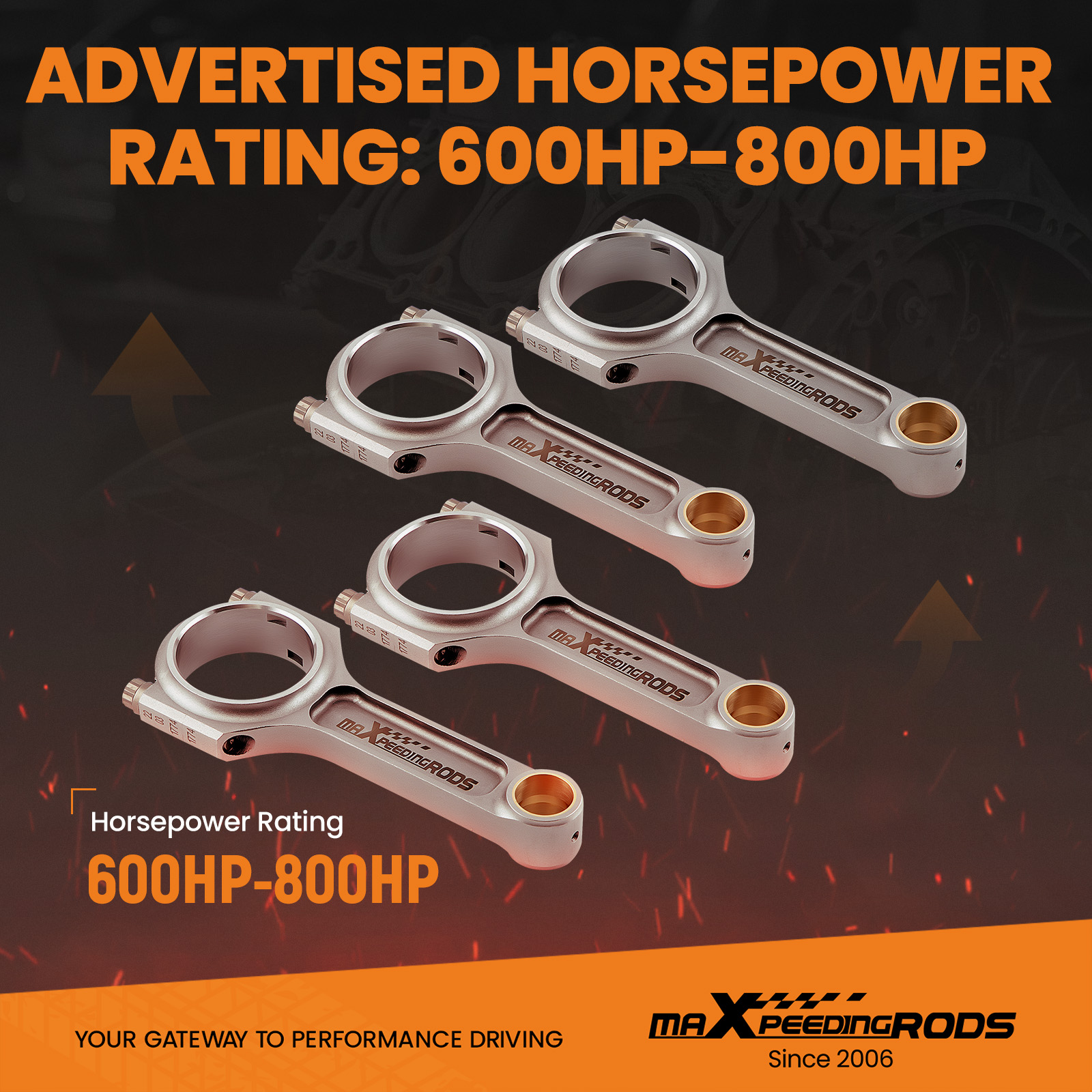

Horsepower Rating

Advertised horsepower rating: 600HP-800HP.

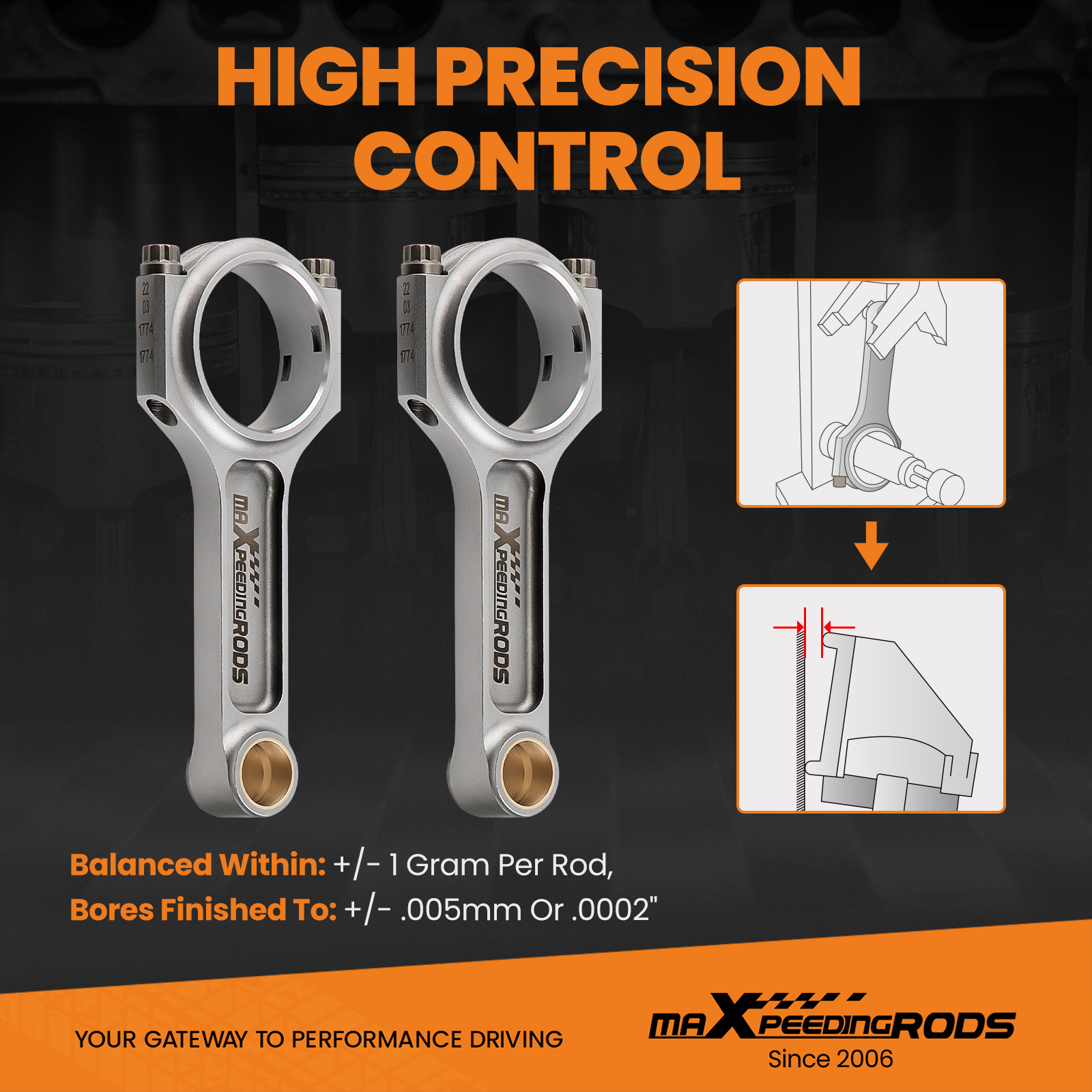

High Precision Control

Balanced within:+/- 1 gram per rod,

Bores finished to:+/- .005mm or .0002".

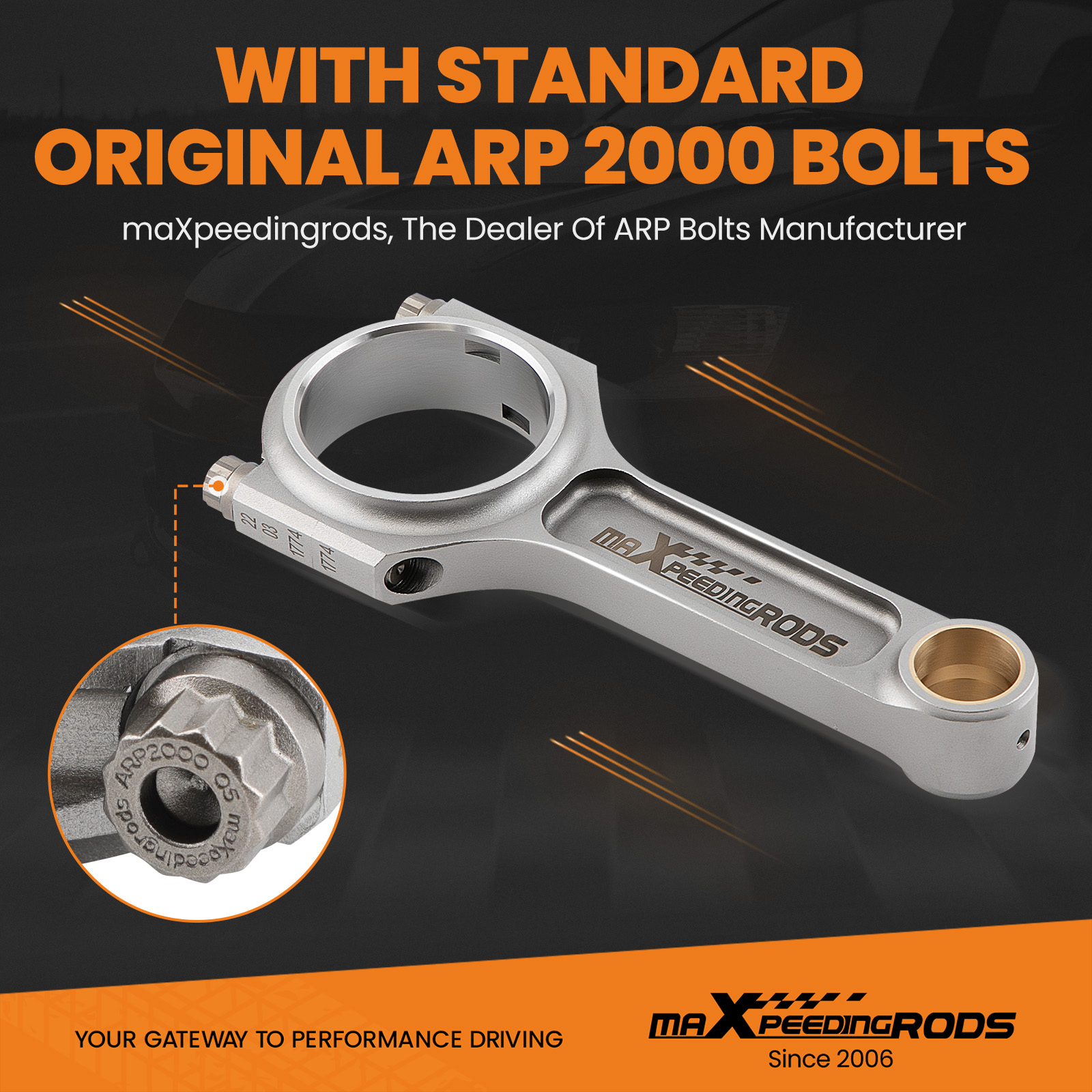

ARP 2000 Bolts

With Standard Original ARP 2000 Bolts.

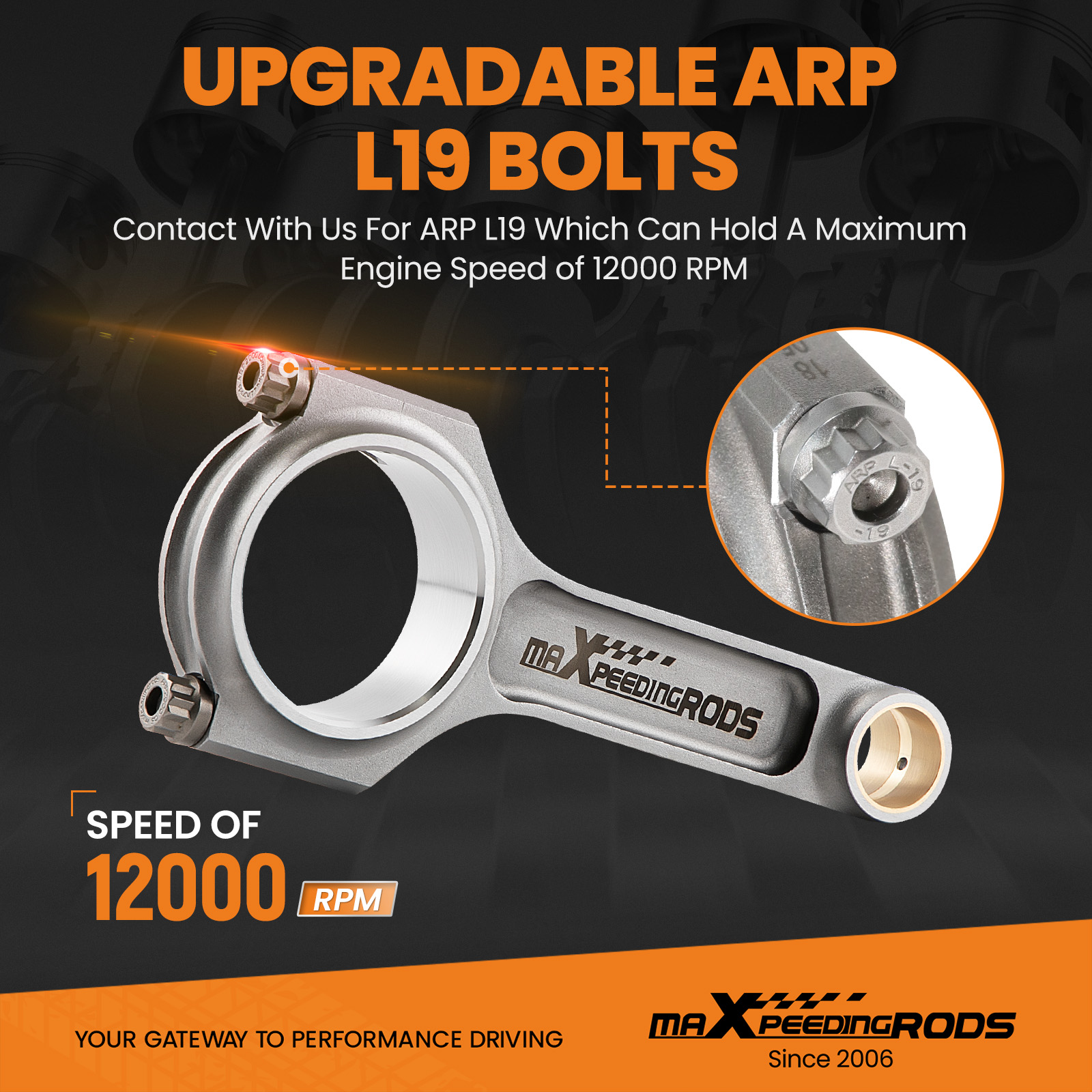

Upgradable ARP L19 Bolts

Contact with us for ARP L19 which can hold a maximum engine speed of 12000 RPM.

Application

FOR ENGINE MODELS	B18A1, B18B1, B18B2, B20B4, B20Z2
For Acura	Integra 1.8L L4 B18A1 1990-1993
For Acura	Integra 1.8L L4 B18B1 1994-2001
For Honda	CR-V 2.0L L4 B20B4 1997-1998
For Honda	CR-V 2.0L L4 B20Z2 1999-2001
Pin Type	Floating Pin Piston

Dimension

Center to center length	137mm/5.394"
Big end diameter	48mm/1.890"
Small end diameter	21mm/0.827"
Big end width	23.75mm/0.935"
Small end width	21mm/0.827"

Specification

Quantity	4 Pieces as showing in picture
Bolts	Including ARP 2000 bolts
Bolts Size	ARP 2000 3/8" bolts
Bores finished to	+/- .005mm or .0002"
Balanced to within	+/- 1 g per rod
Advertised Horsepower Rating	600HP-800HP
Top acceleration	9000rpm
Strength of the fastening PSI	220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Warranty	2 years warranty for any manufacturing defect
Package size	28CM21CM10CM

Note

*Professional installation is highly recommended ；

*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
