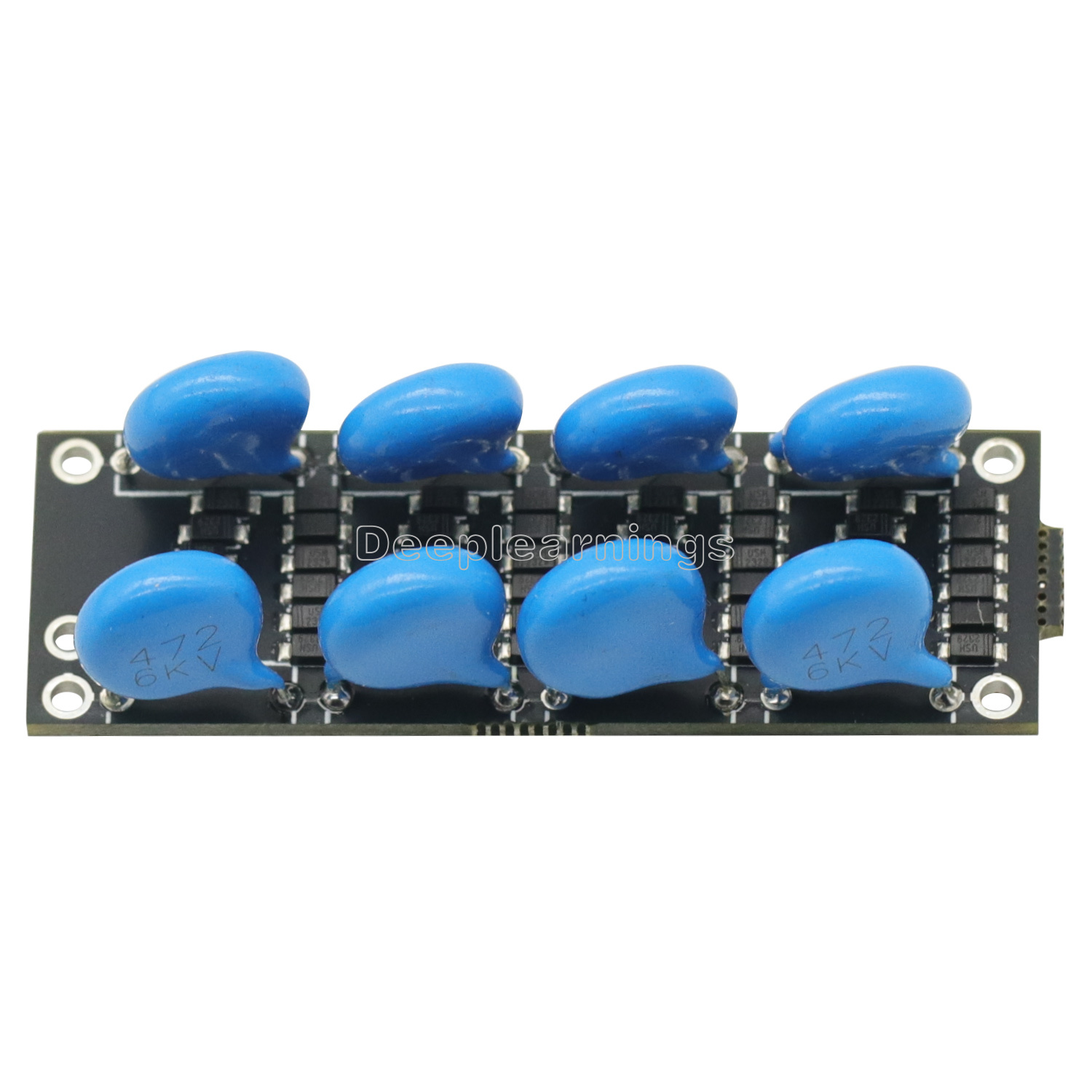

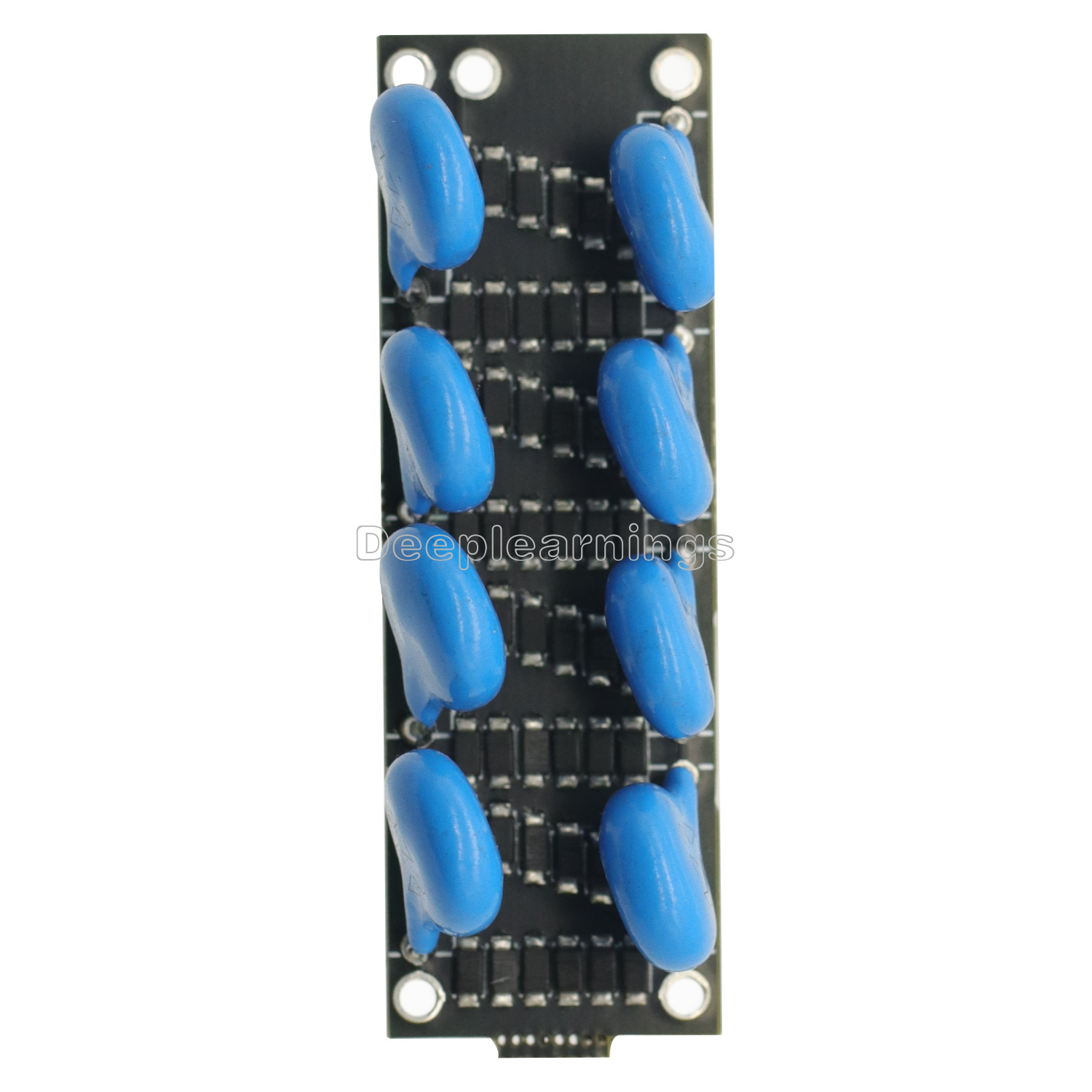

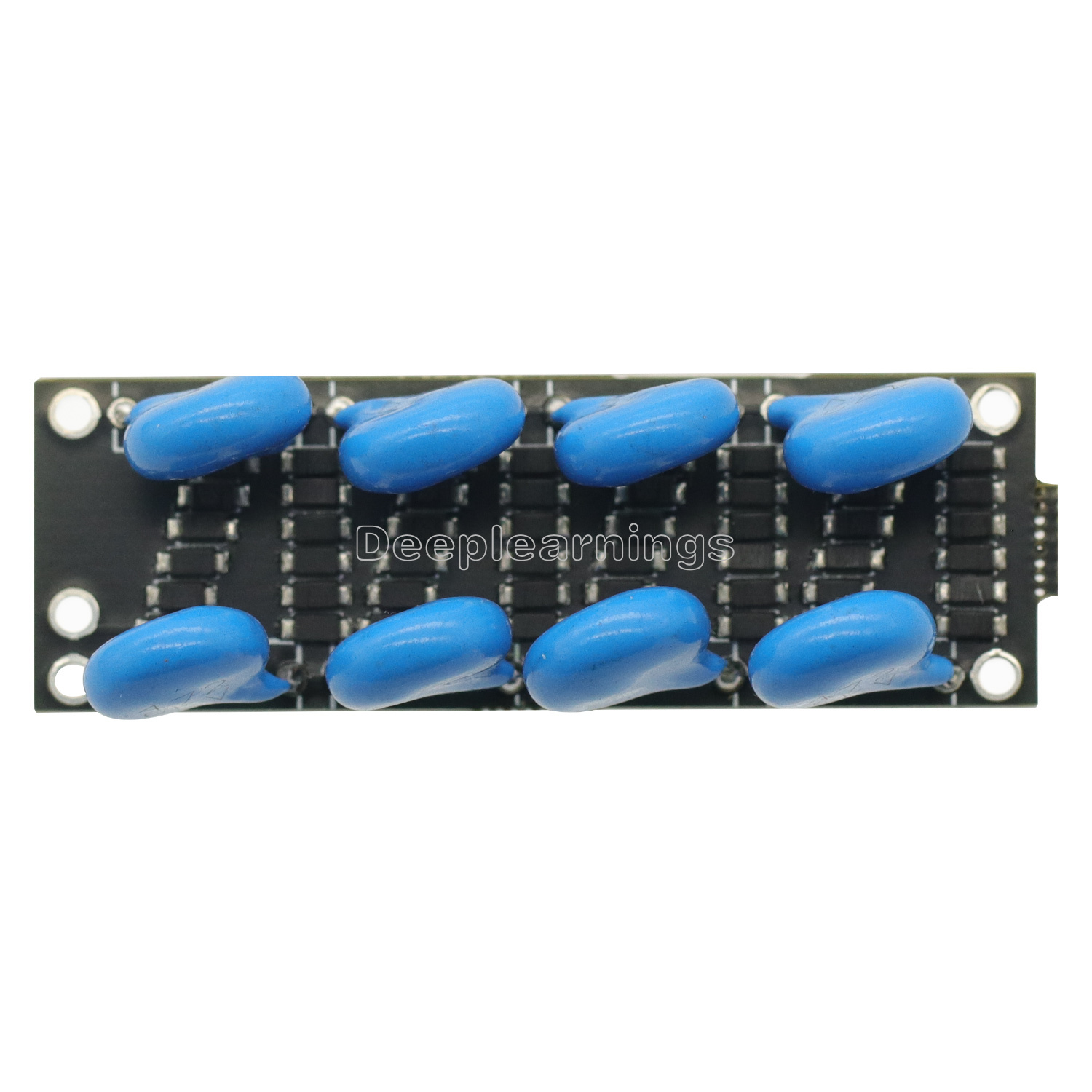

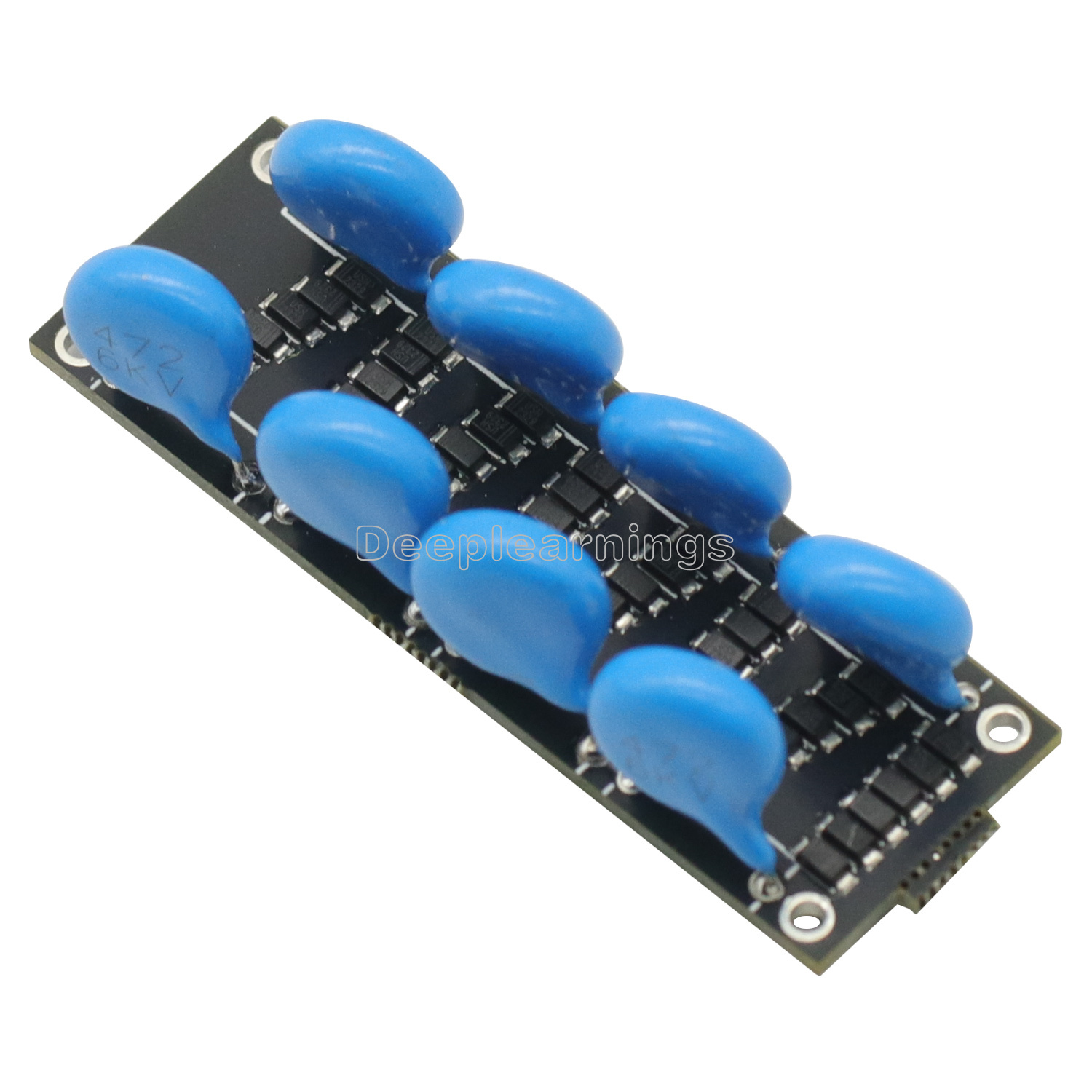

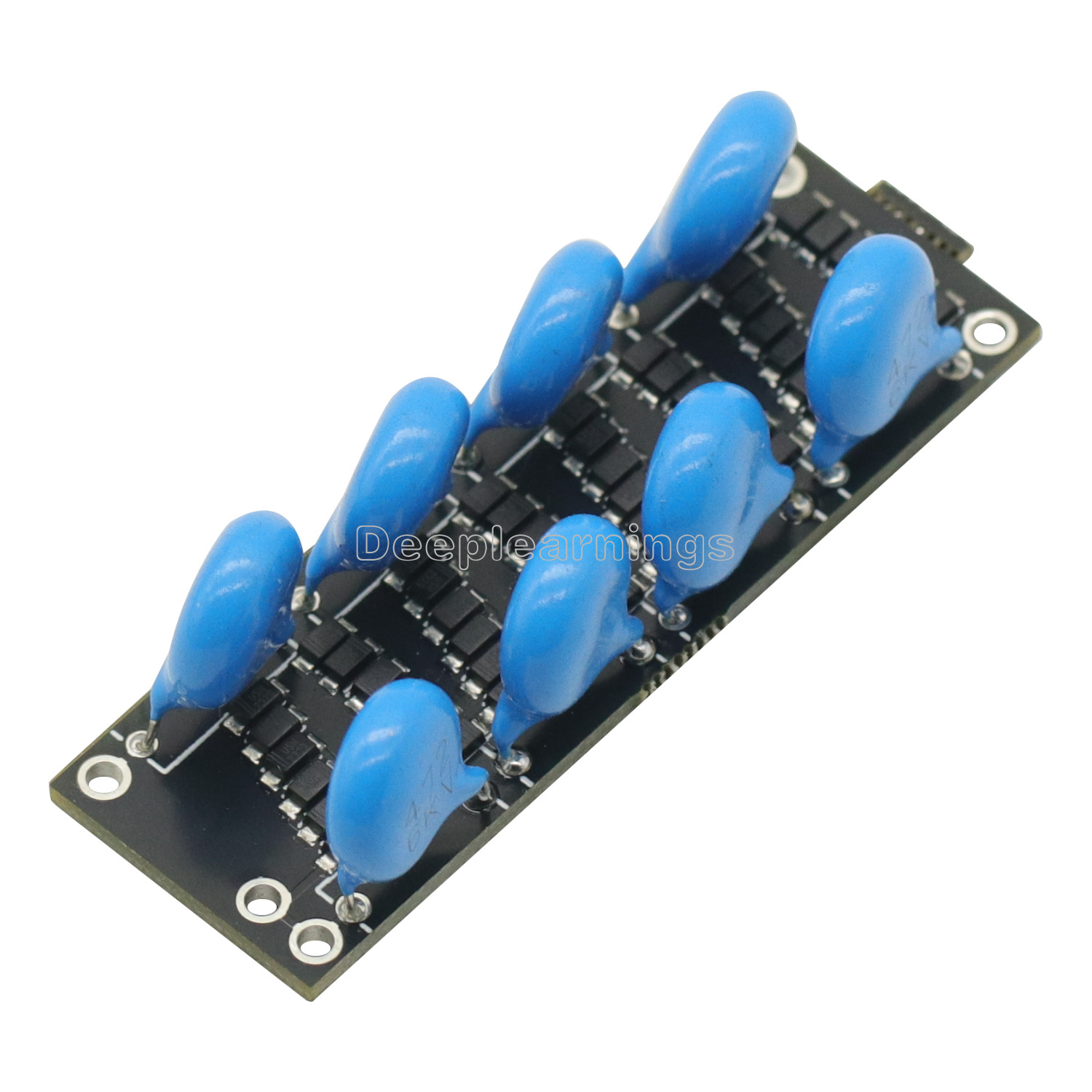

8 Times Rectifier 24000V High Voltage Multiplier Voltage Doubler Circuit Board

Description:

High Quality Voltage Multiplier Rectifier Module

Notice: This product is an accessory, not a finished product. It cannot output high voltage by itself and must be used with a high-frequency and high-voltage power supply module.

This module uses domestic high-quality capacitor diodes, the price is cheaper, but the performance is not reduced.

The maximum boost is 8 times, For example: input 2500VAC, can output 20000VDC.

It is recommended 100V~2500V/AC/50KHz input, it can work when connected, the module has reserved redundancy, and the stable output is 20000V for a long time. In addition, the 220VAC power 50Hz frequency is too low, and the direct access effect will be very unsatisfactory. It is recommended to prepare a boost module with a frequency of at least 10KHz. 110VAC power voltage also too low.(Not suggestion).



Working Parameters:

Suggested Input Voltage: 2500V

Max Input Voltage: < 3000V

Suggested Output Voltage: 20000V

Max Output Voltage: < 24000V

Instantaneous Current: <1A

Operating Frequency: < 200KHz

Suggested Frequency: 50KHz

Overload Power: < 50W

Onboard Capacitor: 6KV/4700PF(472)

Onboard Diode: 6KV(1KV*6)



Packing List:

1pcs x Voltage Multiplier Rectifier Module
