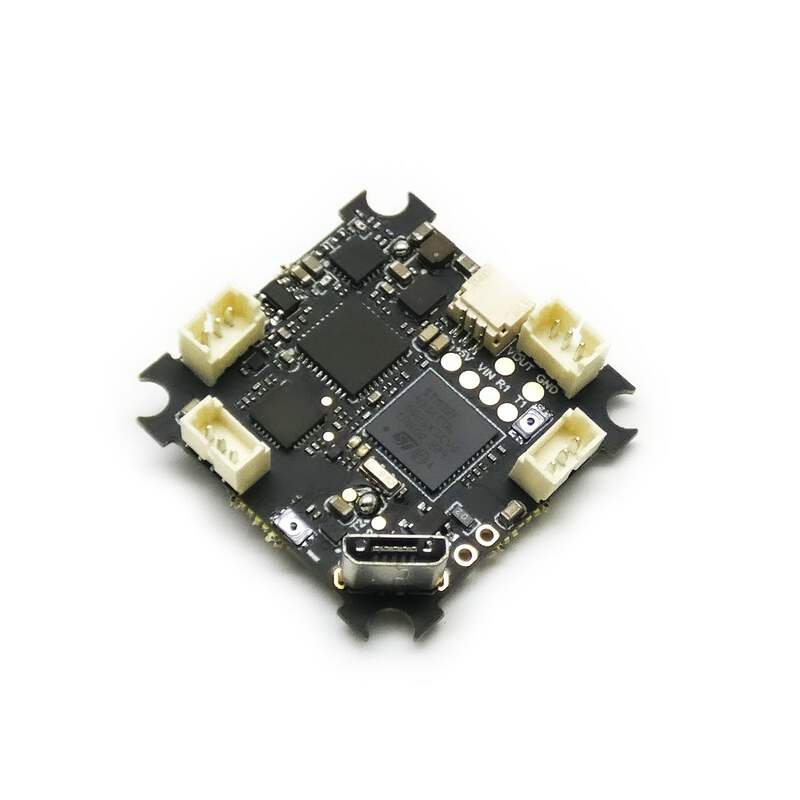

Happymodel ELRSF4 2G4 V3.1 V3.3 AIO 5in1 Flight controller built-in SPI 2.4GHz ELRS RX

The world's first AIO 5in1 F4 flight controller with integrated SPI 2.4GHz ExpressLRS receiver has been launched. The flight controller integrates SPI controlled 2.4GHz ExpressLRS receiver, Dshot protocol 4-in-1 ESC, 5.8GHz 40ch video transmitter and Betaflight OSD. Ultra-small size and ultra-stable remote control range can improve the range of the original SPI receiver. And because the 2.4GHz ExpressLRS receiver is equipped with the SX1280 radio frequency chip with high sensitivity, high packet rate and low latency, this flight controller is the one that all Race/Freestyle pilots needed. It is suitable for use in Tiny whoop Race or Toothpick Freestyle, and can also be uséd in 1S ultra-lightweight Nano Long Range platform.

Firmware, hex file, and default diff download:
http://www.happymodel.cn/index.php/2022/02/23/elrsf4-2g4-v3-1-flight-controller-firmware-and-default-factory-diff/

Flight Controller Specifications:
  • MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
  • Gyro Sensor: Upgrade to ICM42688P or BMI270
  • Original whoop size compatible
  • Power supply: 1S battery input (DC 2.9V-4.35V)
  • Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
  • Built-in Betaflight OSD(SPI Control)
  • Built-in 5.8G Open VTX
  • Built-in SPI ExpressLRS 2.4GHz receiver
  • Built-in 5V 1A BEC
  • Flight controller firmware target: CRAZYBEEF4SX1280

 Onboard 4in1 ESC Specifications:
  • MCU upgraded to EFM8BB21
  • Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
  • Support BLHeliSuite programmable
  • Factory firmware: O_H_5_REV16_8.HEX
  • Default protocol: DSHOT600

 Onboard SPI ExpressLRS 2.4GHz Receiver Specifications:
  • acket Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
  • RF Frequency: 2.4GHzAntenna : SMD antenna
  • Telemetry output Power: <12dBm
  • Receiver protocol: SPI ExpressLRS
  • Could bind with Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module(Requires ELRS V2.0 firmware)

 Onboard 5.8g VTX Specifications:
  • Output power: 0mw~400mw switchable
  • Frequency: 48CH
  • Input voltage: 3.3V~5.5V
  • Current consumption: 300mA(type)
  • Frequency: 5.8GHz 6 bands 48 channels(include Race band)
  • Smartaudio V2.1 ready

 Package Contents:
  • 1x Happymodel ELRSF4 2G4 AIO Flight Controller
×
