Solar Panel Description

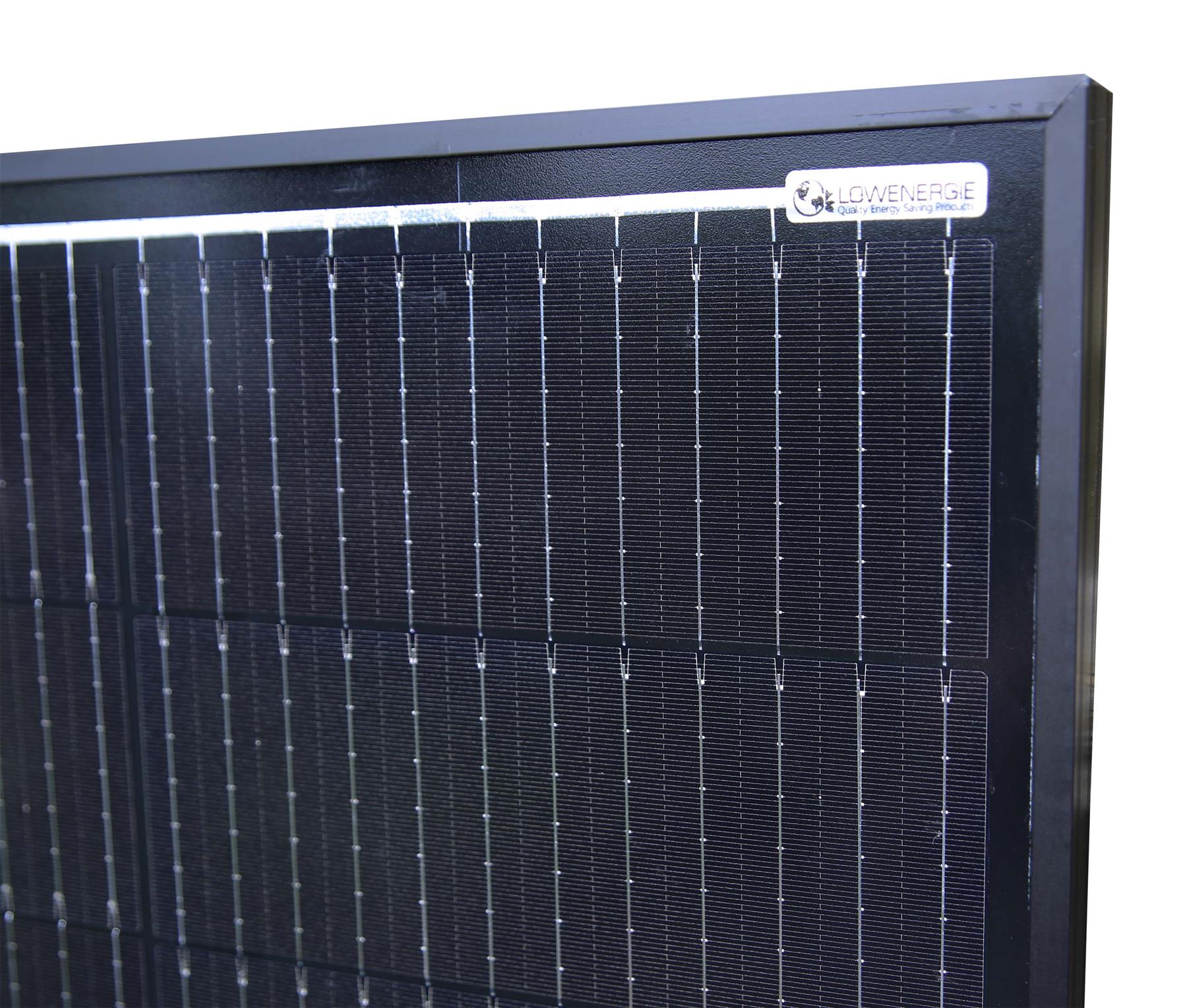

Half cut solar cells

• Solar Panels with half -cut solar cells and 9 to 12 buzz bars connecting the cells are 8-10% Smaller than typical square cell panels
• Solar Panels with half -cut solar cells and 9 to 12 buzz bars connecting the cells are 3% higher efficiency than typical square cell panels

Full silicon solar cells used to be square, sometimes with the corners cut off, but now the mainstream trend with all the big solar manufacturers is for half cut, small rectangular silicone cells, due to their higher efficiency.

Solar panel technology has moved on considerably in the last few years with the introduction of half cut solar cells which can provide 2 to 3% more efficiency and higher watts per square metre. This means that the same power solar panels used in the past can now be 8-10% smaller. Alternatively you can have bigger solar panels with higher power output, but don’t take up as much space.

This works by doubling the number of solar cells and increasing the number of ribbons, (BB’s / buzz bars) which connect the silicon solar cells together within the panel. This helps to lower resistance in the panel, which in turn reduces tiny voltage drops in the many panel connections. Overall this provides more power output. The smaller cells are also less likely to have microfracture issues and with improved cloudy day performance.

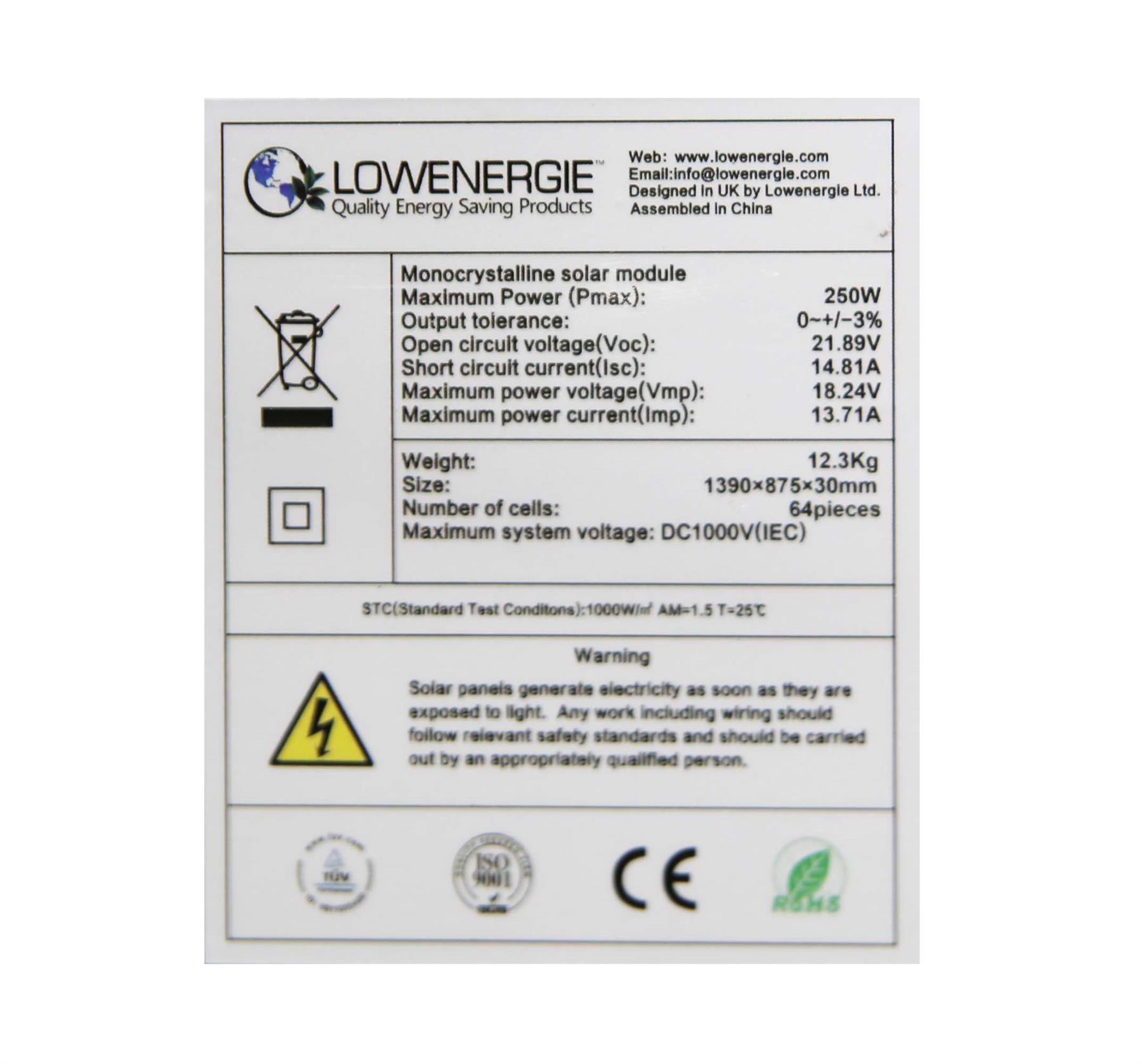

Solar Panel Technical Specification

• Maximum Power (Pmax): 250W
• Maximum Power Voltage (VMP): 18.24V
• Maximum Power Current (IMP): 13.71A
• Open Circuit Voltage (VOC): 21.89V
• Short Circuit Current (ISC): 14.81A
• Weight: 12.3KG
• Size: 1390 x 875 x 30mm
• Cell Quantity 64
• Power Tolerance: +/-3%
• Maximum System Voltage: DC1000V
