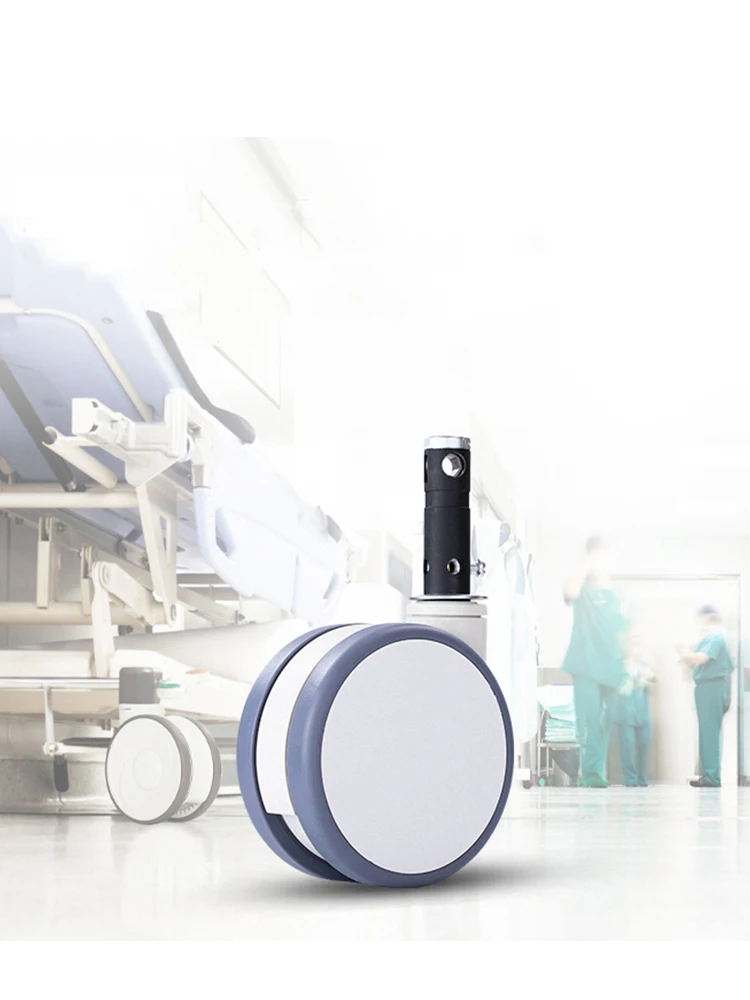

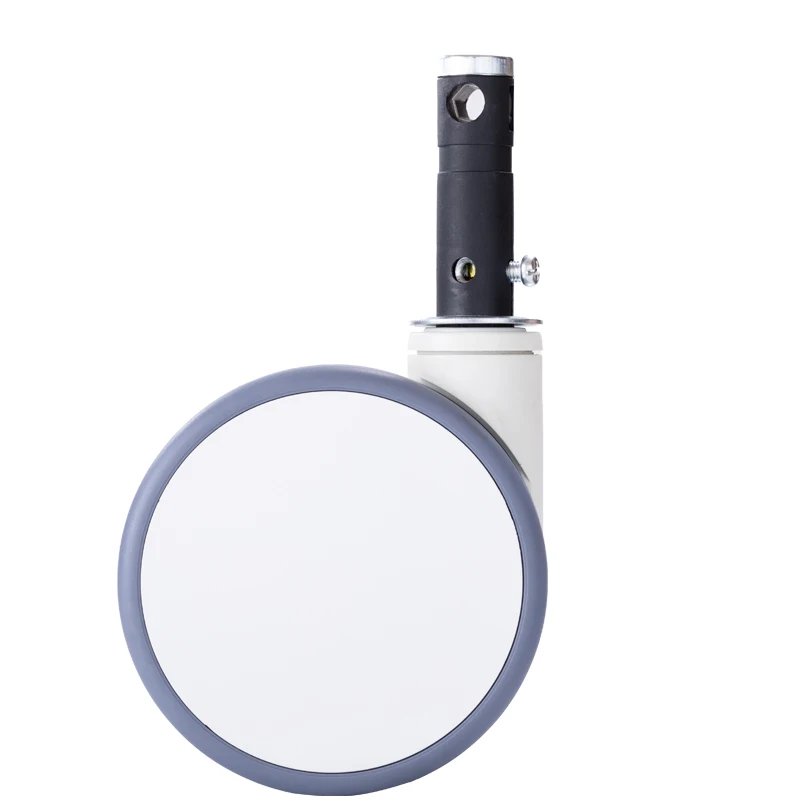

Professional Grade Medical & Industrial Caster — Short Metal Stem Variant (Φ32*50mm)
Engineered to strictly comply with the European EN12531 standard, this premium 5-inch Short Stem Swivel Caster is specifically designed for high-stability medical equipment, heavy-duty mobile carts, industrial chassis, and specialized logistics terminals requiring a compact yet robust mounting profile. Featuring an impact-resistant and wear-resistant widened tread, it delivers exceptional load capacity while ensuring smooth, silent operation that completely protects your flooring.
| Model Size | 5 Inch (Short Stem Variant)[span_7](start_span)[span_7](end_span) |
|---|---|
| Wheel Diameter | 125 mm[span_8](start_span)[span_8](end_span) |
| Tread Width | 74 mm[span_9](start_span)[span_9](end_span) |
| Installation Height | 155 mm[span_10](start_span)[span_10](end_span) |
| Stem Dimensions | Short Stem: Diameter 32 mm × Length 50 mm[span_11](start_span)[span_11](end_span) |
| Offset | 38.5 mm[span_12](start_span)[span_12](end_span) |
| Swivel Radius | 101 mm[span_13](start_span)[span_13](end_span) |
| Swivel Restriction | 202 mm[span_14](start_span)[span_14](end_span) |
| Temperature Range | -30°C to +80°C[span_15](start_span)[span_15](end_span) |
| Standard Certification | EN12531 Certified[span_16](start_span)[span_16](end_span) |
| Net Weight | 1.05 kg[span_17](start_span)[span_17](end_span) |
| Dynamic Load Capacity | 100 kg (per wheel)[span_18](start_span)[span_18](end_span) |
| Static Load Capacity | 125 kg (per wheel)[span_19](start_span)[span_19](end_span) |

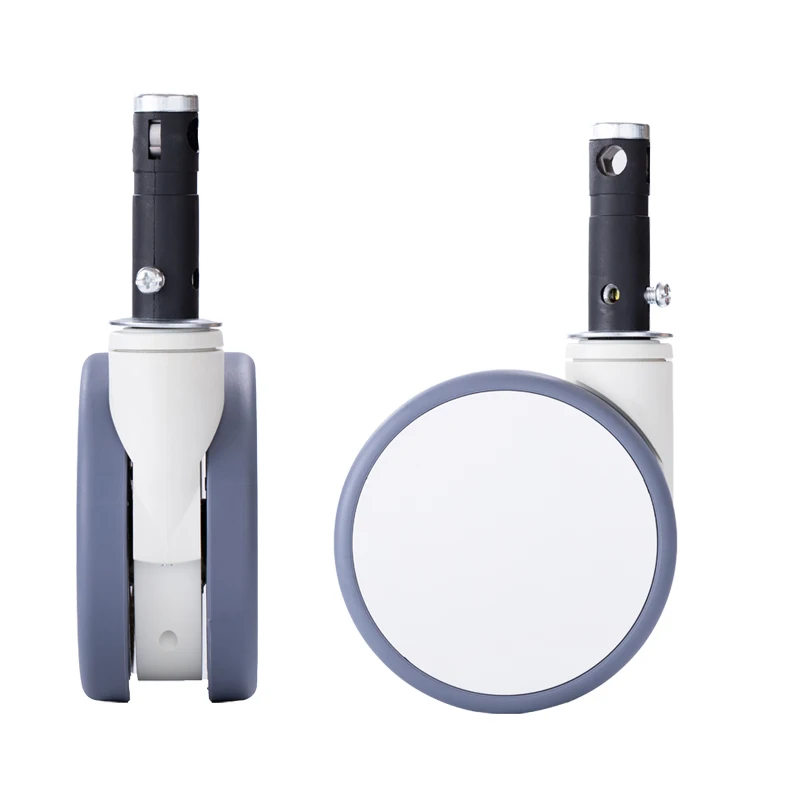

1 x 5" Swivel Caster Wheel (Short Metal Stem Dimensions: Φ32*50mm)
*Note: For bulk B2B commercial inquiries, volume distribution pricing, or customized orders, please message us directly via eBay for a specialized quote.
FAQ
Are these caster wheels suitable for hospital beds?
Yes. These medical caster wheels are designed for hospital beds, medical carts, patient transfer equipment, and other healthcare mobility applications. They provide smooth movement, reliable support, and easy maneuverability in hospitals, clinics, and medical facilities.
How much weight can each wheel support?
The load capacity depends on the specific caster model and size. Each product page includes detailed specifications such as load rating, wheel diameter, and recommended applications. For hospital bed replacement projects or custom requirements, please contact us for technical support.
Are the wheels quiet on hospital floors?
Yes. Our medical casters are designed with low-noise materials and precision bearings to provide smooth and quiet operation on common hospital surfaces, including vinyl floors, epoxy floors, and tile.
Can I replace existing medical casters with these?
In many cases, yes. These caster wheels can replace existing medical casters if the mounting size, stem type, wheel diameter, and load requirements match your equipment. Please check your current caster specifications before ordering.
Do the wheels include brakes?
Yes. Some models are available with integrated brakes, including total lock and directional lock options. Please check the product specifications to select the correct braking system for your hospital bed or medical equipment.
