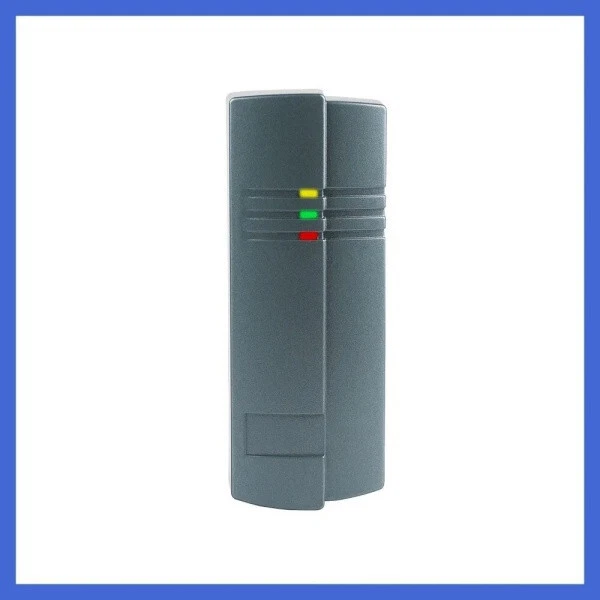

Detailed Description: | |
| Specification | |
| Decode time | <0.2s |
| Communication | Weigand 26/34 |
| Card type | Mifare1 S50 S70 13.56Mhz ISo14443A |
| Induction Distance | 10~18cm |
| Power supply | DC12V |
| DATA transfer range | Max 80m |
| Currency | <100MA |
| Working Temperature | 0~70°C |
| Working Humidity | Less than 80% |
| Warranty | |
| Warranty | 24 months |
| Physical | |
| Dimension (LxWxH mm) | 122*46*23 |
| Package | plastic casing &epoxy saturated |
| Weight (kg) | 0.2 |
PIN description
Pin | Color | Description |
1 | RED | DC12V |
2 | BLACK | GND |
3 | GREEN | WG data0(RS485+) |
4 | WHITE | WG data1(RS485-) |
5 | YELLOW | BUZZER |
6 | BLUE | LED |
7 | BROWN | Select, No Contact means WG26,Connect to GND means WG34 output |
