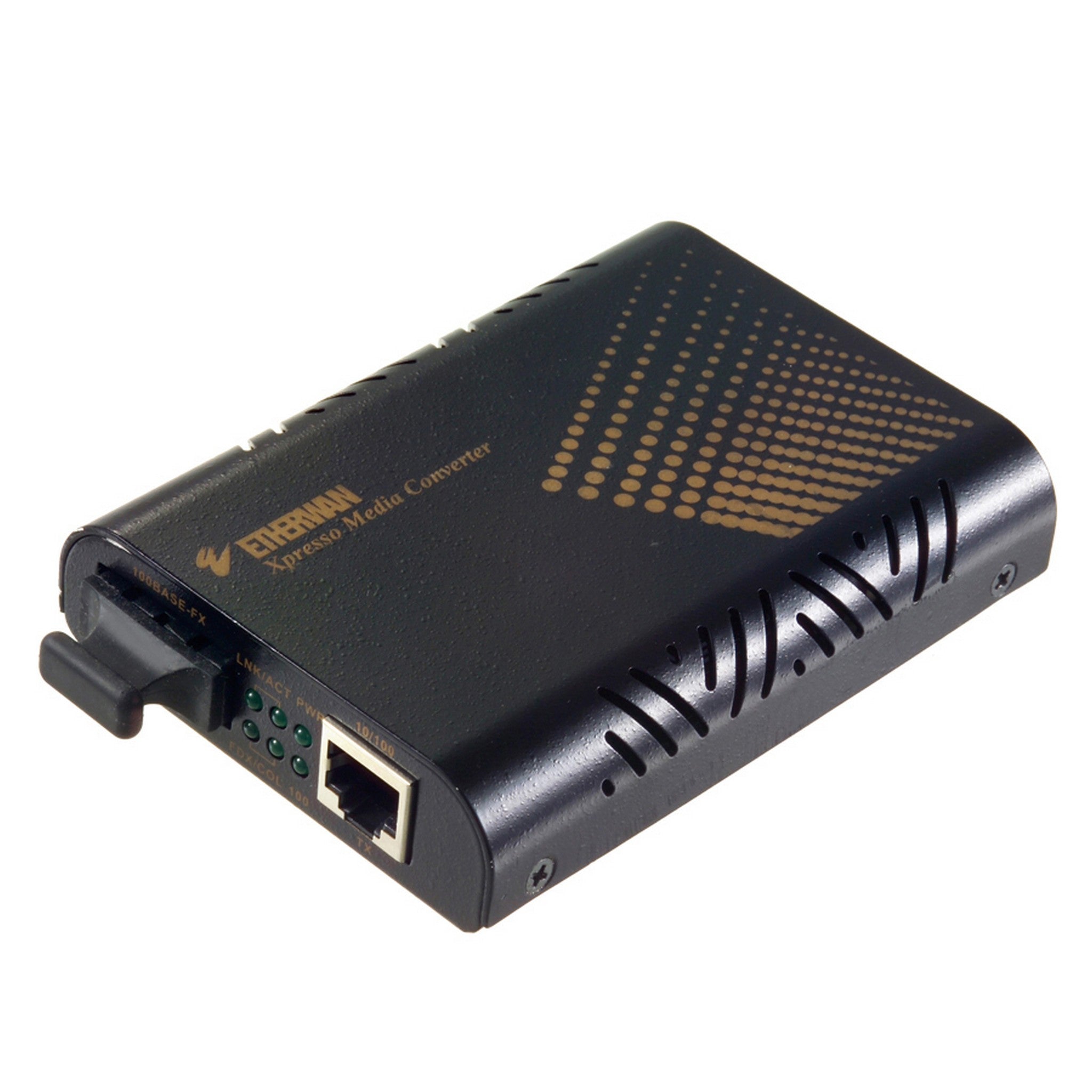

EL100C - 2Km with SC Connector, 1310nm, Multi Mode

The EL100 Series provide media conversion between 10/100BASE-T(X) and 100BASE-FX Fiber. Easy plug-andplay design facilitates network infrastructure construction. Through DIP switch selection, Link-Fault-Pass-Through (LFPT) function can be active or disabled. User can choose between store-and-forward mode and converter mode through DIP switch selection. The EL100 series is designed for SC or ST fiber connection applications. The commercial grade media converter supports EtherWAN EMC1600 chassis system for easy group installation. The EL100 is the ideal media converter for enterprise environments.

Key Features

\n
• Supports multi-mode and single mode fiber with SC or ST connector options
\n
• Store-and-forward mode or converter mode selectable (default: store-and-forward mode)
\n
• Link-fault-pass-through enable or disable
\n
• Full-duplex or half-duplex of Ethernet port enable or disable
\n
• Full-duplex or half-duplex of fiber port enable or disable
\n
• LFPT function lets network operators be aware of network connection status
\n
• If a link fails, the LFPT function will notify the connected device and disable the connection
\n

Technical Specifications

Ethernet Port
\n 10/100BASE-TX: 1 port
\n 100BASE-FX: 1 port
\n LED Indicators
\n Per Unit: Power
\n Per Port: 10/100TX: Link/Activity, Full duplex/Collision, Speed
\n Per Port 100FX: Link/Activity, Full duplex/Collision
\n Standards
\n IEEE 802.3 10BASE-T
\n IEEE 802.3u 100BASE-TX/FX
\n IEEE 802.3x Full duplex and flow control
\n Forward/Filtering Rate
\n 14,880pps for 10Mbps
\n 148,810pps for 100Mbps
\n Packet Buffer Memory
\n 128K bits
\n Processing Type
\n Converter mode
\n Store-and-Forward mode
\n Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
\n Auto MDI/MDIX
\n Input
\n 12VDC
\n Power Consumption
\n 1.92W max. 0.16A@12VDC
\n Casing Material
\n Aluminum
\n Dimensions
\n 80.3 x 109.2 x 23.8mm (W x D x H)
\n 3.16" x 4.30" x 0.94"
\n Weight
\n 0.15kg (0.33lbs)
\n Installation Type
\n Wall mounting, or in EMC1600 Chassis System
\n Operating Temp.
\n 0 to 45°C (32 to 113°F)
\n Storage Temp.
\n -10 to 70°C (-14 to 158°F)
\n Relative Humidity
\n 5% to 95% (non-condensing)
\n Regulatory
\n ISO
\n Manufactured in ISO-9001 facility
\n Safety
\n UL 62368-1
\n Emission Compliance
\n CE Mark Class A
\n FCC Part 15B Class A
\n VCCI Class A
\n Warranty
\n Limited Lifetime
\n What's Included
\n Media Converter
\n 12VDC Power Adapter
\n Quick Install Guide
