Fiber Laser Galvo Scanner Head for Fiber Laser Engraver Marking Machine RC1001
From CN via fast shipment within one days handling time delivery for you
From CN via fast shipment within one days handling time delivery for you
Speed and Accuracy
Marking speed:8000mm/s
Positioning speed:10000mm/s
Small step response time:≤0.4ms
Wavelength:1064nm
Linearity:99.9%
Repeatability/ Electrical value:8μRad.
Long-term drift (8 hours of continuous work):<0.5mRad
Gain error:<8mRad
Zero offset (batch origin error):<20μRad./℃
Tracking error:≤180us
Scale drift:<40PPM/℃
Zero drift:<15μRad./℃
Power and signal
Input voltage:±15VDC
Average working current:2.0A

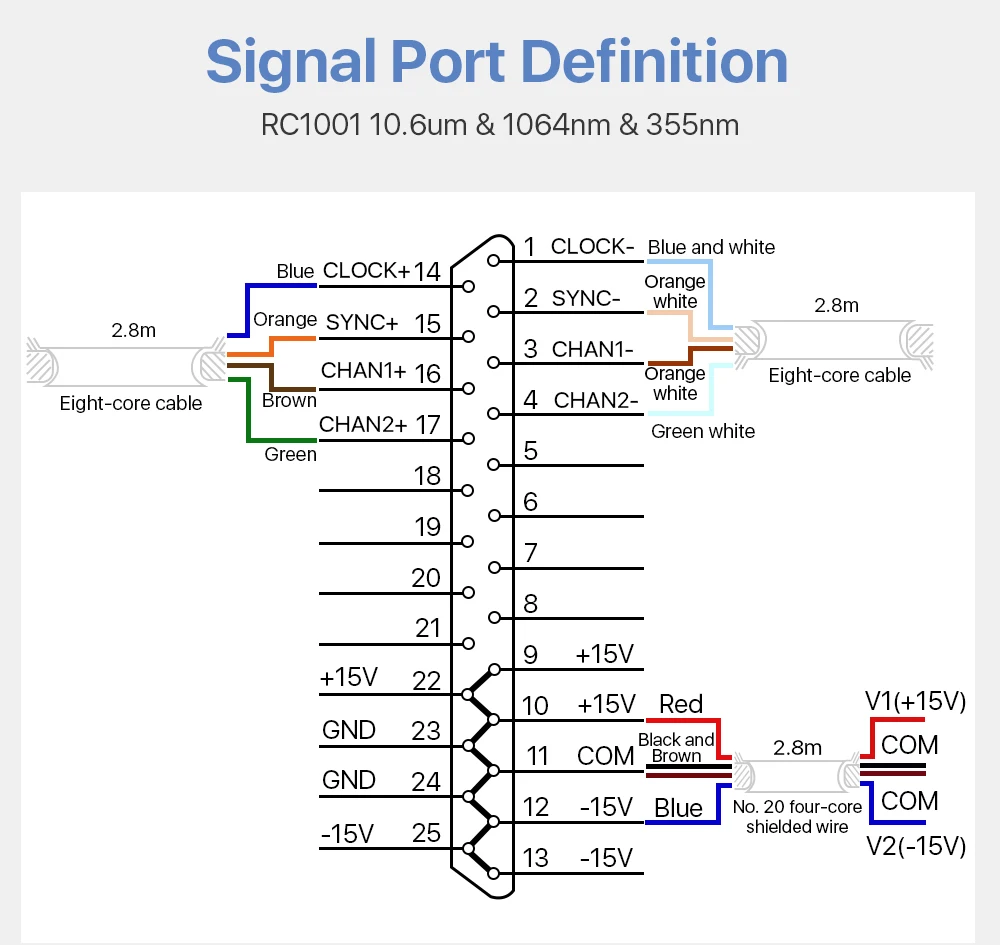

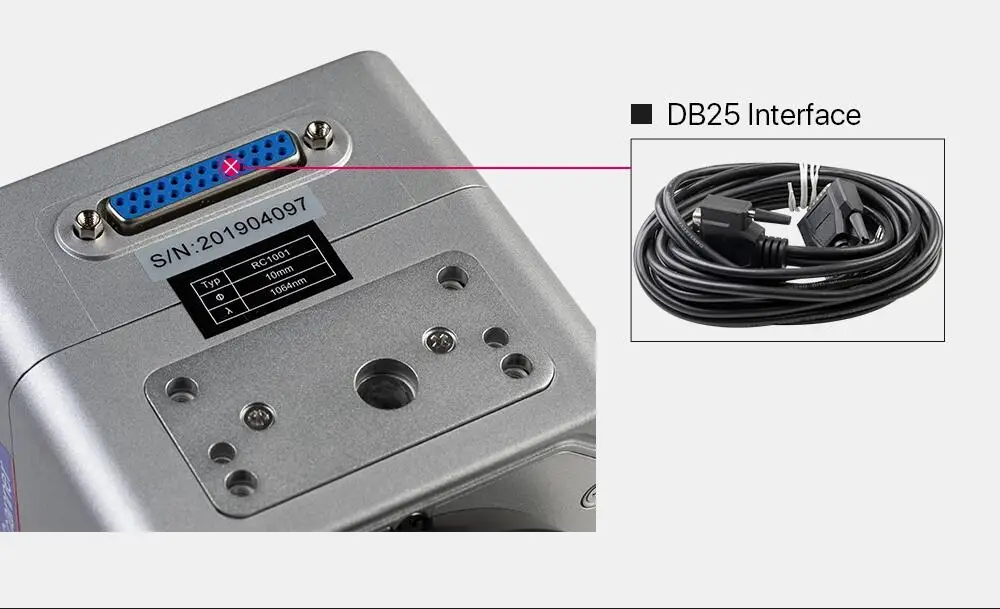

Signal Interface:XY2-100
Peak Current:15A
Operating Temperature:0℃ -- 45℃
Position signal input impedance:10KΩ±1%
Position signal input proportional coefhcient:0.33V/°
Sino-Galvo RC1001 Scan Head Galvanometer For Fiber Laser Marking Machine 1064nm
