2in1: CW Trainer & Decoder * Morse Code Training Partner * Keyer Interpreter

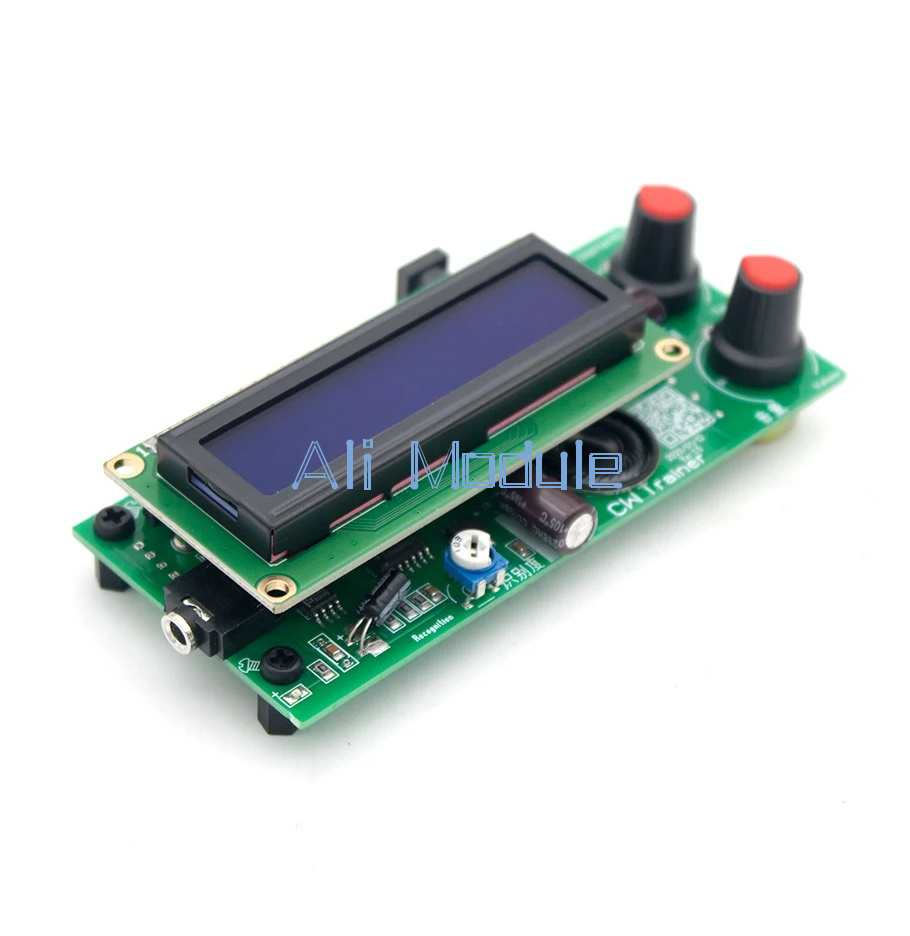

We are looking at a recently developed CW reader /decoder & trainer for hobbists. It is neat in design and has passed our intensive tests to be running smoothly.

Price includes standard registered air shipping world wide. (Pls contact us for shipping cost if expedited shipping needed.)

The reader runs on DC 9V. It has below parameters:

1) Input: DC 9V-12v

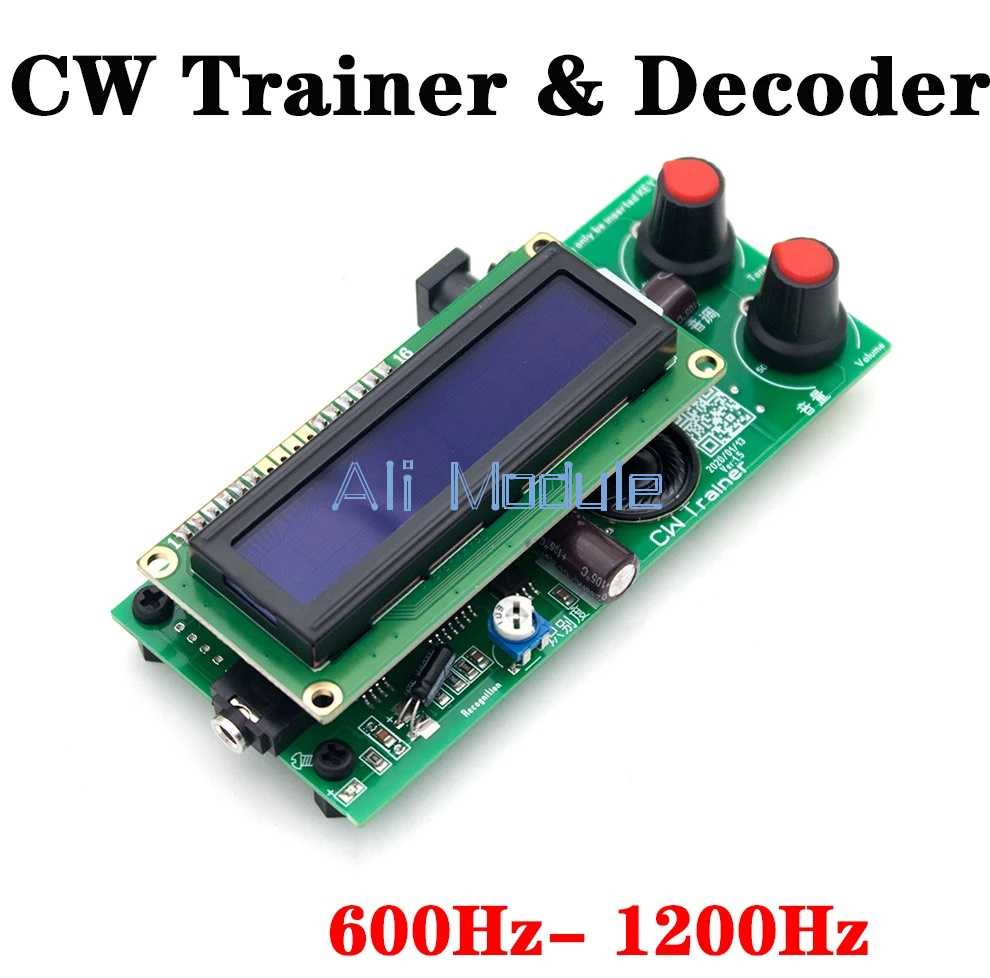

2) Output tune frequency: 600Hz ~ 1200Hz

3) Output power: 0.5W

4) CW audio interpreting speed: 10 ~ 40 (10% error rate) (100% correct, no-error speed is 15~35)

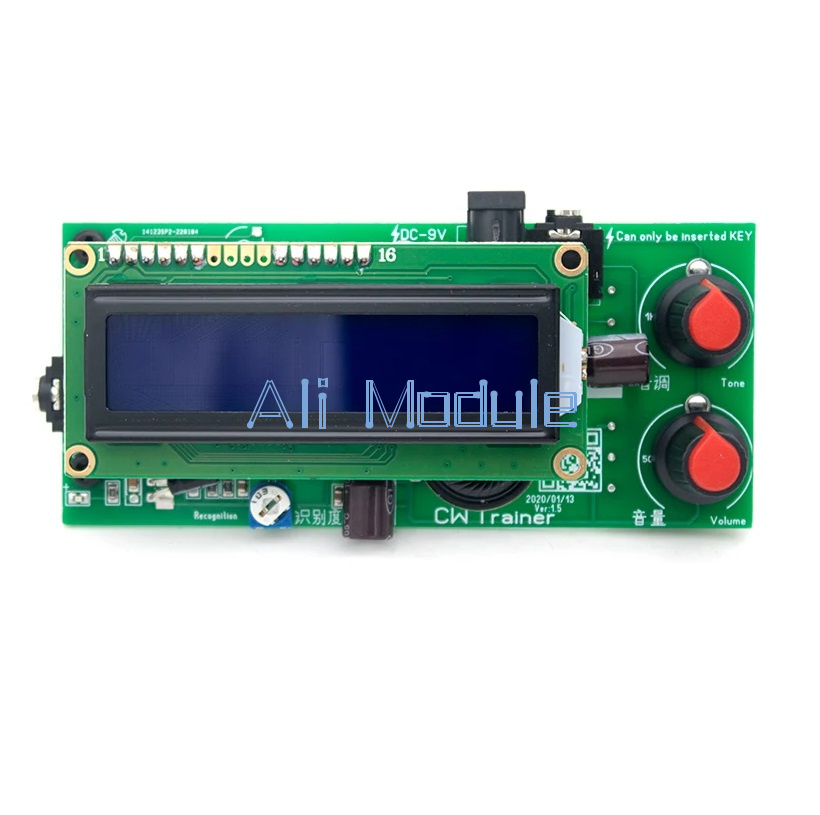

We have a potentiometer at bottom of the board for adjusting error rate, so to better interpret CW audio signal:

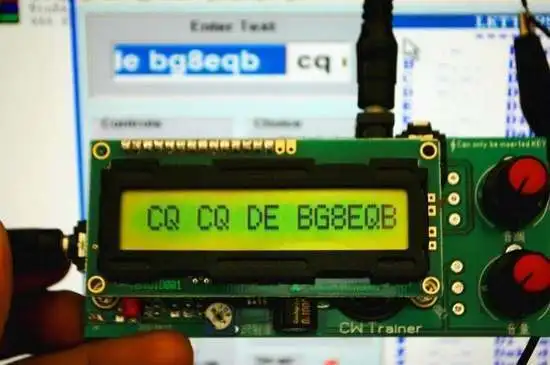

When we use computer to run CW signal, and when the LED on lower-left corner of the board flashes, we use a proper-sized screw-drive to turn the potentiometer a bit to check if the interpreted contents is same as being run by computer. If not, we change direction of the turning and check again.



Keyer input: 3.5mm jack

Audio input: 3.5mm jack (can use single channel to plug in)

Note:

When practising CW (in other words, the keyer is plugged in), we can not do audio interpretation (i.e plug in the audio input at the same time is prohibited) .
