Product Introduction:
Brand new and high quality,buy with confidence!

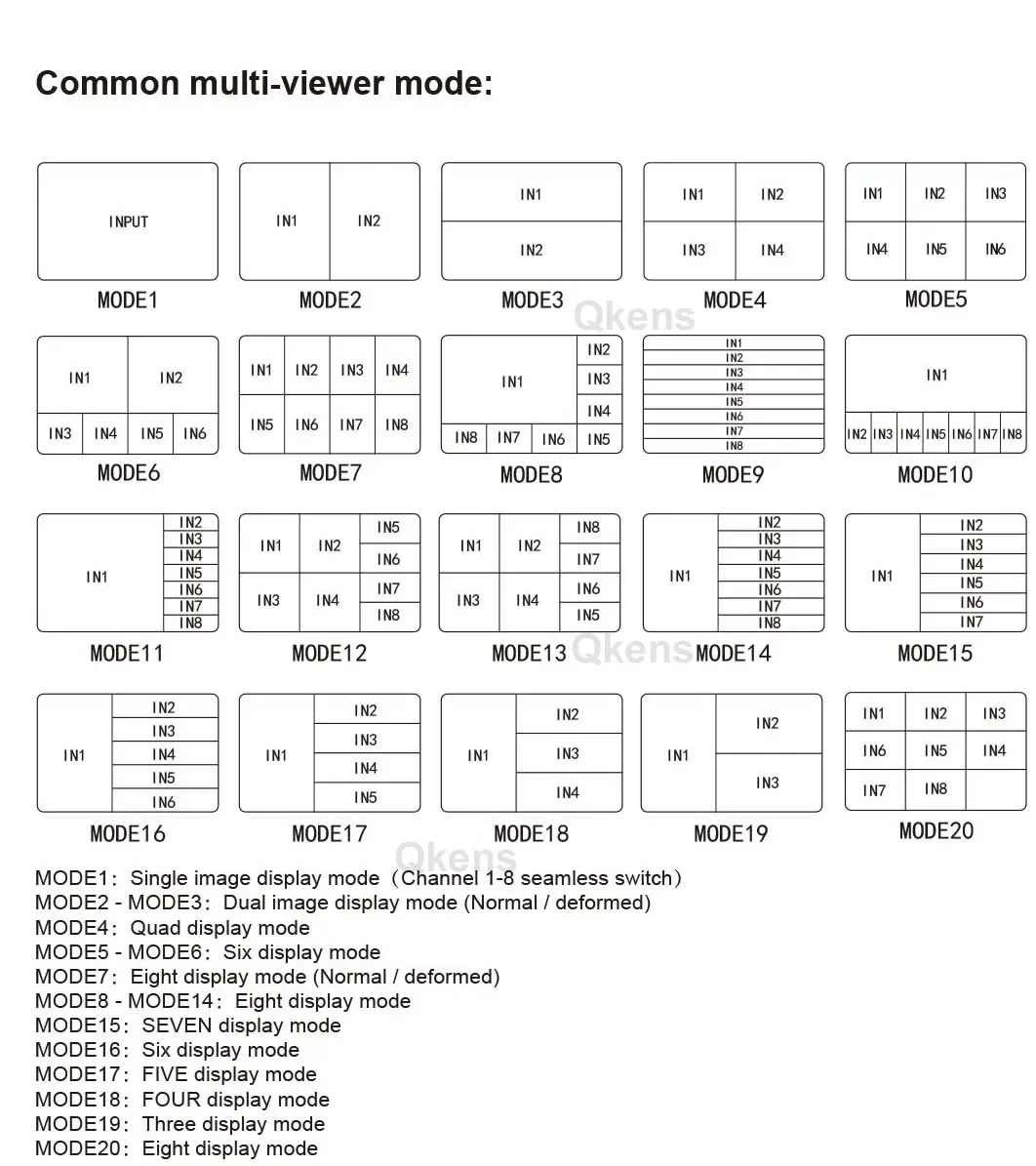

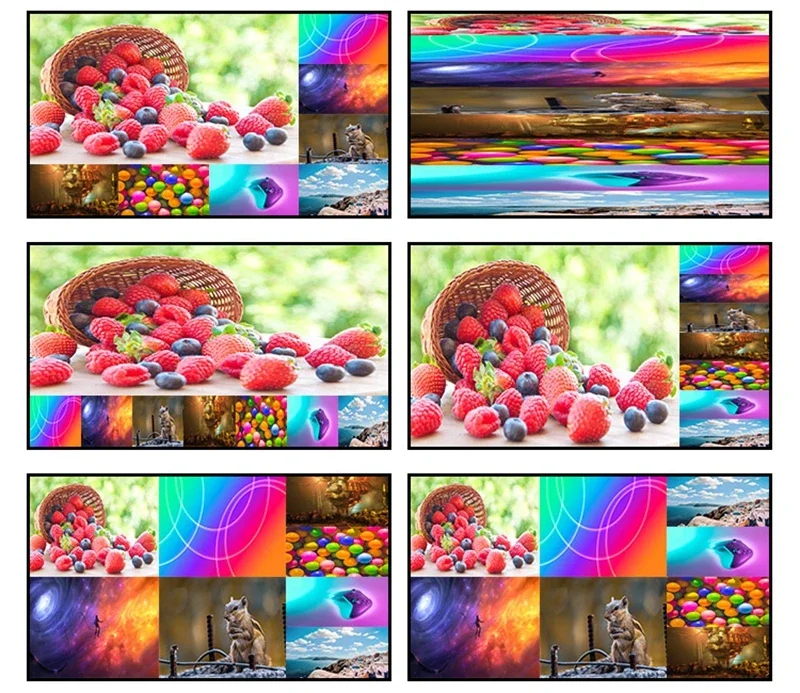

This unit is a multi-viewer with matrix function,It supports the subtitle display function and has a variety of

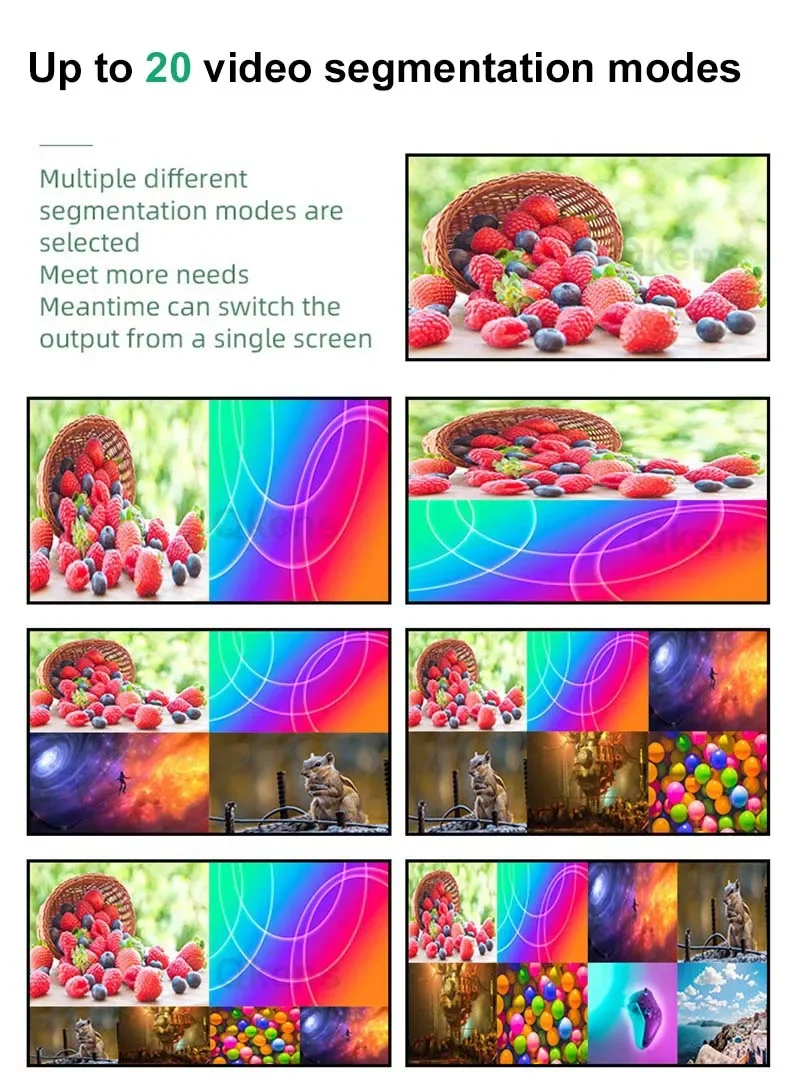

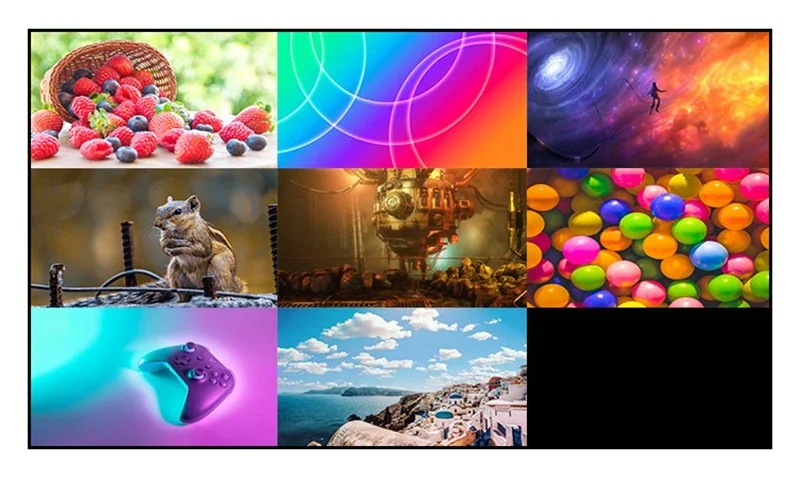

video segmentation, seamless switching 8 HD input signal synchronously,Supports up to 8 HDMI signal

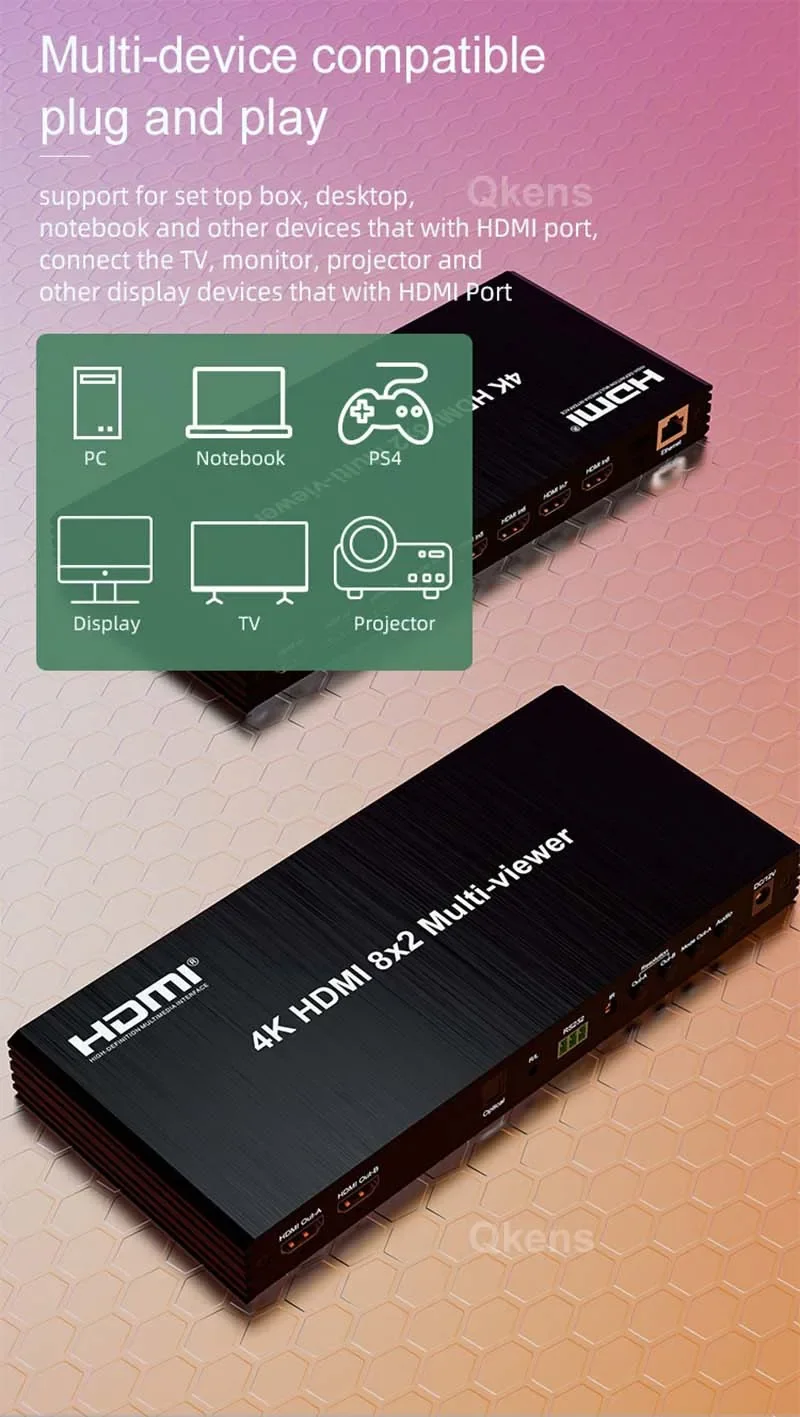

source input and the maximum output of 4K@60Hz. Plug and play and simple operate, often used in
conference rooms, teaching, games and other HDMI signal source display places.
Features:

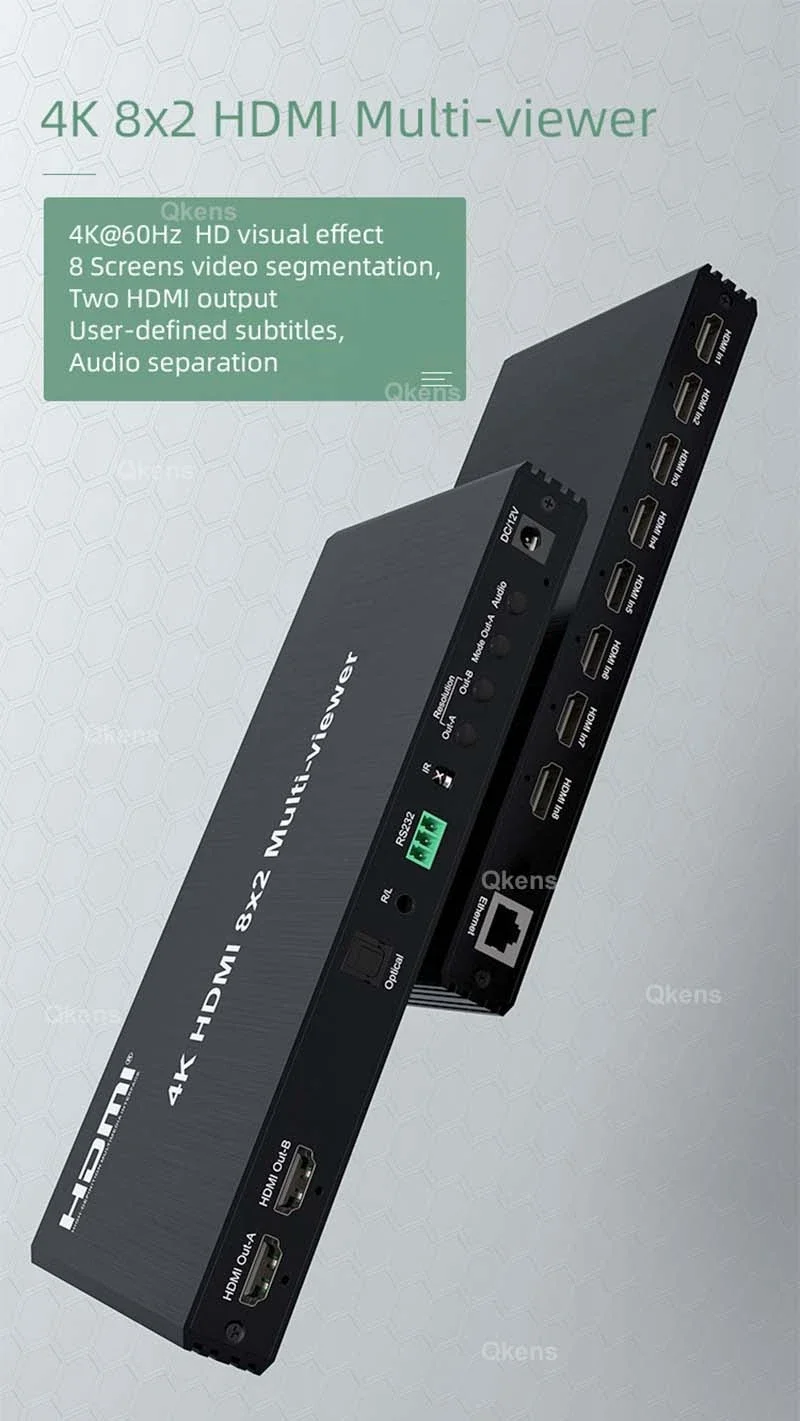

* Support 8 HDMI inputs, 2 HDMI output;
* Support the dynamic display of subtitles, Pop-up mode is from left to right or top to bottom,
the subtitles can be scaled;

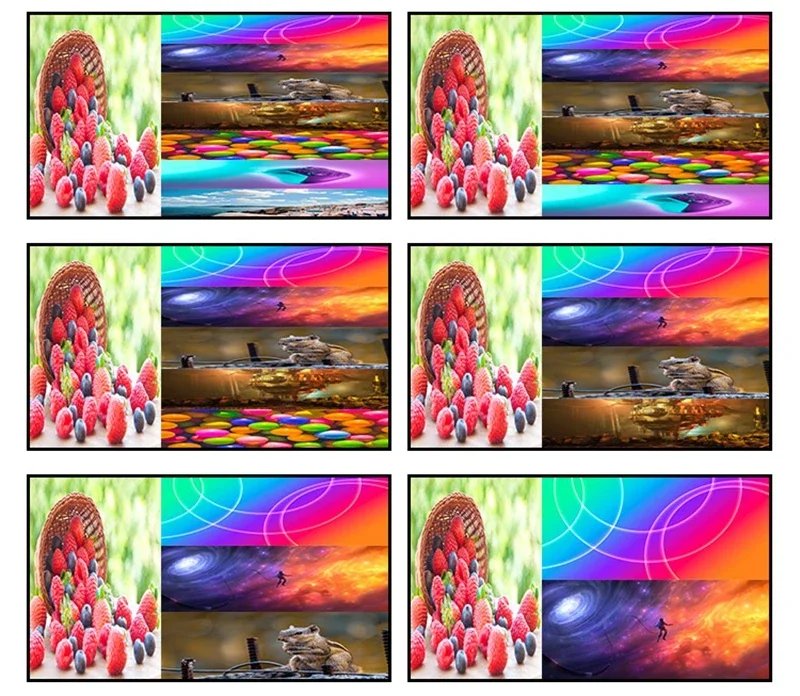

* Support PIP function, mode from left to right or top to bottom, scalable;
* Support seamless switching;
* Support stereo 3.5 headphone output and optical fiber audio output;

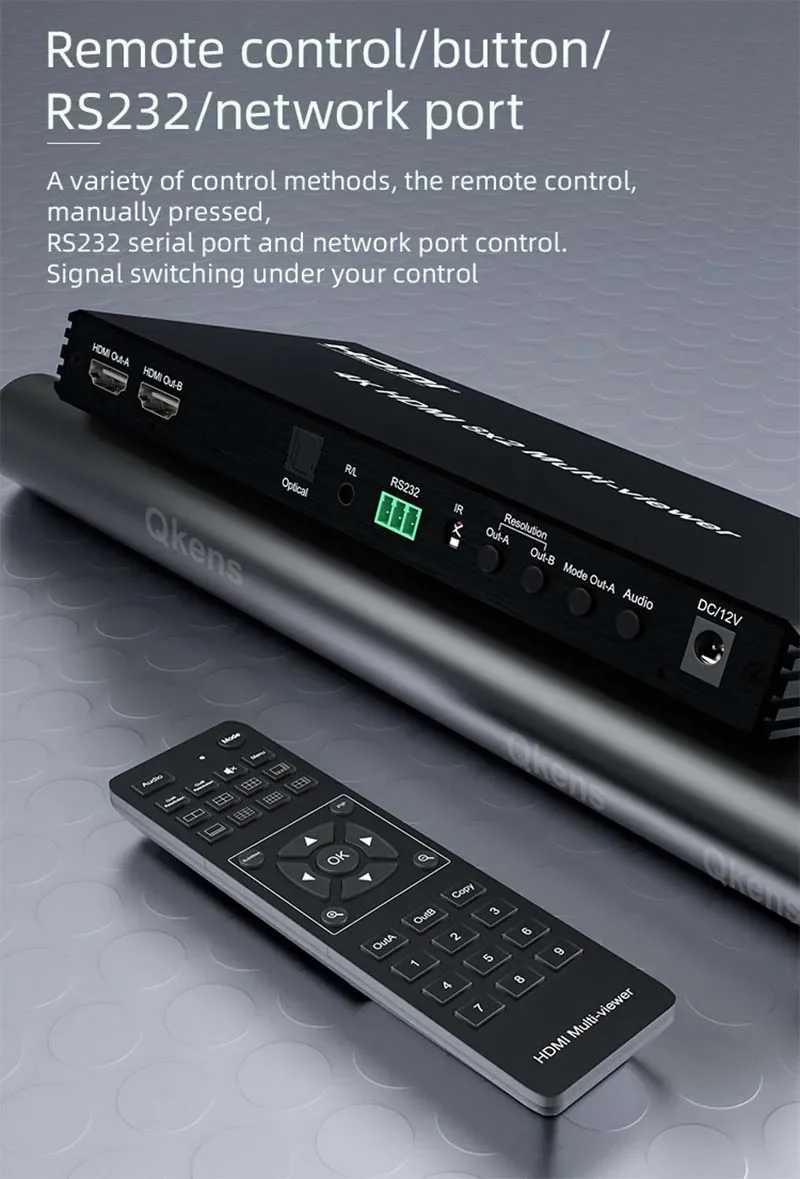

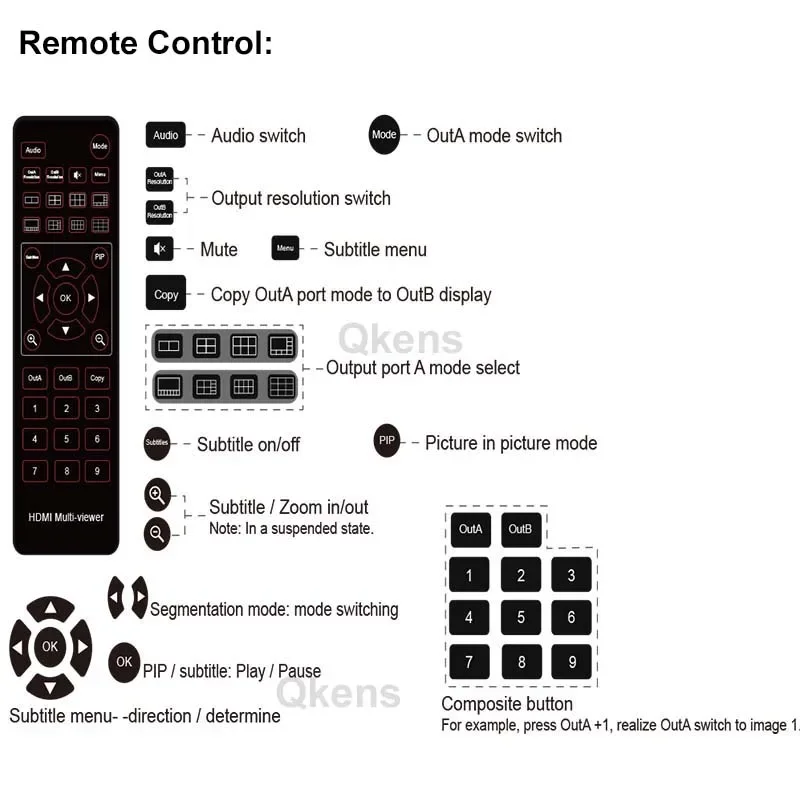

* Support 4 control modes: button, remote , RS232 and network port control.
Specifications:
Input resolution ............................................................ the highest support 1080P/60Hz
Output resolution ................................................................ the highest support 4K/60Hz
Audio format .............................................................................................................. Stereo
Input and output cable distance ............ 1080P/60Hz≤15M AWG26 HDMI standard cable
Max bandwidth ....................................................................................................... 600MHz
Max baud rate ....................................................................................................... 6x3Gbps
Max working current ................................................................................................. 800mA
Power adapter format .................. Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/1A
Operating temperature range ............................................................. (-15℃to +55℃)
Dimension (L x W x H) .............................................................approx. 226x113x25 (mm)
Weight ............................................................................................approx. 520g

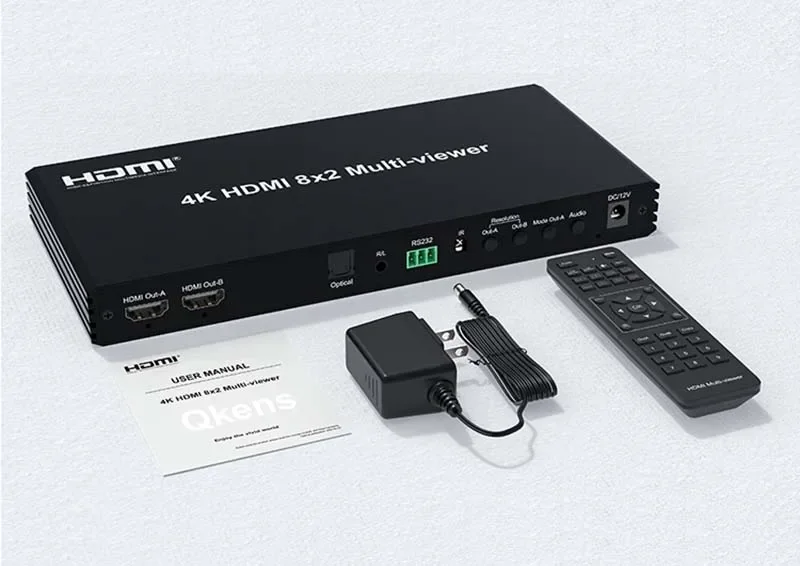

Package Include :

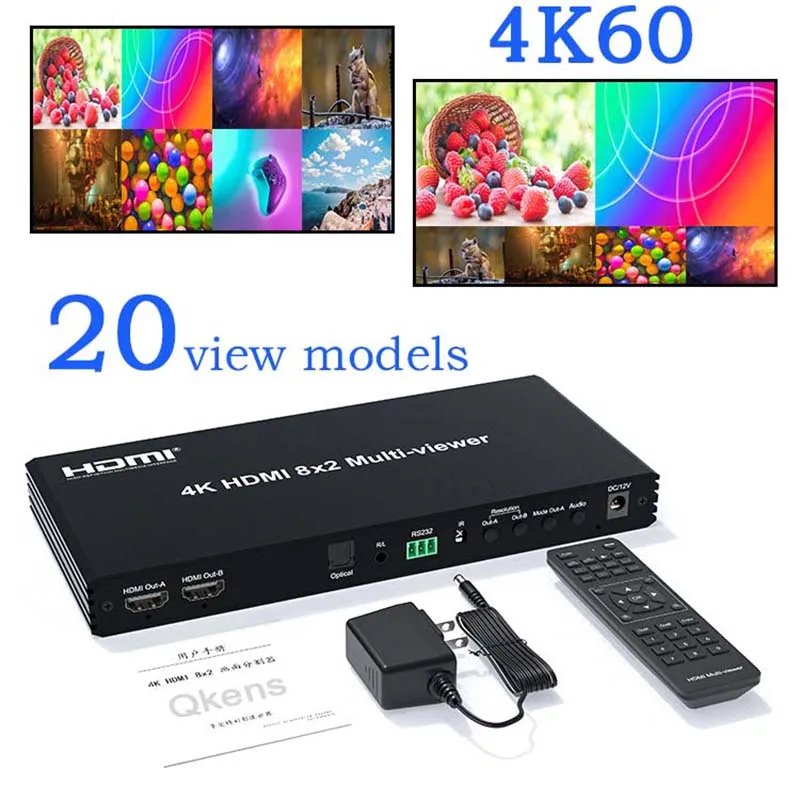

1 x 4K HDMI 8x2 multi-viewer
1 x 12V/1A power adapter
1 x Remote control without battery
1 x User manual
Without retail box and other accessories,if any need,pls contact us before purchase.
Remark:
output B only supports single display1/2/3--8 or copy the current output A,
does not support displays multi-viewer independently.
