Product Description

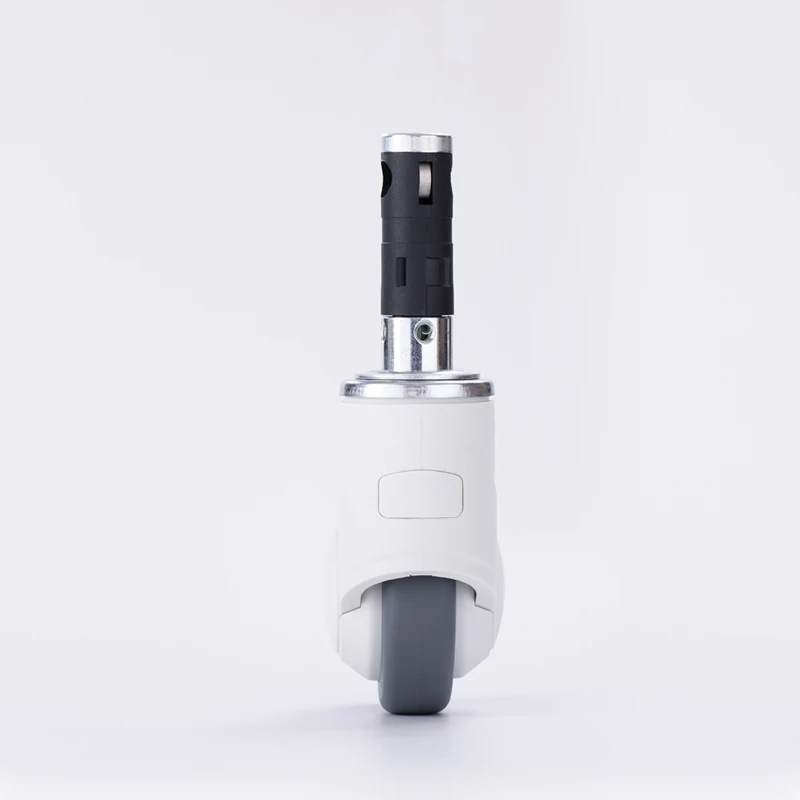

Swivel caster with total lock, directional lock and free movement. Twin wheels with precision ball bearing and covers. Housing and wheel core made of Nylon-PA6. High load-bearing capacity TPE wheel tread assures of quiet and stable rolling.


Apply to the stem with cam hole.


SUPPORT CUSTOMIZIED SERVICE!

Product Parameters

Specification

Wheel Diameter

100mm

Caster width

72mm

Tread width

28.5mm

Bolt diameter

28mm

Bolt Length

96mm

Offset

39mm

Swivel Radius

101.5mm

Overall height

159mm

Temperature

-30/+80ºC

Standard

EN12531

Weight

0.86KG

Dynamic load capacity

80KG

Static Load capacity

100KG

Detailed


FAQ

Are these caster wheels suitable for hospital beds?

Yes. These medical caster wheels are designed for hospital beds, medical carts, patient transfer equipment, and other healthcare mobility applications. They provide smooth movement, reliable support, and easy maneuverability in hospitals, clinics, and medical facilities.

How much weight can each wheel support?

The load capacity depends on the specific caster model and size. Each product page includes detailed specifications such as load rating, wheel diameter, and recommended applications. For hospital bed replacement projects or custom requirements, please contact us for technical support.

Are the wheels quiet on hospital floors?

Yes. Our medical casters are designed with low-noise materials and precision bearings to provide smooth and quiet operation on common hospital surfaces, including vinyl floors, epoxy floors, and tile.

Can I replace existing medical casters with these?

In many cases, yes. These caster wheels can replace existing medical casters if the mounting size, stem type, wheel diameter, and load requirements match your equipment. Please check your current caster specifications before ordering.

Do the wheels include brakes?

Yes. Some models are available with integrated brakes, including total lock and directional lock options. Please check the product specifications to select the correct braking system for your hospital bed or medical equipment.

Looking for reliable medical casters? Explore the medical caster collection at OmniWheelPro.
