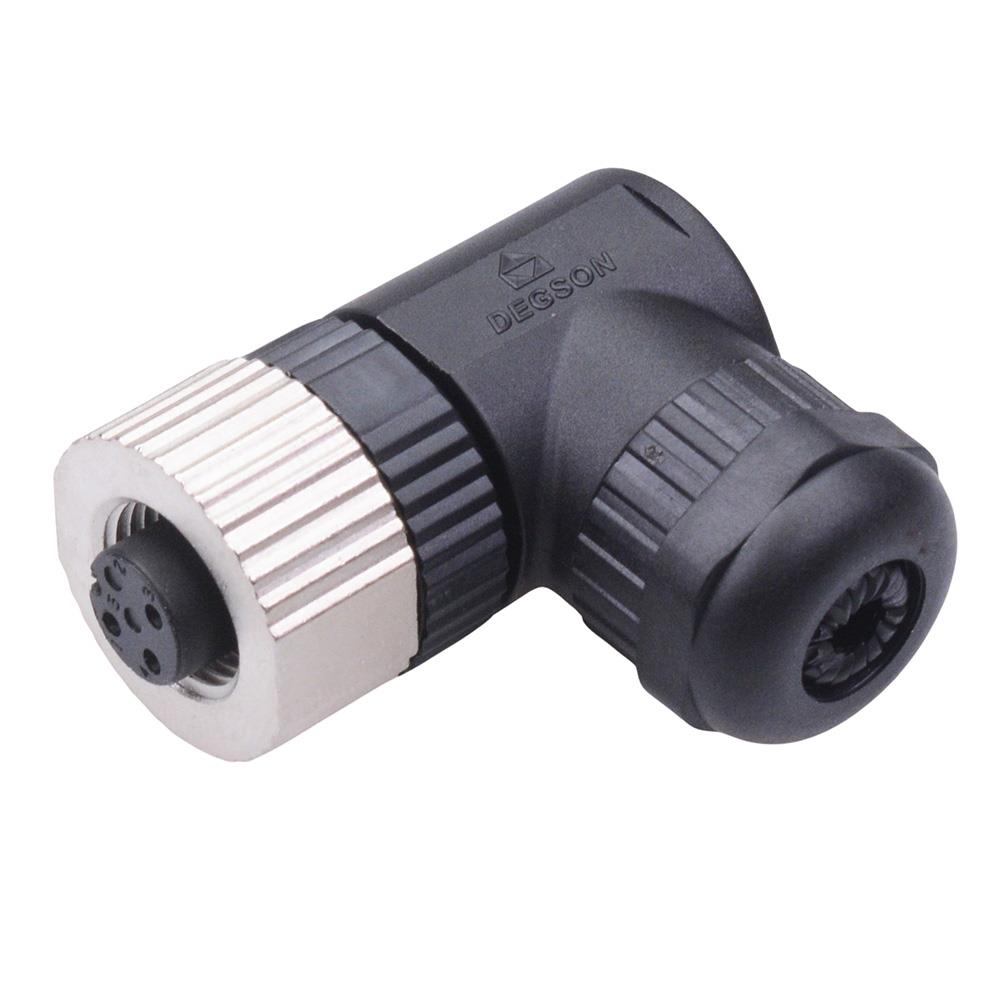

3 Way M12 Right Angle Female Industrial Circular Connector IP67 4A 250V

3 contact M12 female circular connector featuring a right angle nylon body and screw connections. The connector is sealed to IP67 making it suitable for industrial, signal, power supply, data transmission and various other applications. The plug is compliant wi+W280th IEC 61076 standard and is compatible with other connectors on the market with the same contact arrangement.

3 female contacts (A coded)

M12 series

Screw terminals

Sealed to IP67

Unshielded

Current rating: 4A

Voltage rating: 250V

Housing material: PA

Contact material: gold plated copper alloy

Dimensions: 39.8 x 37.5 x 20mm (length x width x diameter)
