San Hima's solar panels have redefined what's possible by integrating shingled solar cell technology into our panels, elevating the performance and durability of solar panels to unprecedented levels. They offer the most efficient solar solution for your 4WD, trailer, caravan, or boat. San Hima’s 120W shingled solar panels stand out from traditional solar panels, which rely on busbars, ribbons, and soldering. Our panels feature cells sliced into 5 or 6 strips and bonded with electrically conductive adhesive (ECA), ensuring maximum power draw from the sun with up to 15~20% more output than conventional ones. The shingled configuration minimizes shading losses and allows for parallel wiring, boosting overall performance. Shingled solar panels offer better shock resistance and greater impact resistance compared to monocrystalline solar panels. Additionally, they feature a streamlined design that eliminates visible circuitry, along with IP-68 rating for waterproof in harsh conditions.
- Shingled Cell Tech: Shingled solar panels do away with the busbars, ribbons and soldered joints found in conventional solar panel, reducing busbar failures.

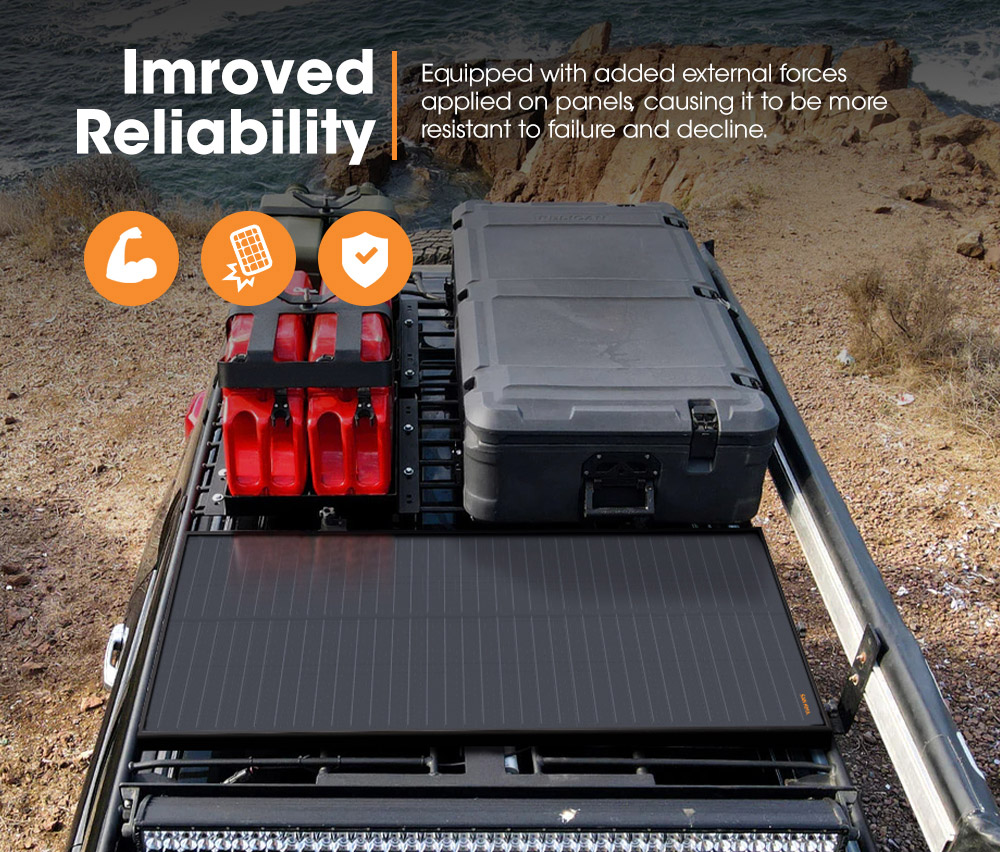

- Enhanced Dependability: Our shingled solar panels withstand external forces better than conventional solar panels, ensuring higher resilience.

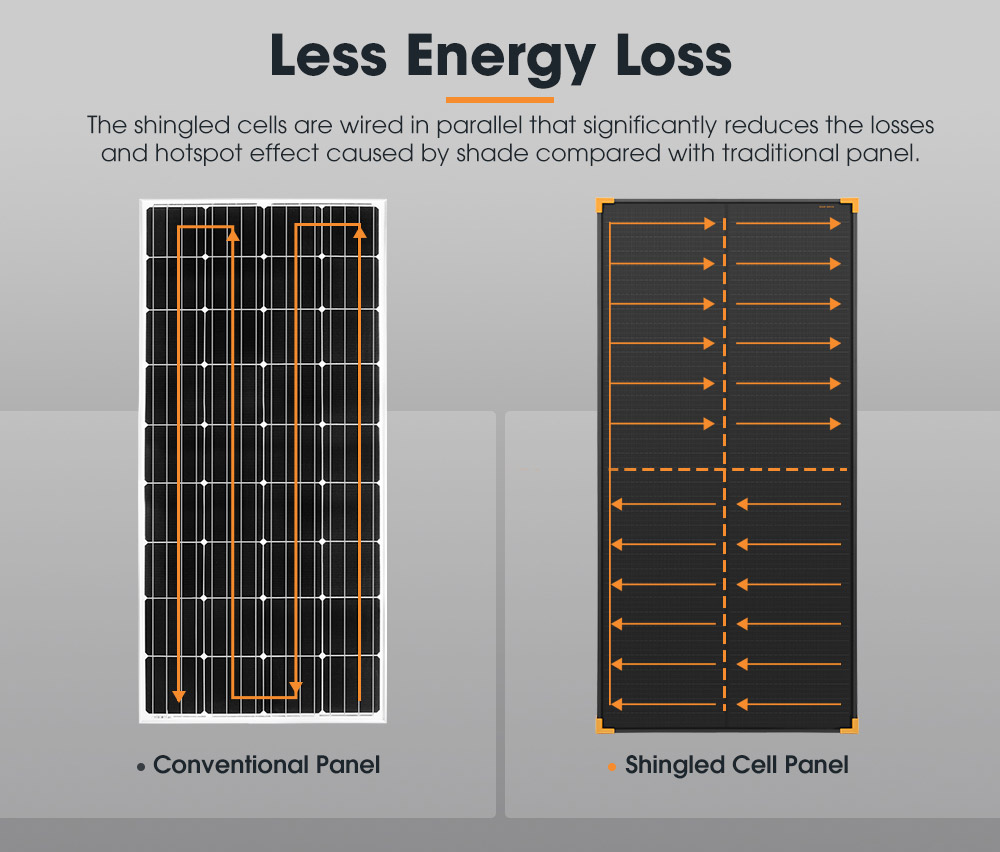

- Less Energy Loss: Shingled solar panels wired in parallel boost solar cell efficiency and performance, with enahnced hotspot resistance caused by shade.

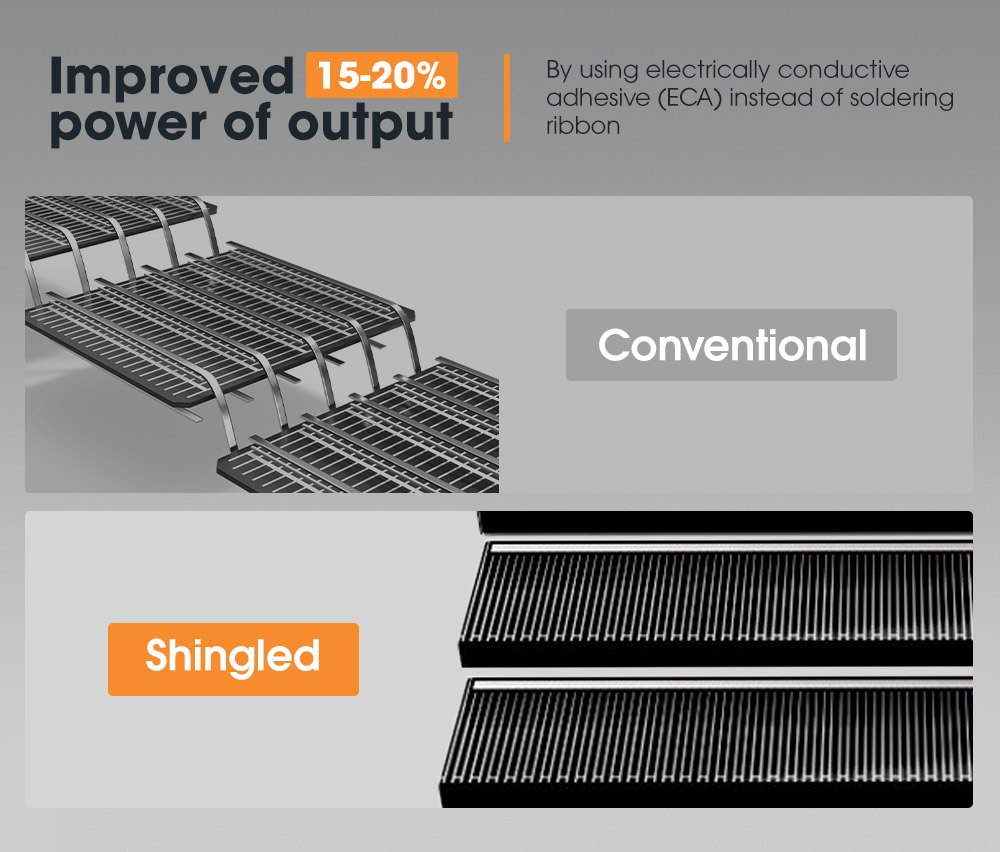

- Increased Output: Joining solar cell strips with electrically conductive adhesive (ECA) amps up power output by 15-20% compared to traditional solar panels.
- Exceptional Durability: Featuring a sturdy aluminum frame and thick tempered glass, this shingled solar panel is built to withstand harsh weather conditions.

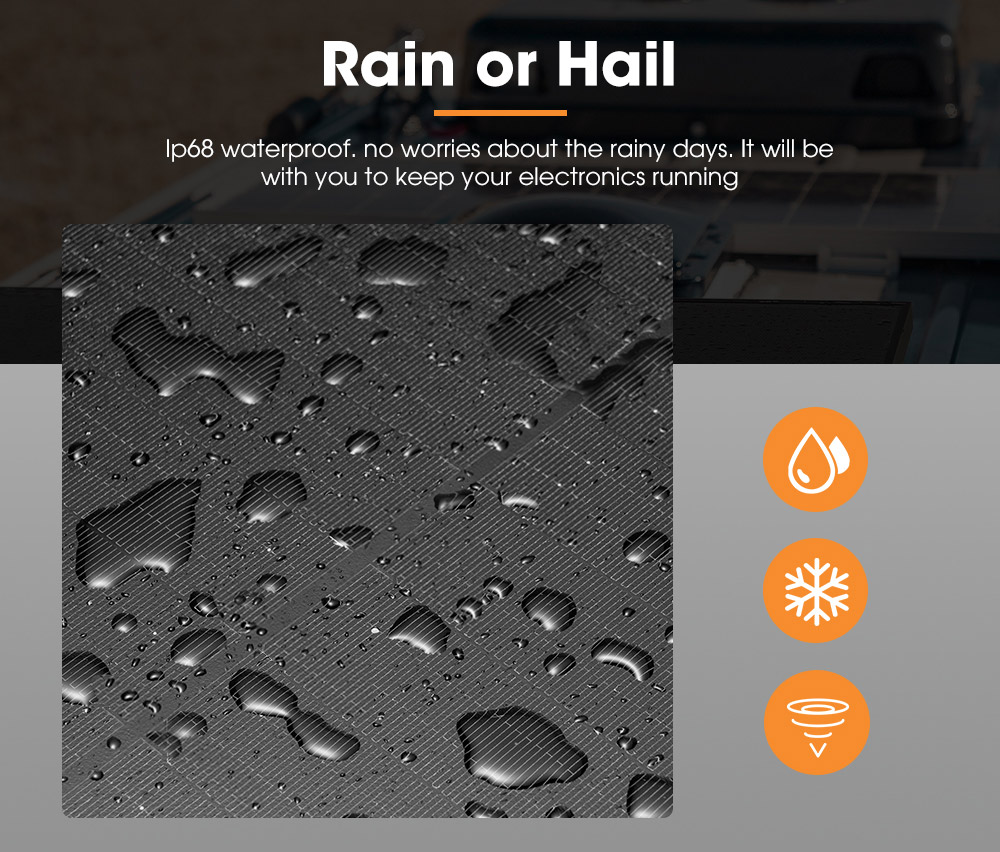

- All-Weather Resistance: The San Hima 120W shingled solar panel boasts an IP68 rating against dust and water, perfect for outdoor adventures.
- Broad Compatibility: Works seamlessly with mainstream deep-cycle batteries: AGM, GEL, Flooded, lithium-ion and LiFePO4 batteries.
- Wide-ranging Applications: The San Hima 120W shingled solar panel is your top choice for efficient power in 4WDs, trailers, caravans, and boats.
- Sleek Aesthetic: Shingled panels boast a clean, circuitry-free appearance, enhancing aesthetic appeal while delivering top performance.
Warranty
What's In Box
- 1 x SAN HIMA 120W Shingled Solar Panel
- 1 x User Manual
| Material: | Shingled Cells |
| Color: | Black |
| Max. Power (PW): | 120W |
| Open-Circuit Voltage (VOC): | 24.8V |
| Short-Circuit Current (ISC): | 6.48A |
| Maximum Power Voltage (VMP): | 19.8V |
| Maximum Power Current (IMP): | 6.07A |
| Maximum System Voltage: | 1000V |
| Max. Series Fuse Rating: | 15A |
| Operating Temperature Range: | -40°C~ 85°C |
| Waterproof Rating: | IP 68 |
| Power Tolerance: | ± 3% |

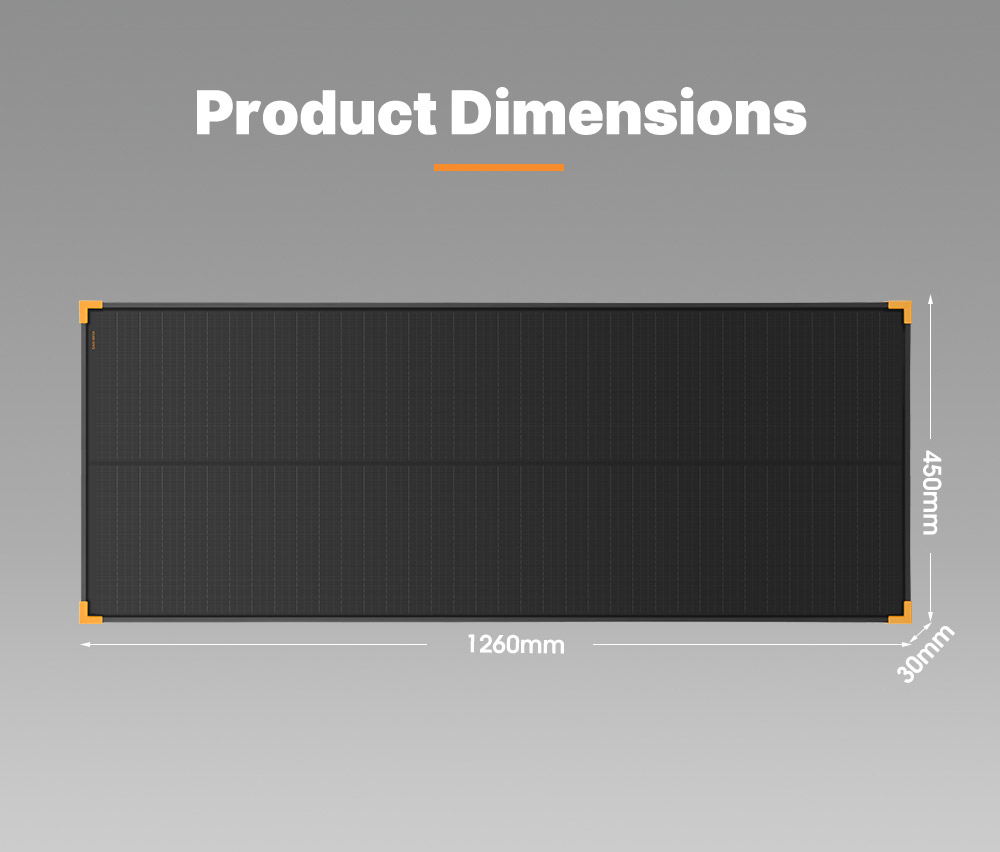

| Product Size: | 126(L)x45(W)x3(H)cm |
| Package Size: | 132(L)x51(W)x7(H)cm |
| Gross Weight: | 8.95kg |
