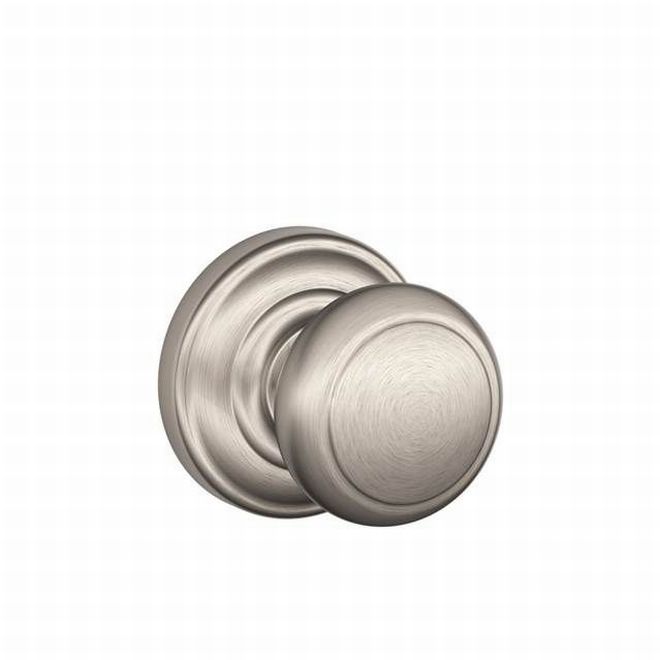

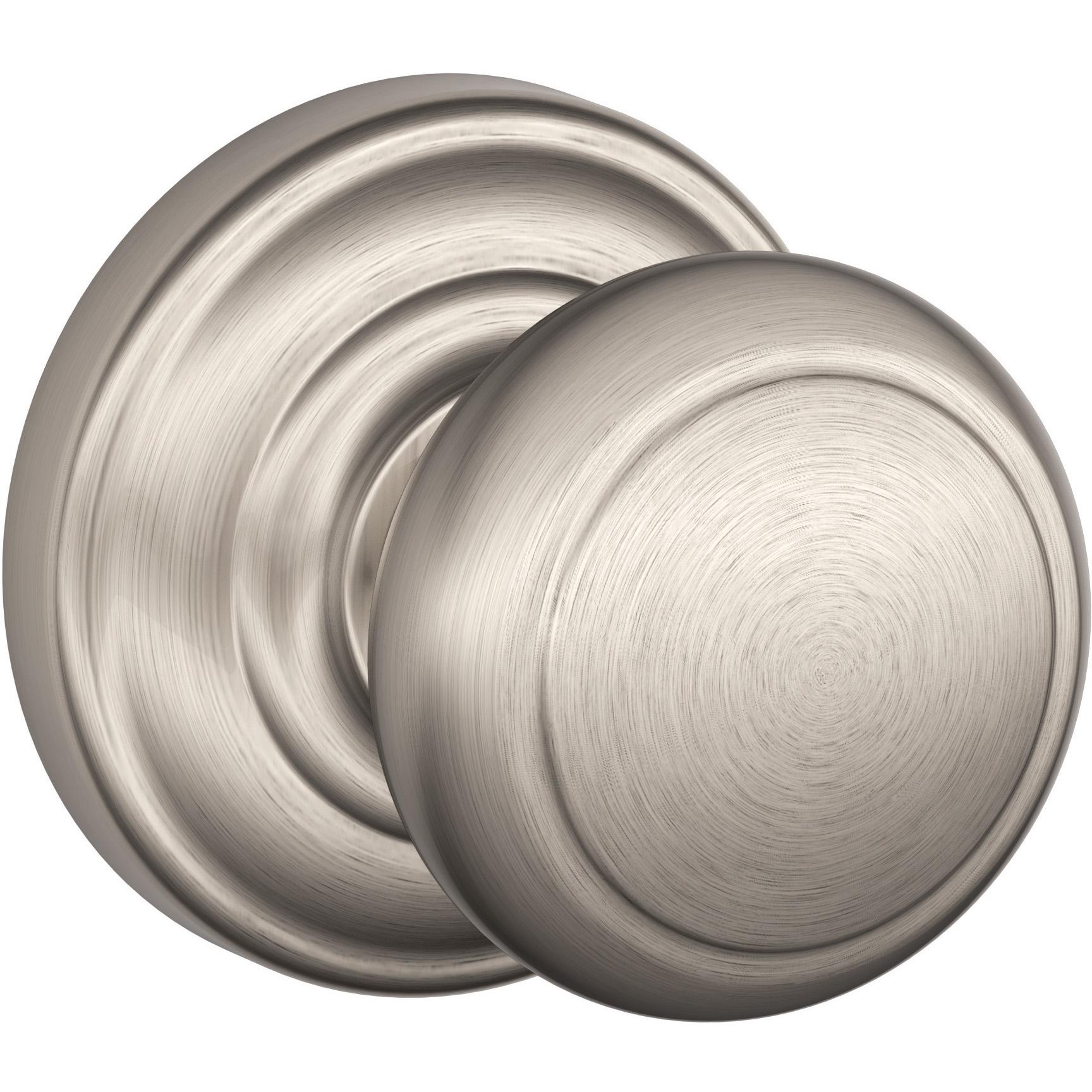

Schlage Residential F170 AND 619 AND F170AND619AND Andover / Andover Dummy - Satin Nickel
FEATURES
- Half Dummy Function - Dummy Trim for One Side of Door
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
- Non-Locking - Ideal for Closets and Rooms Where Locking is Not Needed
- Easy 3-Step Installation, Only a Screwdriver Needed
- Quality Materials and Construction for Exceptional Security
- Applications: Residential single- and multi-family doors
- Lifetime Mechanical & Finish Warranty
- Quality Finishes Coordinate with Plumbing and Lighting
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- U.L. Listed: Locks for up to three-hour fire doors available
DESCRIPTION
SCHLAGE F SERIES RESIDENTIALS LEVERS
Schlage's F Series designs range from bold to classic to match any residential d cor. Plus, it features an easy 3-step installation, only a screwdriver needed.
STANDARD FEATURES:
Certification:ANSI/BHMA A156.2-2017 Commercial Grade 2; ANSI/BHMA A156.39-2015 Residential Grade AAA; Available UL Listed for 3-hour fire door (F10, F40 (CSV Only), F51A, F80 functions).
Latch: 1"x 2-1/4", 1/4" radius corner faceplate, 7/8" housing diameter, 1/2" throw, circular drive-in included, universal latch
Strike:1-5/8" x 2-1/4" radius corner, full lip, no box
Backset:Dual backset latches, fits either 2-3/8" or 2-3/4" backsets
Cylinder:5-Pin, C keyway, keyed alike (KA4)
Door Range:1-3/8" 1-3/4"
Keys:Two per lock, 5-pin, C section
SPECS
| Finish | Satin Nickel |
| Function | Dummy/Inactive |
| Series | F Series |
| Design | Andover Knob With Andover Rose |
| Color | Satin Nickel Plated Clear Coated |
| Color Code | 619/US15 |
| Finish Description | Satin Nickel |
| Knob style | AND-Andover |
| Rose/Escutcheon Trim | AND-Andover |
| Product Type | Cylindrical Lock |
| Grade | ANSI/BHMA Grade 2 |
| Handing | Reversible |
| Application | Residential Single and Multi-Family Doors |
| Warranty | Lifetime Mechanical/Finish |
| Door Thickness | 1-3/8" to 1-3/4" |
| Bolt Throw | 1/2" |
| Product Height | 2-3/4 Inch |
| ADA Compliant | No |
| Finish Family | Satin Nickel |
| Included Components | Dummy Lever; Rose; Mounting Hardware |
| Product Material | Zinc |
| Standards | ANSI/BHMA A156.2-2011; ANSI/BHMA A156.39-2015 |
| For Door Thickness | 1-3/8" to 1-3/4" |
| Function Family | Dummy |
| Product Projection | 2-5/16 Inch |
| Manufacturer Parent | Allegion |
| Knob Style Family | Round Flat Knob |
| Sub-Series | F170-AND-AND |
| Collection | Andover |
| Package Height | 3" |
| Package Length | 6" |
| Package Width | 4.5" |
| Item Weight | 1 lbs |
| Dimension | 2-3/16" Knob and 2-5/16" Projection with 2-3/4" Diameter Rose |
| Material | Zinc |
| Manufacturer Warranty | Limited Lifetime Mechanical and Finish Warranty |
| Rose/Escutcheon Design | Andover Rose |
| Hazardous Material | No |
| Finish code | 619 |
| Lever Knob Design | Andover Knob |
| No of inners | 1 |
| ANSI/BHMA Standards | F75 |
| Keyed | No |
| Handle Type | Knob |
| Handle Design | Andover Knob |
| Electronic | No |
| Door Handing | Non-Handed |
| Standard Strike | 10-027: Full Lip Radius Strike, 2-1/4" x 1-5/8" |
| Substrate Type | Zinc and Steel |
| Door Thickness Range | 1-3/8" To 1-3/4" |
| Lock Type | Cylindrical |
| Standard Latch | 16-080: Spring Latch, Dual Option (Round, Drive-in) |
| Rose Design | Andover Rose |
| Load Capacity | N/A |
| Features | Non Locking; Ideal for Closets and Rooms |
