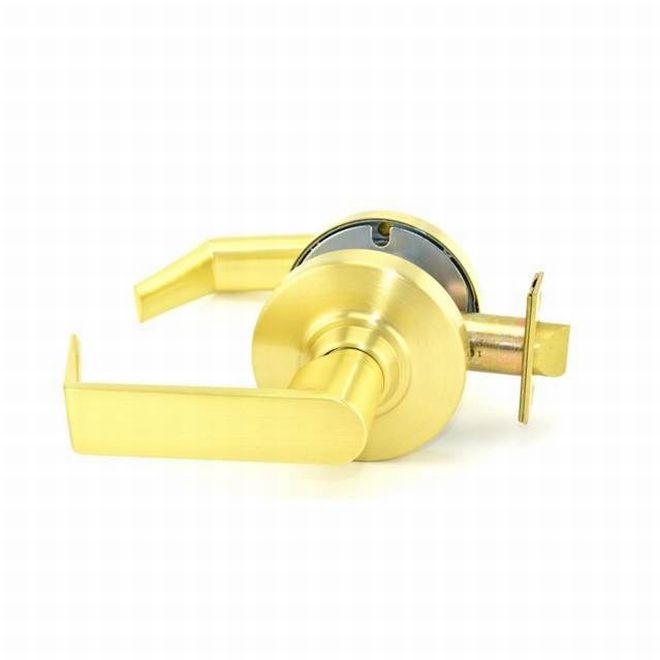

Schlage Commercial ND10S RHO 606 Grade 1 Passage Rhodes Lever, 2-3/4" Backset, UL, ANSI Strike, 606/US4 Brushed Brass
FEATURES
- Passage, Both Levers Always Unlocked, Inside Lever is Always Free for Immediate Egress
- Lock Chassis: Zinc plated for corrosion resistance.
- Latch Bolt: Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.
- Exposed Trim: Levers: Pressure cast zinc, plated to match finish symbols.
- Roses: Brass, bronze or zinc.
- Strike: ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center standard. Optional strikes, lip lengths and ANSI strike box available. See page 21.
- Cylinder & Keys: 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.
- Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
- Warranty: Ten-year limited for all functions including Vandlgard.
- Handing: All ND-Series lever locksets are non-handed.
- ANSI/BHMA Certified A156.2-2011
- Door Thickness: 1 5/8” to 2 1/8” (41mm–54mm) standard including Vandlgard® functions. 1 3/4” - 2” for function ND85. See accessories for spacers required for 1 3/8” doors.
- Backset: 2 3/4” (70 mm) standard. 2 3/8”, 3 3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
- 1-5/8" to 2-1/8" Door Range
- Faceplate: Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled.
- Commercial Grade 1
- UL Listed for 3 Hour Fire Door
DESCRIPTION
ND SeriesCylindrical Locks
ND Series locks have been the most popular Schlage product ever since Walter Schlage invented the cylindrical lock in 1920. The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The lock withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks. The lock is not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles.
All ND Series locks come in 10 finishes, nine lever designs and use an ANSI 161 door preparation, commonly used with cylindrical locks. They are ideal for all new construction and retrofit applications.
Product Specifications: Material:- Modular design of zinc and steel components plated for corrosion protection
- Standard: 1 5/8" to 2 1/8"
- Non-Handed
- Standard: Nine designs, pressure cast zinc, plated to match product finish specification
- Wrought brass, bronze, or zinc, plated to match product finish specification
- 10 available
- (605, 606, 612, 613, 619, 622, 625, 626, 626AM, 643e)
- Standard: 2 3/4"
- Standard : 1 1/8" x 2 1/4"
- Standard : 1/2" throw via Oil Impregnated Stainless Steel
- Standard: ANSI Curved Lip: 1 1/4" x 4 7/8" x 1 3/16"
- Standard: 3 Schlage
- (KIL or FSIC or SFIC)
- Standard: 6-Pin Patented Everest 29
- 10 years mechanical, 1 year wired electrified
- All ND Series comply with A156.2 performance requirements for grade 1 cylindrical locks. Wired electrified complies with A156.25 (indoor), wireless electronic complies with A156.25 (indoor/outdoor) requirements for electrified locking devices
- Complies with ICC A117.1 Accessible and Usable Buildings and Facilities
- All locks 3 hour A label single firedoor 4'0" x 10'0"
- pair doors 3 hour firedoor 8'0" x 8'0" with 3/4" latch option
- pair doors 90 minute fire 8'0" x 10'0" with 3/4" latch option
- All levers with a return to door of 1/2"
- (64 mm) or less comply
(Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk)
- Complies with Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) requirements for hurricanes
- Meets FF-H-106C Series 161
SPECS
| Function | 10-Passage |
| Finish | Satin Brass |
| Backset | 2-3/4 Inch |
| Strike | ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner |
| Design | Rhodes |
| Series | ND Series |
| Thickness | 1-5/8" - 2-1/8" |
| Strike Number | 10-025 |
| Package Volume | 372.28125 |
| Latch Number | 13-248 |
| Case Width | 14.625" |
| Latch Type | Spring Latch |
| ANSI Function | F75 |
| Hand | Not Handed |
| Grade | ANSI/BHMA Grade 1 |
| Fire Rated | 3 Hours {A} |
| Special Marks | Fire rated 3 Hours {A} |
| Strike Width | 1-1/4" |
| Latch Backset Dim | 2-3/4 In. |
| Lock Face Size | 2-1/4 In. x 1-1/8 In. |
| Case Length | 16.375" |
| Package Qty | 1 |
| Package Height | 4.75" |
| Screws | Combination |
| Case Height | 10" |
| Package Width | 8.25" |
| Bolt Protection | 1/2" |
| Case Volume | 2394.84375 |
| Color Code | 606/US4 |
| Strike Type | ANSI Strike |
| Origin | Mexico |
| BAA Qualified | Yes |
| Rose/Escutcheon Design | 3-7/16 In. Diameter |
| Base Material | Brass |
| Strike Height | 4-7/8" |
| Lever/Knob Design | RHO - Rhodes |
| Package Length | 9.5" |
| Handing | Right Hand |
| Finish Description | Satin Brass |
| Lever Style | RHO-Rhodes |
| Rose/Escutcheon Trim | Round Rose |
| Product Type | Cylindrical Lock |
| Projection | 2.9375 |
| Lever Length | 4.5625 |
| Door Thickness | 1 5/8" - 2 1/8" |
| Bore Size | 2.1250 |
| ADA Approved | False |
| Application | Healthcare; Education; Government; Office; Retail; Other Commercial Applications |
| Warranty | 10 year mechanical |
| Handle Type | Lever |
| Rose Diameter | 3-7/16 Inch |
| Latch Throw | 1/2 Inch |
| ADA Compliant | YES |
| Finish Family | Satin Brass |
| Door Cross Bore | 2.125 Inch |
| Standards | ANSI/BHMA A156.2 Series 4000; ICC A117.1; CA Fire Code; Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) Requirements for Hurricanes; Meets FF-H-106C Series 161 |
| Function Description | Latch retracted by knobs/levers at all times |
| Front Size | 1-1/8" x 2-1/4" |
| Function Family | Passage/Hall/Closet |
| Strike Lip | 1-3/16 Inch |
| Product Projection | 2-15/16 Inch |
| Trim Material | Pressure Cast Zinc (Lever) |
| Strike Size | 1-1/4" x 4-7/8" |
| Manufacturer Parent | Allegion |
| Lever Length-Inches | 4.5625 Inch |
| Latch Corner | Square |
| Knob/Lever Size | 4-9/16 Inch |
| Latch Bolt Material | Stainless Steel |
| Lever Style Family | Straight Return Lever |
| Sub-Series | CL_Cylindrical_Locks_schlage_commercial_221 |
| Cylinder Included | No |
| Cylinder Type | None |
| Alternate Part Number-1 | 133188 |
| Latch Bolt Type | Springlatch |
| Knob/Lever Design | Rhodes |
| Rose/Escutcheon Size | 3-7/16" |
| Latch Bolt Faceplate Size | 2-1/4" x 1-1/8" |
| Door Bore Size | 2-1/8" |
| Lock Category | Cylindrical Lock |
| Door Thickness Min | 1-5/8" |
| Latch Bolt Face Type | Square Corner |
| Latch Bolt Throw | 1/2" |
| Rose/Escutcheon Style | Rose |
| Door Thickness Max | 2-1/8" |
| Knob/Lever Style | Lever |
| Height | 4.75 |
| Length | 9.5 |
| Width | 8 |
| Dimension | 3-7/16" Rose with 4-9/16" Lever and 2-15/16" Projection |
| Material | Zinc Base |
| Manufacturer Warranty | Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty |
| UL Listing Type | UL Listed for 3 Hour Fire Door |
| Door Range | 1-5/8" to 2-1/8" |
| Hazardous Material | No |
| Strike Dimension | 4-7/8" with 1-1/4" Lip |
| Cross Bore Size | 2-1/8" Bore with Two 5/16" Post Holes |
| Finish code | 606 |
| Latch Faceplate Dimension | 1-1/8" x 2-1/4" |
| Lever Knob Design | Rhodes Lever |
| No of inners | 1 |
| IMAP Policy | Yes |
| Substrate Type | Zinc and Steel |
| Door Handing | Non-Handed |
| Segment | Door Hardware |
| Duty Level | Heavy Duty |
| Collection | ND-Series |
| Lever Design | RHO - Rhodes |
| Keyed | No |
| Lock Type | Cylindrical |
| ANSI/BHMA Standards | F75 |
| Standard Strike | 10-025: ANSI, no box, 1-1/4" x 4-7/8" (1-3/16" Lip length) |
| Electronic | No |
| Standard Latch | 13-248: Spring Latch - 2-3/4" Backset - Square corner, 1-1/8" x 2-1/4" |
| Load Capacity | N/A |
| Features | Heavy-Duty Cylindrical Lock |
