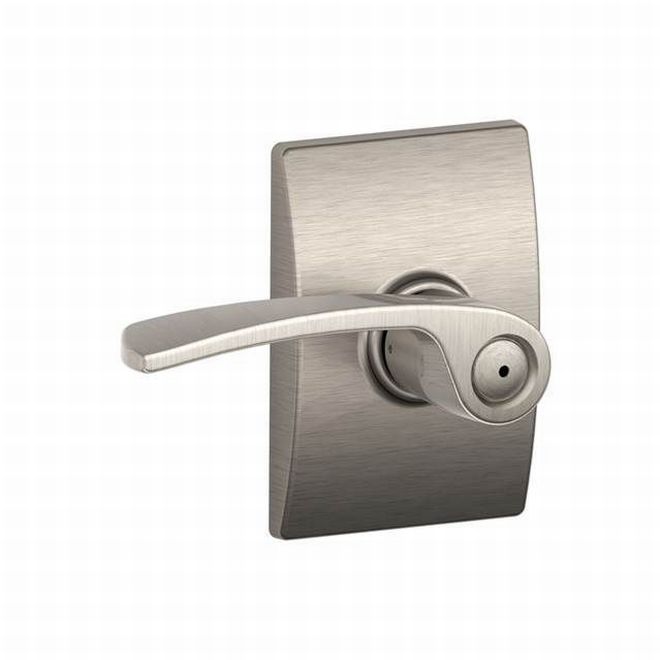

Schlage Residential F40 MER 619 CEN F40MER619CEN 16-080 10-027 Merano / Century Privacy - Satin Nickel
FEATURES
- Privacy Locking - Ideal for Bedrooms and Bathrooms
- Bed/Bath (Privacy) Function - Push Button Locking, Turning Inside Knob/Lever Releases Button
- Certified Commercial Grade 2
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
- ADA compliant: Yes
- Reversible Handing
- Applications: Residential single- and multi-family doors
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Easy 3-Step Installation, Only a Screwdriver Needed
- Lifetime Mechanical & Finish Warranty
- Quality Materials and Construction for Exceptional Security
- U.L. Listed: Locks for up to three-hour fire doors available
- Quality Finishes Coordinate with Plumbing and Lighting
DESCRIPTION
The Schlage Merano Lever with Century Trim Bed and Bath Lock in Satin Nickel is perfect for use on bedroom and bathroom doors where locking is needed. The Merano lever has a graceful curve that makes it as delicate as it is chic, while the Century Trim is chic with a delicate, slightly curved shape – especially when wrapped in our versatile Satin Nickel finish. Plus, it's been designed and tested with strength and durability in mind.
SPECS
| Function | Privacy/Bed/Bath |
| Finish | Satin Nickel |
| Series | F Series |
| Backset | 2-3/8 Inch or 2-3/4 Inch |
| Strike | Full Lip 2-1/4 Inch, Radius Corner |
| Design | Merano Lever With Century Rose |
| Color | Satin Nickel Plated Clear Coated |
| Color Code | 619/US15 |
| Grade | ANSI/BHMA Grade 2 |
| Finish Description | Satin Nickel |
| Lever Style | MER-Merano |
| Rose/Escutcheon Trim | CEN-Century |
| Product Type | Cylindrical Lock |
| Handing | Reversible |
| Projection | 2.6250 |
| Door Thickness | 1-3/8" to 1-3/4" |
| Bore Size | 2.1250 |
| Product Length | 5.1250 |
| Included Components | Privacy Knobs; Roses; Latch; Strike; Mounting Hardware |
| Door Cross Bore | 2.125 Inch |
| Product Material | Zinc |
| Box Length | 7.0000 |
| Box Width | 6.0000 |
| Box Height | 3.2500 |
| Application | Residential Bedrooms and Bathrooms |
| Warranty | Limited Lifetime Mechanical and Finish Warranty |
| ANSI Function | F76 |
| Latch Type | Spring |
| Strike Type | Radius Corner Full Lip |
| ADA Compliant | YES |
| Finish Family | Satin Nickel |
| Strike Size | 1-5/8 x 2-1/4 Inch |
| Standards | ANSI/BHMA A156.2-2011; ANSI/BHMA A156.39-2015; UL Listed; ADA Compliant |
| Faceplate Dimension | 1" x 2-1/4" |
| Door Preparation | Cross Bore 2-1/8"; Edge Bore 7/8" |
| Function Description | Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever. |
| For Door Thickness | 1-3/8" to 1-3/4" |
| Function Family | Privacy/Bedroom/Bathroom |
| Product Projection | 2-5/8 Inch |
| Bolt Throw | 1/2 Inch |
| Manufacturer Parent | Allegion |
| Door Edge Bore | 1 Inch |
| Box Dimensions (L x W x H) | 3.25x6x7" |
| Lever Style Family | Straight Curved Lever |
| Sub-Series | F40-MER-CEN |
| Collection | Merano |
| Package Height | 3.25" |
| Package Length | 7" |
| Package Width | 6" |
| Item Weight | 2.5 lbs |
| Dimension | 4-9/32" Lever and 2-3/4" Projection with 2-3/4" x 4-1/8" Rose |
| Material | Zinc |
| Manufacturer Warranty | Limited Lifetime Mechanical and Finish Warranty |
| Rose/Escutcheon Design | Century Rose |
| Door Range | 1-3/8" to 1-3/4" |
| Hazardous Material | No |
| Strike Dimension | 2-1/4" x 1-5/8" x 1-1/8" Lip |
| Cross Bore Size | 2-1/8" Bore |
| Finish code | 619 |
| Latch Faceplate Dimension | 1" x 2-1/4" |
| Lever Knob Design | Merano Lever |
| No of inners | 1 |
| ANSI/BHMA Standards | F76 |
| Keyed | No |
| Handle Type | Lever |
| Handle Design | Merano Lever |
| Electronic | No |
| Lever/Knob Design | Merano Lever |
| Door Handing | Non-Handed |
| Standard Strike | 10-027: Full Lip Radius Strike, 2-1/4" x 1-5/8" |
| Substrate Type | Zinc and Steel |
| Door Thickness Range | 1-3/8" To 1-3/4" |
| Lock Type | Cylindrical |
| Standard Latch | 16-080: Spring Latch, Dual Option (Round, Drive-in) |
| Rose Design | Century Rose |
| Features | Easy Installation with Phillips Screwdriver |
| Load Capacity | N/A |
