Product Description:

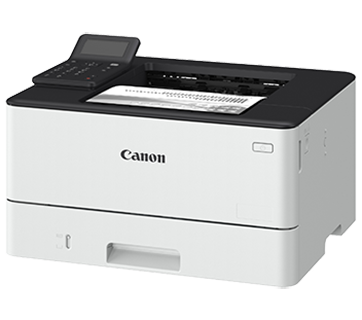

CANON IMAGECLASS LBP243DW 36PPM DUPLEX WIRELESS A4 MONO LASER PRINTER
CANON IMAGECLASS LBP243DW 36PPM DUPLEX WIRELESS A4 MONO LASER PRINTER
Printer Type
Print Only
Printer
Printing Method Monochrome Laser Beam Printing
Printing Speed (A4) Single sided: Up to 36 ppm
Double sided: Up to 30.2 ppm
Print Resolution 600 x 600 dpi
1200 x 1200 dpi equivalent
Warm-Up Time 14 sec or less from power-on
First Print Out Time (Fpot) Approx. 5 sec (A4)
Recovery Time Approx. 4 sec
Print Language/Emulation Standard: PCL6, UFR-II
Print Margins 5 mm - top, bottom, left and right
Advanced Printing Features Microsoft Universal Print support
iOS: AirPrint, Canon PRINT Business app
Android: Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app
Paper Handling
Paper Input (80 Gsm) Cassette: 250 sheets
Multi-purpose Tray: 100 sheets
Optional paper feeder: 550 sheets
Paper Output 150 sheets (face down)
Paper Sizes Cassettes: A4, A5, A6, B5, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Custom (min. 105 x 148 mm to max. 216 x 355.6 mm)
Multi-purpose Tray: A4, A5, A6, B5, Legal, Letter, Executive, Statement, Foolscap, Government Letter, Government Legal, Index Card, Postcard, Envelope (COM10, Monarch, DL, C5), Custom (min. 76.2 x 127 mm to max. 216 x 355.6 mm)
Paper Types Plain Paper, Recycled Paper, Label, Postcard, Envelope
Paper Weight Std. cassette/Opt. cassette: 60 to 120 gsm
Std. MP tray: 60 to 199 gsm
Connectivity And Software
Standard Interface(S) Wired: USB Device 2.0 High-Speed, USB (1 on the back), 10/100 Base-T, 100Base-TX, 1000Base-T Ethernet (Network),
Wireless: Wi-Fi 802.11 b/g/n
Network Protocol Print: TCP/IP (LPD/Port9100/IPP/IPPS/WSD)
Management: SNMPv1, SNMPv3 (IPv4,IPv6)
Security : TLS1.3, IPSec, IP/Mac address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
Security (wireless): Infrastructure Mode; WEP(64/128 bit), WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES), WPA-EAP(AES), WPA2-EAP(AES)
Access Point Mode: WPA2-PSK(AES)
One-Push Wireless Config WPS
Software And Printer Management Remote User Interface (RUI), Department ID Management, Toner Status Tool, iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.
Os Compatibility Windows®10/Windows®11/Windows®Server2012/Windows®Server2012 R2 / Windows®Server2016/ Windows®Server2019/ Windows®Server2022,macOS®(10.13 or later), Linux®, Chrome OS™
Cloud/Mobile Print Google Cloud Print™, Apple AirPrint™, Mopria™, Canon Business Print™
General Specifications
Memory Standard/Max: 1 GB
Storage 4GB eMMC
Lcd Display 5 Line LCD
Processor Cortex A9; 1200Mhz
Dimensions (W X D X H) 399 mm x 373 mm x 249 mm
Weight Approx. 8.7 kg (excl toner)
Approx. 9.1 kg (incl toner)
Power Consumption Operation: Approx. 1,250 W
Standby: Approx. 6 W
Sleep: Approx. 0.9 W
Typical Energy Consumption (TEC): 0.29 (230V)* kWh/week
* As per US Energy Star® version 3.0
Noise Level Sound Pressure:
Active: Simplex: 54dB or less
Duplex: 53 dB or less
Standby: Inaudible*
*Inaudible means that the emission sound pressure level for a bystander is lower that absolute standard for background noise in accordance with ISO 7779
Power Requirement AC 220–240 V, 50/60 Hz
Operating Environment Temperature: 10–30℃
Humidity: 20–80% RH (no condensation)
Toner Cartridges* CART070: 3,000 pages
CART070H: 10,200 pages
Printer ships with Starter Cartridge (Black: 1,500 pages)
*In compliance with ISO/IEC 19752. Subject to change without notice.
Options
Cassette Feeder Cassette Feeding Module-AH1 (550 sheets)
1. Print speed may vary with the content of the document and the processing speed of the host computer. Time from when print data is received.
2. In compliance with ISO/IEC 19798.
Subject to change without notice.
