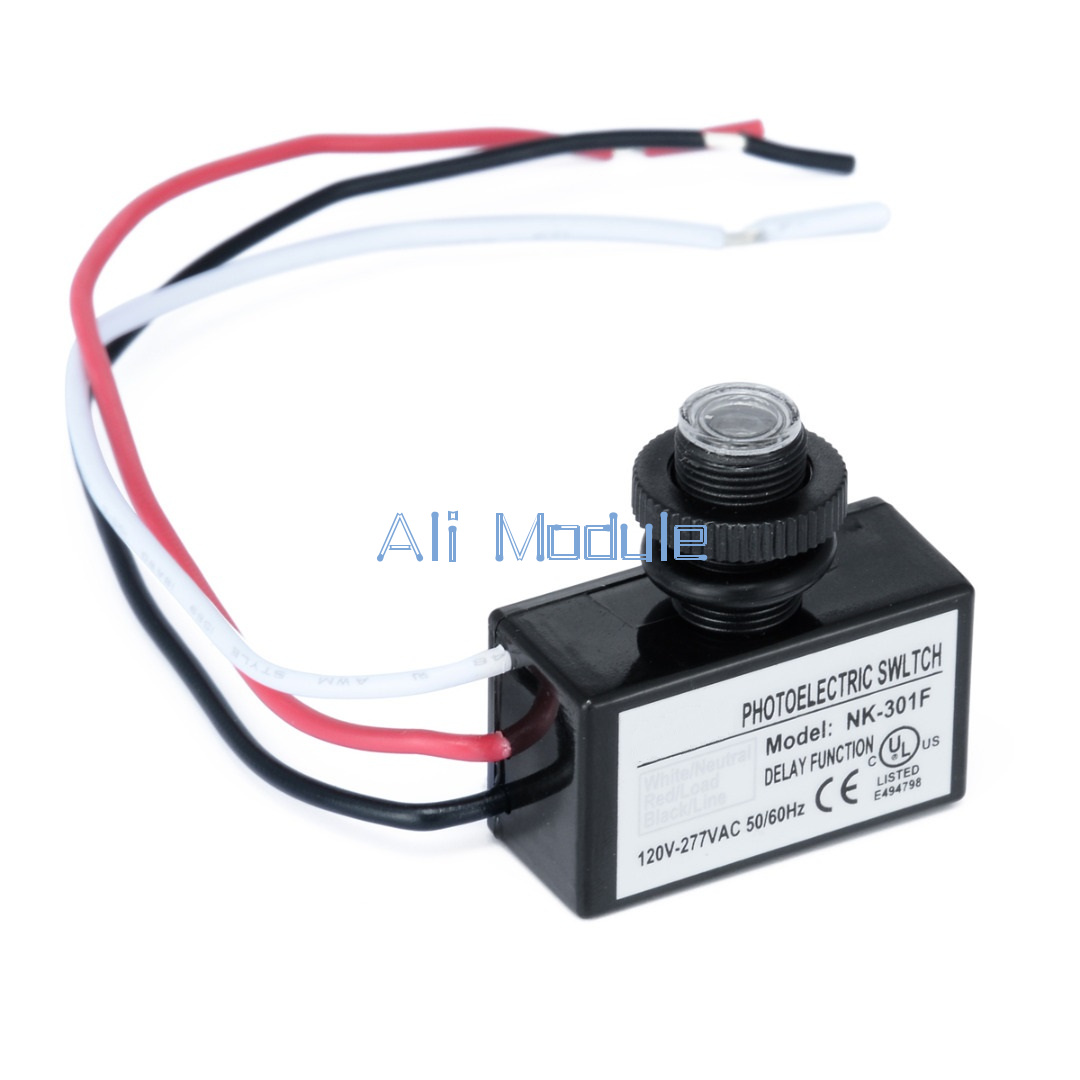

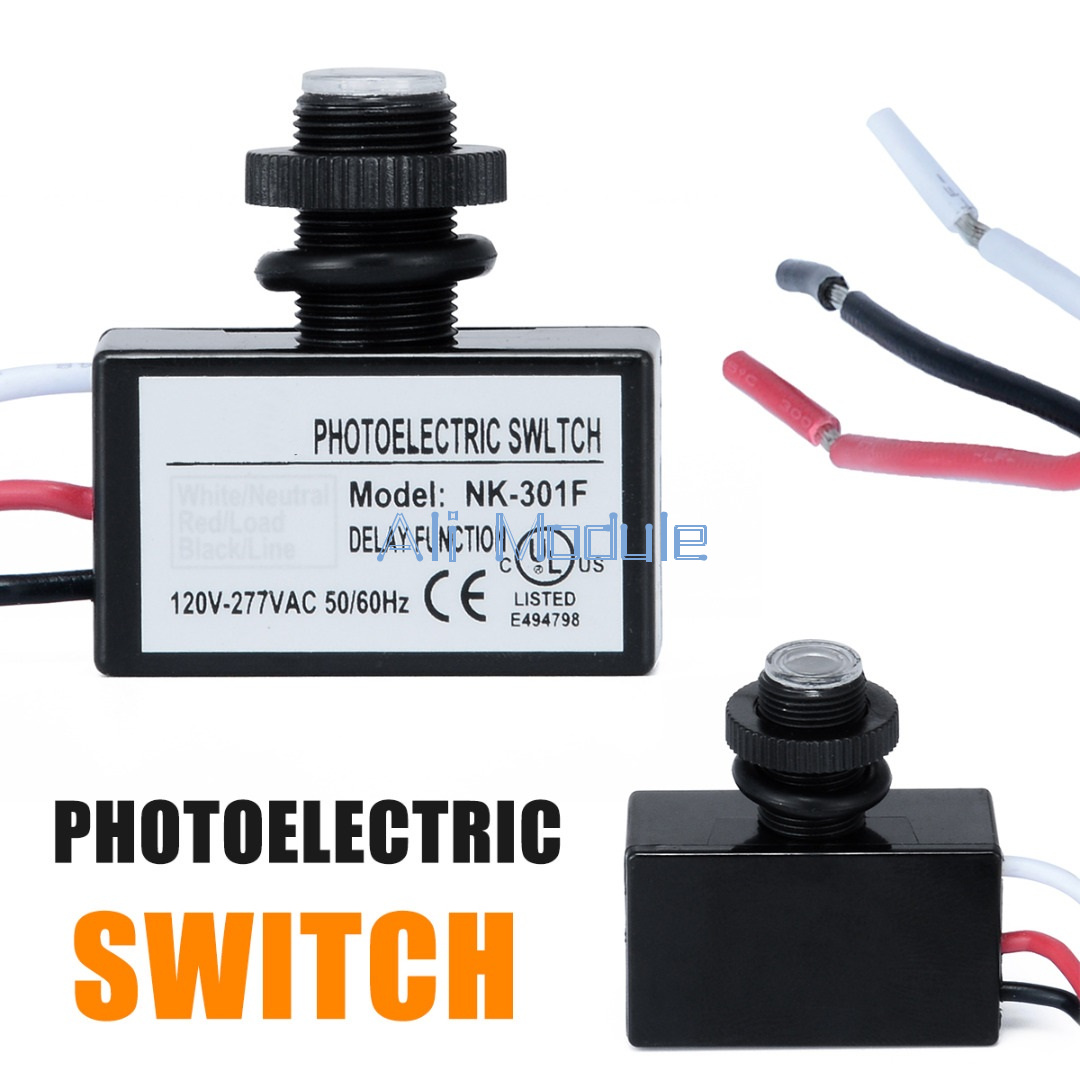

NK-301F Outdoor Security Photo Electric Resistor Light Sensor Control Switch
Features:
CE Certification,UL Certification.
Small volume light controller is easy to install.
Save energy,safe and reliable, long service life.
This photocell sensor is perfect for street lights,wall packs, barn lights and any other outdoor fixture that you need to have a dusk to dawn feature.
Internal IC import components,program control circuit anti-interference design, outdoor same light perception conditions,multiple sensors synchronous opening, induction precision, high sensitivity.

Specifications:
Voltage Range: AC 80V~277V
Rated Voltage: AC 120V/220V
Rated Load: 200W/400W
Rated Frequency: 50/60Hz
Power Consumption: 0.5 Max
Sensitivity:10-20LUX On / 40-70LUX Off
Anti-jamming Delay: About 12 Seconds
Ambient Temperature: - 25℃ ~ + 70 ℃
Relative Humidity: 99% RH
Inductive Head Rain Proof Grade: IP65
Working Life: More Than 5000 Times
Lead Length:150mm(AWG#18)

Wiring Method:
White Line + Black Line Connection (Input)
White Line + Red Line Connection (Output)
The White Line is the common line
Note:

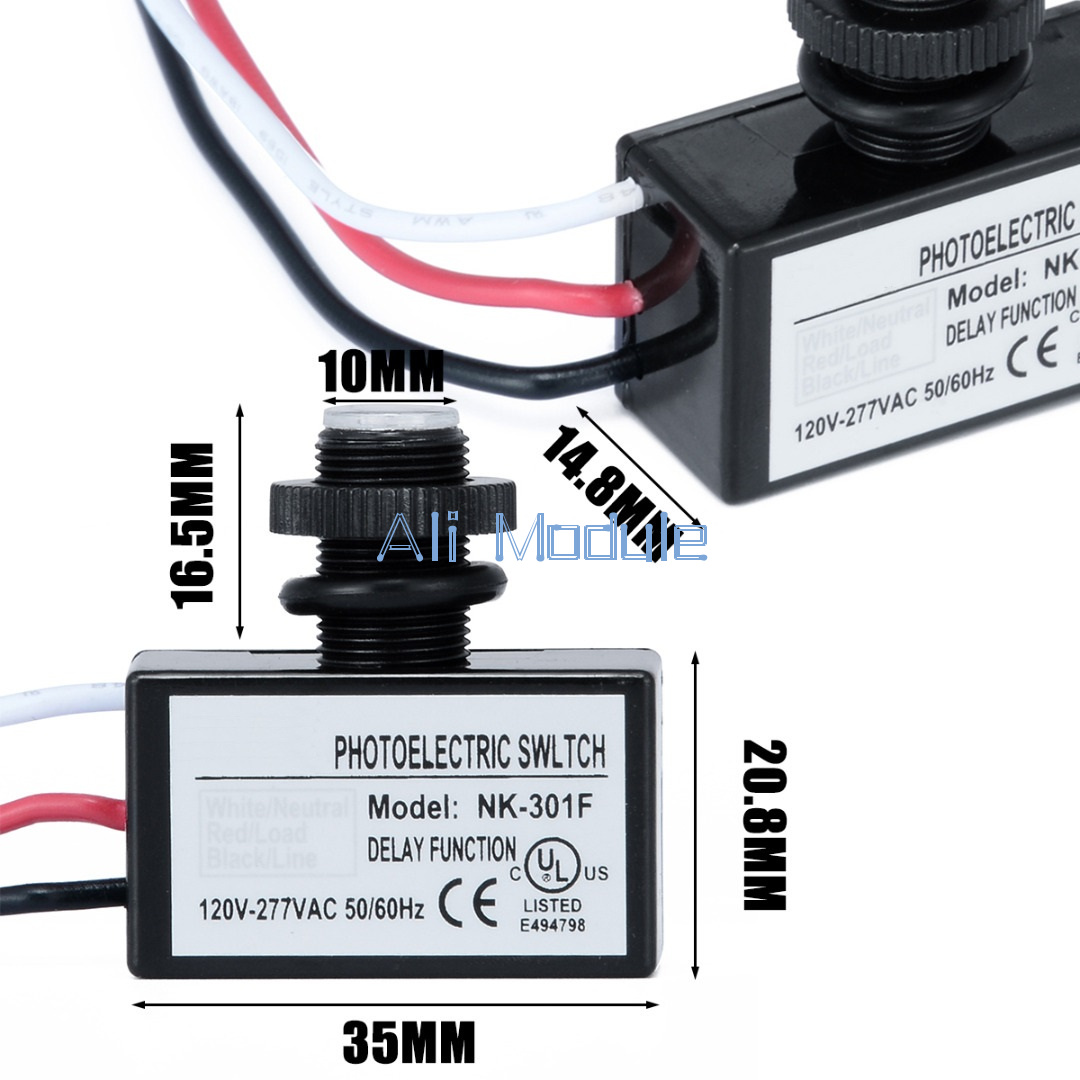

Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!


Package Includes:
1 x Photoelectric Switch
