USE AND OPERATION:

These valves, with integrated manual shut-off, are used to block the cylinder in one direction. Flow is free in one direction and blocked in the reverse direction until pilot pressure is applied. Due to the high safety of these valves they are particularly suitable for fitting onto the stabliser cylinders: closing of the manual shut-off valve, after the lowering of the stabiliser legs, would prevent any potential accidential movements.

MATERIALS AND FEATURES:

Body: zinc-plated steel.

Internal parts: hardened and ground steel.

Seals: BUNA N standard.

Leakage: Guided poppet – negligible leakage.

Reversible lever.

CONNECTIONS:

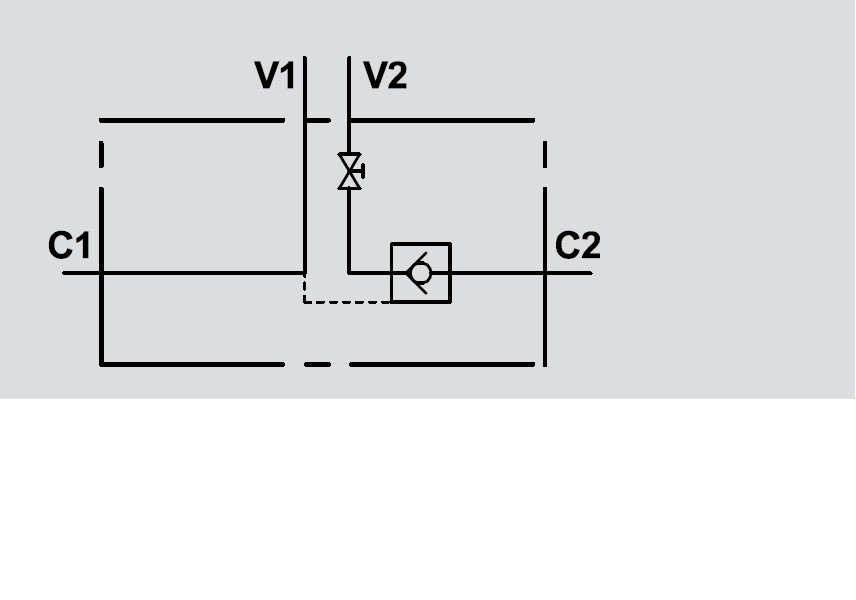

Connect V1 and V2 to the supply, C1 to the free flow side of the actuator and C2 to the actuator side you want the flow to be blocked.

ON REQUEST

Without seal on pilot piston

Right shut off (Please specify in the order)

Oil temperature: 50° C – Oil viscosity: 30 cSt
