Flow Control Valve, Excess to Tank For Danfoss Motors OMS c/w Relief Valve

FREE UK SHIPPING

100% SATISFACTION GUARANTEED

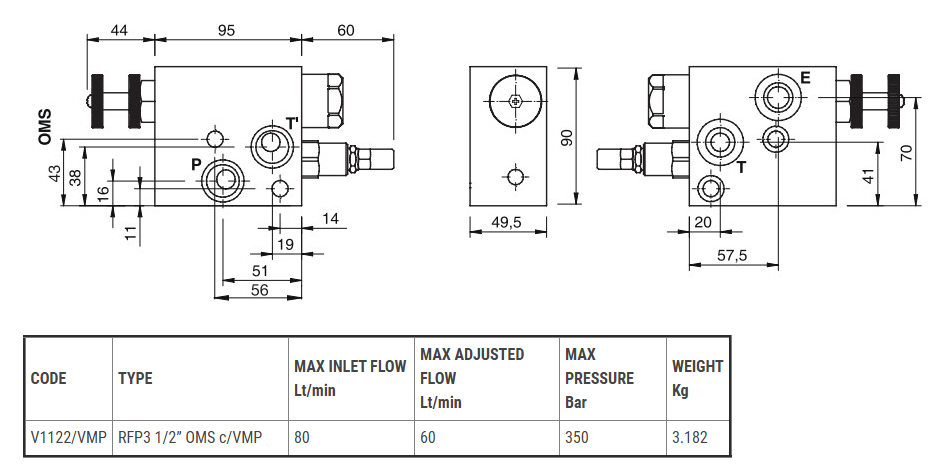

Hydraulic Flow Control Valve With Excess to Tank Flangeable On Danfoss Motors With Relief Valve On Priority Line, RFP3 1/2" OMS c/VMP, Max Inlet Flow 80L/min, Max Adjusted Flow 60L/min, Max Pressure 350 Bar

USE AND OPERATION:

This valve enables to keep the flow to P constant to a required setting, independent of pressure or inlet flow. Excess flow is drained to T (tank). The integrated relief valve limits the pressure to the priority line.


Flow Control Valve, Excess to Tank For Danfoss Motors OMS c/w Relief Valve On Priority Line, RFP3 1/2 OMS c/VMP

MATERIALS AND FEATURES:

Body: zinc-plated steel.

Internal parts: hardened and ground steel.

Seals: BUNA N standard.

Load holding: matched diameters, minimal leakage (few drops per minute).

CONNECTIONS:

Connect M1 and M2 to the motor and P and T to the pressure.

ON REQUEST:

Water proof adjustment knob (CODE/P)

Oil temperature 50° C – Oil viscosity: 30 cST
