Unbranded Hydraulic Cetop 3 NG6 2 Position Solenoid Directional Control Valve

FREE UK SHIPPING

100% SATISFACTION GUARANTEED

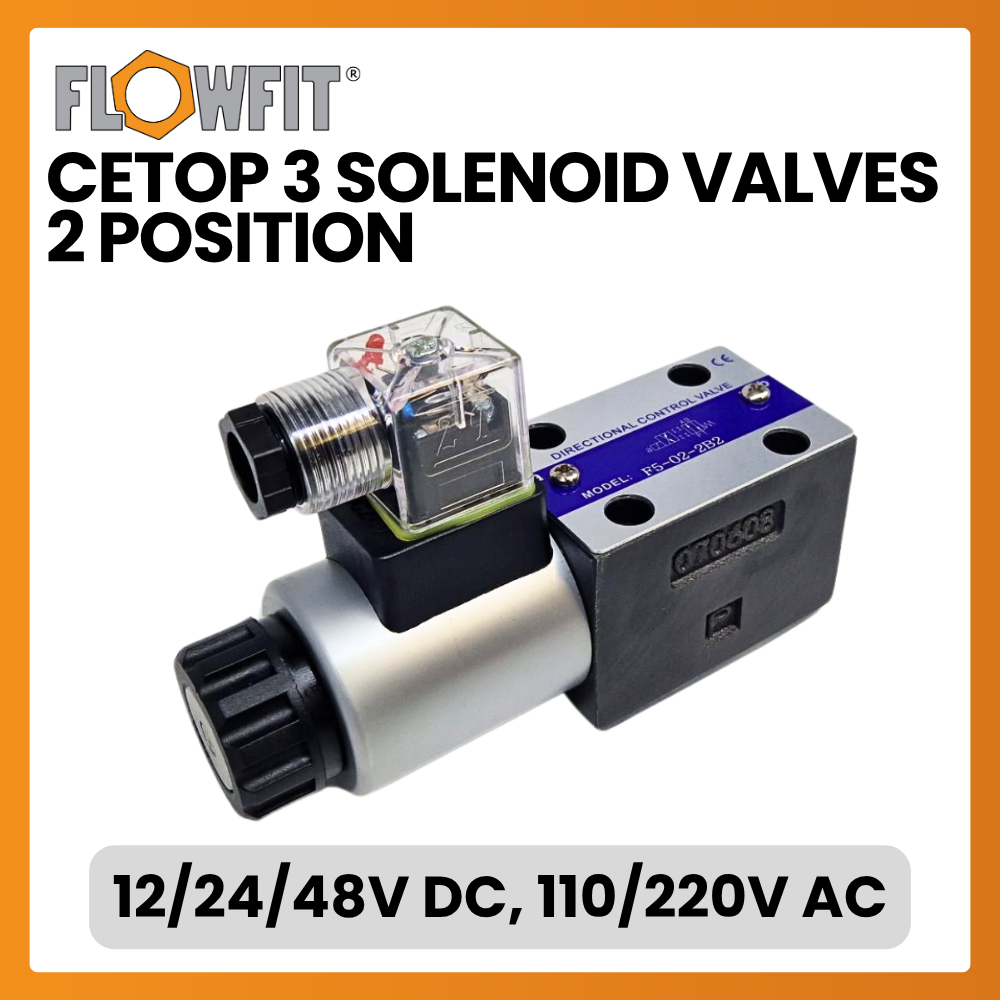

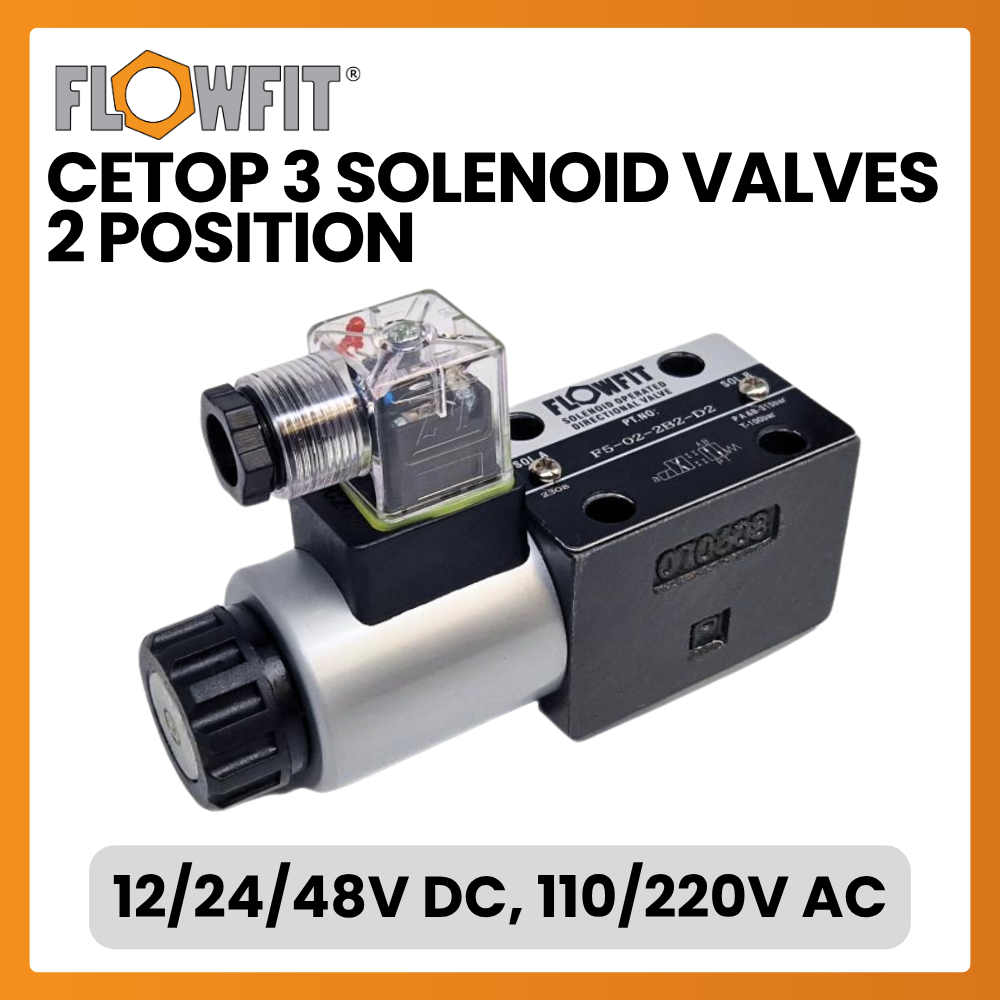

Hydraulic Cetop 3 NG6 2 Position Solenoid Directional Control Valve

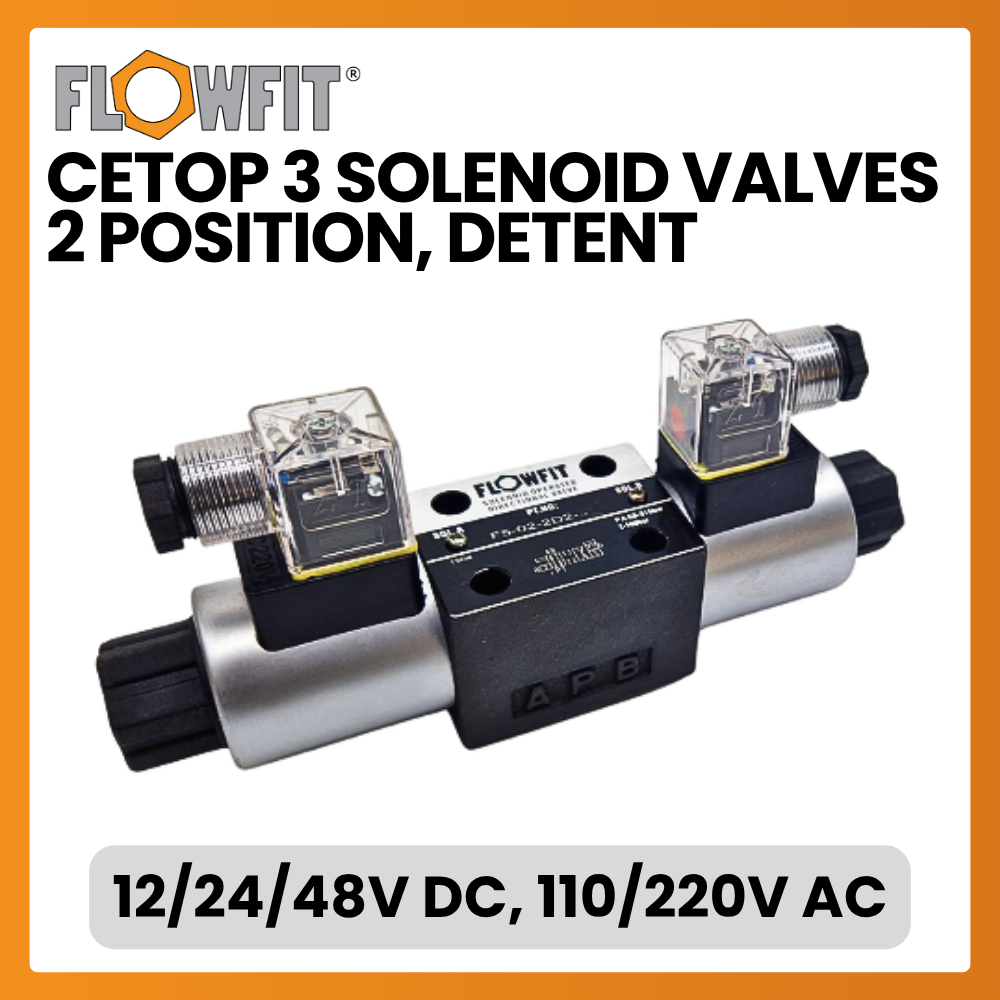

CETOP 3 NG6 2 POSITION SOLENOID VALVE

Flowfit offer a large range of solenoid operated CETOP 3 NG6 valves, max flow 80 l/min commonly used in hydraulic power packs and other hydraulic applications.

Available Voltage: 12 V DC, 24 V DC, 110 V AC 50Hz and 220 V AC 50Hz

Flowfit F5-02 series CETOP 3 NG6 solenoid valves are electro-hydraulic spool type valves. They are solenoid operated and control the start, stop and direction of the oil flow in the hydraulic circuit.

Flowfit valves are used for hydraulic power packs as well as stand-alone hydraulic manifold blocks.

Specification:-

Nominal Size: NG6

Maximum Flow Rate: 80 l/min

Maximum Pressure: A, B ,P = 315 Bar T = 160 Bar

Seal Material: - NBR

Max Fluid Temperature: -20 degrees celcius to +70 degrees celcius.

Oil Viscosity: - 2.8 to 380 mm2/s

Switch Cycles Open: - 50 to 60 ms.

Switch Cycles Closed: - 50 to 70 ms.

Switch Frequency: 15000 times per hour.

Insulation Grade: IP65

Weight: Single Solenoid: 1.5kg

Voltages: 12VDC = D1, 24VDC = D2, 48VDC = D4, 110V/AC 50HZ = A1, 220V/AC 50HZ = A2

Manual Override: Standard on all valves

Connector Type: DIN Plug (with LED)

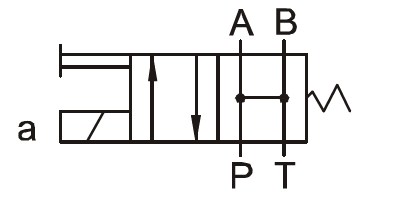

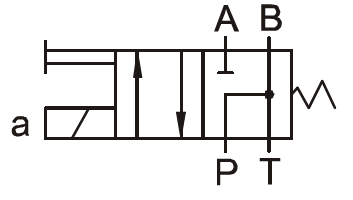

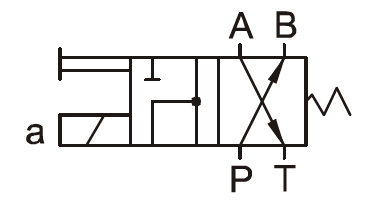

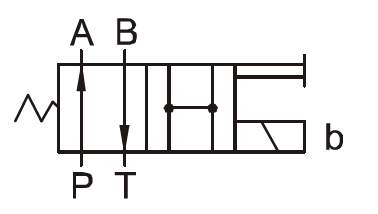

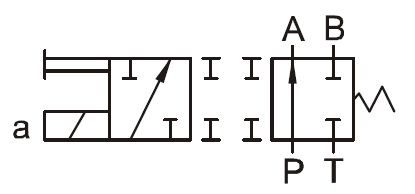

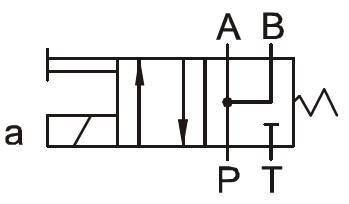

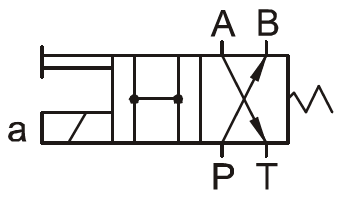

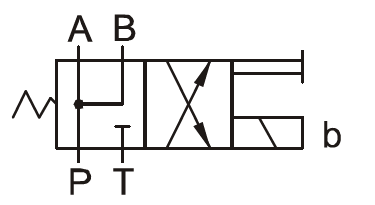

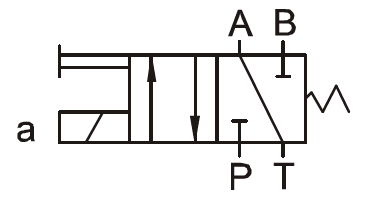

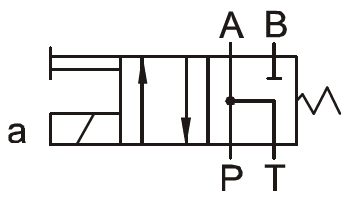

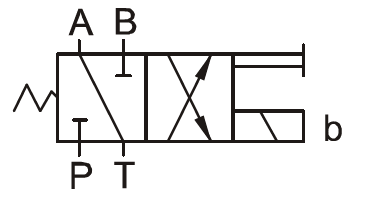

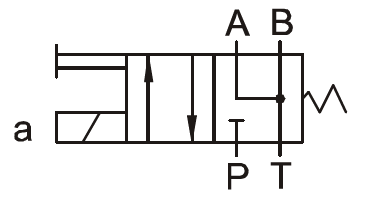

P to A, B to T >> P to B, A to T (2B2 Spool Type)
P to A, B to T >> All Ports Blocked (2B2A Spool Type)

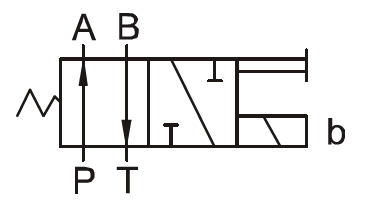

P to B, A to T >> All Ports Blocked (2B2AL Spool Type)

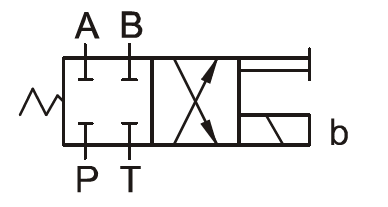

All Ports Blocked >> P to B, A to T (2B2B Spool Type)
All Ports Blocked >> P to A, B to T (2B2BL Spool Type)
P to B, A to T >> P to A, B to T (2B2L Spool Type)
P to A, B to T >> P to B, A to T (2B3 Spool Type)

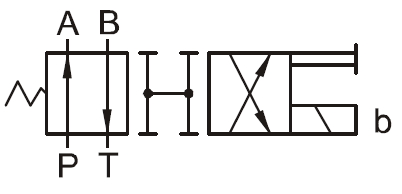

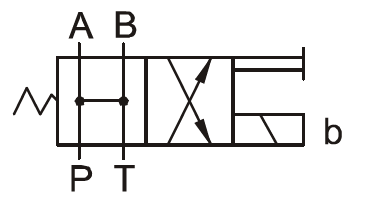

P to A, B to T >> All Ports Open (2B3A Spool Type)
P to B, A to T >> All Ports Open (2B3AL Spool Type)
P to B, A to T >> P to A, B to T (2B3L Spool Type)
All Ports Open >> P to B, A to T (2B3B Spool Type)
All Ports Open >> P to A, B to T (2B3BL Spool Type)

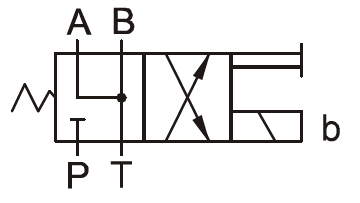

P Blocked, A&B to T >> P to B, A to T (2B4B Spool Type)
P Blocked, A&B to T >> P to A, B to T (2B4BL Spool Type)

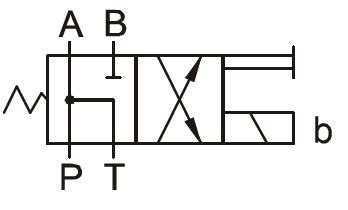

B Blocked, P&A to T >> P to A, B to T (2B5B Spool Type)
B Blocked, P&A to T >> P to B, A to T (2B5BL Spool Type)
T Blocked, P to A&B >> P to B, A to T (2B9B Spool Type)
T Blocked, P to A&B >> P to A, B to T (2B9BL Spool Type)
P&A Blocked, B to T >> P to B, A to T (2B10B Spool Type)
P&A Blocked, B to T >> P to A, B to T (2B10BL Spool Type)
B&T Blocked, P to A >> P to B, A to T (2B11B Spool Type)
B&T Blocked, P to A >> P to A, B to T (2B11BL Spool Type)
P to A, B to T >> P&B Blocked, A to T (2B12A Spool Type)
P to B, A to T >> P&B Blocked, A to T (2B12AL Spool Type)
P&B Blocked, A to T >> P to B, A to T (Spool 2B12B Spool Type)
P&B Blocked, A to T >> P to A, B to T (Spool 2B12BL Spool Type)
P&B to T, A Blocked >> P to A, B to T (2B25B Spool Type)
P&B to T, A Blocked >> P to B, A to T (2B25BL Spool Type)

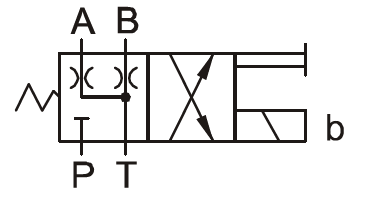

P Blocked, A&B Choked to T >> P to B, A to T (2B40B Spool Type)
P Blocked, A&B Choked to T >> P to A, B to T (2B40BL Spool Type)
P to T, A&B Blocked >> P to A, B to T (2B60B Spool Type)
B Blocked, P&A to T >> P to B, A to T (2B5BL Spool Type)
P to A, B&T Blocked >> P to B, A&T Blocked (2B8 Spool Type)
P to B, A&T Blocked >> P to A, B&T Blocked (2B8L Spool Type)
