Prime-Line C 1225 Handle Set, Aluminum, Painted, 1-1/2 to 1-3/4 in Thick Door White
FEATURES
- A Phillips head screwdriver is required for installation
- Use part number E 2014 as the mortise latch
- Used on a variety of patio doors
- Used on doors 1-1/2 in. to 1-3/4 in. thick
- Standard reversible surface mount handle set for left or right handed mortise locking doors
- Die-cast inside pull and thumb turn with steel latch activator

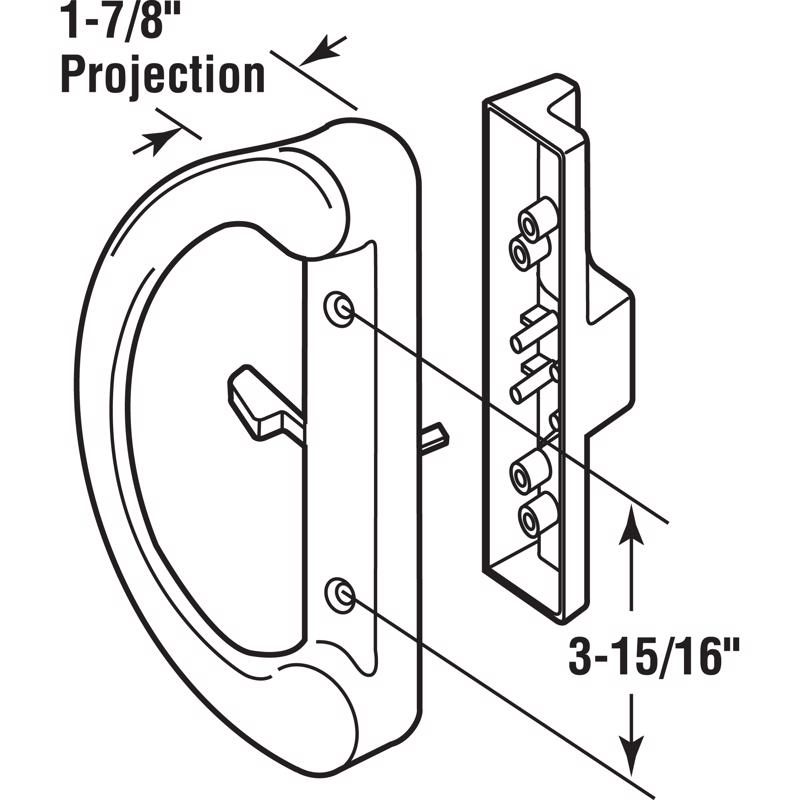

- For further dimensional information, please see the line drawing
- Hardware included
- Outside pull is die-cast and has a removable knock-out plug for adding a key cylinder
- High security design
- Mounting holes are 3-15/16 in. on center
- Reversible for right or left handed doors
DESCRIPTION
HANDLE SLDG DR WHT MORTISE
Specifications:
Specifications:
Includes: (1) Inside Pull with Thumb Latch (1) Outside Pull Installation Fasteners
Suitable for: E-2008 E-2009 E-2014 and E-2111 Mortise Latches and Glass Sliding Doors
Standard reversible surface mount for left or right handed mortise locking doors. Die-cast inside pull and thumb turn with steel latch activator. Outside pull is die-cast and has a removable knockout plug for adding a key cylinder. Note: Mounting holes may need to be enlarged to 5/16 in Dia if base of handle does not seat flush against surface of door.
SPECS
| Returnable | Yes |
| Hardware Included | Yes |
| Defective Code | A |
| Color | White |
| Commercial or Residential | Commercial and Residential |
| Width | 5.00 |
| Number in Package | 1 pk |
| ADA Compliant | No |
| Indoor or Outdoor | Indoor and Outdoor |
| Center to Center Measurement | 3-15/16" |
| Packaging Type | Carded |
| Length | 2.00 |
| Description | Heavy duty white diecast inside latch assembly; white diecast outside pull handle; thumb turn; for use with 151291, 152469, 15410-F and 1521 mortise latches; use 1505 to key lock; non-handed; used by several door manufacturer |
| Product Type | Patio Door Handle Set |
| Material | Aluminum |
| Contents | 1"side pull with thumb latch; 1 outside pull; installation fasteners |
| Each Weight | 1.580 LB |
| Velocity | C |
| Hazardous Material | No |
| Alternative UPC | 078874035985 |
| Height | 11.50 |
| ECCN | EAR99 |
| Country Origin Code | VN |
| Finish | Painted |
| Warranty | Limited |
| Door Thickness | 1-1/2 to 1-3/4" |
| Nomenclature | C 1225 HANDLE SLIDING DOOR WHT |
| Bolt Hole Diameter | 3/16" |
| "W" Overall Width | 5 |
| "D" Overall Depth | 2 |
| "H" Overall Height | 11.5 |
| Shipping Weight | 1.56 |
| Load Capacity | n/a |
