2x Universal Air Suspension Spring Bag + Compressor Controller Kit For Campervan

Description



Notice:

Pick up service is not available.



MaXpeedingrods Air Spring Bag Compressor Gauge Panel Controller Kit for Universal Van Pickups





Introduction:

The air spring controller kit is designed to pressurize and depressurize the air springs installed in your vehicle with one button without leaving the cab, bringing great convenience. Moreover, it is a universal kit and suitable for most light or medium duty pickups and vans.



Application:



Universal Fit For Most 1/2, 3/4 And 1 Ton Pickups And Vans

For Ford Ranger Mazda Mitsubishi Isuzu Toyota Hilux Landcruiser etc.

Also Compatible With Most small trucks, compact pickups, classic cars & hot rods, and custom suspension setups



Item Specifications:



Condition:  Brand New

Drilling Required:  Yes

Installation instruction included

Package Length, width and height: 32*20*20 cm

Package Wight: 2.2 Kg



Air Spring Bag:

Loading cap. at 3.0bar:2.88KN

Loading cap. at 7.0bar:7.25KN

Placement on Vehicle: Left,Right,Front,Rear

Air spring bag capacity:  2500LBS

Min height: 72mm±5mm

Max height: 218MM±5mm

Working stroke: 146mm±5mm

Single air port size: 1/2NPT

Air fitting elbow connector: G1/2-φ6(male)

Install hole size: 3/8-16UNC

Top plate diameter:113mm

Air spring bag body diameter:148mm±2mm

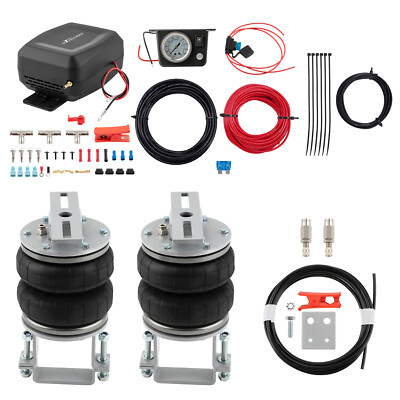

Package includes (as the picture shows):

2 x Air Spring Bags ( 2500LBS )

1 x  12V MXR Air Compressor（Black）

1 x Gauge panel （Push buttons for up and down）

1 x Air Line φ6*1（6M)

1 x Wire harness (2.5 M) black

1 x Wire harness (8.5 M) red

1 x Relay harness(1M)

3 x T Connectors

And some other accessories



Features:

1. Allows you to monitor and adjust the air pressure in the air spring bag from the driver's seat.

2. Performs well for light-duty or medium-duty applications and for occasional hauling or towing.

3. Includes onboard air compressor, single-gauge dash panel, air lines and hardware.

4. Compatible with any brand of air spring.

5. Single-path controls let you adjust 1 pair of air springs.

6. Strict quality inspection to ensure long-term use without damage

7. Maximum air pressure: 120 psi.

8. Recommended working pressure：5-70 PSI

9. Wire harness has flame retardant properties.

10. The air compressor has quality assurance.

11. The air compressor has a waterproof casing.





Notice:

- Please confirm the air spring specifications to ensure compatibility with your vehicle.

- Instruction is included. Professional installation is recommended

- Contact us please for whatever we can help
