Hanwha Techwin QNV-8020R Overview
Monitor an outdoor area
with the white QNV-8020R 5MP Network
Dome Camera from Hanwha
Techwin. This unit uses a 1/2.8" CMOS sensor to capture 2592 x 1944
resolution video at 30 fps. IR LEDs provide up to 82' of night vision. The
camera's 4mm fixed lens delivers a 79.8° horizontal field of view. An onboard
memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available
separately). Integrated PoE technology simplifies connectivity by enabling the
transfer of power and data through a single cable.
This vandal resistant
camera complies with ONVIF profiles G, S, and T, making it compatible with a
wide range of surveillance devices. It is housed in an IP66- and IK10-rated
aluminum enclosure for safe outdoor use in areas at risk of vandalism.
- IR
cut filter for day and night functionality
- H.265,
H.264, and MJPEG video codecs
- WiseStream
II support
- Triple
streaming
- Unicast
and multicast streaming
- Up
to six users in unicast mode
- CBR
and VBR
- Electronic
shutter
- Camera
pivots horizontally from 0 to 350° and vertically from 0 to 67°
- 0
to 355° rotation
- Lens
distortion correction
- Backlight
compensation
- 120
dB wide dynamic range
- Digital
noise reduction (SSNR)
- Gain
control
- White
balance modes include ATW, AWC, manual, indoor, and outdoor
- Privacy
masking for up to six rectangular zones
- Flip,
mirror, and hallway view (90/270°) support
- Analytics
include defocus detection, directional/virtual line detection, motion
detection (4 polygonal zones), enter/exit, and tampering
- 100M
Ethernet port
- CVBS
video output
- Alarm
input and output
- Alarm
triggers include analytics, network disconnect, and alarm input
- Alarm
events include file upload via FTP and email, notification via email,
microSD card or NAS recording at event triggers, alarm output, and
handover
- Compatible
with Windows 7, 8.1 & 10, Mac OS X 10.10 to 10.14, Chrome, Microsoft
Edge, Internet Explorer 11, Firefox (Windows 64-bit only), and Safari (Mac
OS X only)
- FCC,
cUL, CE, and EAC certified
- Megapixel
resolution
- Built-in
4mm fixed lens
- 30fps@all resolutions
(H.265/H.264)
- H.265,
H.264, MJPEG codec supported, Multiple streaming
- Day
& Night (ICR), WDR (120dB)
- Defocus
detection, Directional detection, Motion detection, Enter/Exit, Tampering,
Virtual line
- micro
SD (128GB) memory slot, PoE
- IR
viewable length 25m, IP66, IK10
- Hallway
view support
- Analog
video out for easy installation
- LDC
support (Lens Distortion Correction)
Wisenet
Q network outdoor vandal dome camera, 5MP @ 30fps, 4.0mm fixed focal lens
(79°), triple codec H.265/H.264/MJPEG with Wisestream II, 120dB WDR, IR LEDs
range 82', defocus detection, hallway View, SD card, video analytics, CVBS,
open platform, IP66, IK10, PoE, white color

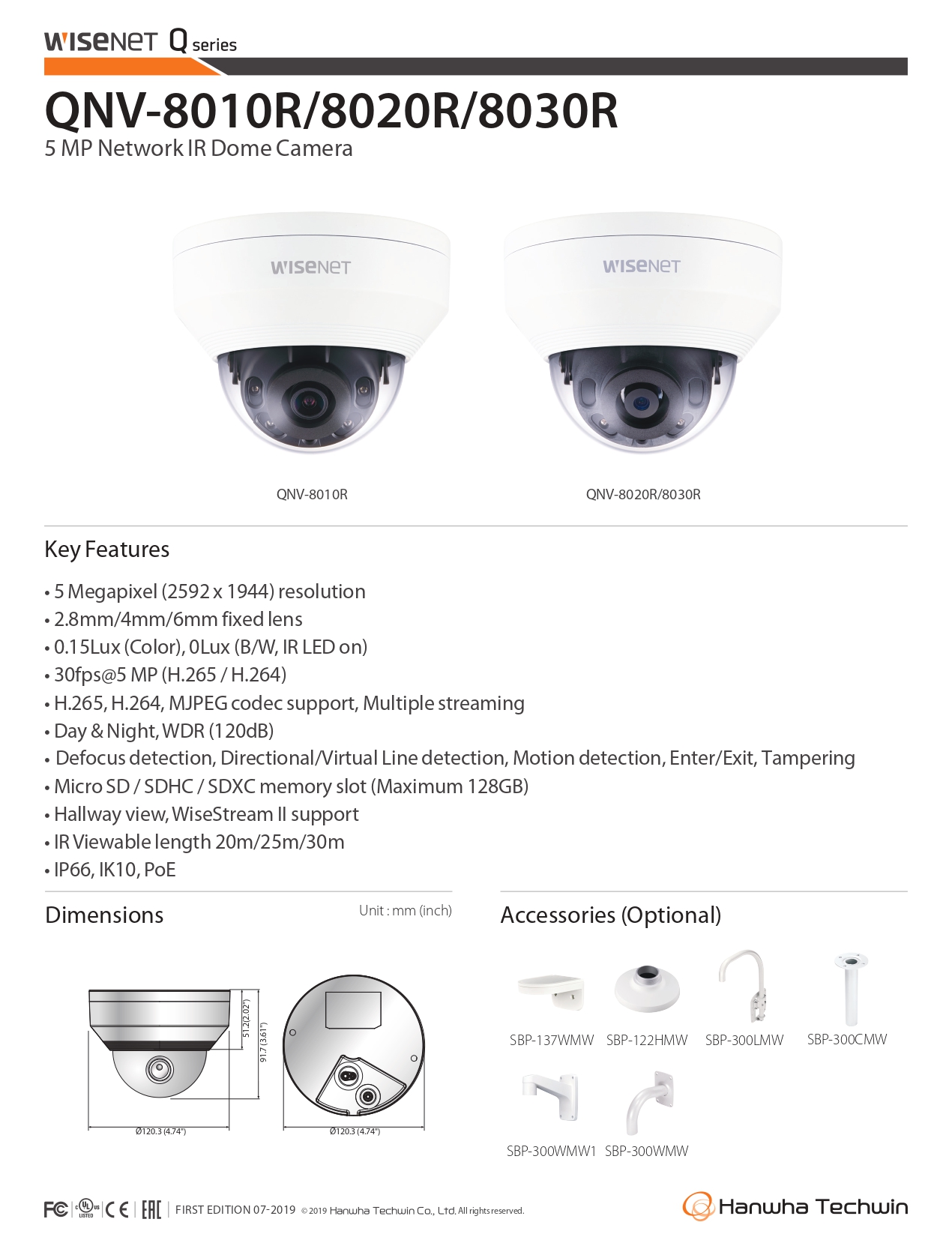

Key
Features
- 2592
x 1944 Resolution at 30 fps
- IR
LEDs for Night Vision up to 82'
- 4mm
Fixed Lens
- 79.8°
Horizontal Field of View
- Supports
microSD Cards up to 128GB
- RJ45
Ethernet with PoE Technology
- Complies
with ONVIF Profiles G, S & T
- IP66
Rated for Outdoor Use
- IK10-Rated
Vandal Resistance

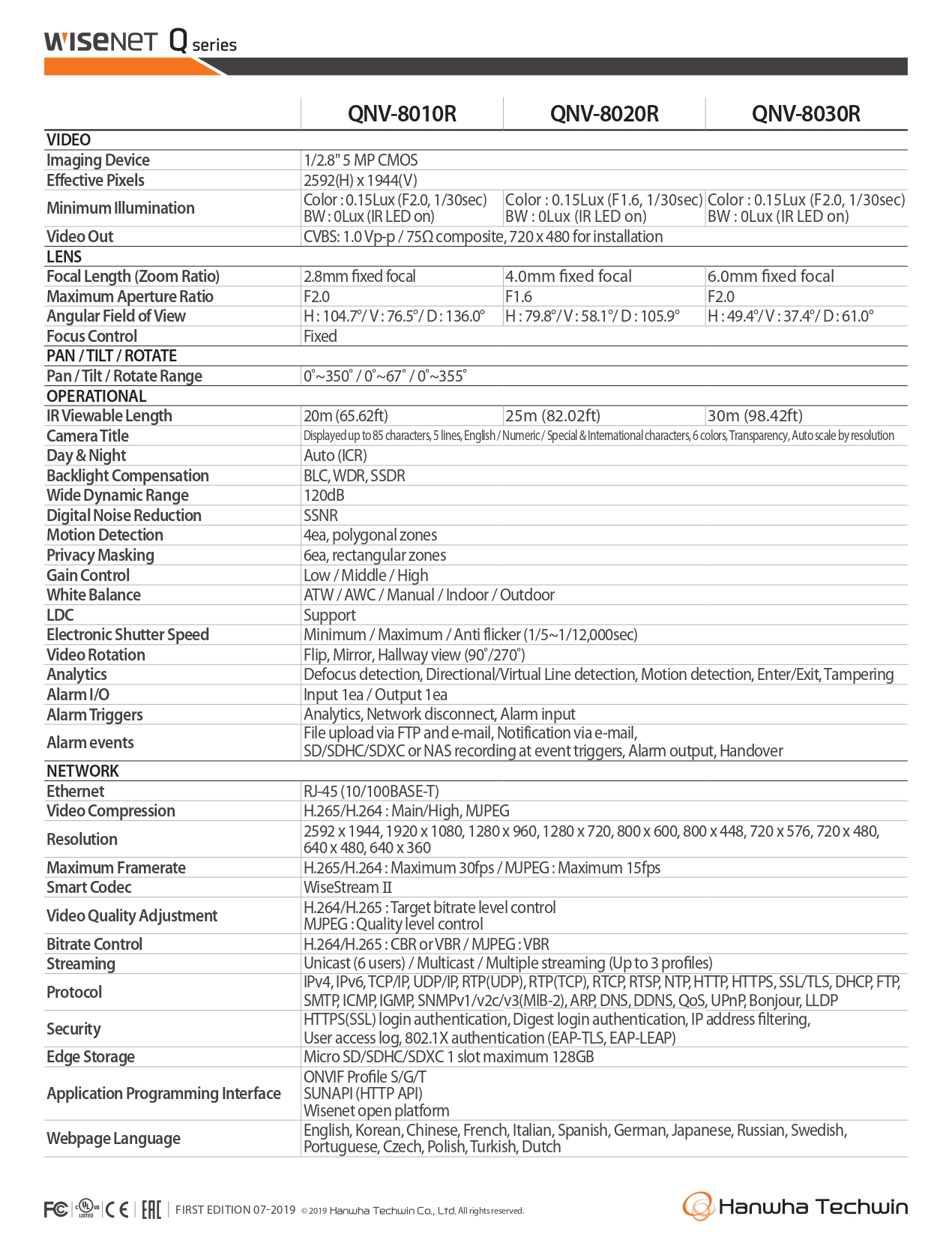

Hanwha Techwin QNV-8020R Specs
Camera
|
Sensor |
5 MP 1/2.8"
CMOS |
|
Focal Length |
4mm |
|
Maximum Aperture |
f/1.6 |
|
Lens Field of View |
Horizontal: 79.8° |
|
IR Cut Filter |
Mechanical |
|
Day/Night |
Yes |
|
Minimum Illumination |
Color: 0.15 Lux |
|
Shutter Speed |
1/12,000 to 1/5
Seconds |
|
Camera Angle
Adjustment |
Horizontal: 0 to
350° |
Video
|
Streaming Resolution |
2592 x 1944 at 30
fps |
|
Supported Video
Compression |
H.264, H.265, MJPEG |
|
Multi-View Streaming |
Yes, 3 Streams |
|
Built-In Mic |
No |
Networking
|
Security |
Digest
Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log |
|
Supported Protocols |
ARP, Bonjour, DDNS,
DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, PIM, QoS Layer 3
DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP,
UPnP |
System Integration
|
Application
Programming Interface (API) |
ONVIF Profiles G, S
& T, SUNAPI (HTTP API), Wisenet Open Platform |
|
Analytics |
Defocus Detection,
Directional/Virtual Line Detection, Motion Detection (4 Polygonal Zones),
Enter/Exit, Tampering |
|
Event Trigger |
Yes |
|
Event Action |
Recording,
Notification, Alarm |
|
Data Streaming |
Yes |

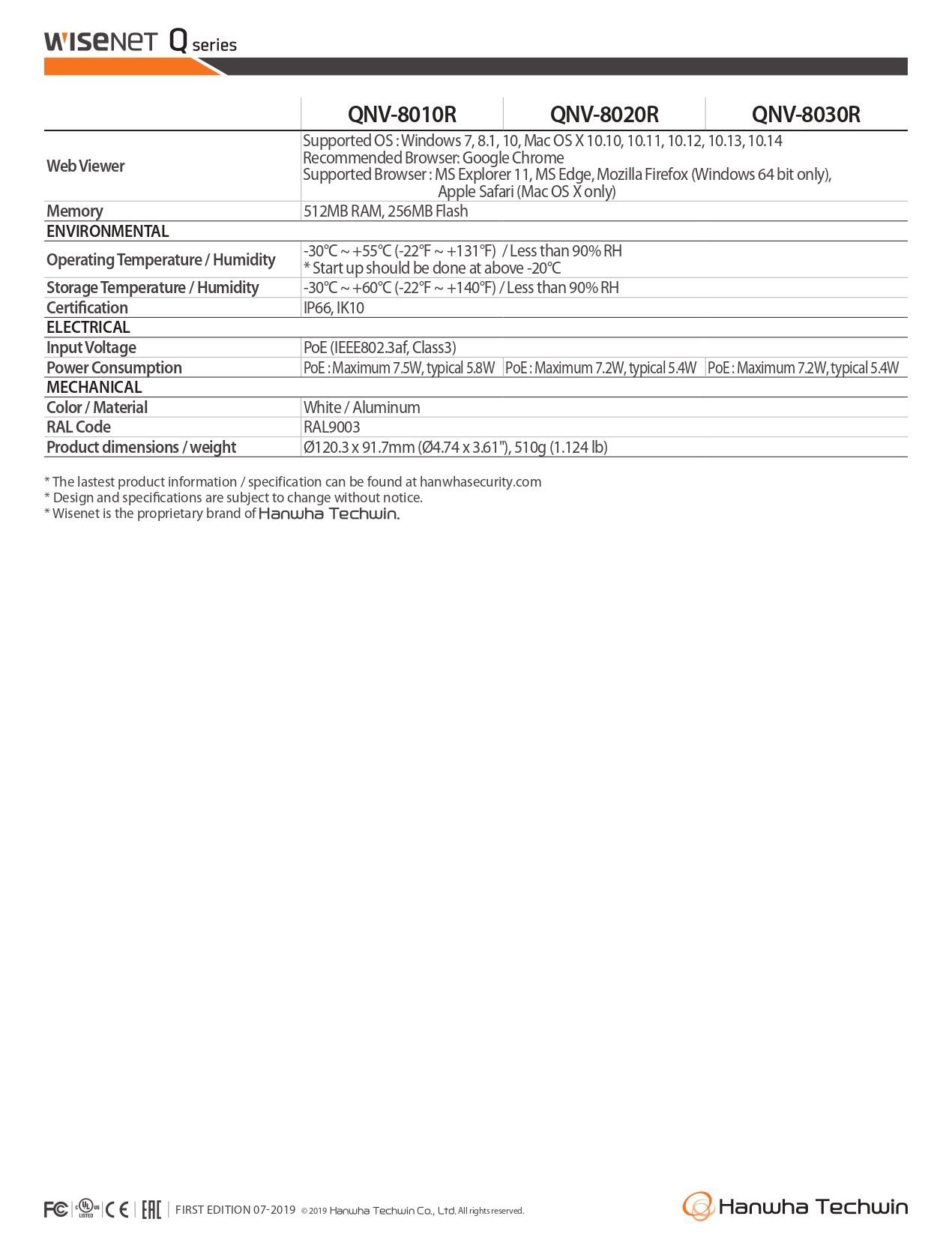

System Requirements
|
Windows OS Support |
Windows 7, 8.1, 10 |
|
Mac OS Support |
macOS 10.14, macOS
10.13, macOS 10.12, OS X 10.11, OS X 10.10 |
Environmental
|
Operating
Temperature |
-22 to 131°F / -30
to 55°C |
|
Storage Temperature |
-22 to 140°F / -30
to 60°C |
|
Operating Humidity |
0 to 90% |
|
IP Rating |
IP66 |
|
IK Rating |
IK10 |
General
|
Memory |
512 MB RAM / 256 MB
Flash |
|
Media/Memory Card
Slot |
Single Slot:
microSD/microSDHC/microSDXC [128 GB Maximum] |
|
Pan/Tilt |
None |
|
Alarm I/O |
1 / 1 |
|
I/O Connections |
1 x RJ45 |
|
IR Range |
82.0' / 25 m |
|
Supported Languages |
Czech |
|
Internal Storage |
None |
|
External Storage
Options |
NAS |
|
Power Source |
PoE 802.3af (15 W) |
|
Power Consumption |
5.4 W |
|
Material of
Construction |
Aluminum |
|
Dimensions |
ø: 4.7 x H:
3.6" / ø: 120.3 x H: 91.7 mm |
|
Weight |
1.1 lb /
510 g |
Packaging Info
|
Package Weight |
1.895 lb |
|
Box Dimensions
(LxWxH) |
6.4 x 6.3 x 5" |
