Feature
-
Outstanding RF performance: PowerfulESP32-C3 SoCand U.FL antenna provided that supports WiFi/Bluetooth connection over 100m.
-
Thumb-size Design: 21 x 17.5mm overall dimension, portable and lightweight.
-
Low power consumption: Lowest as 44 μA (deep sleep mode), with 4 working modes available.
-
Onboard battery charge IC: Supports battery charging, great for various wearable scenarios and wireless IoT applications.
-
Ready for productization: Single-sided components design, easily integrated into other boards and Seeed provides Fusion Service for rapid production.
Description
Seeed Studio XIAO ESP32C3has equipped a highly-integrated ESP32-C3 chip, built around a 32-bit RISC-V chip processor with a four-stage pipeline that operates at up to 160 MHz.
The board equips highly-integrated ESP32-C3 SoC. The chip has been installed with acomplete 2.4GHz Wi-Fi subsystemwhich means it supports Station mode, SoftAP mode, SoftAP & Station mode, and promiscuous mode for multiple Wi-Fi applications. It works under an ultra-low power state, also supporting features ofBluetooth 5andBluetooth mesh. There are 400 KB SRAM & 4 MB Flash on the chip, allowing for more programming space, and bringing more possibilities to the IoT control scenarios.
Being a number to the Seeed Studio XIAO family, the board deservedly maintains the classicthumb-sized form-factor designand elegantproductization of single-sided components mounting. Meanwhile, it has equipped with abattery charge chipand integrated circuit for enhancing its ability to carry. This board comes included with an external antenna to increase the signal strength for wireless applications. There are 11 digital I/O that can be used as PWM pins and 4 analog i/o that can be used as ADC pins. It supports UART, IIC, and SPI serial communication ports, also including IIS (Internet Information Services). Utilizing its small and exquisite hardware design and the powerful onboard chip, programming by Arduino, it will offer more ability to wearable and portable devices or other applications.

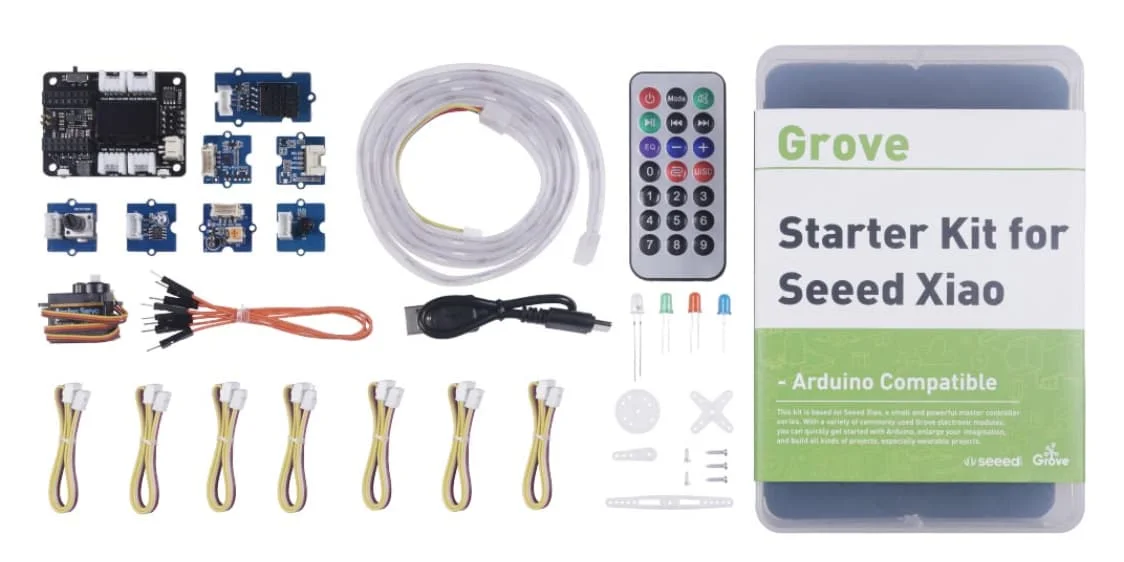

To provide a more smoothed learning experience for beginners, we have prepared afree coursebased on the Starter Kit for Seeed Xiao which contains 4 Units and 16 lessons to help you quickly get started with development boards, and then you can proceed to realize little and individual fun projects.

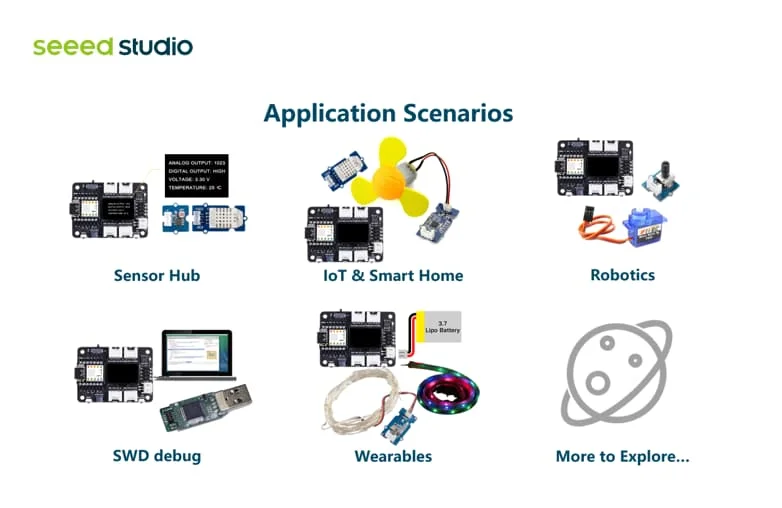

You can have access to the Seeed Studio Grove ecosystem by connecting it to the compatible Seeed Studio XIAO expansion board. We have developed more than 400 Grove modules, covering a wide range of applications that can fulfill various needs. Get started and explore the infinite possibilities of the Seeed Studio XIAO series!
If you are interested in programming embedded machine learning, we have Codecraft visual programming that can help you quickly start your own TinyML project. And we have set up a #tinyml channel on our Discord server, please click to join for 24/7 making, sharing, discussing, and helping each other out.
We already have 5 XIAO products based on different solutions in the XIAO family, to help you better understand the differences and choose the most suitable part for your projects, please refer to the Seeed Studio XIAO Series Page.
Attention
-
It will be a little hard to connect the antenna at the first time using the board.
-
Please connect the antenna at the vertical direction and do not drag at the horizontal direction.
Specification
|
Parameter |
Description |
|
Processor |
ESP32-C3 SoC |
|
RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz |
|
|
Wireless |
Complete 2.4GHz Wi-Fi subsystem |
|
Bluetooth 5.0/ Bluetooth mesh |
|
|
On-chip Memory |
400KB SRAM & 4MB Flash |
|
Interface |
1x UART, 1x IIC, 1x IIS, 1x SPI,11x GPIO(PWM), 4x ADC |
|
1x Reset button, 1x Boot button |
|
|

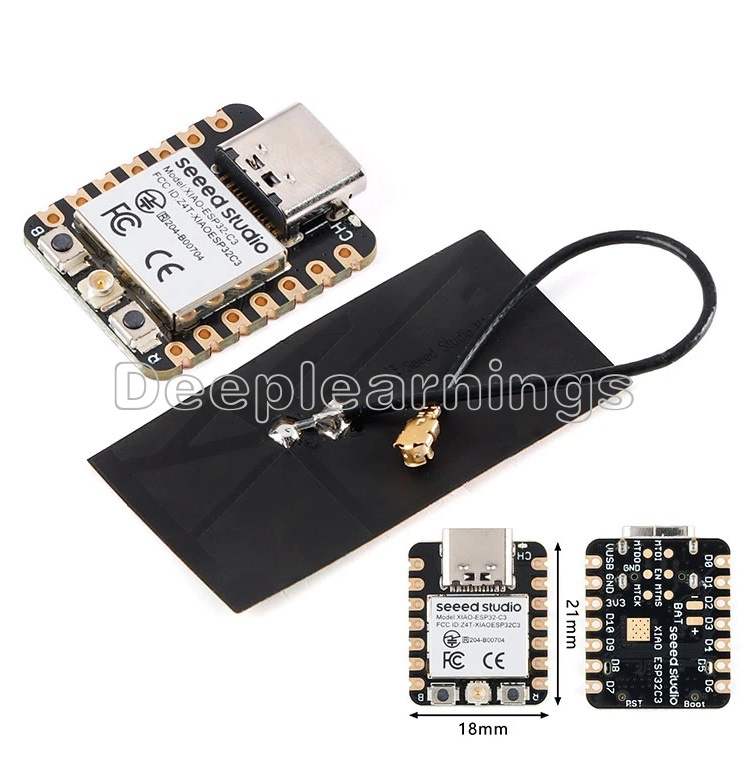

Dimensions |

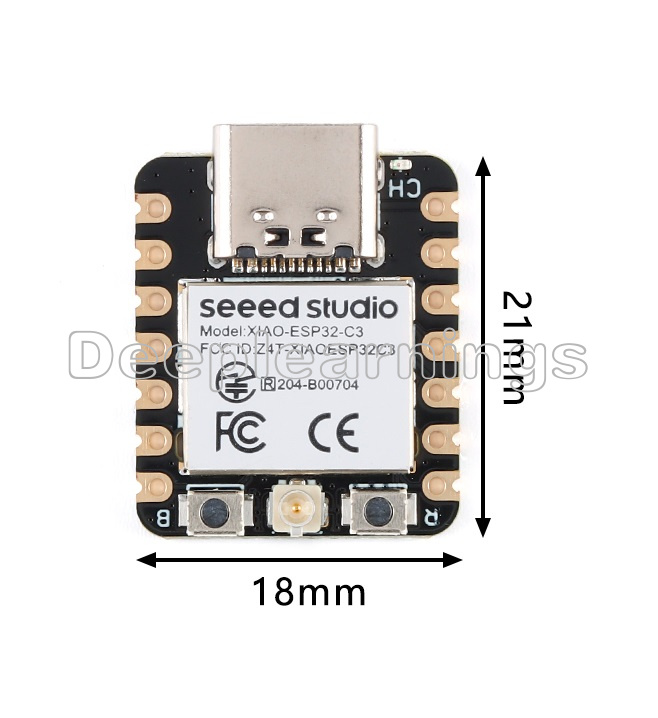

21 x 17.5mm |
|
Power |
Circuit operating voltage:3.3V@200mA |
|
Charging current: 50mA/100mA |
|
|
Input voltage (VIN): 5V |
|
|
Deep Sleep Power Consumption |
Deep Sleep Model: >44 μA |
|
Wi-Fi Enabled Power Consumption |
Active Model: <75 mA |
|
Modem-sleep Model: <25 mA |
|
|
Light-sleep Model: <4 mA |
|
|
BLE Enabled Power Consumption |
Modem-sleep Model: <27 mA |
|
Light-sleep Model: <10 mA |
Application
-
Internet of Things
-
Wearable devices
-
Health monitoring
-
Education
-
Low-Power(LP) networking
-
Rapid prototyping
Application 1: Smart Private Garage
Materials:XIAO ESP32C3 *2,Grove - Button*1,Grove - Relay*1
Description:
This is a peer-to-peerWiFicommunicationapplication,since two XIAOs detect each othervia Wifi, the garage door will open or keep opening, and vice versa.
Improvement:
It is nice to add anultrasonic distance sensorto measure the car-to-door distance andanOLEDscreen to check the status of the garage. If you want an onboardvoice sensor to command the door to open with vocal instruction, try ourXIAO BLE Sense.
Application 2: Remote Forest Tracker
Materials:XIAO ESP32C3 *1,Grove - LoRa E5 *1,Grove - GPS*1
Description:
Thanks to the tiny size of the XIAO series, it is suitable to make the wearable devices, such as a small pet tracker. Thiswearabledevice can be used as a simple GPS-Tracker which willlock its currentlocation andpublishother datavia LoRa.
Improvement:
Acompassthat shows direction and distance is a great added value to the tracker that you could consider. Meanwhile, publishing altitude, speed, or other parameters could bring more scenarios to this tracker. Besides,thechipESP32-C3 allowsthis tracker to communicate over WiFi or BLE, and therefore,wecan upload the tracker's data or realizethe Long Range-to-MQTT bridge as well.
Co-invent with Seeed
Seeed Fusion is launching a DIY XIAO Mechanical Keyboard Contest based on Seeed Studio XIAO Series! Show us your XIAO keyboard creations for a chance to win $1000 in prizes and Seeed XIAO Pillows!!! To join the contest.

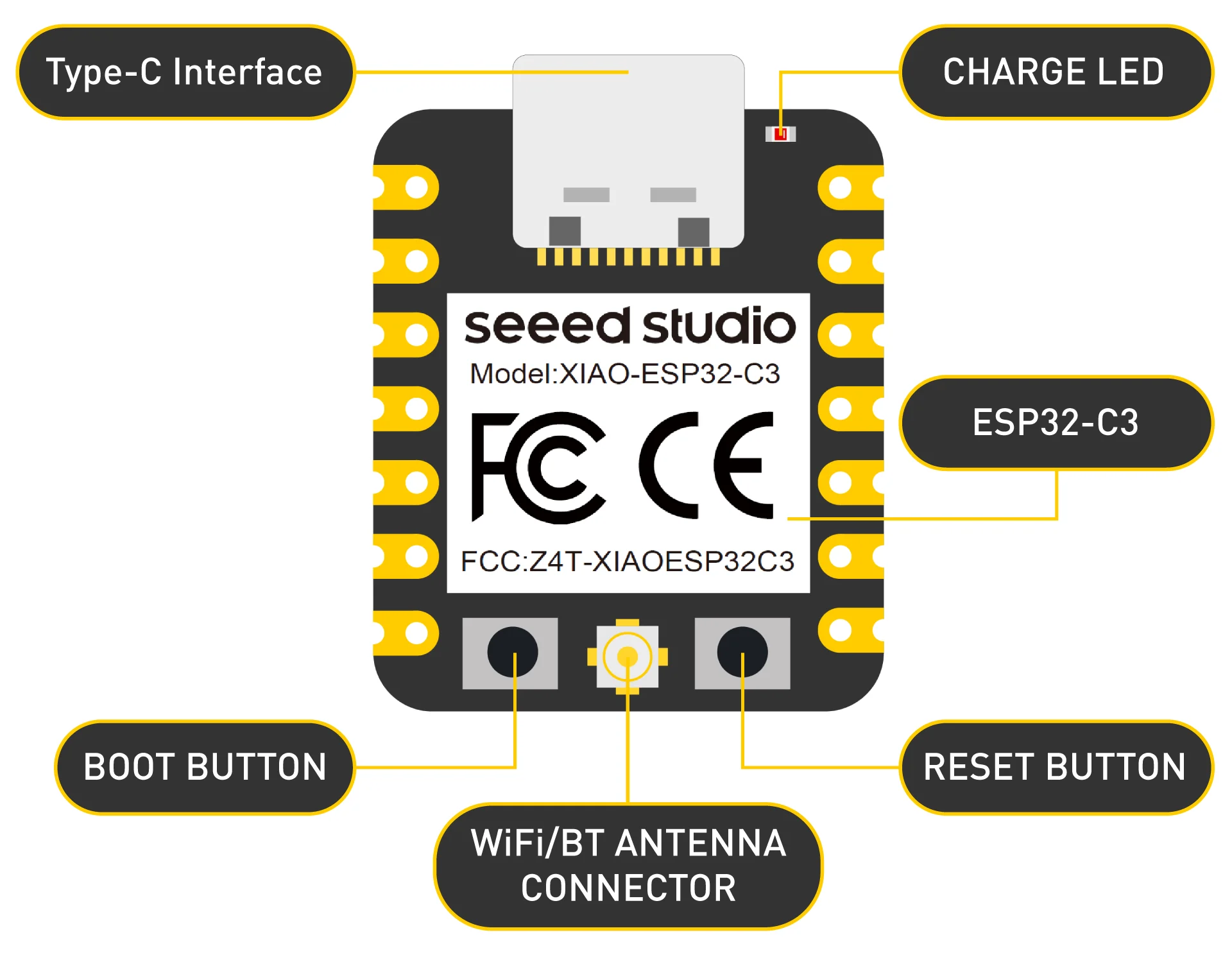

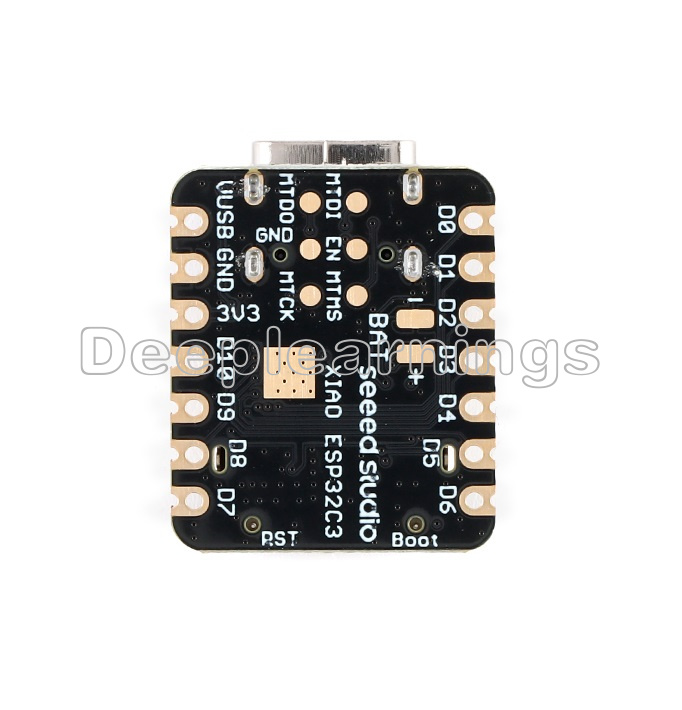

Hardware Overview
Part List
|
Seeed Studio XIAO ESP32C3 |
x1 |
|

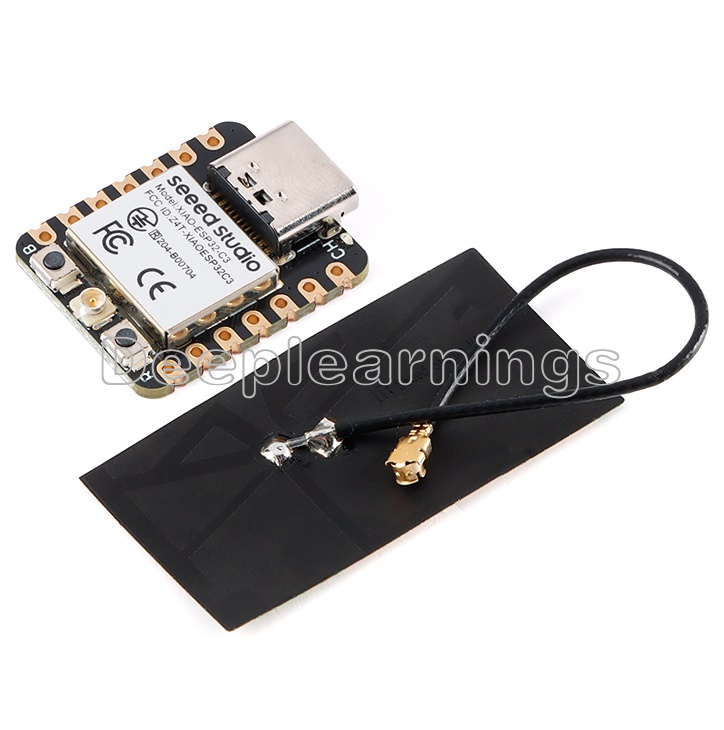

Antenna |
x1 |
