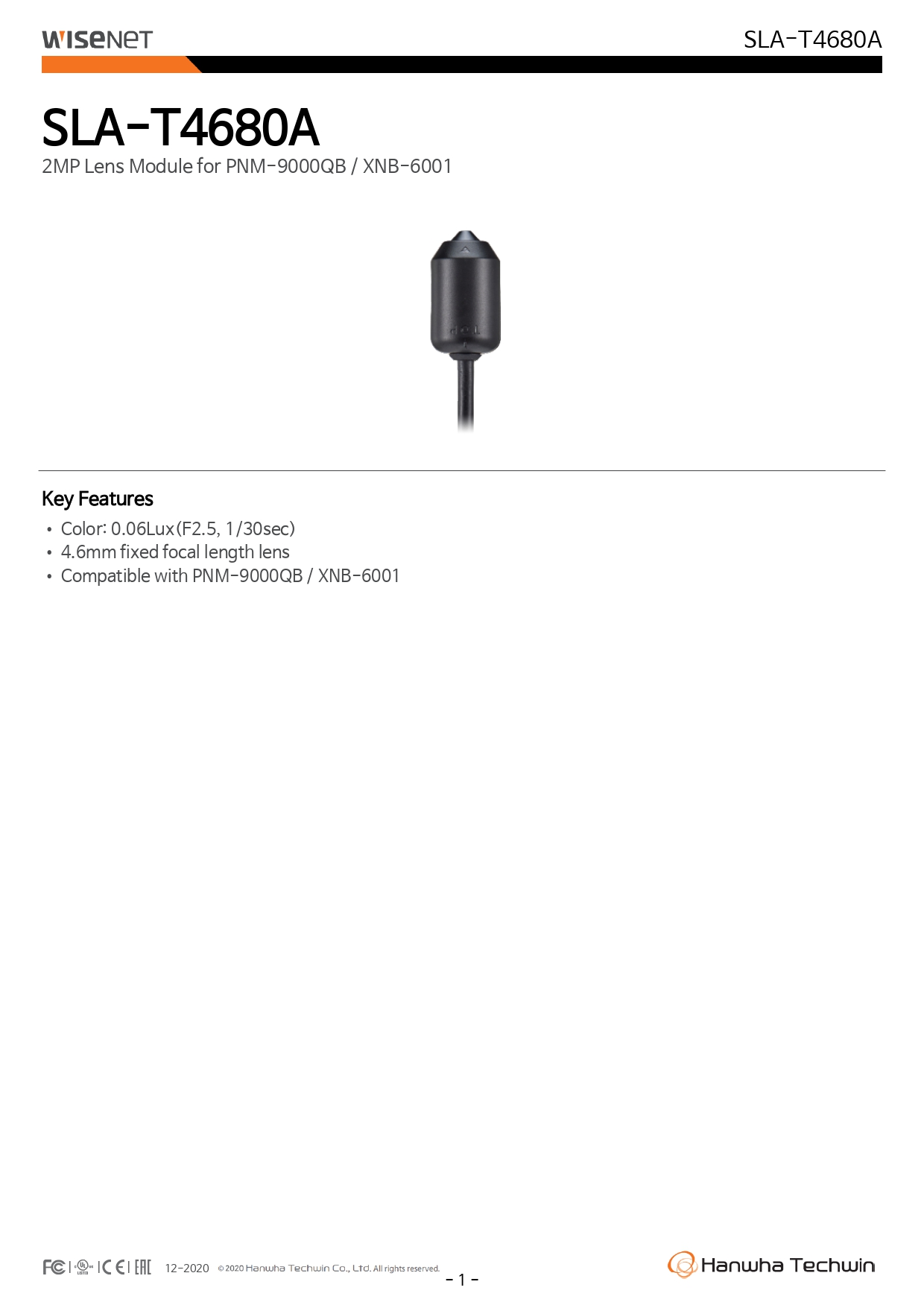

Hanwha Techwin 4.6mm Lens/Imager straight body for PNM-9000QB (8.0m cable), SLA-T4680A

4.6mm pinhole lens module, compatible with the PNM-9000QB, straight body style, 2MP, 0.06 Lux, 120dB WDR, 73? horizontal field of view, 8 meters/ 26 feet cable. Cable can be shortened as needed. Metal shielded cable/connector.



Hanwha Techwin 4.6mm lens module, compatible with PNM-9000QB, straight body style, 2MP @ 30fps, 0.06 Lux, 73º horizontal field of view, 8 meters/ 26 feet cable

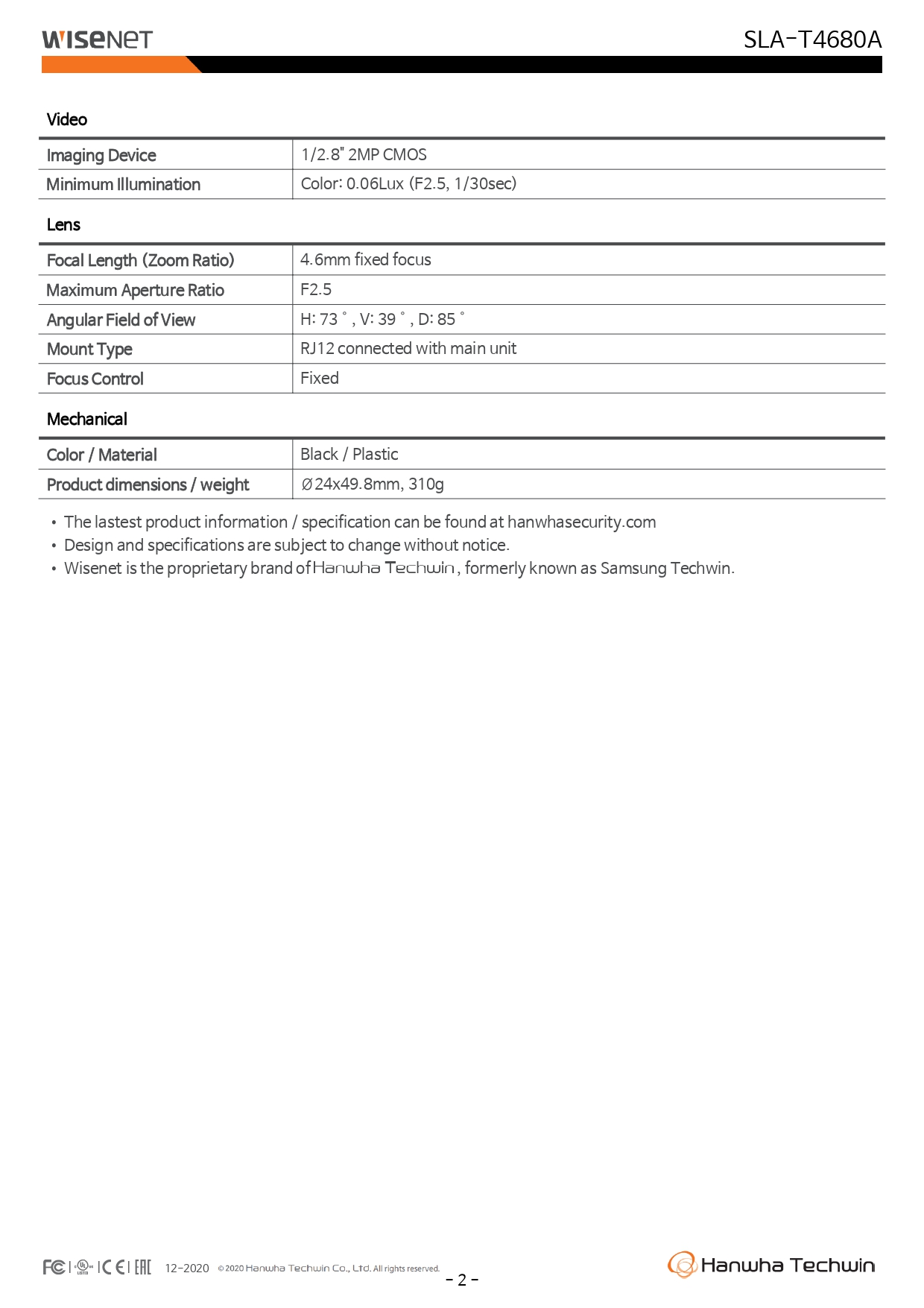

Video
Imaging Device	1/2.8" 2MP CMOS
Min. Illumination	Color: 0.06Lux(F2.5, 1/30sec)
Lens
Focal Length (Zoom Ratio)	4.6mm fixed focal
Max. Aperture Ratio	F2.5
Angular Field of View	H: 73˚, V: 39˚, D: 85˚
Focus Control	fixed
Mount Type	RJ12 connected with main unit
Mechanical
Color / Material	Black / Plastic
Product dimensions / weight	Ø24xL49.8mm, 310g
