Hanwha Techwin XND-6011F Overview
Keep a watchful eye on your property with the black-and-ivory WiseNet X Series XND-6011F 2MP Network Dome Camera from Hanwha Techwin. Equipped with a 1/2.8" 2MP CMOS sensor and a 2.8mm fixed lens, the XND-6011F captures video at resolutions up to 1920 x 1080 at 60 fps in a 112 x 62° field of view. The camera uses a built-in microphone to stream audio with video.
The XND-6011F has an automatic digital IR cut filter and offers image enhancement features such as wide dynamic range and automatic white balance, allowing you to capture images in varying lighting conditions. PoE enables you to run just one wire for both data and power while ONVIF compliance ensures compatibility with a wide range of surveillance devices.
- 1920 x 1080 resolution at 60 fps
- Built-in 2.8mm fixed lens
- Up to 60 fps at all supported resolutions (H.265/H.264)
- H.265, H.264, and MJPEG video compression for efficient storage and bandwidth use
- WiseStream II technology dynamically controls encoding, balancing quality and compression according to movement in the image
- Multiple streaming
- 150 dB wide dynamic range
- Defog functionality
- Video analytics include loitering detection, directional detection, fog detection, audio detection, digital auto tracking, sound classification, heatmaps, people counting, queue management, tamper detection, motion detection, and handover
- SD/SDHC/SDXC memory slot for edge storage supports up to 256GB (SD/SDHC/SDXC cards available separately)
- PoE technology for easy, clutter-free installation
- Hallway view for monitoring vertical areas such as corridors, hallways, tunnels, and aisles
- Integrated Lens Distortion Correction (LDC) technology
WiseNet X powered by WiseNet 5 network flush mount dome camera, 2MP, Full HD(1080p) @ 60fps WDR off/on(120dB) or @30fps WDR on(150dB), 2.8mm fixed lens (112°), H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, Advanced video analytics, Business analytics and sound classification, built-in Mic, Magnetic Cover, Electronic D/N, SD card, Hallway view, HLC, Defog detection, DIS, PoE, (Black and white covers are optional)
Key Features
- 1920 x 1080 Resolution at 60 fps
- Automatic Digital IR Cut Filter
- 2.8mm Lens with f/2.0 Aperture
- 112 x 62° H/V Field of View
- Built-In Microphone
- 150 dB Wide Dynamic Range
- SD Slot Supports up to 256GB
- RJ45 Ethernet with PoE
- Video and Audio Analytics
- ONVIF Compliant, Profiles S and G
- 2MP @ 60fps
- Triple codecH.265/H.264/MJPEG
- 2.8mm fixed lens
- Wide dynamic range 150dB
- On-board analytics (business/audio and video)
- Digital image stabilization
- Magnetic cover and a built-in mic
- Built-in retail business intelligence analytics
- USB for easy installation

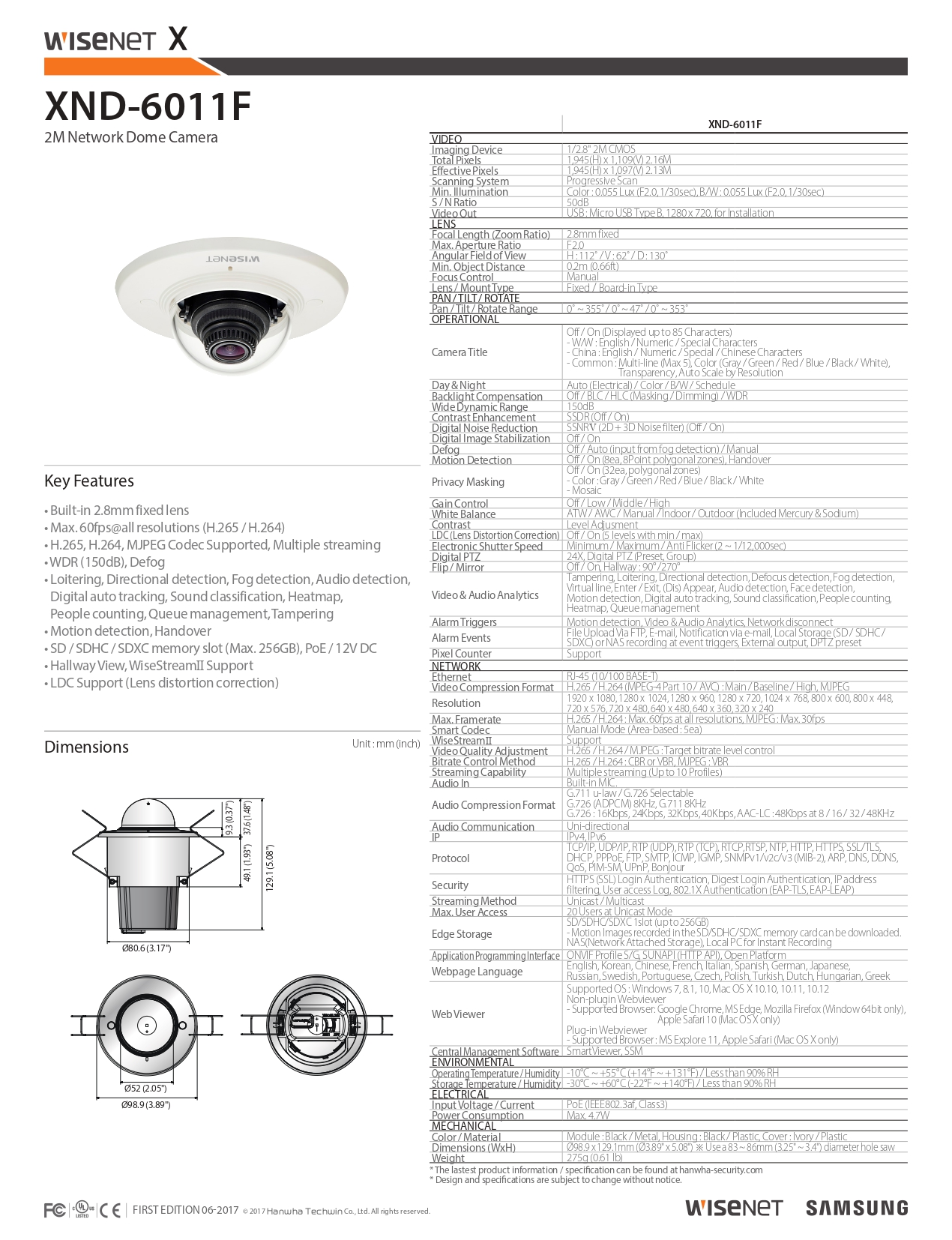

Hanwha Techwin XND-6011F Specs
Camera
Sensor | 2 MP 1/2.8" CMOS |
Focal Length | 2.8mm |
Maximum Aperture | f/2 |
Zoom | Digital: 24x |
Lens Field of View | Horizontal: 112° |
IR Cut Filter | Digital |
Day/Night | Yes |
Minimum Illumination | Color: 0.055 Lux |
Shutter Speed | 1/12,000 to 2 Seconds |
Camera Angle Adjustment | Horizontal: 0 to 355° |
Video
Streaming Resolution | 1920 x 1080 at 60 fps |
Supported Video Compression | H.264, H.265, MJPEG |
Multi-View Streaming | Yes, 10 Streams |
Audio
1- or 2-Way Audio | One-Way |
Audio Formats | AAC, ADPCM, G.711, G.726 |
Built-In Mic | Yes |
Built-In Speaker | No |
Networking
Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log |
Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, PIM, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
System Integration
Application Programming Interface (API) | SUNAPI (HTTP API) |
Analytics | Tampering, Loitering, Directional Detection, Defocus Detection, Fog Detection, Virtual Line, Enter/Exit, (Dis)Appear, Audio Detection, Face Detection, Motion Detection, Digital Auto Tracking, Sound Classification, People Counting, Heatmap, Queue Management |
Event Trigger | Yes |
Event Action | Recording, Notification, Alarm |
System Requirements
Windows OS Support | Windows 7, 8.1, 10 |
Mac OS Support | macOS 10.12, OS X 10.11, OS X 10.10 |
Environmental
Operating Temperature | 14 to 131°F / -10 to 55°C |
Storage Temperature | -22 to 140°F / -30 to 60°C |
Operating Humidity | 0 to 89% |
General
Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC [256 GB Maximum] |
Pan/Tilt | None |
I/O Connections | 1 x RJ45 |
Video Management Software | SmartViewer, SSM |
Supported Languages | Czech |
Internal Storage | None |
External Storage Options | Local PC, NAS |
Power Source | DC, PoE 802.3af (15 W) |
Power Consumption | 4.7 W |
Material of Construction | Plastic, Metal (Unspecified Type) |
Dimensions | ø: 3.9 x H: 5.1" / ø: 98.9 x H: 129.1 mm |
Weight | 0.6 lb / 275 g |
Packaging Info
Package Weight | 1.04 lb |
Box Dimensions (LxWxH) | 7.5 x 6.3 x 4.7" |
