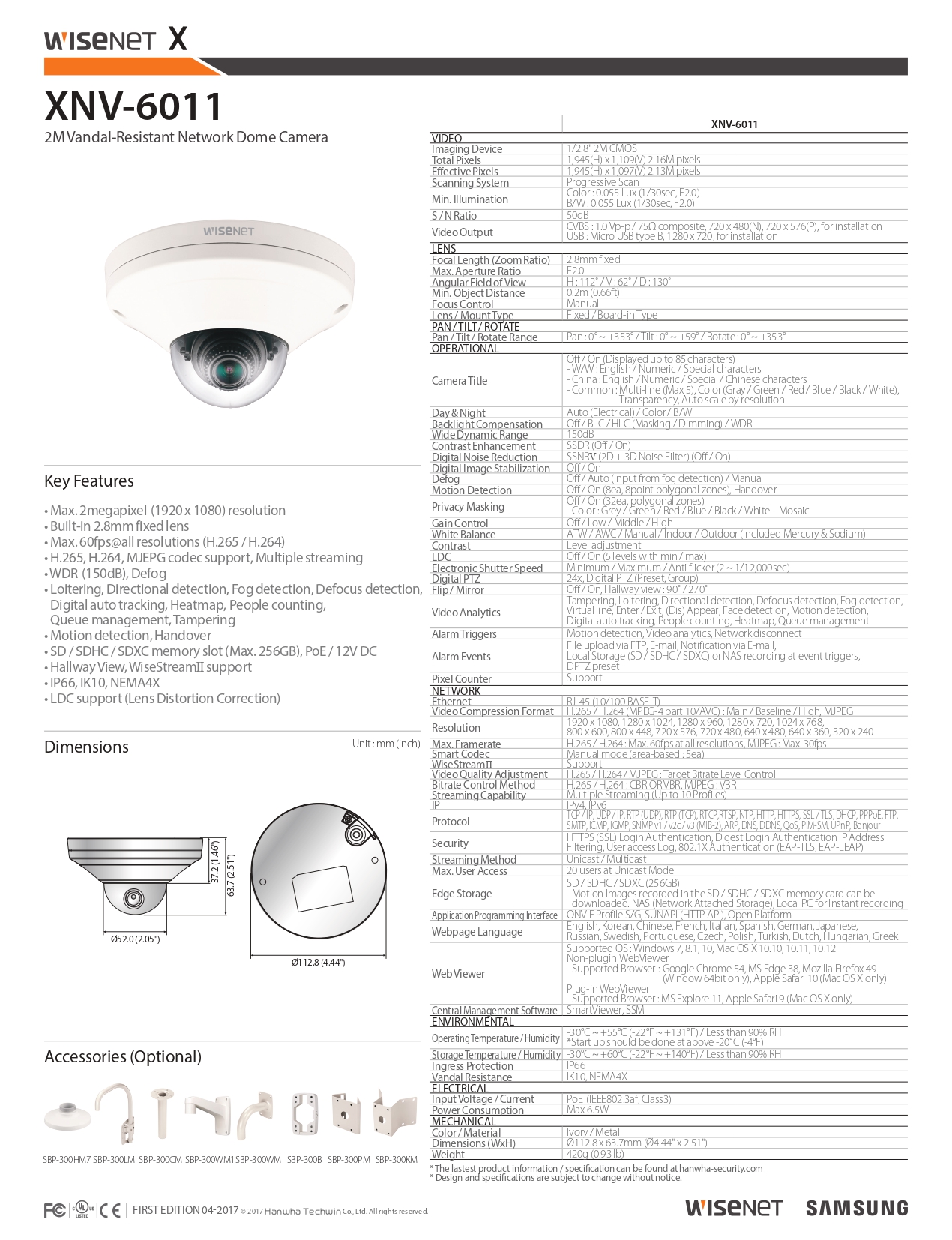

Hanwha Techwin XNV-6011 Overview

The 2MP Vandal-Resistant Pan/Tilt Network Dome Camera with 2.8mm Lens from Hanwha Techwin has a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 60 fps. Its 2.8mm fixed lens has a wide-angle 112° horizontal field of view to monitor large, outdoor areas. Additionally, the camera pans from 0 to 353°, tilts from 0 to 59°, and rotates from 0 to 353° for varying surveillance vantage points. Alarm triggers can be set for motion detection, video analytics, and disconnection from your network. When triggered, the alarm events can notify you via email. They can also be uploaded to an FTP server, or stored on a NAS (network attached storage) drive, or on a microSD card. The camera supports microSD cards up to 256GB, which are available for purchase separately.

The camera is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure to protect it from dust, water, corrosion, ice, vibration, and impact, making it suitable for outdoor use.

Key Features

Imaging Device

2 MP 1/2.8" CMOS

Total Pixels (H x V)

1945 x 1109

Effective Pixels (H x V)

1945 x 1097

Scanning System

Progressive

Minimum Illumination

Color: 0.055 Lux (1/30 sec, f/2.0)
B/W: 0.055 Lux (1/30 sec, f/2.0)

S / N Ratio

50 dB

Video Output

CVBS: 1.0 V p-p / 75 Ohms composite, 720 x 480 (N), 720 x 576 (P), for installation
USB: 1 x micro-USB type-B, 1280 x 720, for installation

Focal Length

2.8mm fixed

Maximum Aperture Ratio

f/2.0

Angular Field of View

Horizontal: 112°
Vertical: 62°
Diagonal: 130°

Minimum Object Distance

0.66' (0.2 m)

Focus Control

Manual

Lens/Mount

Fixed/board-in type

Range

Pan: 0 to 353°
Tilt: 0 to 59°
Rotate: 0 to 353°

Camera Title

Off/On (displayed up to 85 characters)
W/W: English, numeric, special characters
China: English, numeric, special, Chinese characters
Common: Multi-Line (max 5), color (gray, green, red, blue, black, white), transparency, auto scale by resolution

Day & Night

Auto (electrical)
Color
B/W

Backlight Compensation

Off/BLC/HLC (masking/dimming)/WDR

Wide Dynamic Range

150 dB

Contrast Enhancement

SSDR (Off/On)

Digital Noise Reduction

SSNRV (2D + 3D noise filter) (Off, On)

Digital Image Stabilizer

Off/On

Defog

Off/Auto (input from fog detection)/Manual

Motion Detection

Off/On (8 ea, 8 point polygonal zones), handover

Privacy Masking

Off/On (32 ea, polygonal zones)
Color: Grey, green, red, blue, black, white - mosaic

Gain Control

Off, low, middle, high

White Balance

ATW, AWC, manual, indoor, outdoor (included mercury & sodium)

Contrast

Level adjustment

Lens Distortion Correction

Off, On (5 levels with min/max)

Electronic Shutter Speed

Minimum, maximum, anti-flicker (2 - 1/12,000 sec)

Digital PTZ

24x, digital PTZ (preset, group)

Flip / Mirror

Off, On, Hallway View: 90°/270°

Video Analytics

Tampering, loitering, directional detection, defocus detection, fog detection, virtual line, enter/exit, (dis) appear, face detection, motion detection, digital auto tracking, people counting, heatmap, queue management

Alarm Triggers

Motion detection, video analytics, network disconnect

Alarm Events

File upload via FTP, e-mail, notification via e-mail, local storage (SD/SDHC/SDXC) or NAS recording at event triggers, DPTZ preset

Pixel Counter

Support

Ethernet

1 x RJ45 (10/100 BASE-T)

Video Compression Format

H.265, H.264 (MPEG-4 part 10/AVC), Main/Baseline/High, MJPEG

Resolution

1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240

Maximum Frame Rate

H.265/H.264: 60 fps Max
MJPEG: 30 fps Max

Smart Codec

Manual mode (area-based: 5 ea)

Video Quality Adjustment

H.265/H.264/MJPEG: Target bitrate level control

Bitrate Control Method

H.265/H.264: CBR or VBR
MJPEG: VBR

Streaming Capability

Multiple streaming (up to 10 profiles)

IP

IPv4, IPv6

Protocol

TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMP v1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour

Security

HTTPS (SSL) login authentication, digest login authentication IP address filtering, user access log, 802.1X authentication (EAP-TLS, EAP-LEAP)

Streaming Method

Unicast/multicast

Maximum User Access

20 users at unicast mode

Edge Storage

SD/SDHC/SDXC (256 GB)
Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded
NAS (Network Attached Storage)
Local PC for instant recording

Application Programming Interface

ONVIF Profile S/G, SUNAPI (HTTP API), open platform

Webpage Language

English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek

Web Viewer

Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Non-plugin web viewer
Supported Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Windows 64-bit only), Apple Safari 10 (Mac OS X only)
Plug-in web viewer
Supported Browser: MS Explore 11, Apple Safari 9 (Mac OS X only)

Central Management

SmartViewer, SSM

Operating Temperature / Humidity

-22 to 131°F (-30 to 55°C)/less than 90% RH
Start up should be done at above -4°F (-20°C)

Storage Temperature / Humidity

-22 to 140°F (-30 to 60°C)/less than 90% RH

Ingress Protection

IP66

Vandal Resistance

IK10, NEMA 4X

Input Voltage/Current

PoE (IEEE802.3af, Class3)

Power Consumption

6.5 W max

Color

Ivory

Material

Metal

Dimensions

4.44 x 2.51" (112.8 x 63.7 mm)

Weight

0.93 lb (420 g)

Package Weight

1.6 lb

Box Dimensions (LxWxH)

7 x 6.9 x 6.5"
