Main Specifications:
-
GENERAL
Modulation Mode
AM/FM
Frequency Range
26.965-27.405MHz
Frequency Tolerance
±5.0ppm
Input Voltage
12/24V
Dimensions (mm)
123(W) x 158(D) x 44(H)
Weight
Approx.660g
Frequency Control
PLL Synthesizer
Operating Temperature Range
-20°c ~ +55°c
Current Drain
Transmit
2A Max
Receiver
Squelched 0.3A
VOL Max
0.8A
Antenna Conector
UHF,SO-239
TRANSMITTER
Output Power
4Watt FM/AM
Transmission interference
Inferior to 4nW(-54dBm)
Frequency Response
300-3000Hz
Modulated signal distortion
Inferior to 5%
Output Impedance
50 ohm
RECEIVER
Sensitivity
Less than 1uV for 10dB(S+N)/N
Image rejection
70dB
Adjacent channel rejection
60dB
IF Frequency
1st 10.695MHz
2nd 455KHz
Automatic Gain Control (AGC)
Less than 10dB change in audio
Output for inputs from 10 to 50000uV
Squelch
Less than 1uV
Audio Output Power
3 watt into 8ohm
Frequency Response
300-3000Hz
FTF LCD display
12/24V voltage
Full alloy body for heat radiation
Programmable keypad
CTCSS/DCS (Optional)
Wireless microphone control (optional)
Cell-phone APP control (optional)
AM/FM multi norms
Flexible menu and programming software
DTMF
SQ,ASQ
SQ,ASQ open/close value setting
RF Gain
Scan
Dual watch
Programmable RB
CH9/19
NB/ANL
HI-CUT
Voltage protection
9 memory channel
TOT
Backlight control
Automatic power on
Keypad lock
-

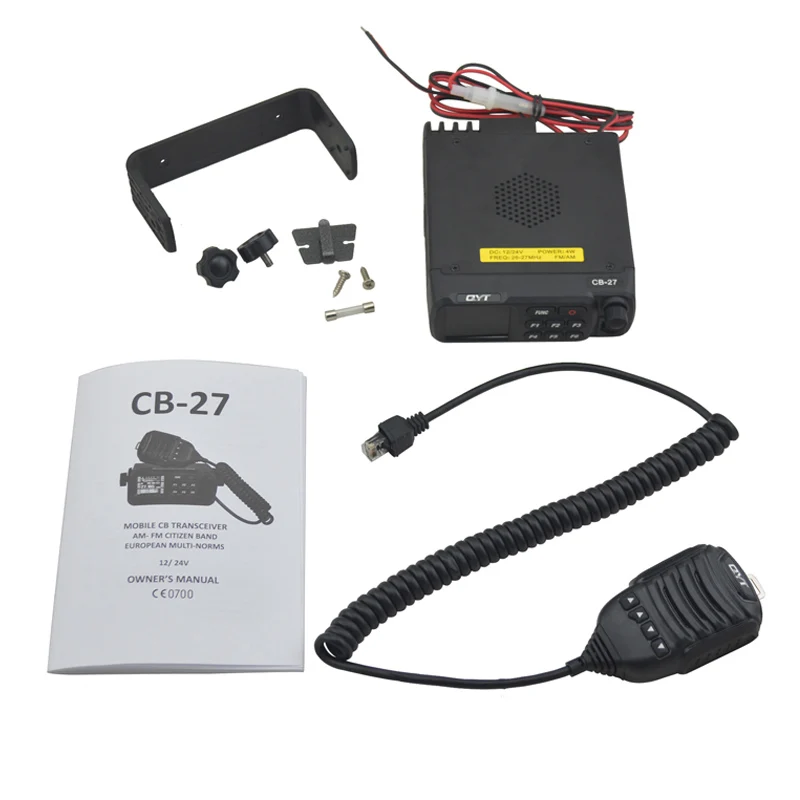

Package Include as below:

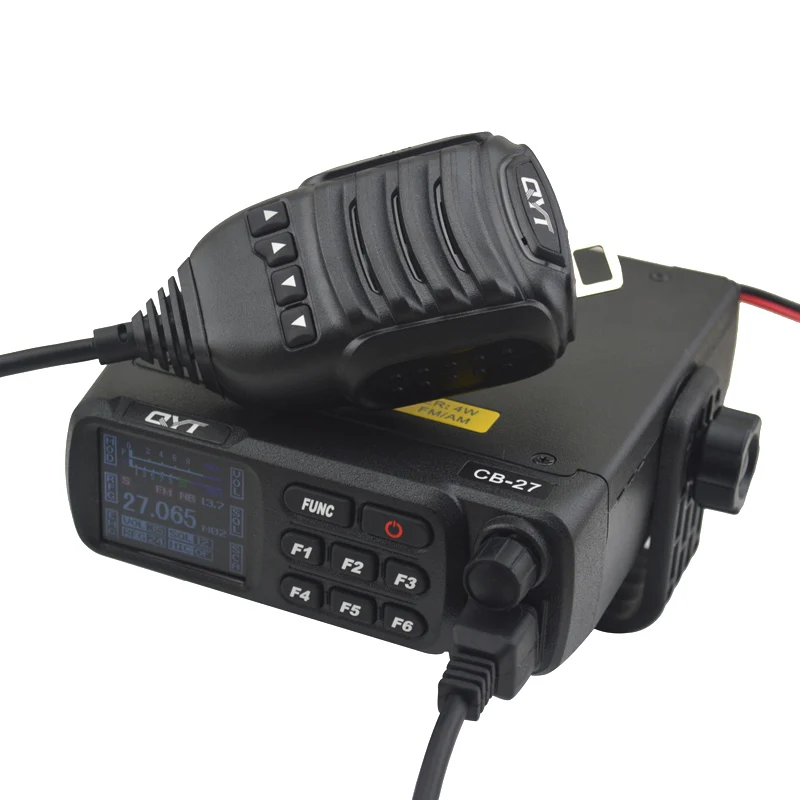

1 x CB-27 CB band Mobile Transceiver body

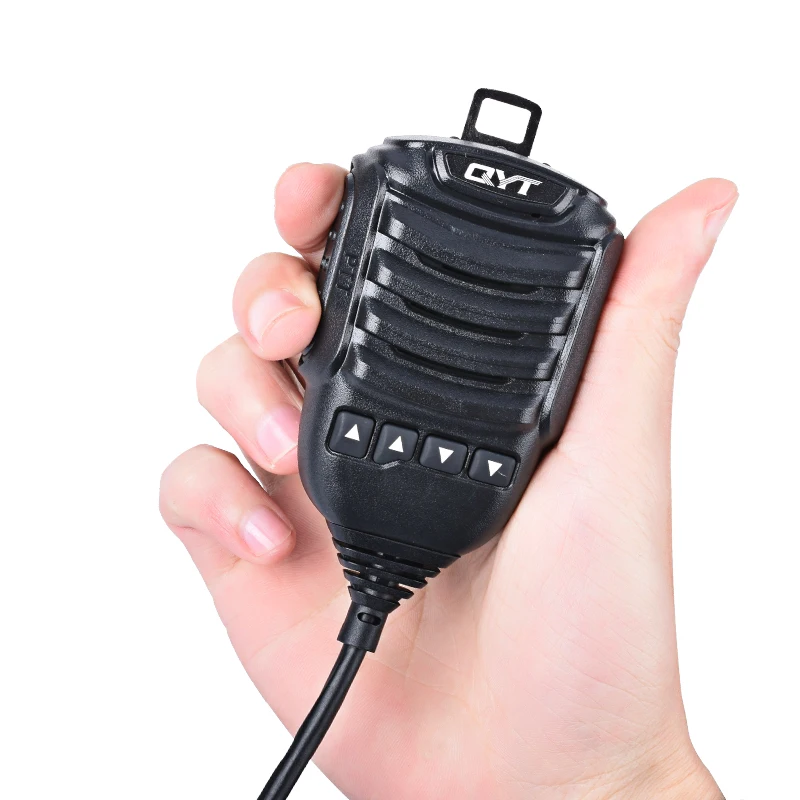

1 x Speaker Microphone
1 x Plastic Bracket
1 x Fuse
1 x Fixing Screw sets
1 x ENG USERS' Manual
