New Surecom SF-103 2MHz-2800MHz Digital Frequency Meter Wide Frequency Range SF103 Frequency Counter
Description

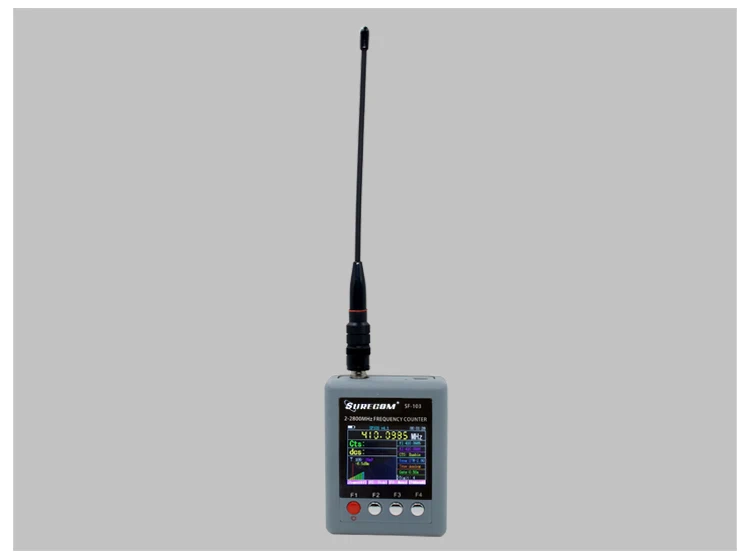

SURECOM SF-103 hand held frequency counter is a more practical counter, even advanced functions such as field strength measurement are included. A compact, truly pocket-sized test tool designed for ease of use and reliable performance. Supplied complete with internal lithium-ion battery, AC wall charger and antenna.
Introduction:
Frequency meter Able to measure the frequency parameters of the continuous carrier signal of a walkie-talkie, with a signal strength indicator.
It is a personnel maintenance tool, testing frequency and signal strength for wireless enthusiasts.
This portable frequency counter is designed to count the continuous wave signal coming from a two-way radio.
There are simple ranges for you to choose from. The ranges cover most of the frequency of the two-way radios you want to measure.
Its four-button control is easy to use and its small size allows it to be carried anywhere.
Working with TCXO (temperature compensation X'tal (crystal) oscillator, in the range of -45 ℃ ~ 65 ℃, can reach ± 2 ~ ± 4ppm accuracy
This includes very interesting Frequency Zones such as 2m radio, all VHF and UHF
DMR radio signal e frequency counter.
GUI battery level
Feature and Specification:
Frequency range two choices: 2 MHz-200 MHz / 27 MHz-2800 MHz
CTCSS / DCS decoder
Frequency counter digital mode for DMR radio
Powered by TCXO (Temperature Compensated X'tal (crystal) oscillator) 2 ~ 2.5ppm
Frequency response time: 0.2-0.5 sec. (CTCSS / CDCSS> 0.5-1sec)

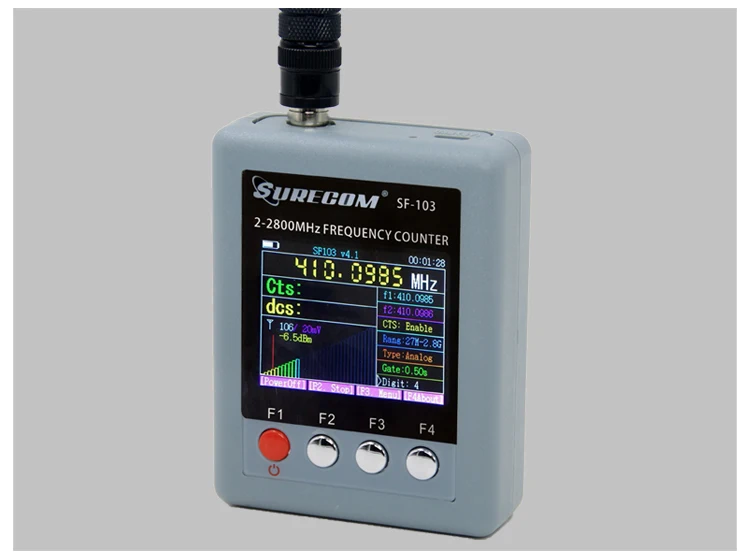

TFT color display 240x320, LCD with dim level
Built-in lithium-ion battery
Net weight: 113g
4 control buttons
Auto shutdown 1-9 minutes
Battery charger LED
Package includes:
1 x SF-103 Frequency Counter
1 x Dual Band UHF / VHF Antenna
1 x Belt Clip
1 USB Cable.
1 x English manual
User's manual:
1.1 Power on / off:
Turn on the power, press and hold [red key] for 3 seconds
Turn off the power, press and hold [red key] for 3 seconds, the number down to 0
1.2 Battery charging:
Connect the power cord to the adapter, micro usb Connect SF103
LED indicator: * Charging red light * full green light
1.3 Frequency range setting:
Press [F2.stop], [F3 ->] select "Rang" function
Press [F4 Ent] select 27M-2.8G (27MHz-2800MHz) / <= 200MHz (below 200MHz),
And then press [F2] to run
1.4 gate time setting:
Press [F2.stop] button, [F3 --->] select "Gate" function
Press [F4 Ent] select: 0.1s / 0.25s / 0.5s / 1.0 s, then press [F2] to start
1.5 Frequency counter setting digi:
Press [F2] botton, [F3 --->] select "gate" function
Press [F4 Ent] select: 3 / 4/5/6 and then press [F2] to run
! 27 MHz-2.8 GHz for 3/4 only, 2-200 MHz for 3/4/5/6, see Table 1 for details:
1.6 how to check the frequency of digital DMR radio
Press [F2] botton, [F3 --->] select “Type” function: Press [F4] select analog / digital (DMR),
and then press [F2] to run
! Note. The digital mode has only 3 decimal places.
1.7 as ADJ. Frequency mode 27 MHz-2.8 GHz: (see PIC.2)
Press, [Menu F3], [F3 down] / [F4 up] to select gate (0.1s / 0.25s / 0.5s / 1.0 s)
Press, [F2 Edit] / [F3 -] and [F4 +] to select +/- 99
Press, [F1. Main] exit and then press [F4 save] to save the settings. ([F1] does not save to exit)
1.8 how to adjust the frequency mode 2-200MHz: (see PIC.1)
Adjust PCB VR1 (variable resistance)
(The factory has been set exactly, for example, non-technical personnel is not configured)
1.9 how to use [Menu F3] mode: (see PIC2)
Press, [F3 -] / [F4 +] select function, and then press [F2 edit] for edit mode,
Press [F3 -] / [F4 + ] to change the data.
Press, [F1. Main] exit and then press [F4 save] to save the settings. ([F1] does not save to exit)
Attention:
1) Max. 5Vp-p direct input signal
2) Direct access to the radio antenna output is prohibited, resulting in damage to the frequency counter
SF-103
Frequency range:27 MHz-3000 MHz2 MHz-2800 MHz
Choice of gate speed:N / A0.1 / 0.25 / 0.5 / 1.0 seconds
Digital:3-43-6
Digital mode:DMR system
Further:0.3-1 m0.3-9 m
Walkie Talkie Code CTCSS / DCS:Should be 132-173 / 200-260 MHz / 400-519 MHz
Signal attenuation sw
-10dB via switch Automatic gain
Built-in Li-ion Battery:600 mAh1500 mAh
TFT LCD:320x240 pixels
Current consumption:10 mA30-50mA
Crystal Oscillator TCXO+ - 2.5ppm+ - 2.5ppm
Charger input:Micro USB + 5V

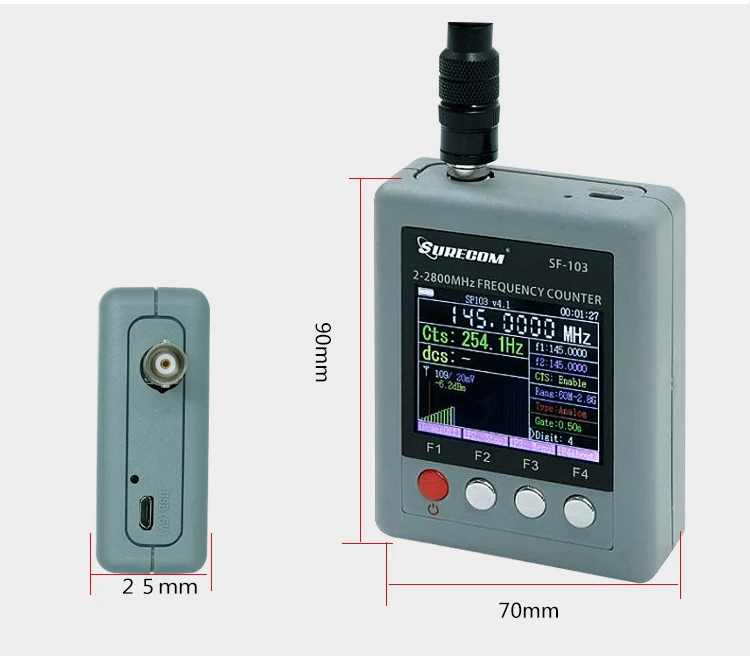

Input Impedance:50 Ohm (BNC)
Weight:100 g113 g
Dimensions:70x25x90mm (not include antenna and BNC soc
