DESCRIPTION

NOTE:

All meters are flashed with the latest satellite and transponder information available at date of purchase, meters come set for North America, C-band and Ku-band satellites from 5.0W - 139.0W. Meters are pre-set for standard linear Ku-band (North America), if you are using or if you would like the meters to be pre-set for a Universal Lnb, please let us know prior to shipping. These meters are recommended for C-band big dish (BUD) and Ku-band FTA systems.



Basic Specifications

  • Supports DVB S/S2
  • Supports QPSK, 8PSK, 16APSK, 32APSK
  • Supports Unicable
  • Compatible with S、S2、CBS MPEG-4 and ABS-S Signal
  • Automatically identify S/S2 signals
  • 3.5 Inch HD TFT LCD screen
  • MPEG-2/MPEG-4/H.264 decoding Video format and 1080P Full HD
  • Multi-purpose design
  • Easy operation OSD design
  • Quick satellite signal finding
  • Program play、video monitoring
  • Quick satellite signal finding
  • Data preset North America
  • Satellite parameters editable
  • Supports DISEqC1.0, DISEqC1.1
  • Easy operation DISEqC1.2, USALS OSD design
  • Multiple satellites/TPs scan, blind scan and NIT scan
  • Display POWER, BER, MER, C/N, NIT value
  • Sound prompt when signal locked
  • Signal locked indicating light
  • 13/18 volts indicating lights
  • 22KHz indicating light
  • LNB short-circuit protection and warning
  • Audio and video input
  • HDMI1.4 output
  • Button with lights
  • Professional shock protects case
  • Upgrade software & parameters through U disk
  • Support USB PVR, MP3, JPG photo playback
  • High capacity LI-ION battery (11.1V 3000mA), can last around 5 hours
  • Removable battery design

Menu Languages:
English, Persian, Arabic, French, German, Portuguese, Russian, Spanish, Turkish


Technical Specifications
DVB-S/S2
F-type connectorIEC 169-24
Frequency range950MHz ~ 2150MHz
Input level-65dBm ~ -25dBm Input
Input Impedance75Ω
LNB power supply14/18V, Max 650mA
LNB switch control22kHz
Demodulator
Demodulator front endQPSK, 8PSK,16APSK, 32APSK
Symbol rate2Mbps~45Mbps
Measurement UnitdBm, dBuV
DVB-T/T2
F-type connectorIEC 169-24
Input Impedance75Ω
Input level-85dBm ~ -20dBm
Band Width6MHz ,7MHz,8MHz
ModulationQPSK, 16QAM, 64QAM, 256QAM
Frequency range174~230MHz(VHF), 470~862MHz (UHF)
Antenna power supply5 V , max 100 mA
Connectors
Serial data interfaceUSB 2.0 Port
Video/audio interfaceHDMI, and 3.5mm
Power supply
Supply voltageDC12~ 14.5V 1.5A
Li-on battery3800mAh Li-on
Working timeabout 5 hours
Supply voltage (charger)AC 110~250V 50/60Hz
Temperature
Operating temperature0°C to + 40°C
Storage temperature-10°C to + 50°C
Dimensions
Length x width x height21 x 12.5 x 3.5cm
Weight
Weight0.5Kg
Gross weight0.88Kg

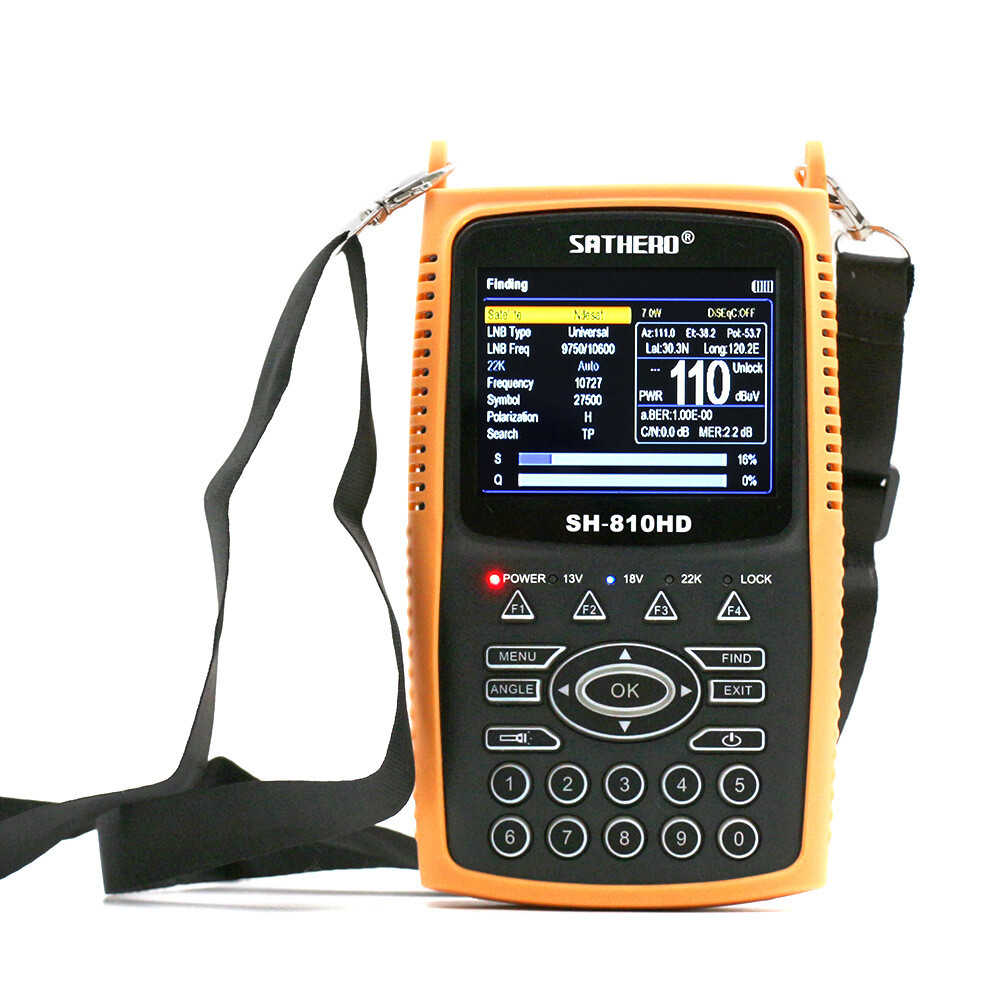

Picture 2 of 12
