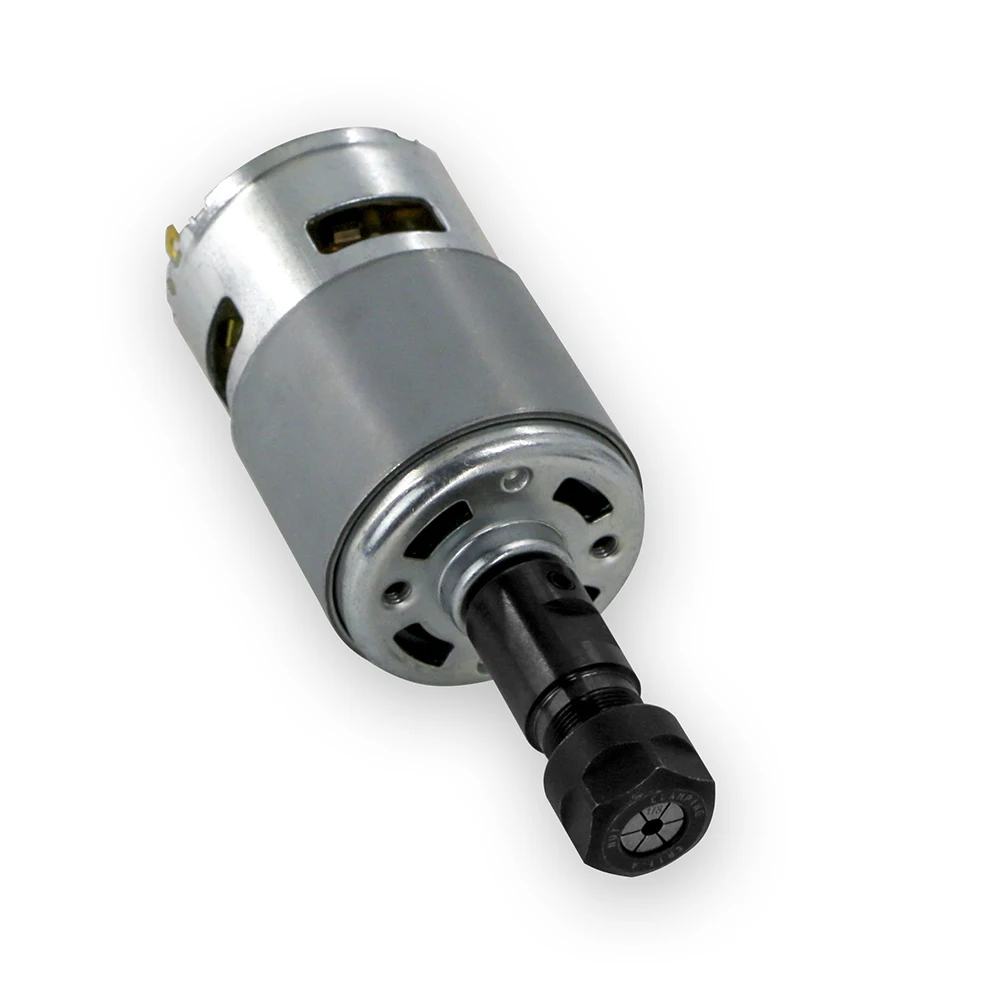

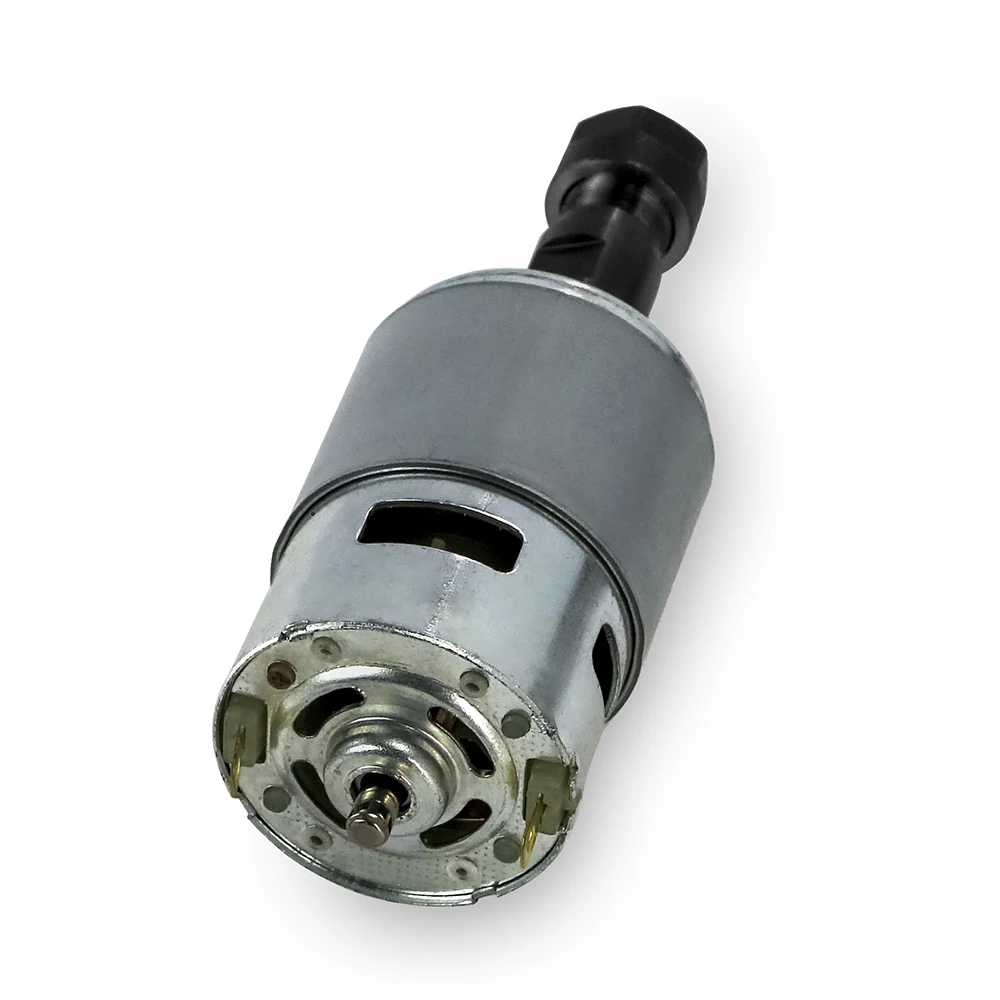

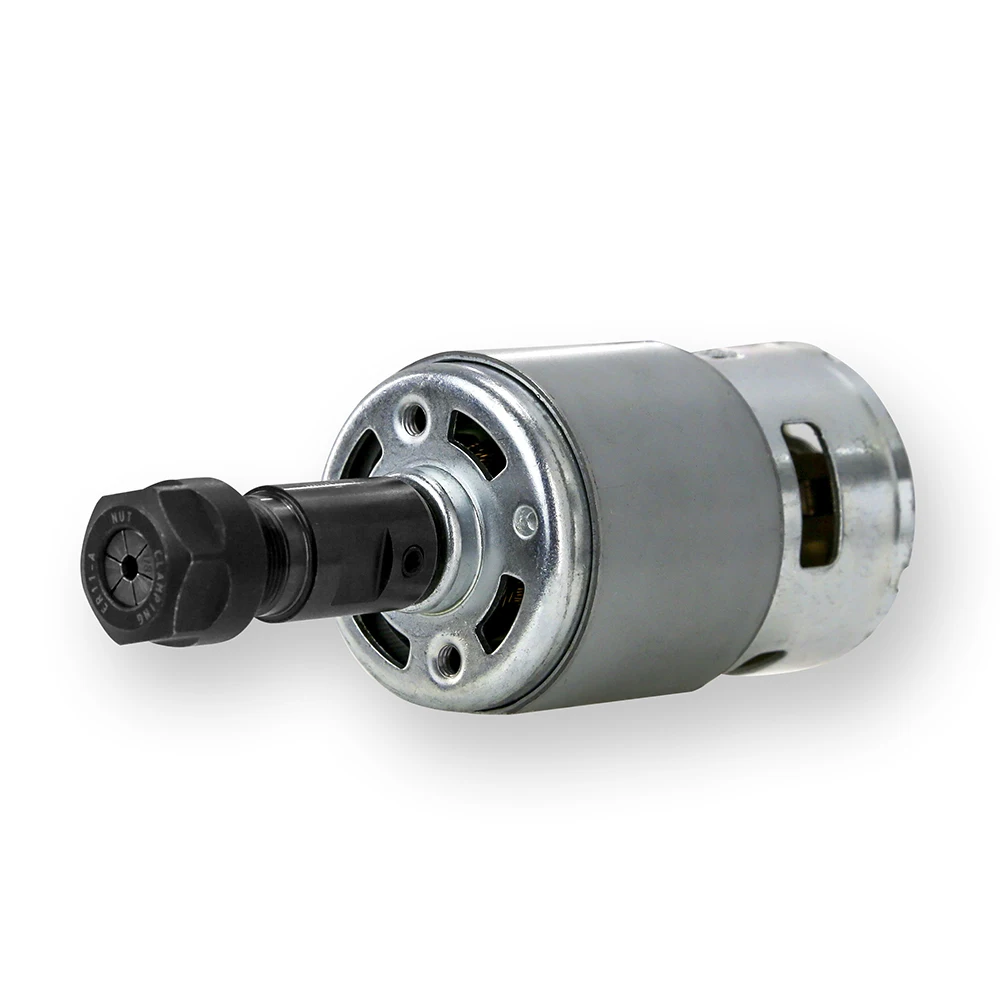

775 Spindle Motor 12V-24V DC 20000RPM Ball Bearing for CNC 1610 pro 3018



Package include :

  • 1 x 775 DC spindle motor (20000rpm)

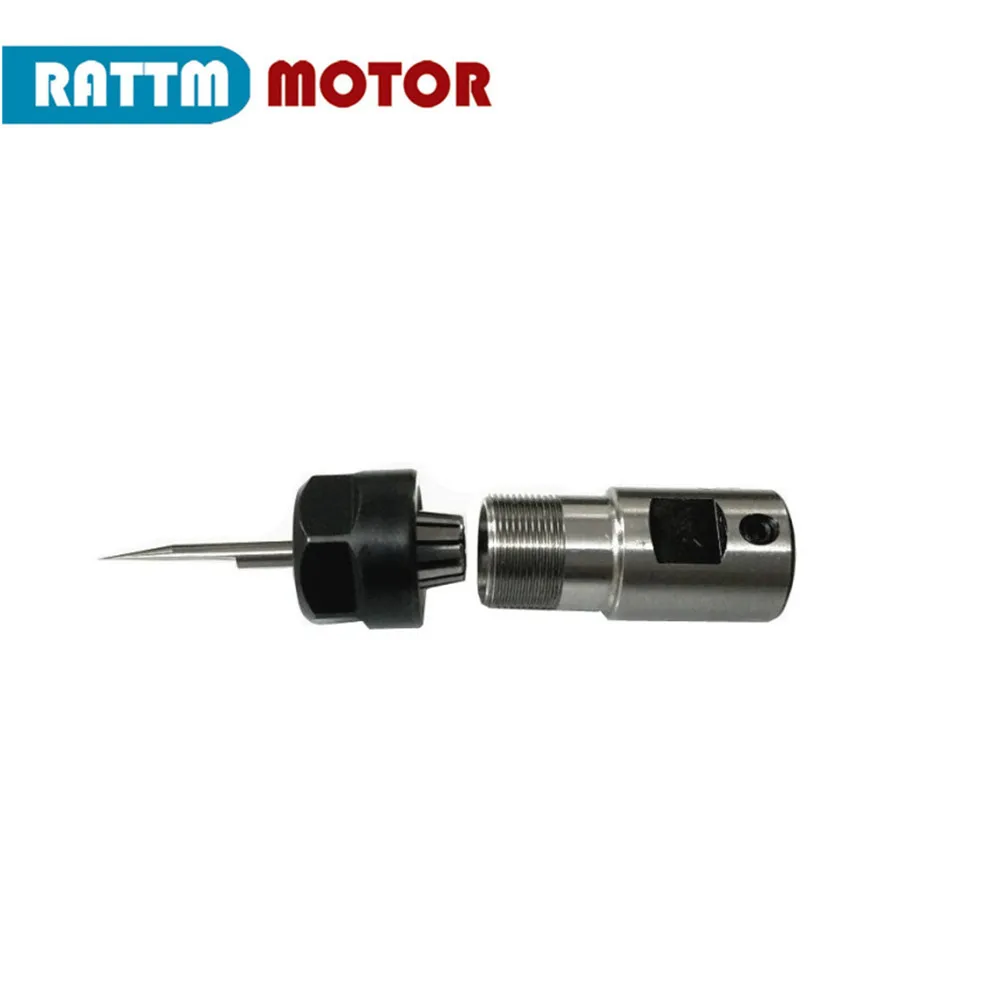

  • 1 x ER11-5mm Extension Rod

  • 1 x ER11 collet

  • 1 x 3.175mm engraving bits

Product description:

Rated Voltage: 12V-36V
Speed: 4000~20000 rev/min

12V Load Current: 1.7A (starting current 2.2A)

Stall Current: 4.7A

Load Power: 20.4W

Motor Diameter: approx. 45mm

Motor Step Height: approx. 5mm

Motor Stepped Diameter: approx. 17.4mm

Motor Length: approx. 67mm (excluding shaft)

Shaft Shaft: approx. 5mm

Axis Motor Shaft Length: approx. 16mm

Terminal Spacing: approx. 34mm

Mounting Hole Pitch: approx. 29mm

Installation Hole Diameter: M4
for 1610/ 2417/ 3018 CNC Router Machine
It is recommended to use 12-24V for longer life.
