Product Description

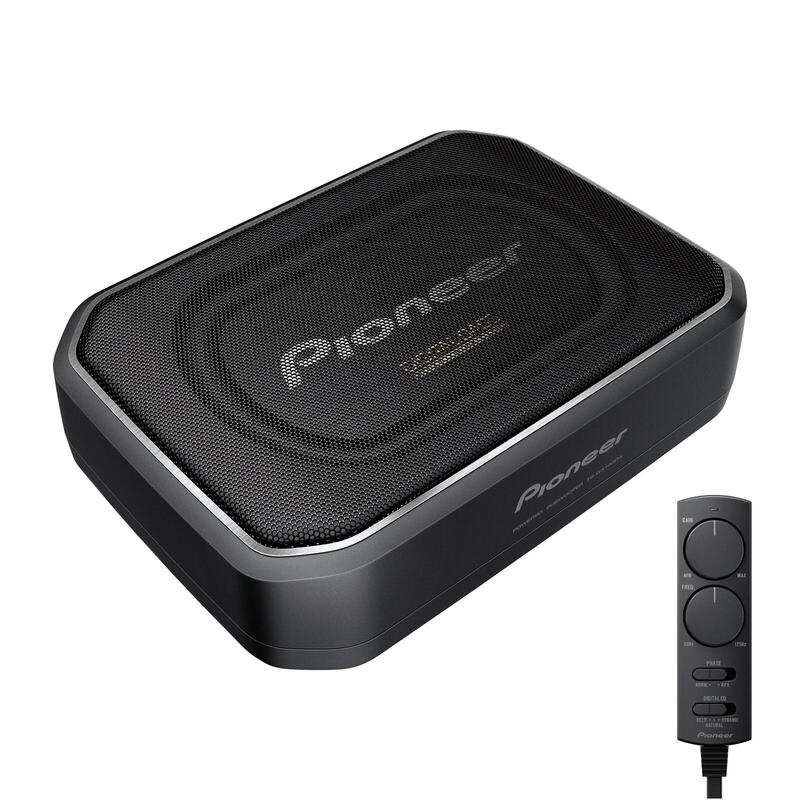

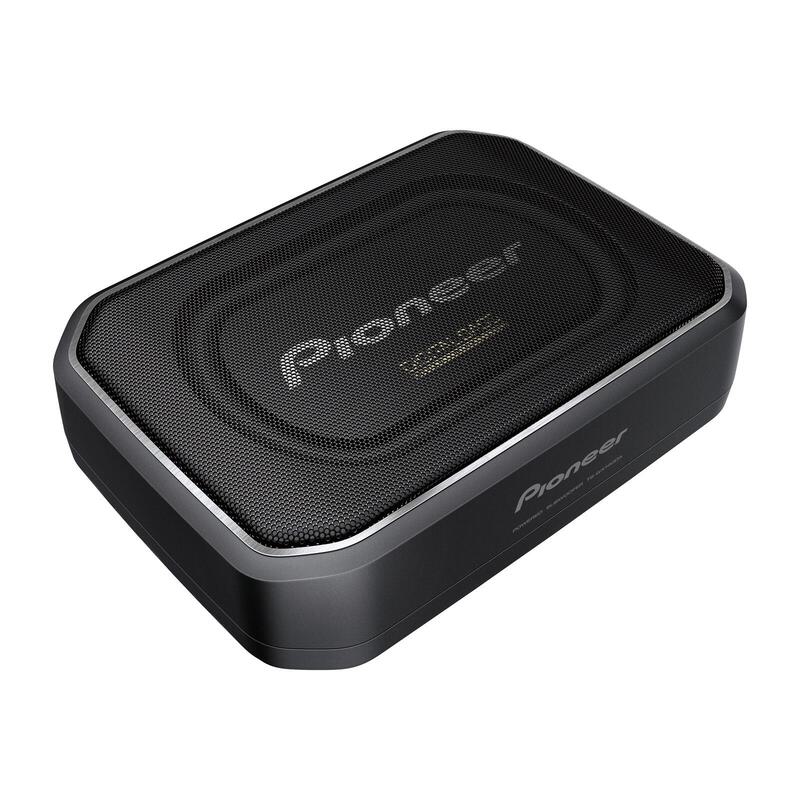

Pioneer TS-WX140DA

Space Saving Active Subwoofer with built-in Class-D Amplifier utilising DIGITAL BASS CONTROL for DEEP, NATURAL and DYNAMIC controlled bass. Easy to install thanks to its small footprint. (170 W)

Powerful Bass, without losing space.

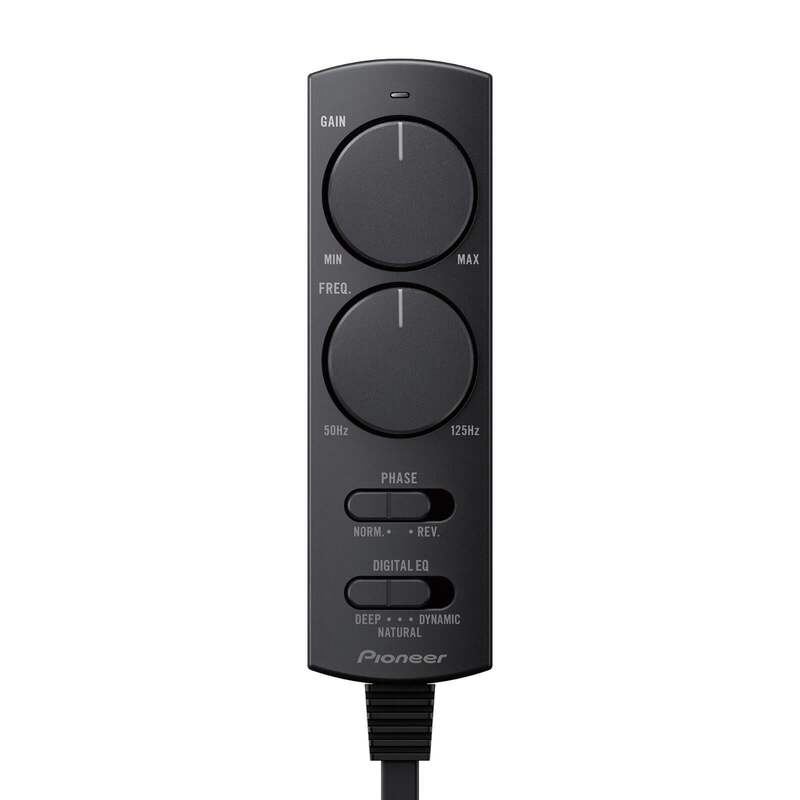

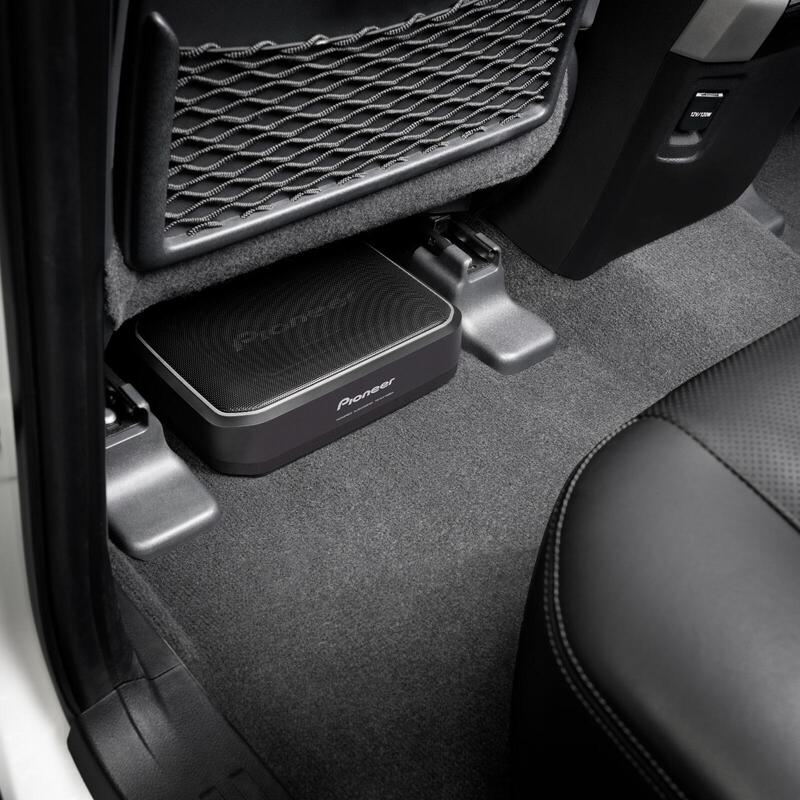

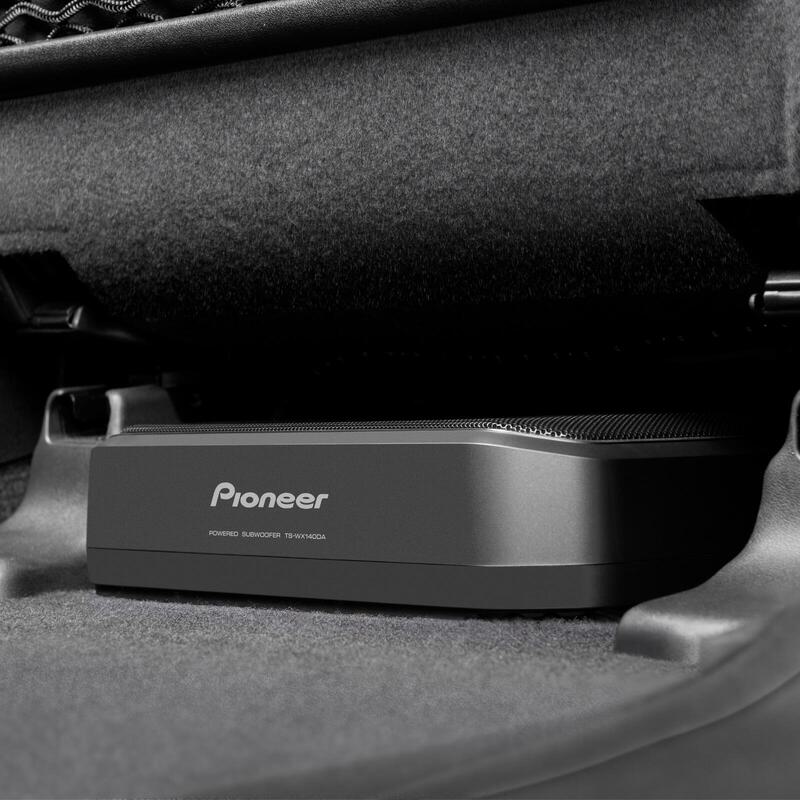

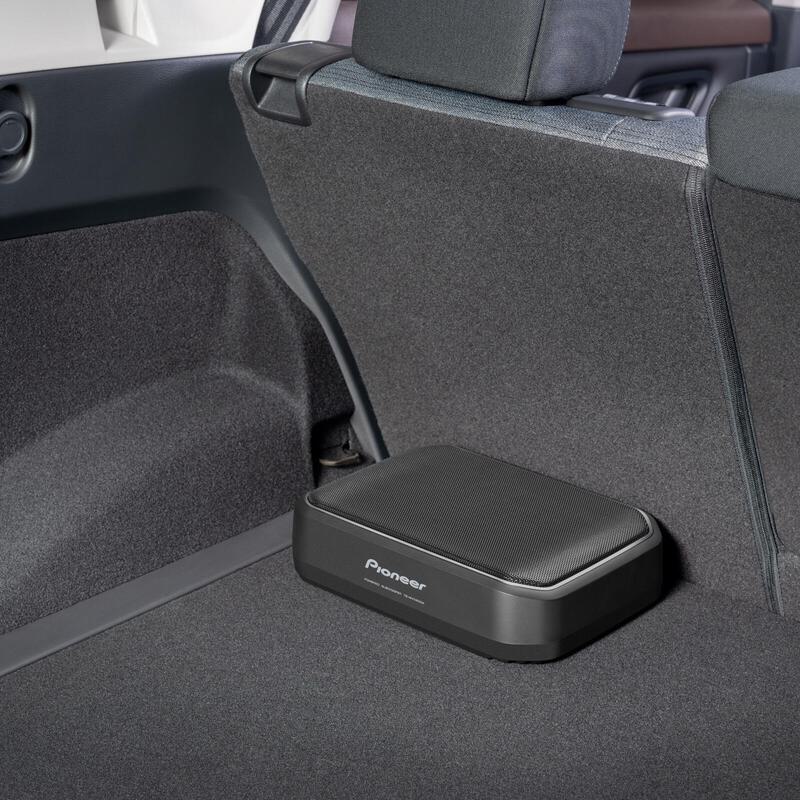

Pioneer launches another product in its generation of Class-D amplified subwoofers integrating DIGITAL BASS CONTROL. This unique feature generates three selectable Bass Modes: DEEP, NATURAL and DYNAMIC, producing 170 Watts of strong, rich, deep bass that you can feel, without giving up space. Users can easily control and customise the three bass modes directly from the supplied wired remote control, and you can easily mount the TS-WX140DA under the front seats or in the boot.

Thanks to the inclusion of Class-D technology, Pioneer’s TS-WX140DA is even easier to install, as it is capable of taking both High (Speaker Line Input) and Low (RCA Line Input) input signals, meaning you can connect it to your aftermarket or original factory fitted stereo, to easily upgrade the sound you have now.

TS-WX140DA is a small active subwoofer in a sealed enclosure, delivering 170 W Maximum power and 50 W Nominal Power.

Specifications

  • CarSoundFit App
  • DIGITAL BASS CONTROL
  • Size    20 cm
  • Maximum power    170 W
  • Continuous power output    50 W
  • Frequency response    DEEP Bass Mode: 20 - 200 Hz
  • NATURAL Bass Mode: 40 - 200 Hz
  • DYNAMIC Bass Mode: 40 - 160 Hz
  • Sensitivity    DEEP Bass Mode: 95 dB
  • NATURAL Bass Mode: 98 dB
  • DYNAMIC Bass Mode: 100 dB
  • Woofer material    Aluminium
  • Surround    Urethane
  • Voice Coil type    Copper Round Wire 4-Layer
  • Voice Coil bobbin type    Glass Imide
  • Magnets    Strontium
  • Weight    3,1 kg
  • Dimensions (W x H x D)    280 x 200 x 70

What's In The Box

  • Powered subwoofer
  • 10.5" RCA input harness (4-pin Molex plug/2 female RCAs)
  • Power harness with 16.5' power and remote turn-on leads and 6' ground wire (3-pin Molex plug)
  • 10A ATO fuse in fuse holder (installed on power wire)
  • Wired Digital Bass Control with attached 16.25' cable (RJ-45 plug)
  • 2 Mounting feet
  • Cable clamp
  • 2 Self-tapping screws (M5 x 18mm)
  • 2 Machine screws (M5 x 14mm)
  • 2 Machine screws (M3 x 8mm)
  • Adhesive backed hook-and-loop pad
  • Instruction Manual
